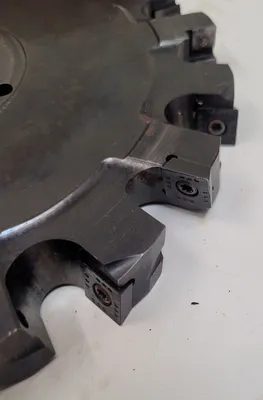

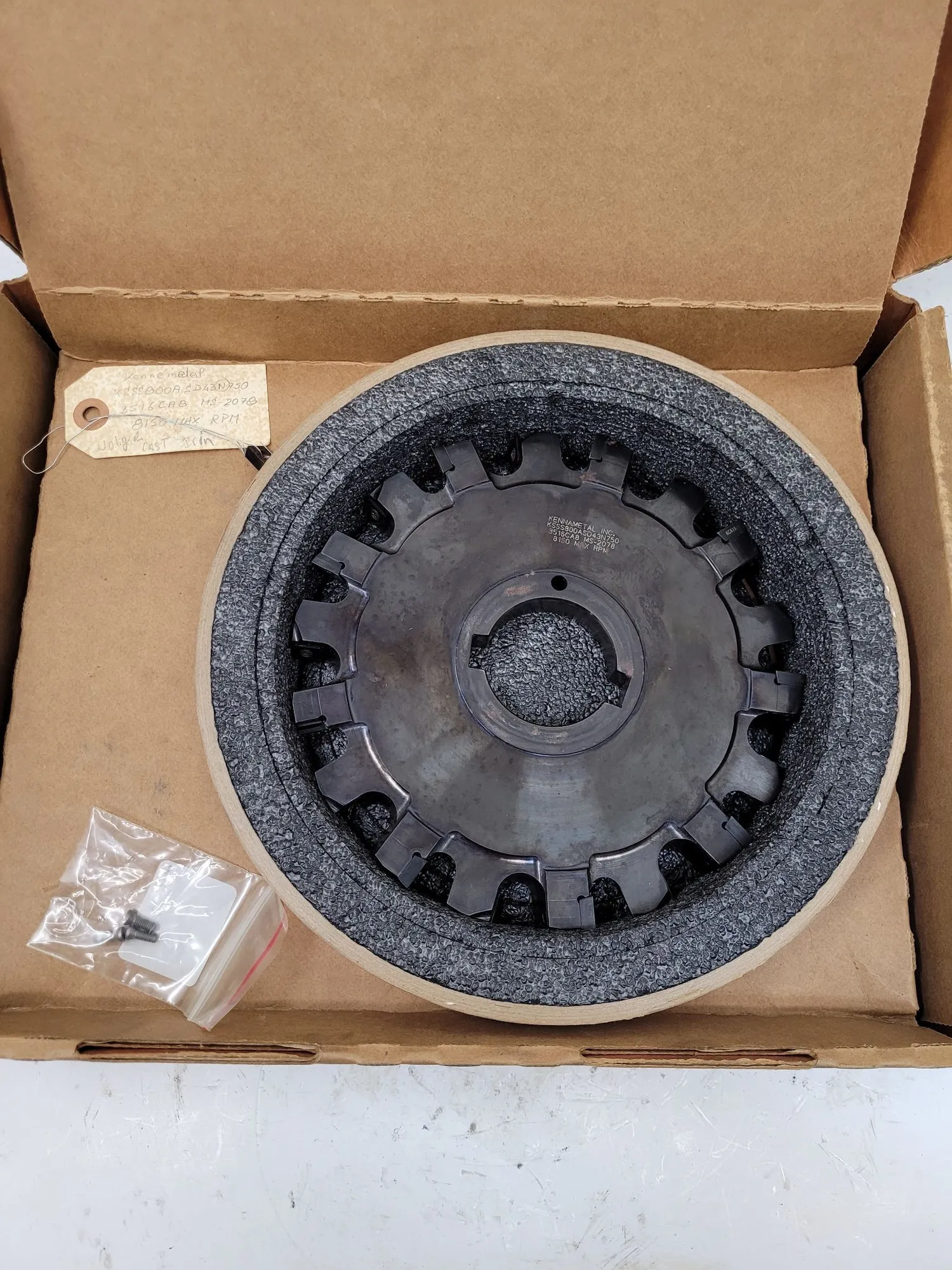

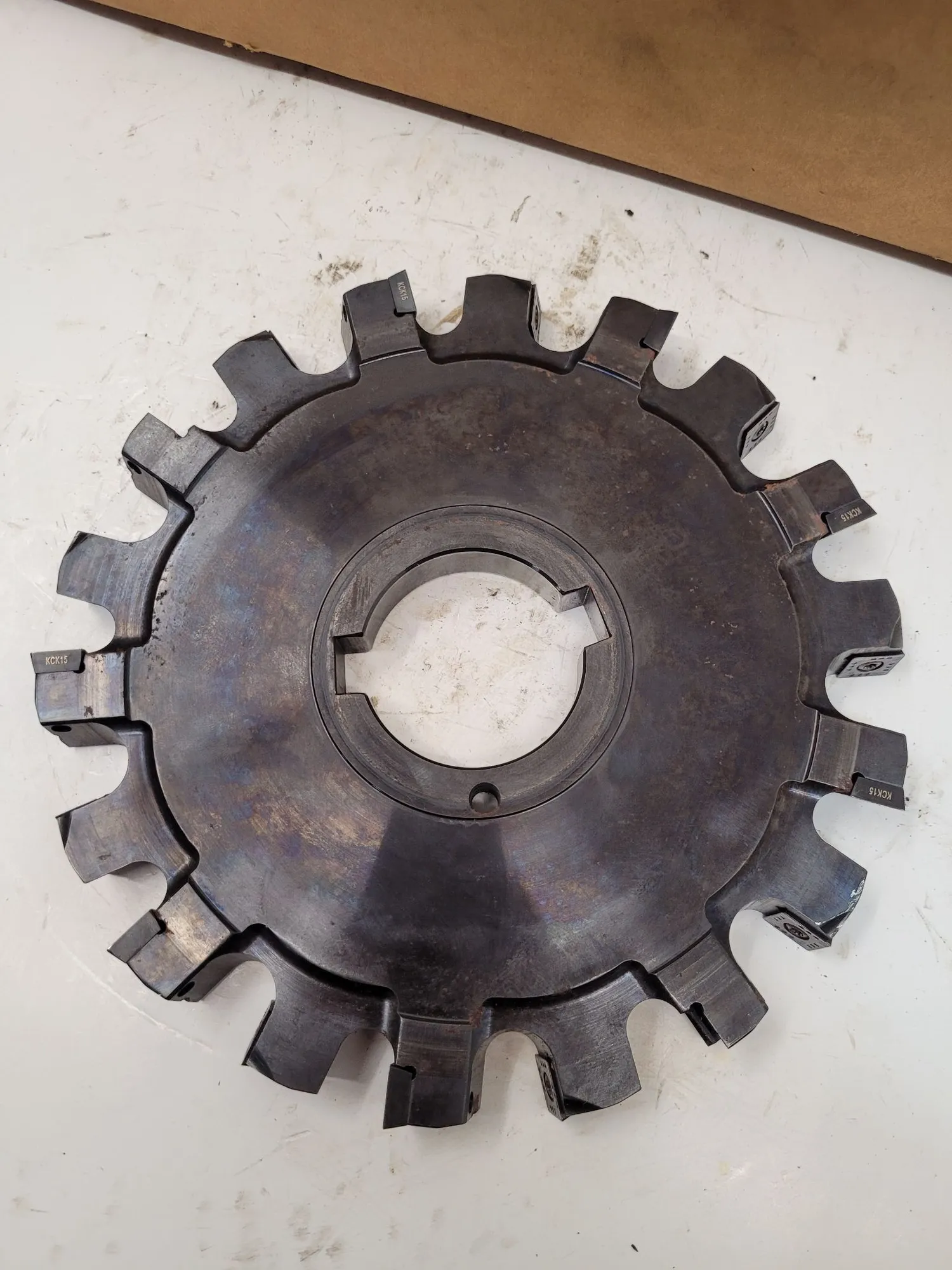

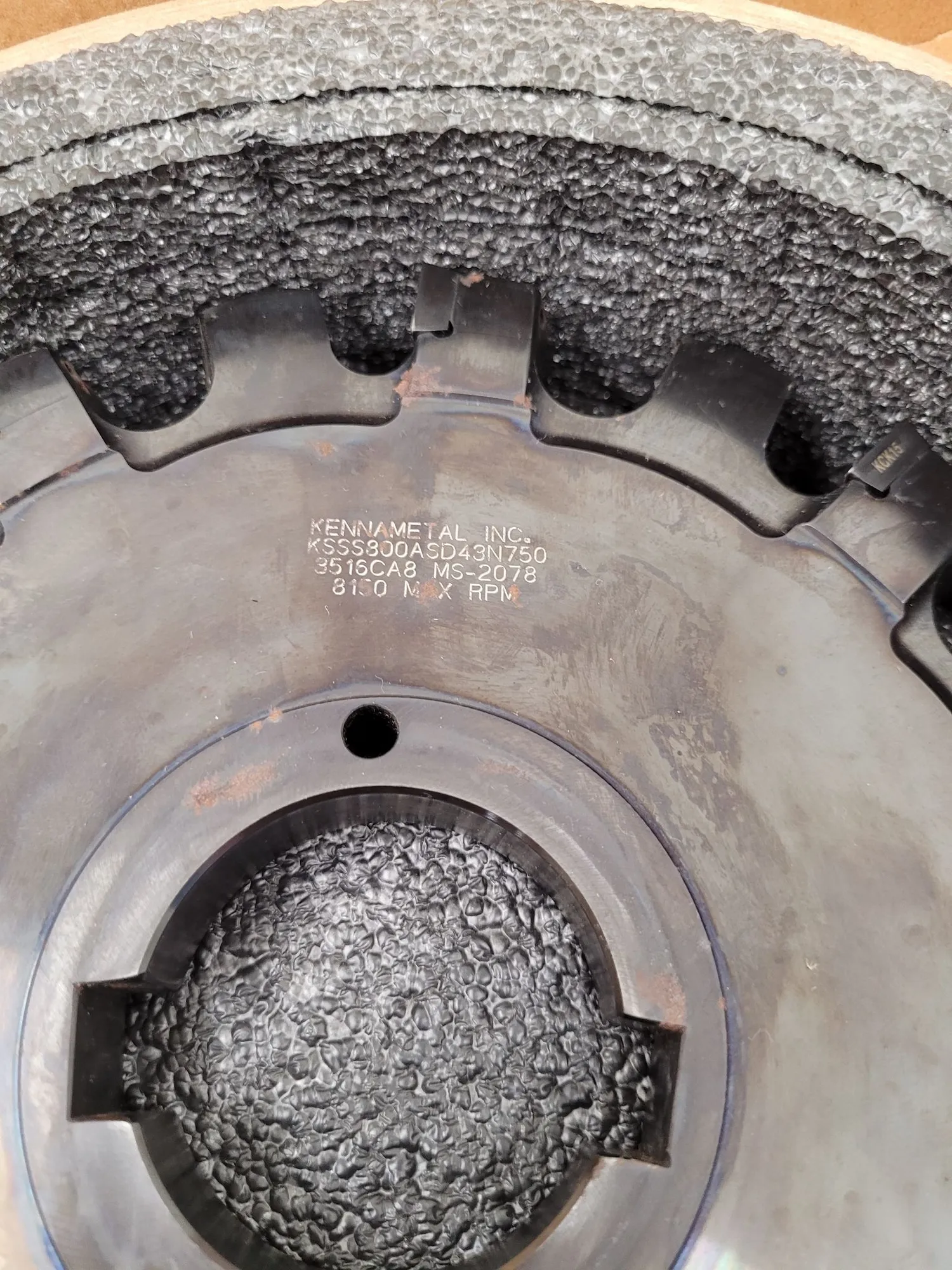

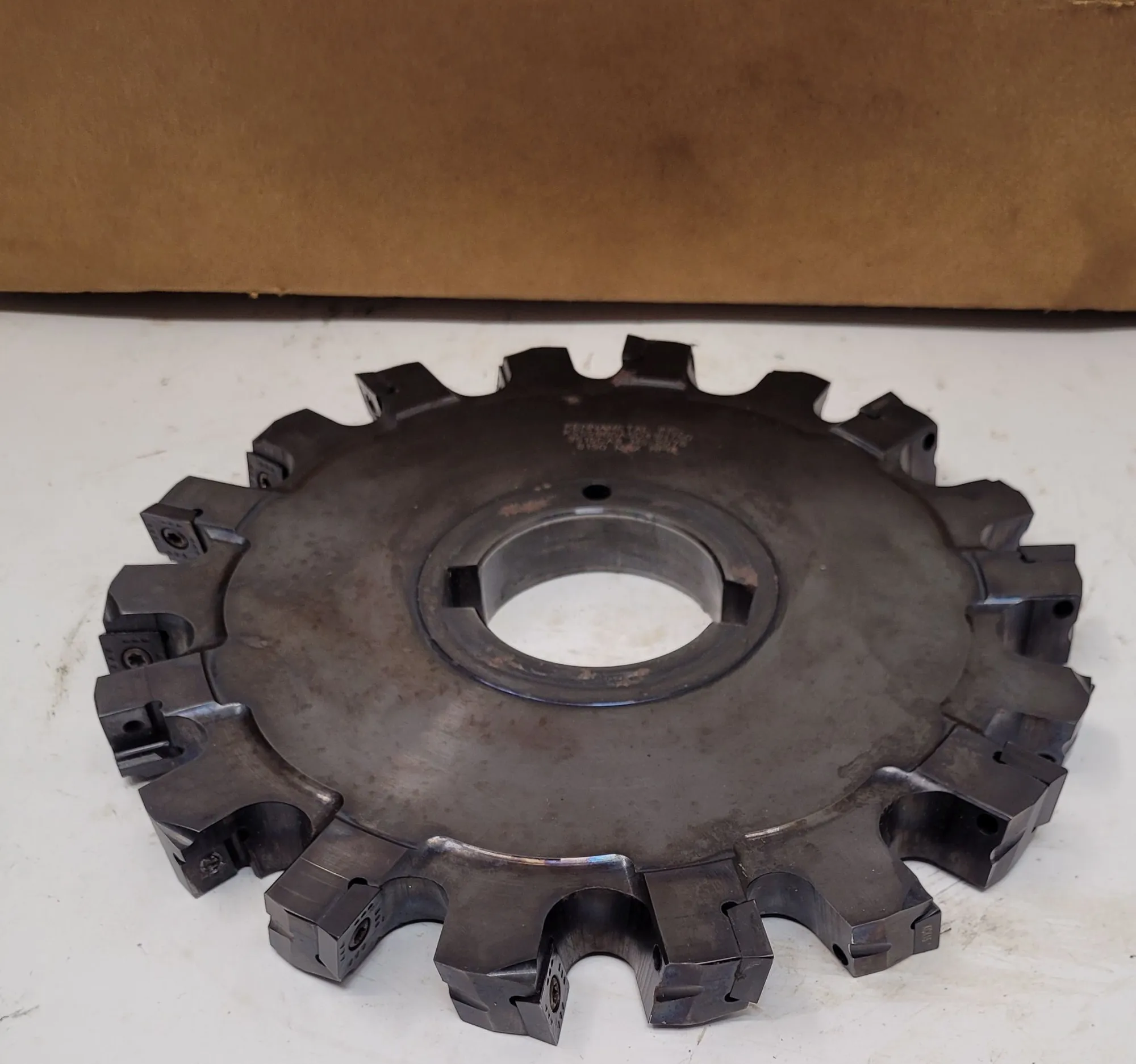

KENNAMETAL KSS800ASD43N750 - 8" SLOTTING MILLING CUTTER

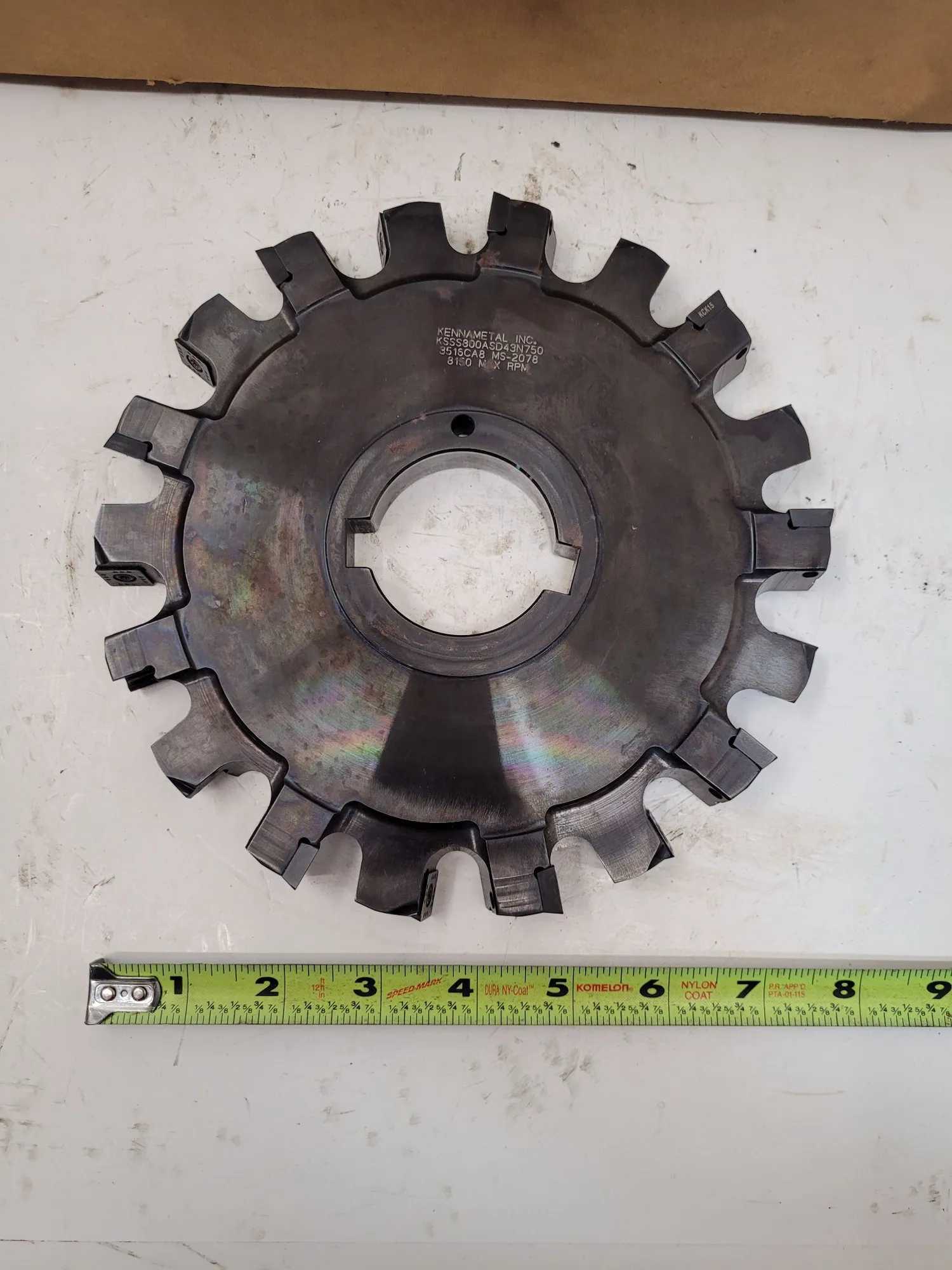

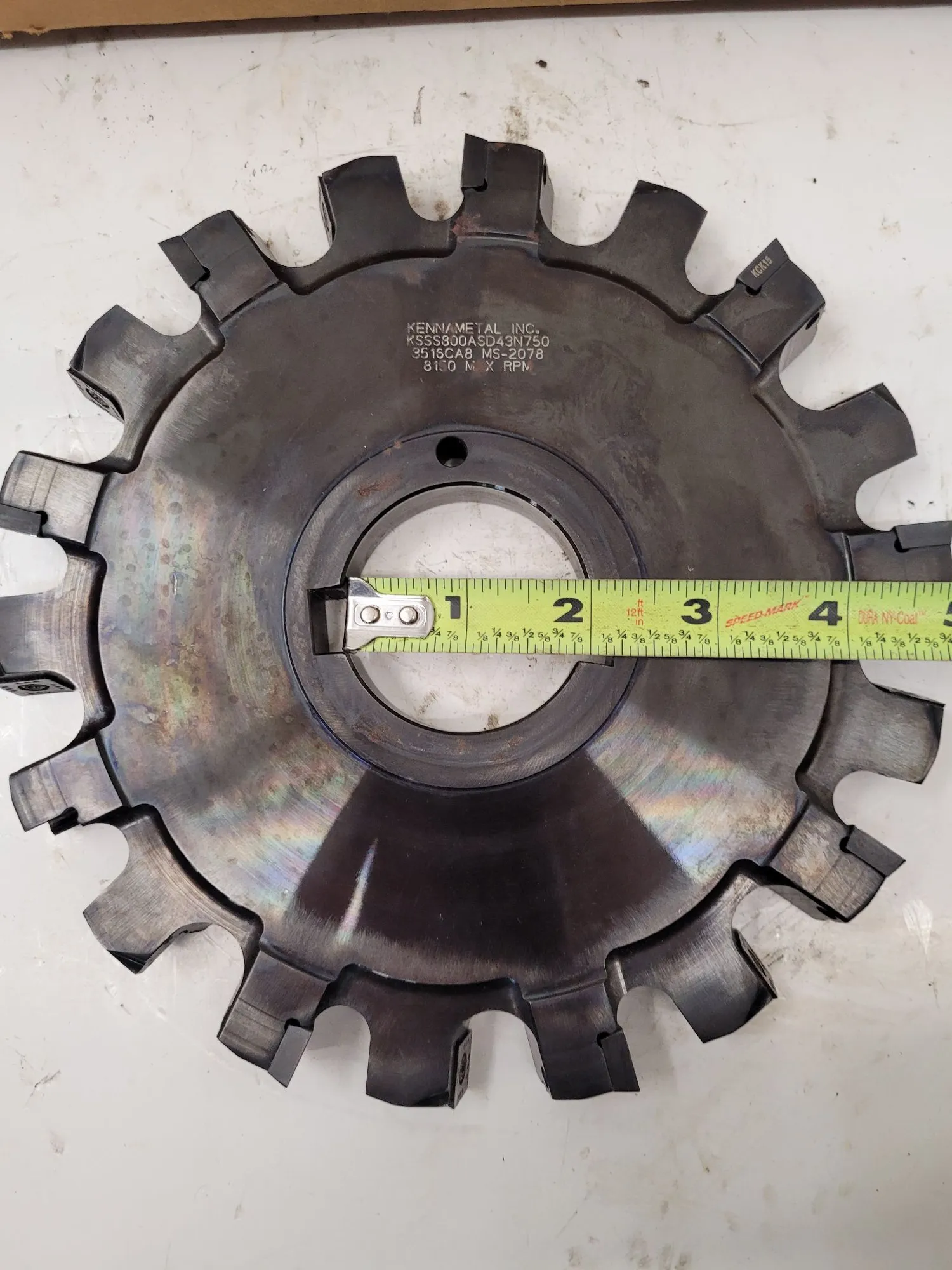

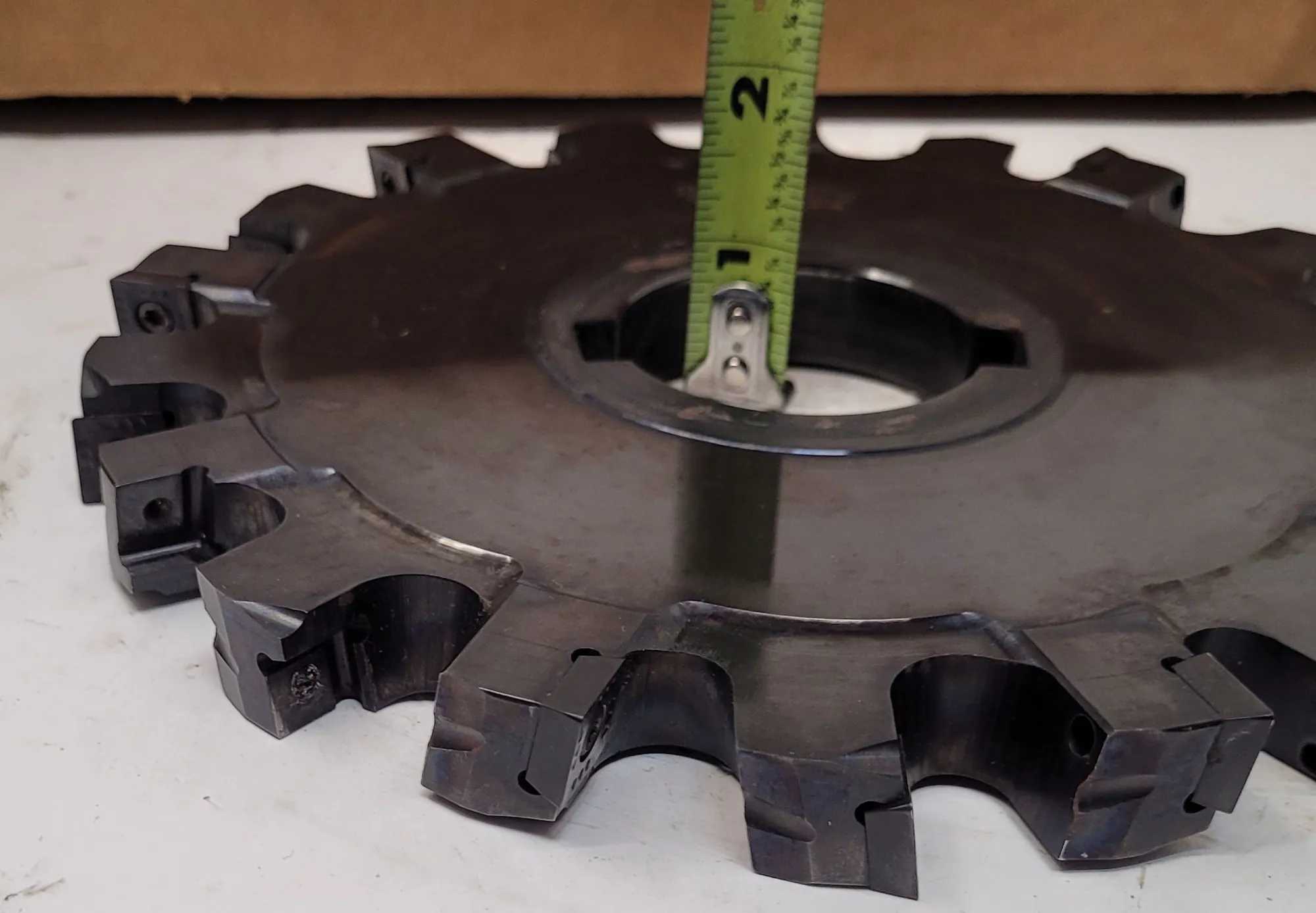

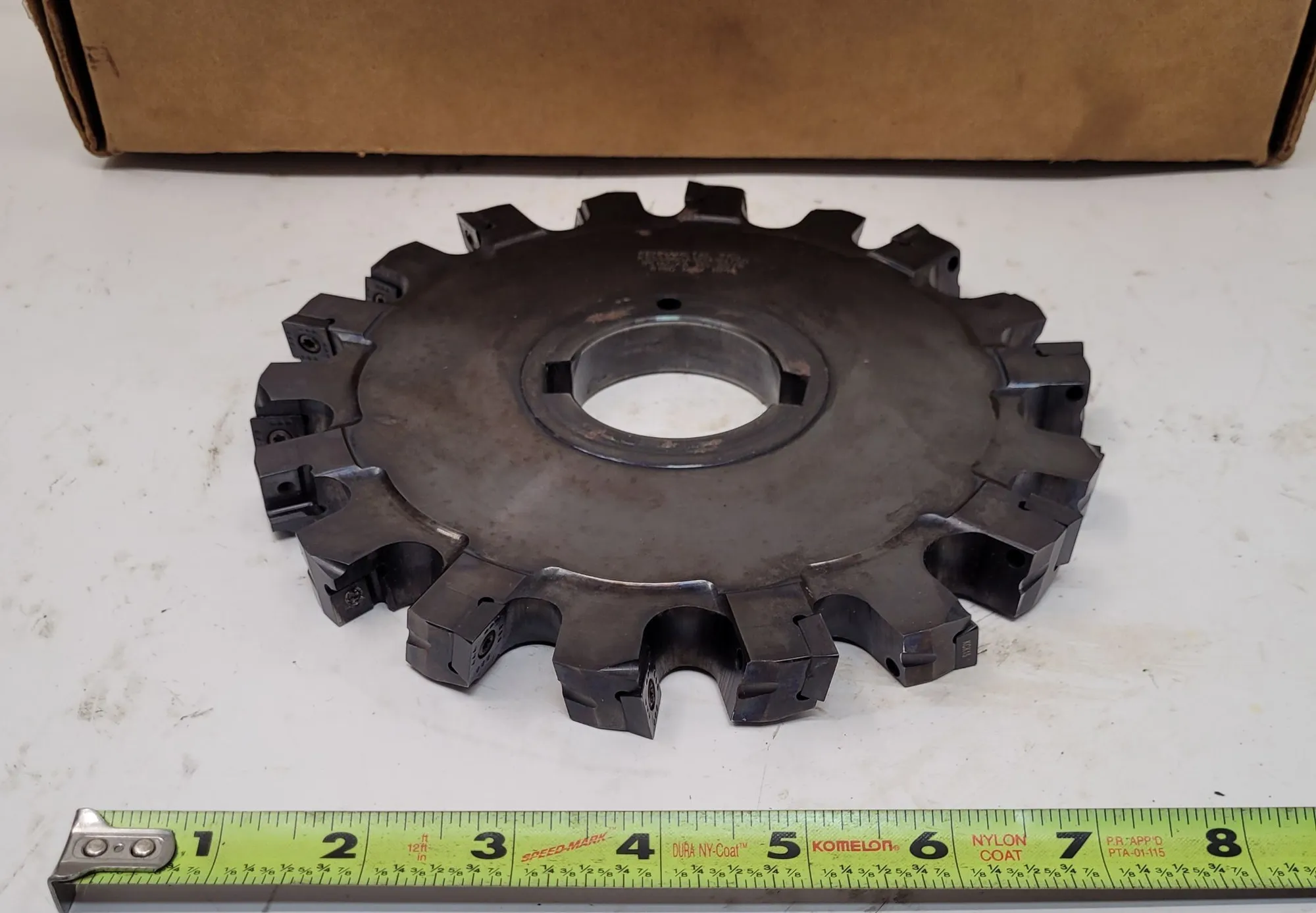

THE KENNAMETAL KSS800ASD43N750 IS AN 8-INCH SLOTTING MILLING CUTTER FEATURING 18 TEETH AND INSERTS. THE CUTTER BODY WIDTH IS 0.6660 DECIMAL INCHES. IT HAS AN ARBOR CONNECTION TYPE AND SUPPORTS A MAXIMUM DEPTH OF CUT OF 2.5420 DECIMAL INCHES. THE HOLE DIAMETER IS 2 INCHES (2.0000 DECIMAL INCHES). THE CUTTER DIAMETER IS 8.0000 DECIMAL INCHES. IT HAS A SHANK DIAMETER OF 2 INCHES (2.0000 DECIMAL INCHES) AND A HUB DIAMETER OF 2.8800 DECIMAL INCHES. THE CUTTING DIRECTION IS NEUTRAL, AND THE INSERT HOLDING METHOD IS SCREW. COMPATIBLE INSERT STYLES INCLUDE SDCW, SDPT, SDCT, AND SDET. THE RAKE IS NEUTRAL, AND THE TOOL SUPPORTS A MAXIMUM OPERATING RPM OF 8150.
