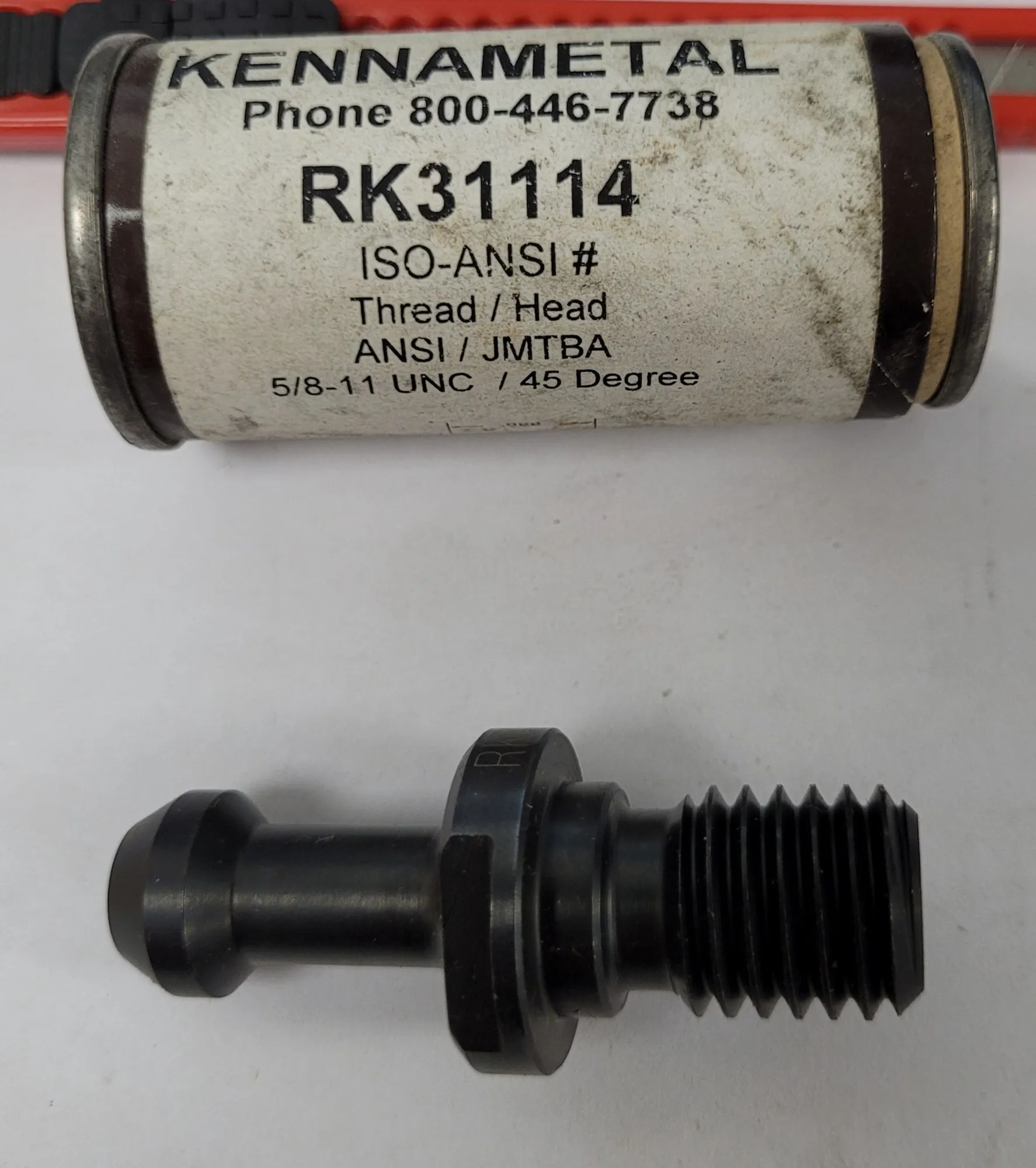

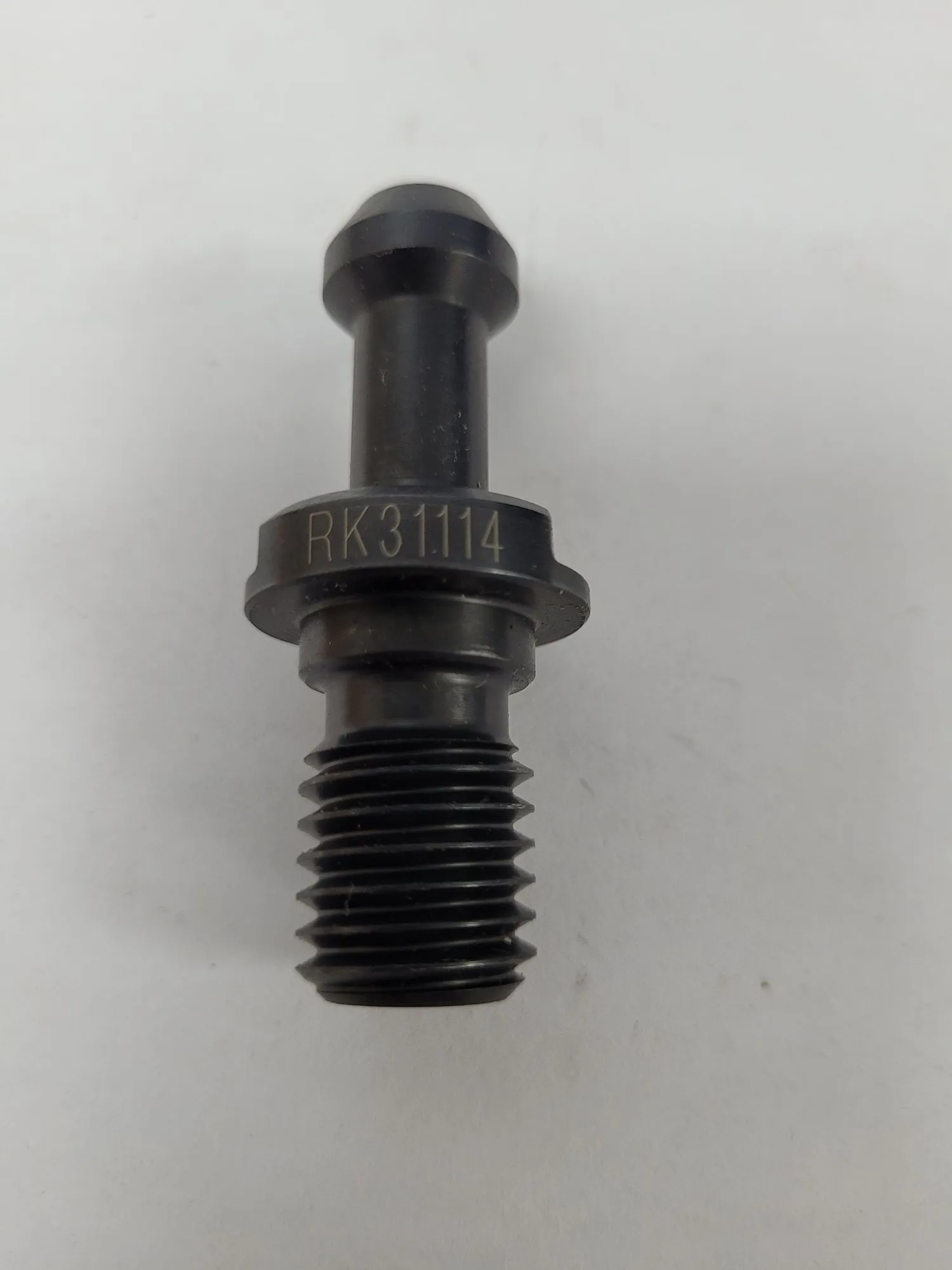

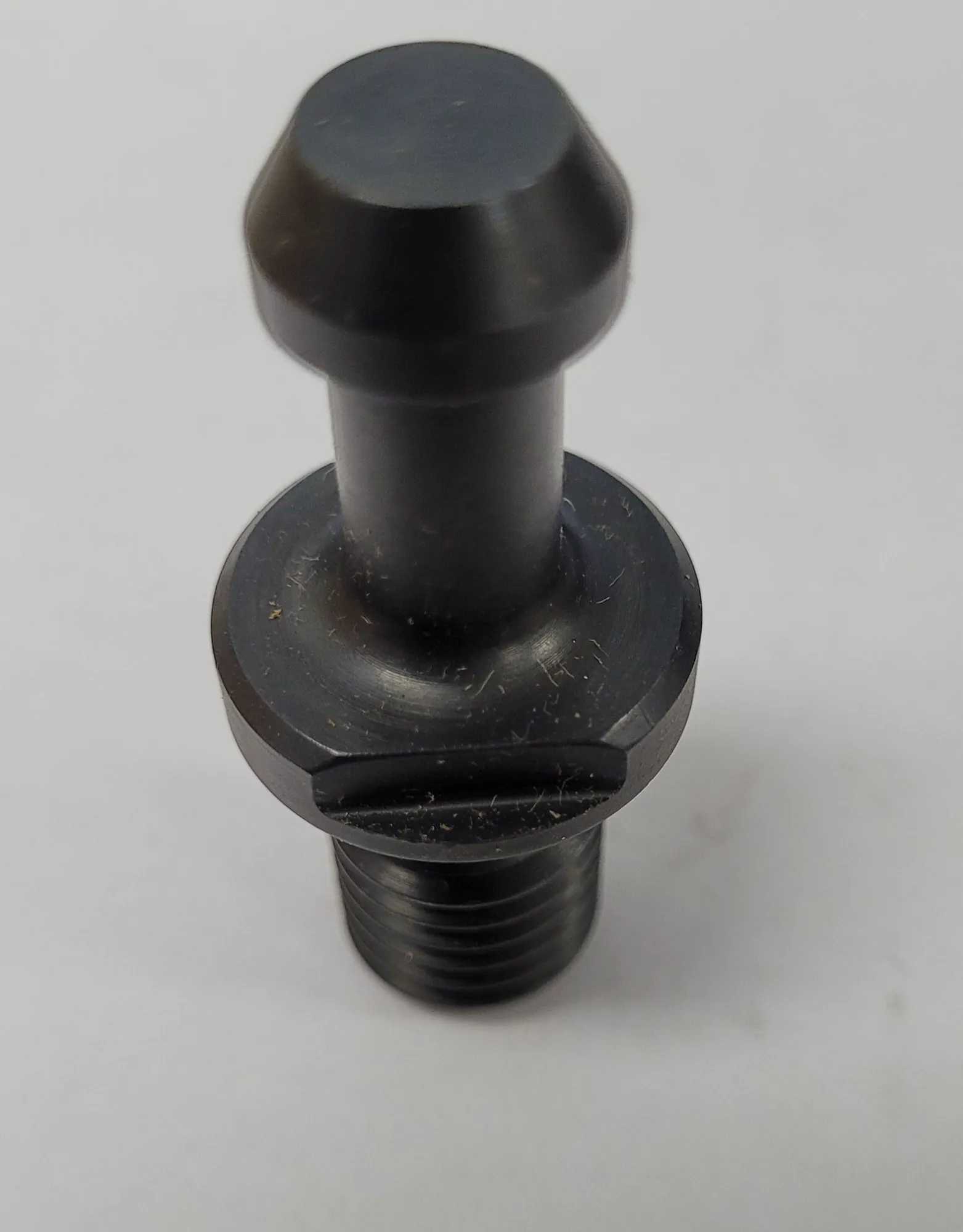

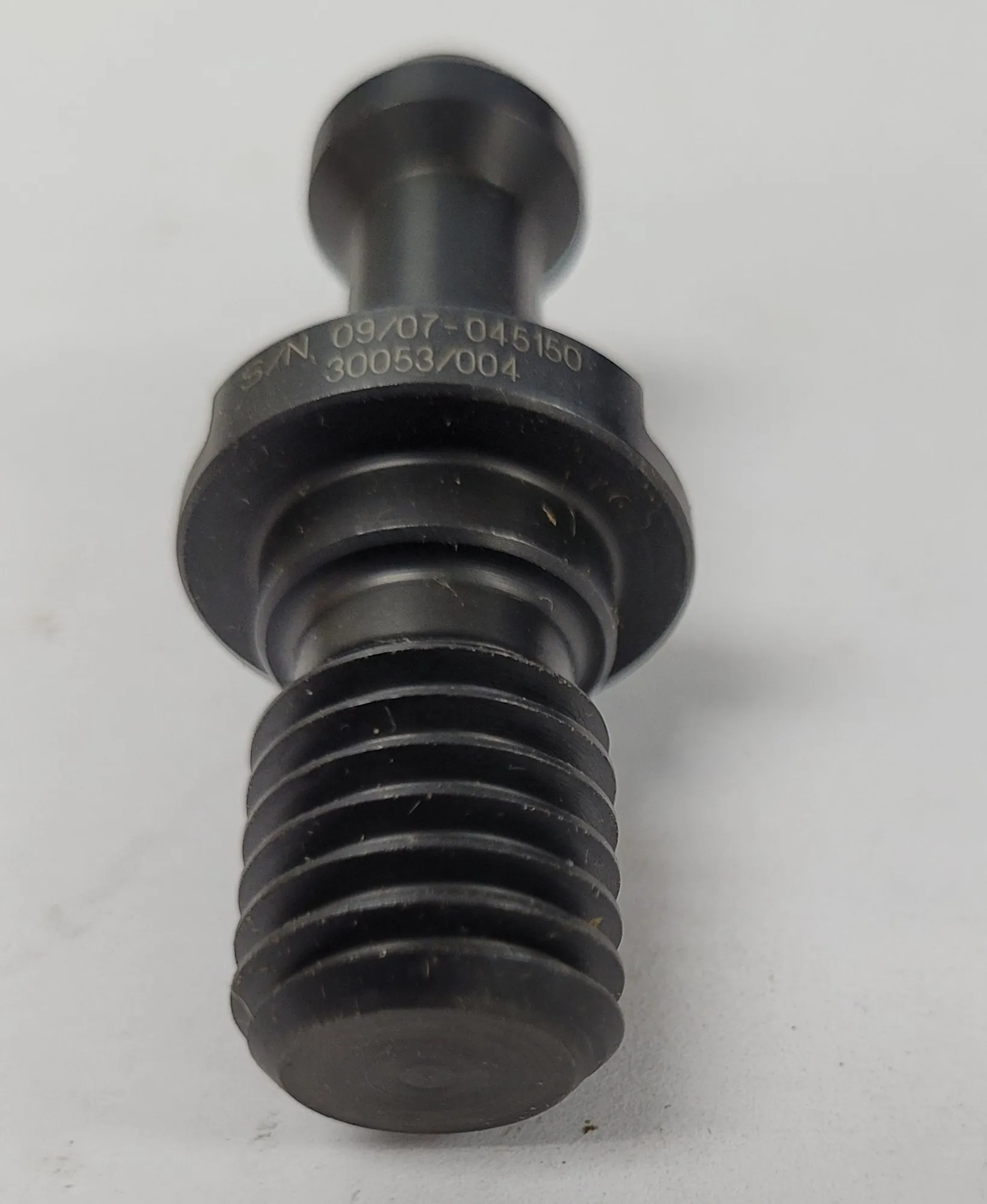

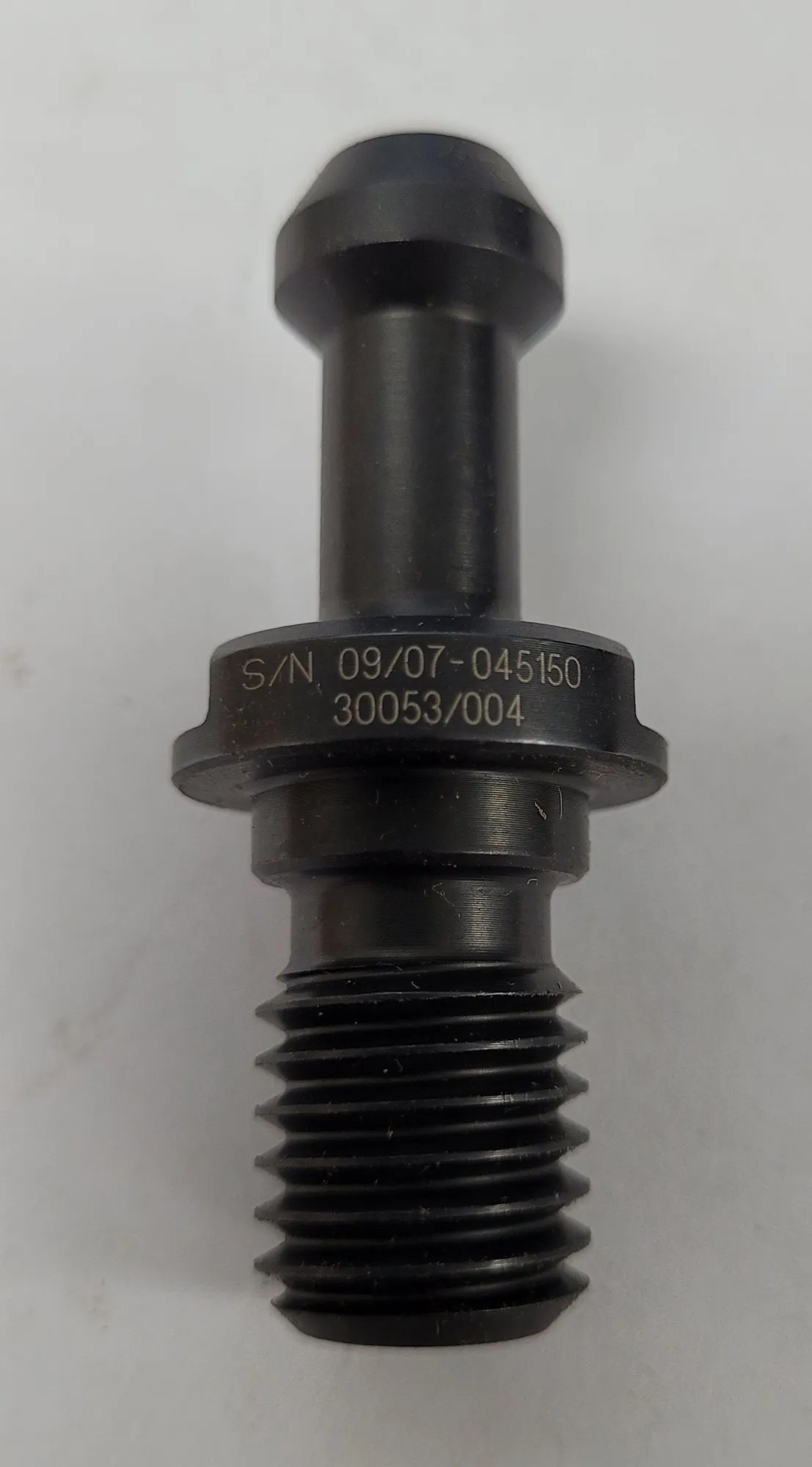

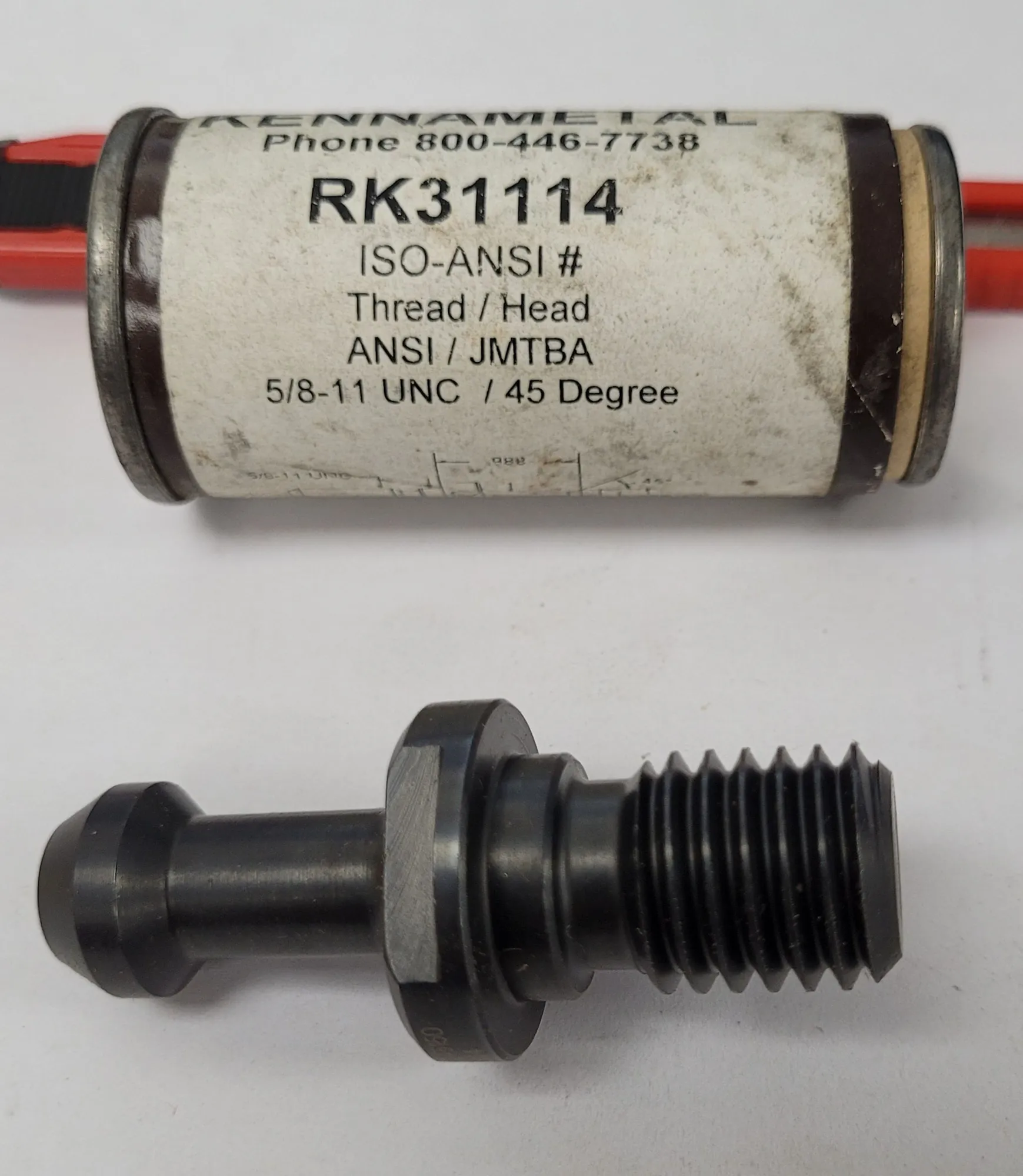

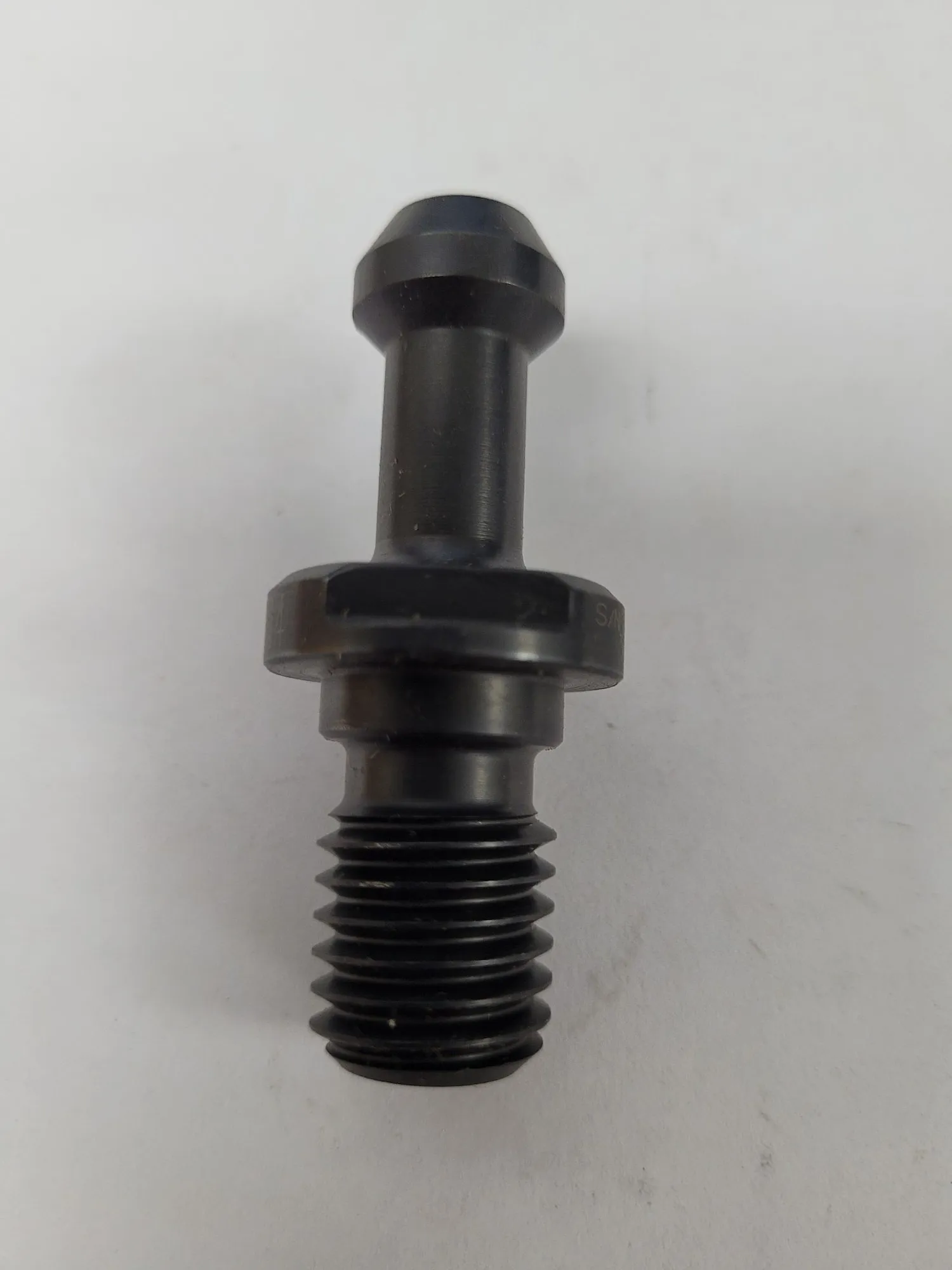

KENNAMETAL THREAD/HEAD RK31114 - 5/8-11 / 45 DEGREE

THIS IS A KENNAMETAL THREAD/HEAD, MODEL RK31114, WITH A 5/8-11 CONNECTION THREAD SIZE EXTERNAL AND A 45.000 HALF TAPER ANGLE. THE HARDWARE SYSTEM SIZE FOR THE WORKPIECE SIDE IS 40. KEY DIMENSIONS INCLUDE A BODY DIAMETER MACHINE SIDE OF 0.9380 INCHES, A NECK DIAMETER OF 0.3920 INCHES, A PILOT DIAMETER WORKPIECE SIDE OF 0.6360 INCHES, AND A HEAD DIAMETER OF 0.5890 INCHES. THE FUNCTIONAL LENGTH MEASURES 0.9880 INCHES, THE PROTRUDING LENGTH IS 1.264 INCHES, AND THE OVERALL LENGTH IS 2.250 INCHES. THIS COMPONENT IS SPECIFIED FOR USE WITH THE RKW40 WRENCH, REQUIRING A TORQUE OF 85 CATALOG FOOT POUNDS.
