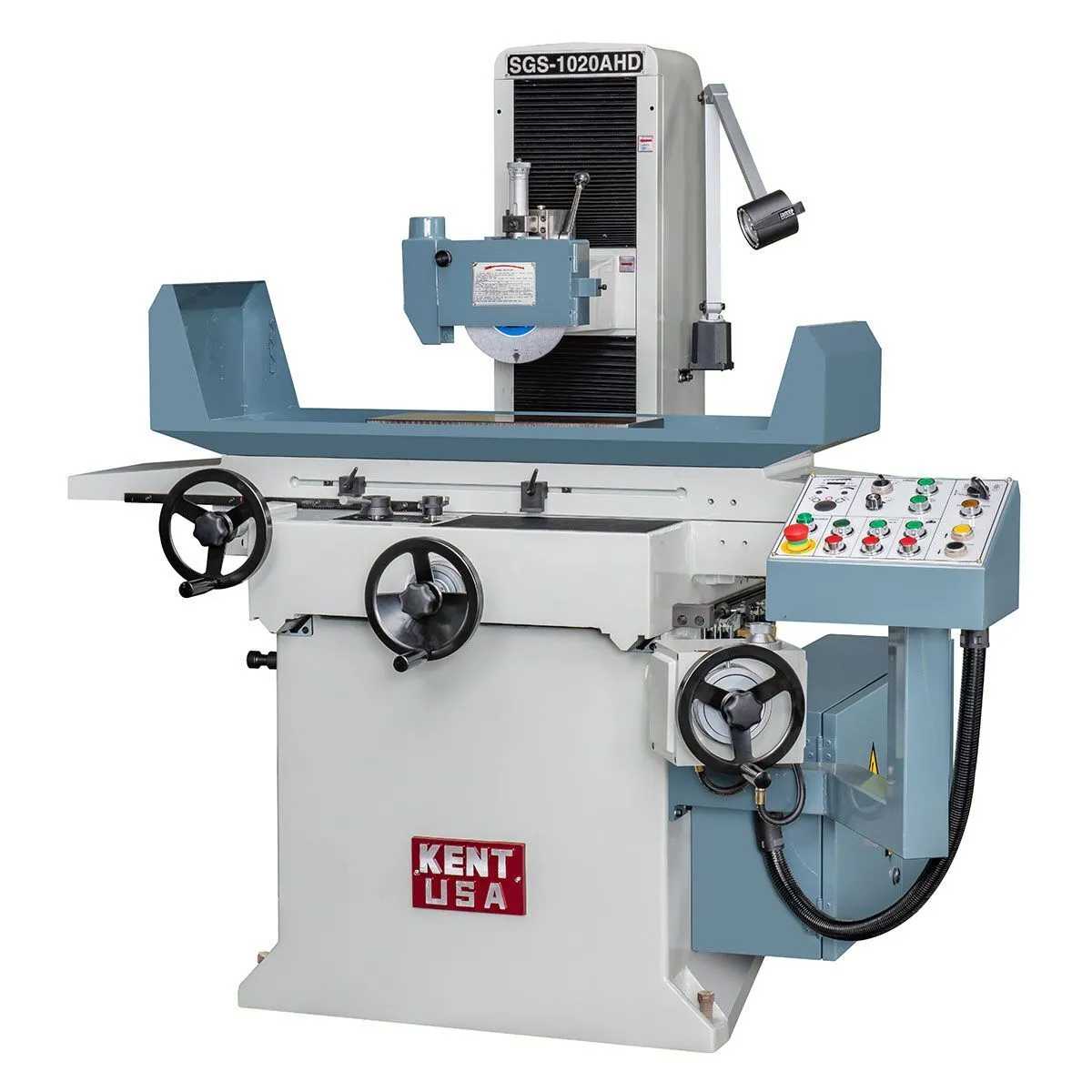

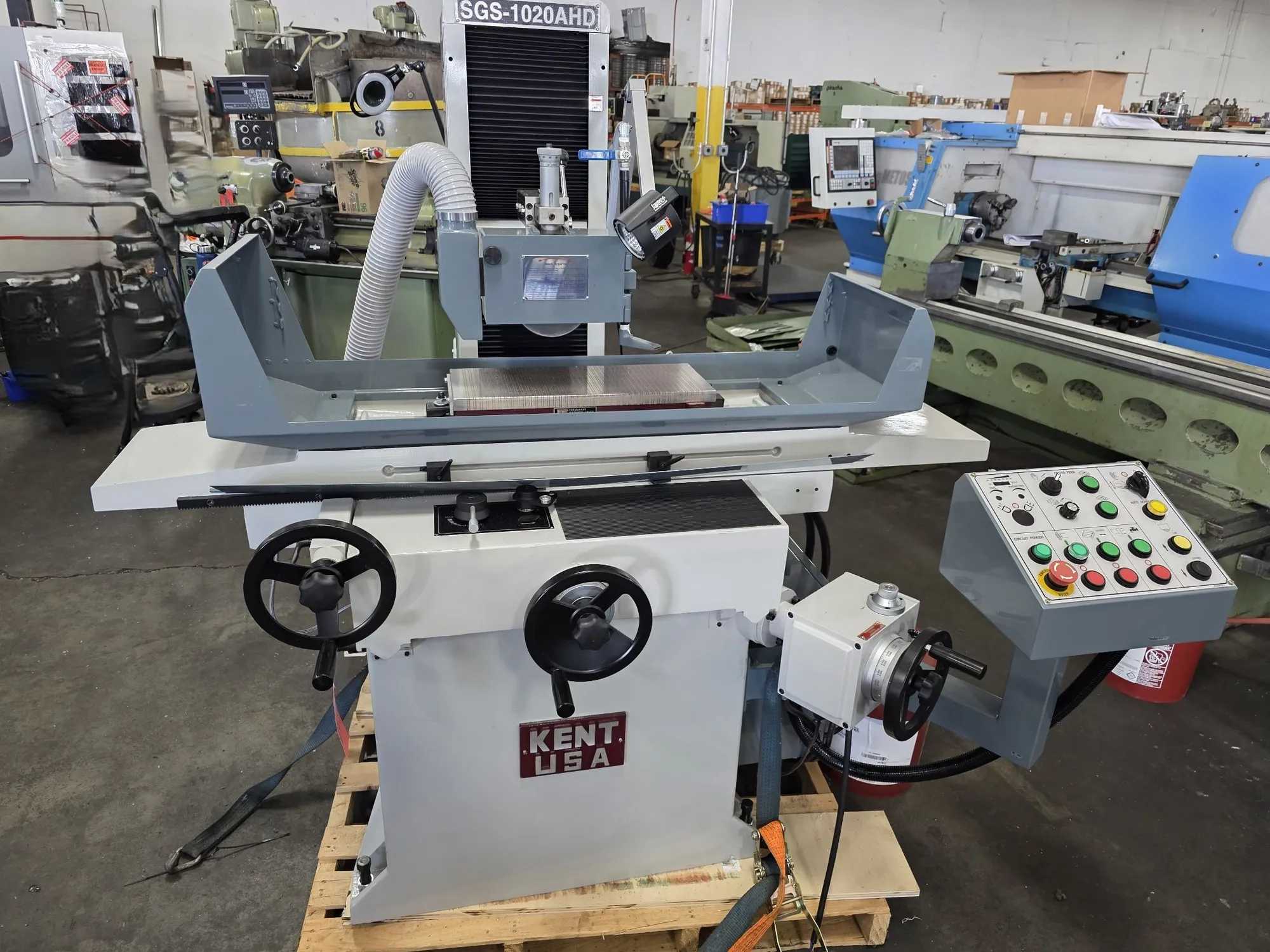

KENT 10 X 20 Surface Grinder SGS-1020 AHD - Precision Grinding Machine

The Kent SGS-1020 AHD is a surface grinder manufactured by Kent, featuring a 2023 build year and a 10" x 20" work capacity. The machine has table dimensions of 10" width by 20" length, with a maximum table travel of 22.2" and a saddle travel of 10.3". It is built with a single 9/16" T-slot. Driven by a 2 HP spindle motor operating at 3500 RPM, it accommodates a grinding wheel measuring 8" in diameter by 0.5" in width with a 1.25" hole. The maximum distance from the spindle to the table is 19.6". Precision controls include a vertical graduation of 0.0005", a vertical revolution of 0.100", and an auto downfeed increment of 0.0001" across 10 steps. Overall shipping dimensions are 82" x 67" x 81", and the unit has a total weight of 3,600 lbs.
