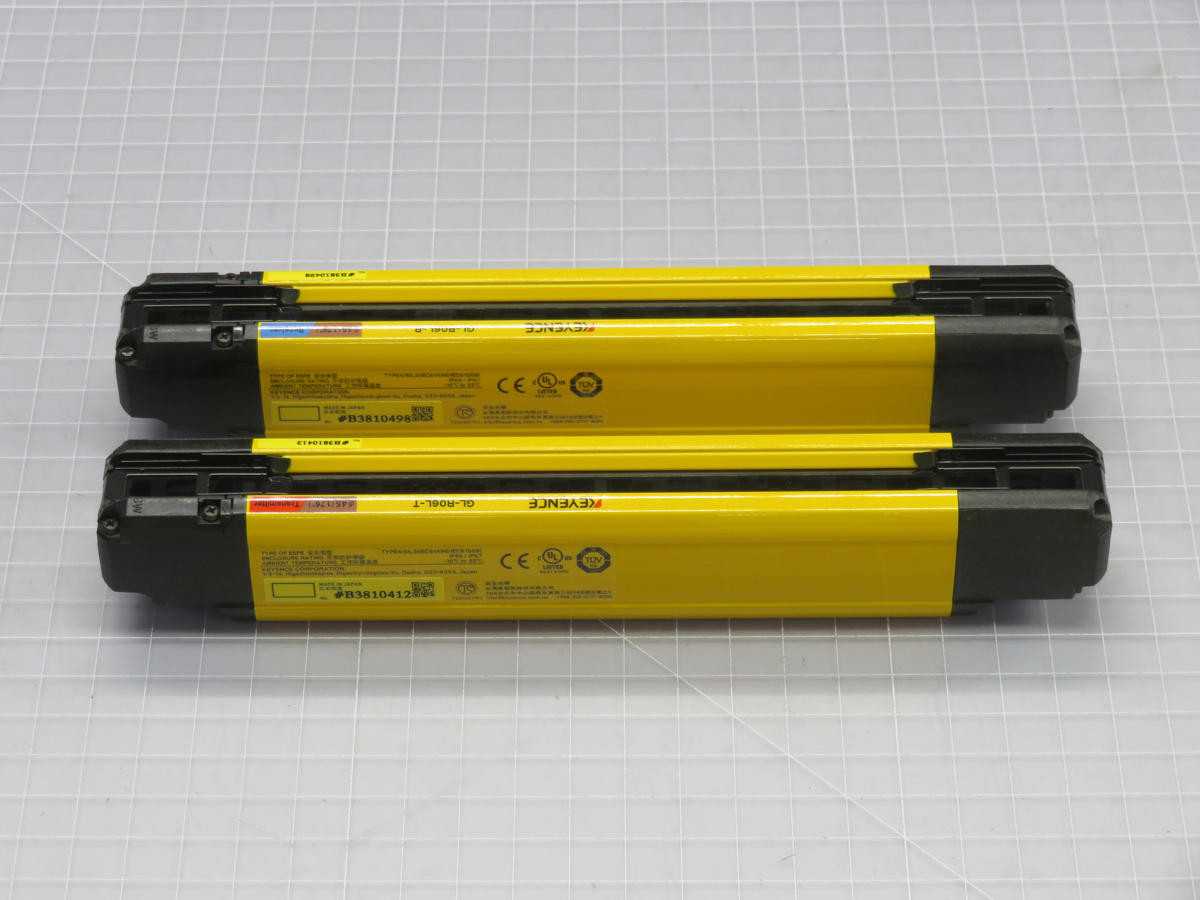

Keyence GL-R06L Safety Light Curtain, 60 mm Detect Height, 10 mm Beam Pitch, 7 Beams, 24 VDC, 7 ms Response, IP65/67

THE KEYENCE GL-R06L IS A TYPE 4 SAFETY LIGHT CURTAIN PAIR. IT FEATURES A 60 MM DETECTION HEIGHT WITH A 10 MM BEAM PITCH, UTILIZING 7 INFRARED LED BEAMS. CONFORMING TO PLE, CATEGORY 4 ACCORDING TO ISO 13849-1 AND SIL3 ACCORDING TO IEC 61508, THE SYSTEM ENSURES HIGH SAFETY INTEGRITY. THE UNIT OPERATES ON A 24 VDC ±10% POWER SUPPLY, WITH A MAXIMUM RESPONSE TIME OF 7 MS. OUTPUTS CONSIST OF TWO NPN/PNP SELECTABLE OPEN COLLECTOR CHANNELS, RATED UP TO 30 VDC AND 500 MA. ITS ROBUST CONSTRUCTION INCORPORATES AN ALUMINUM ALLOY HOUSING AND A POLYCARBONATE FRONT COVER, ACHIEVING AN IP65/IP67 ENCLOSURE RATING AND NEMA TYPE 13. THE OPERATING AMBIENT TEMPERATURE RANGE IS -10 TO +55 °C.
