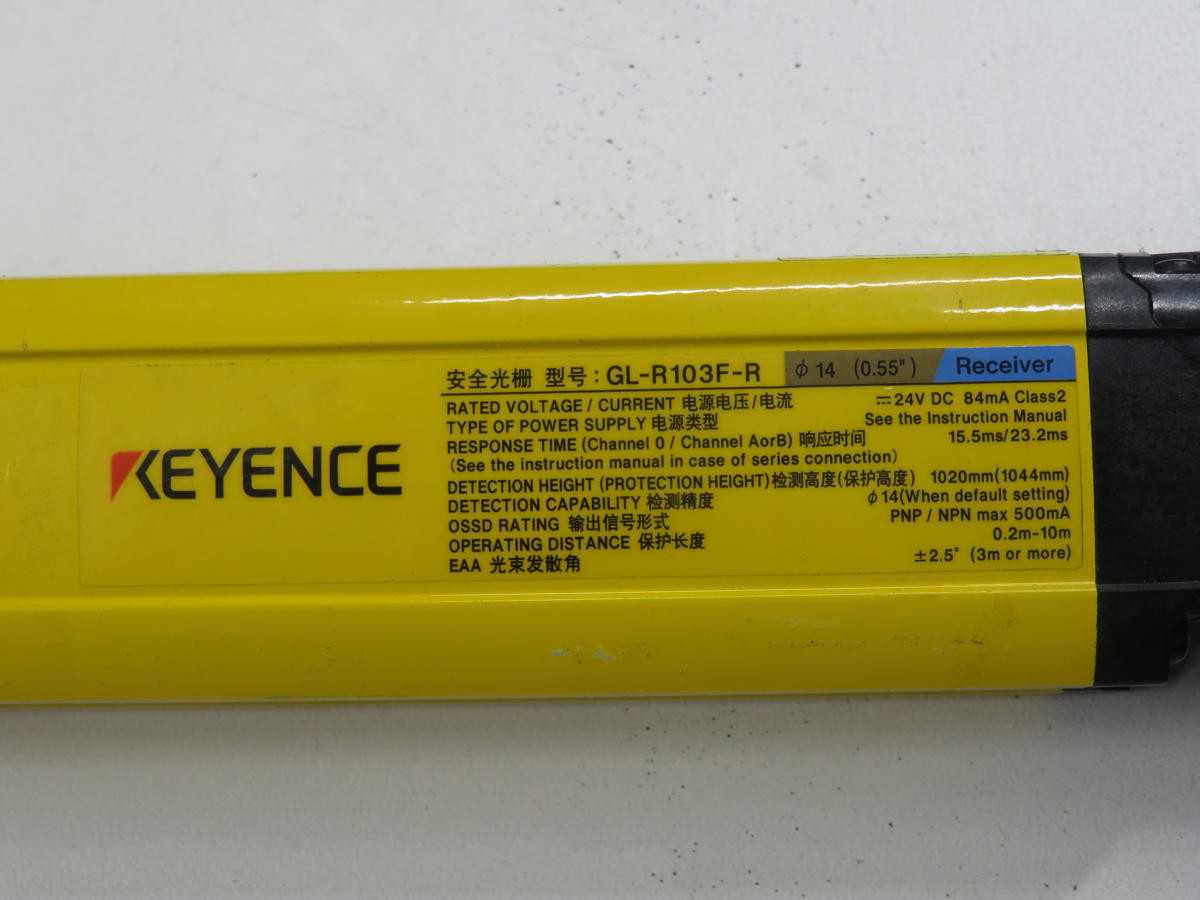

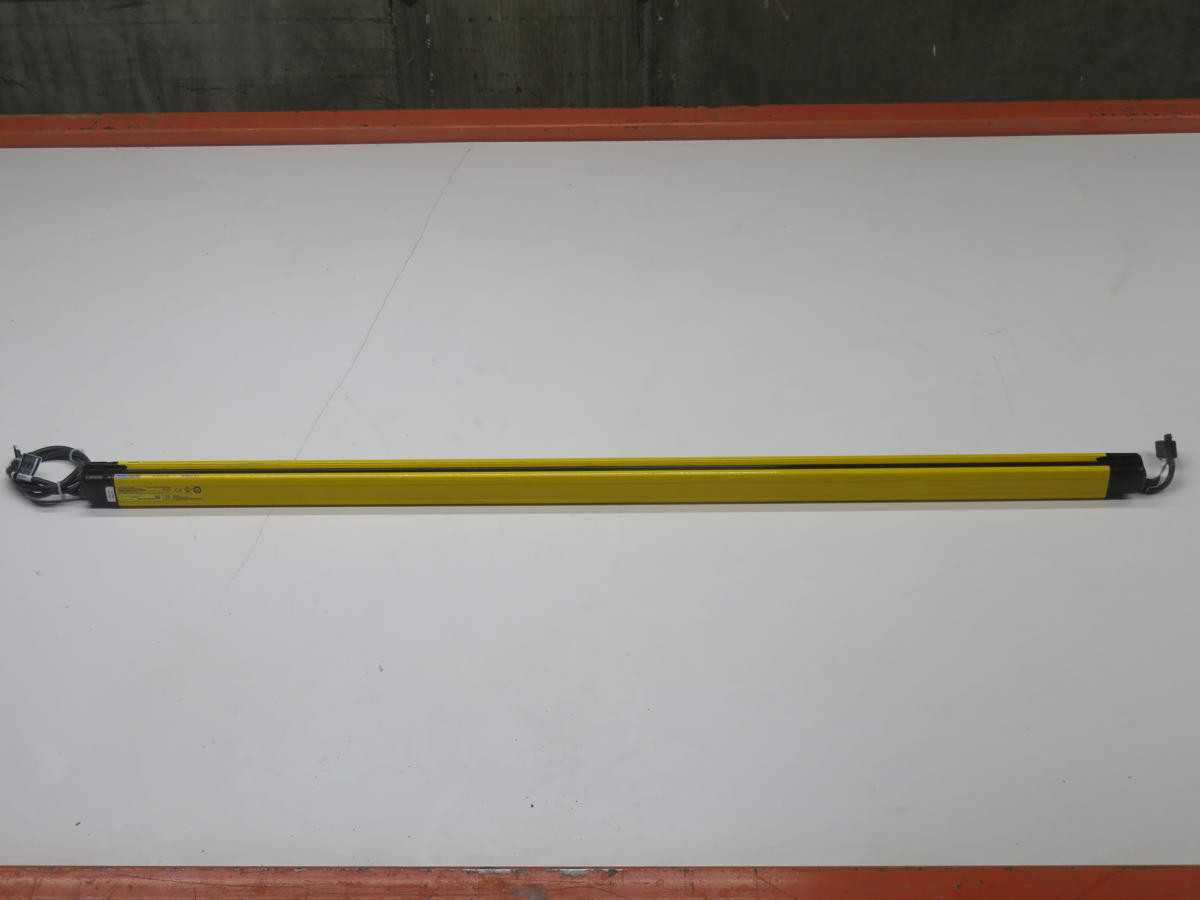

KEYENCE GL-R103F-R CURTAIN SENSORS, 14 MM RESOLUTION, 1030 MM HEIGHT, 13 MS RESPONSE

THE KEYENCE GL-R103F-R IS A TYPE 4 SAFETY LIGHT CURTAIN RECEIVER DESIGNED FOR FINGER PROTECTION APPLICATIONS, COMPLIANT WITH IEC 61496-1, ISO 13849-1 (PL E / SAFETY CATEGORY 4), AND IEC 61508 (SIL 3). IT FEATURES A 14 MM RESOLUTION, PROVIDING A PROTECTION HEIGHT OF 1030 MM. THE SYSTEM OPERATES WITH A SENSING RANGE SPANNING FROM 0.3 TO 9 METERS AND OFFERS A MAXIMUM RESPONSE TIME OF 13 MILLISECONDS. ELECTRICAL SPECIFICATIONS INCLUDE A 24 VDC ±10% POWER SUPPLY REQUIREMENT. OUTPUTS ARE MANAGED VIA TWO PNP OPEN COLLECTOR OSSD CHANNELS, RATED FOR A MAXIMUM OF 30 VDC AND 500 MA. THE ROBUST DESIGN INCORPORATES AN IP65/IP67 ENCLOSURE RATING, AN ALUMINUM ALLOY HOUSING, AND A POLYCARBONATE FRONT COVER, ALLOWING FOR OPERATION WITHIN AN AMBIENT TEMPERATURE RANGE OF -10 TO +55 °C. OPTICAL SYNCHRONIZATION FACILITATES ITS OPERATION.
