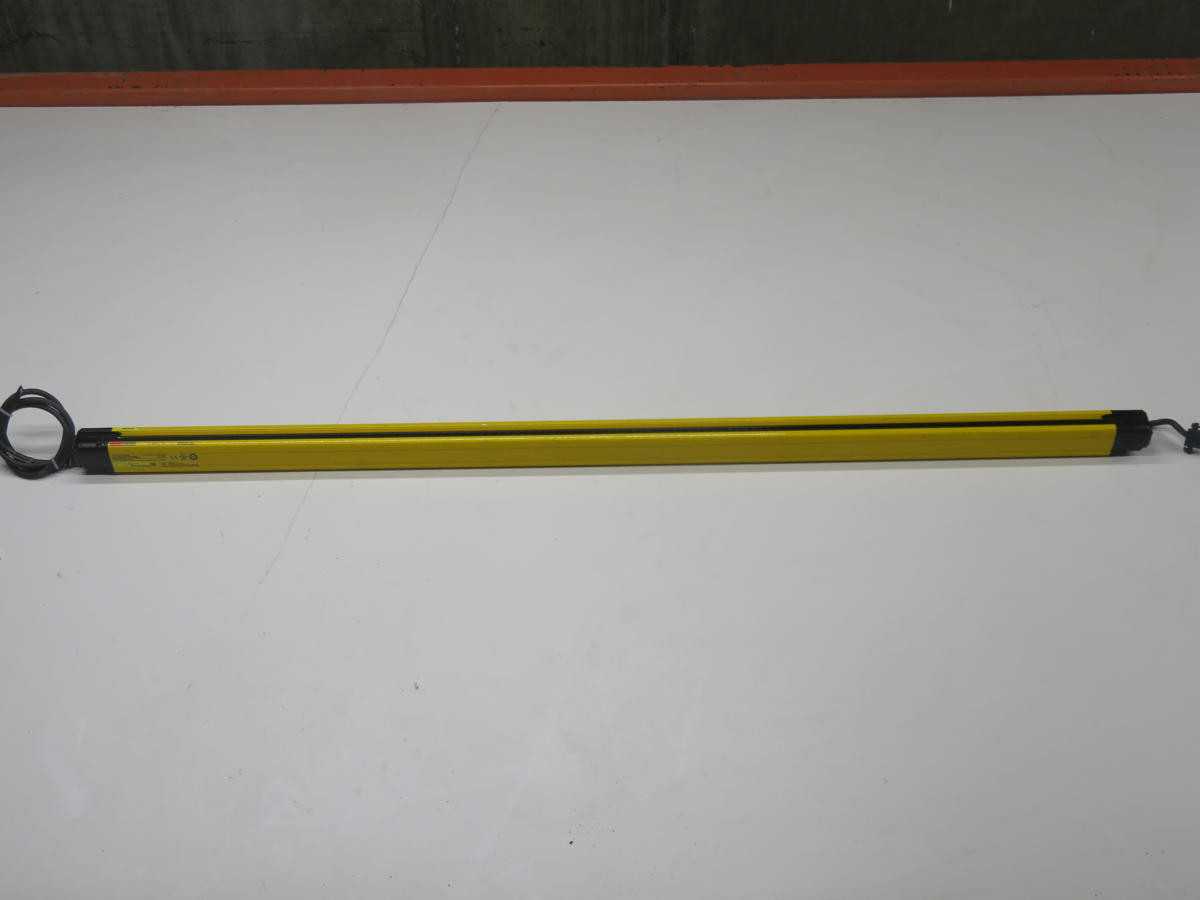

KEYENCE GL-R103F-T SAFETY CURTAIN, TYPE 4, 1030 MM HEIGHT, 14 MM PITCH, 24 VDC, IP65/IP67

THE KEYENCE GL-R103F-T IS A TYPE 4 SAFETY LIGHT CURTAIN RECEIVER. AS PART OF A COMPLETE SYSTEM, IT ESTABLISHES A 1030 MM PROTECTIVE HEIGHT WITH A 14 MM BEAM PITCH, ENABLING FINGER PROTECTION AND THE DETECTION OF OPAQUE OBJECTS MEASURING Ø14 MM OR GREATER. THE UNIT OPERATES ON A 24 VDC POWER SUPPLY AND CONTRIBUTES TO A SYSTEM MAXIMUM RESPONSE TIME OF 13 MS. IT INCORPORATES TWO NPN/PNP SELECTABLE OSSD SAFETY OUTPUTS AND ONE AUXILIARY OUTPUT. CONFORMING TO PL E, CATEGORY 4, AND SIL CL 3 SAFETY STANDARDS, THE RECEIVER'S ROBUST DESIGN FEATURES AN IP65/IP67 ENCLOSURE RATING, SUITABLE FOR DEMANDING INDUSTRIAL ENVIRONMENTS, AND OPERATES WITHIN A SYSTEM RANGING FROM 0.3 TO 10 METERS.
