KEYENCE GL-R60H-R CURTAIN SENSORS, 1180MM HEIGHT, 0.3-15M RANGE, TYPE 4 SAFETY

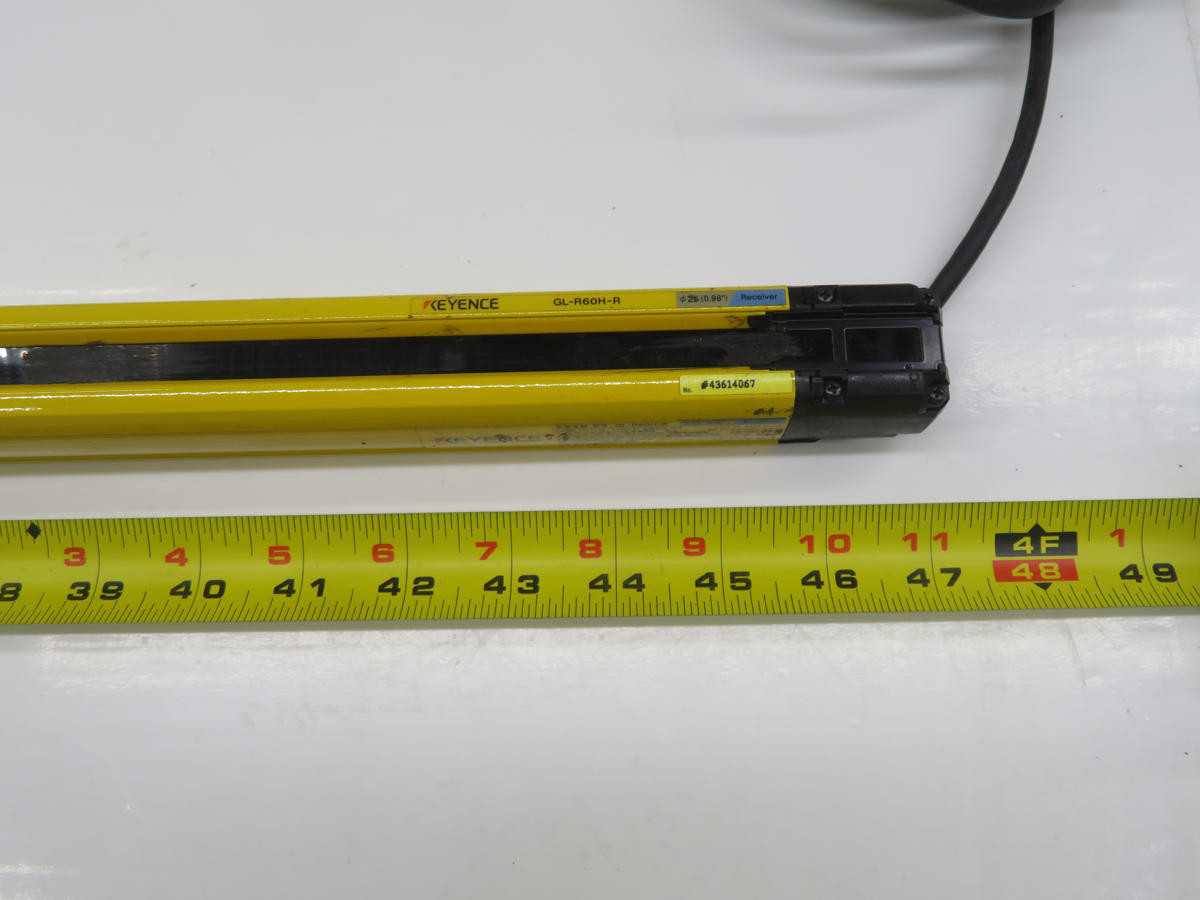

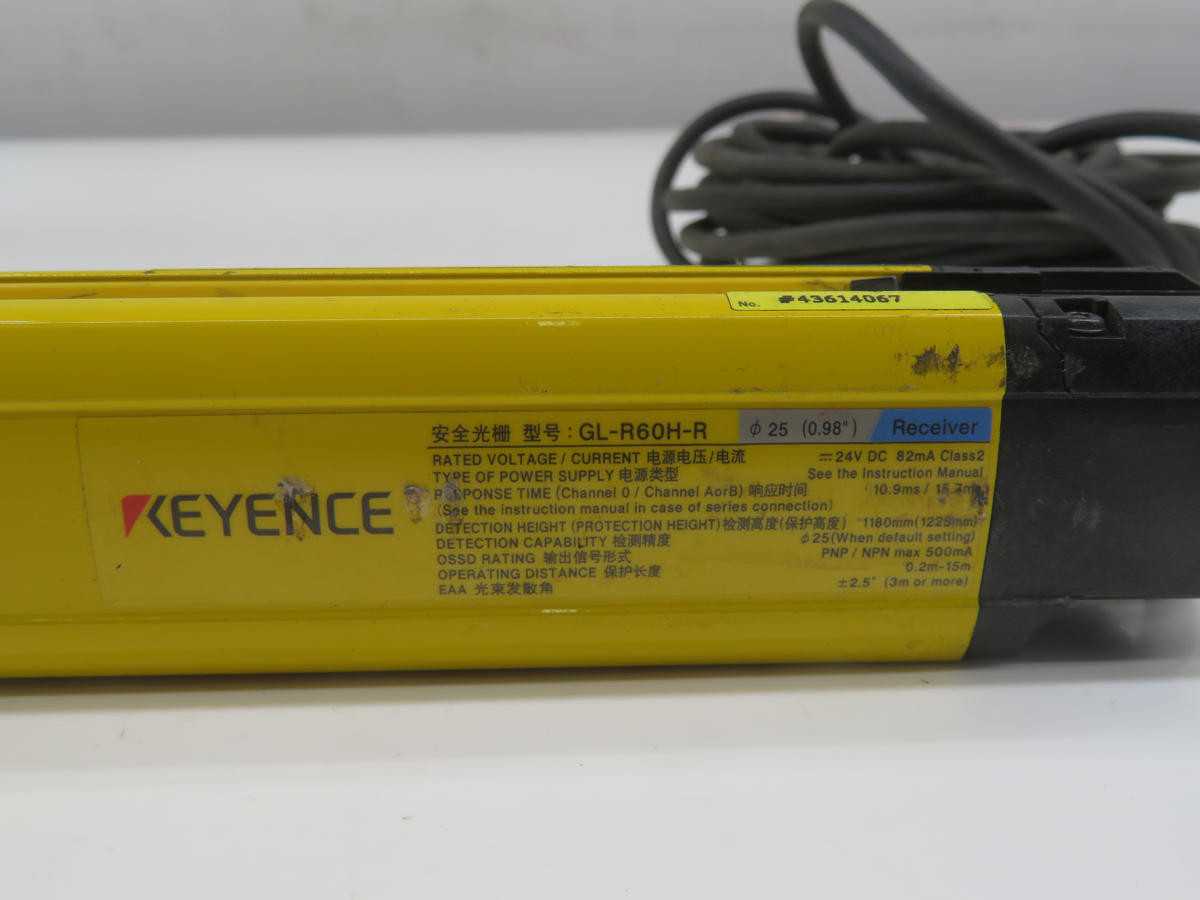

THE KEYENCE GL-R60H-R IS A SAFETY LIGHT CURTAIN RECEIVER. IT OPERATES ON 24V DC WITH AN 82MA CLASS 2 CURRENT DRAW. THE UNIT PROVIDES A DETECTION HEIGHT OF 1180MM AND OFFERS RESPONSE TIMES OF 10.9MS OR 15.7MS. THIS MODEL BELONGS TO THE GL-R SERIES, WHICH IS CERTIFIED AS A TYPE 4 SAFETY DEVICE, MEETING PERFORMANCE LEVEL 'E' (PL E) AND SAFETY INTEGRITY LEVEL 3 (SIL3). IT TYPICALLY OFFERS A DETECTION RANGE FROM 0.3M TO 15M. THE RECEIVER FEATURES AN IP67 ENCLOSURE RATING, ENSURING PROTECTION AGAINST DUST AND WATER INGRESS, AND IS SPECIFIED FOR OPERATION WITHIN A 0 TO 50 °C AMBIENT TEMPERATURE RANGE.
