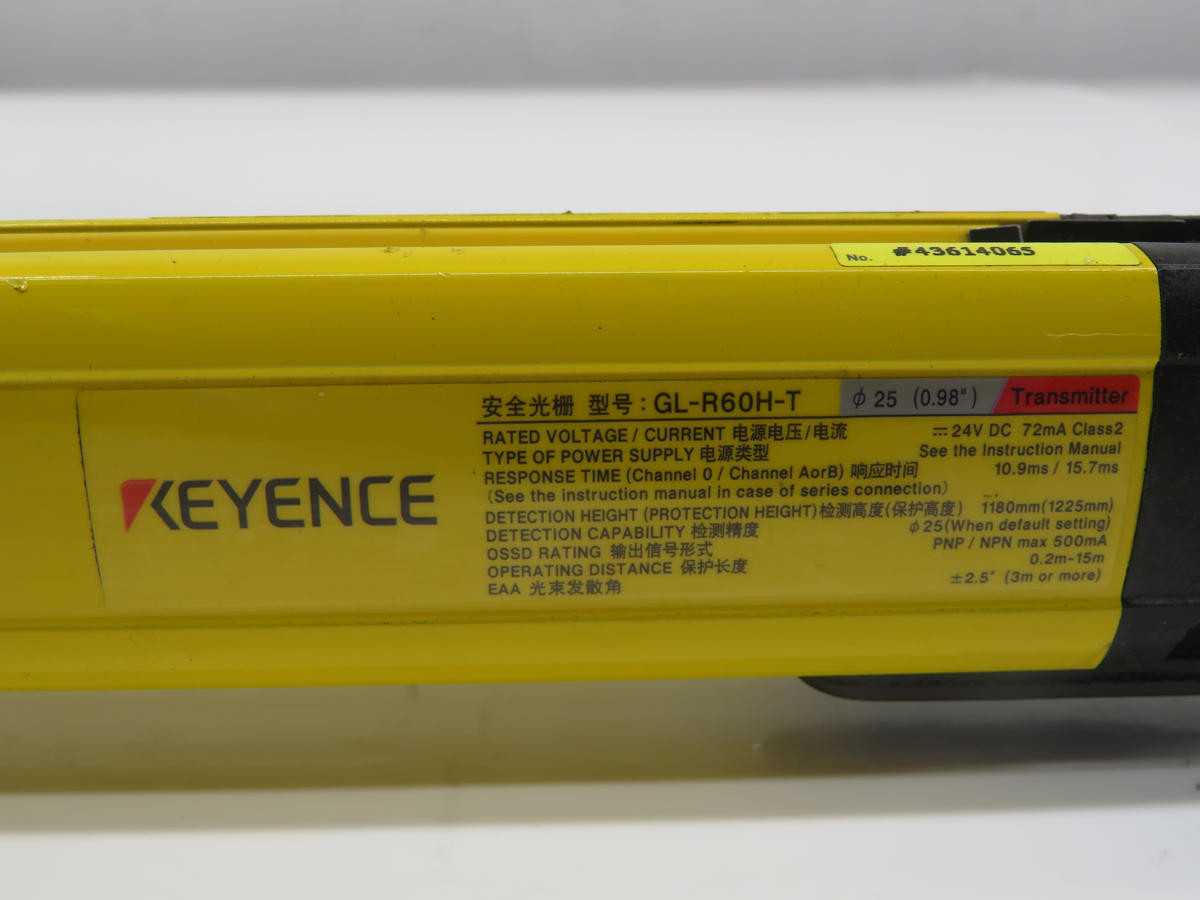

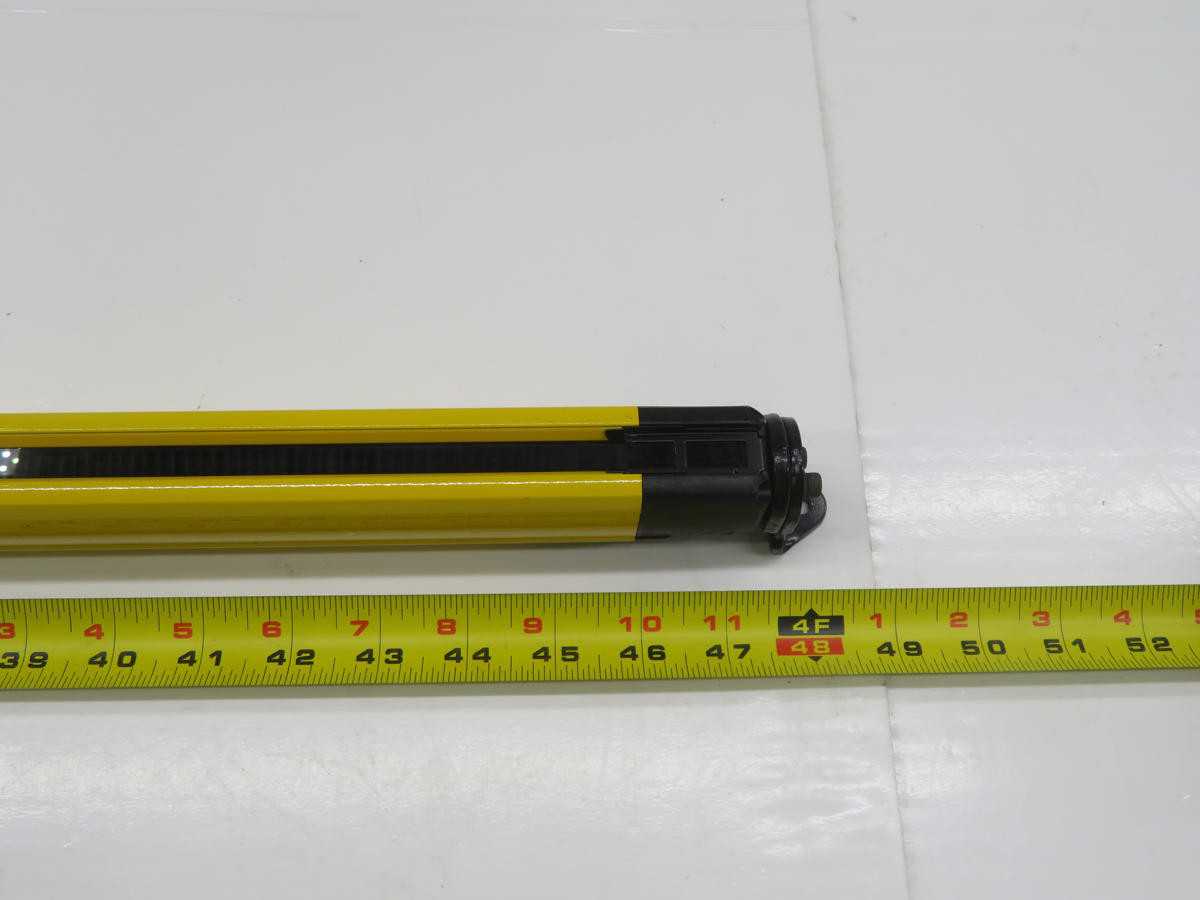

Keyence GL-R60H-T Safety Light Curtain Transmitter, 1180mm Height, 25mm MDO, 15 M Range

THE KEYENCE GL-R60H-T IS A SAFETY LIGHT CURTAIN TRANSMITTER. IT OPERATES ON A RATED VOLTAGE OF 24V DC WITH A CURRENT CONSUMPTION OF 72MA, CLASSIFIED AS CLASS 2. THIS UNIT FEATURES A DETECTION HEIGHT OF 1180MM, WITH AN OVERALL LENGTH POTENTIALLY EXTENDING TO 1225MM, AND PROVIDES RESPONSE TIMES OF 10.9MS AND 15.7MS. EQUIPPED WITH 60 OPTICAL AXES SET AT A 20MM PITCH, IT ENSURES A MINIMUM DETECTABLE OBJECT DIAMETER OF 25MM. THE OPERATING DISTANCE SPANS FROM 0.3 TO 15 METERS, AND THE DEVICE POSSESSES AN IP65 ENCLOSURE RATING.
