KEYENCE IM-8010 OPTICAL MEASUREMENT SYSTEM 20MP CMOS, 200X200MM STAGE, 100X100MM TRAVEL, 5KG

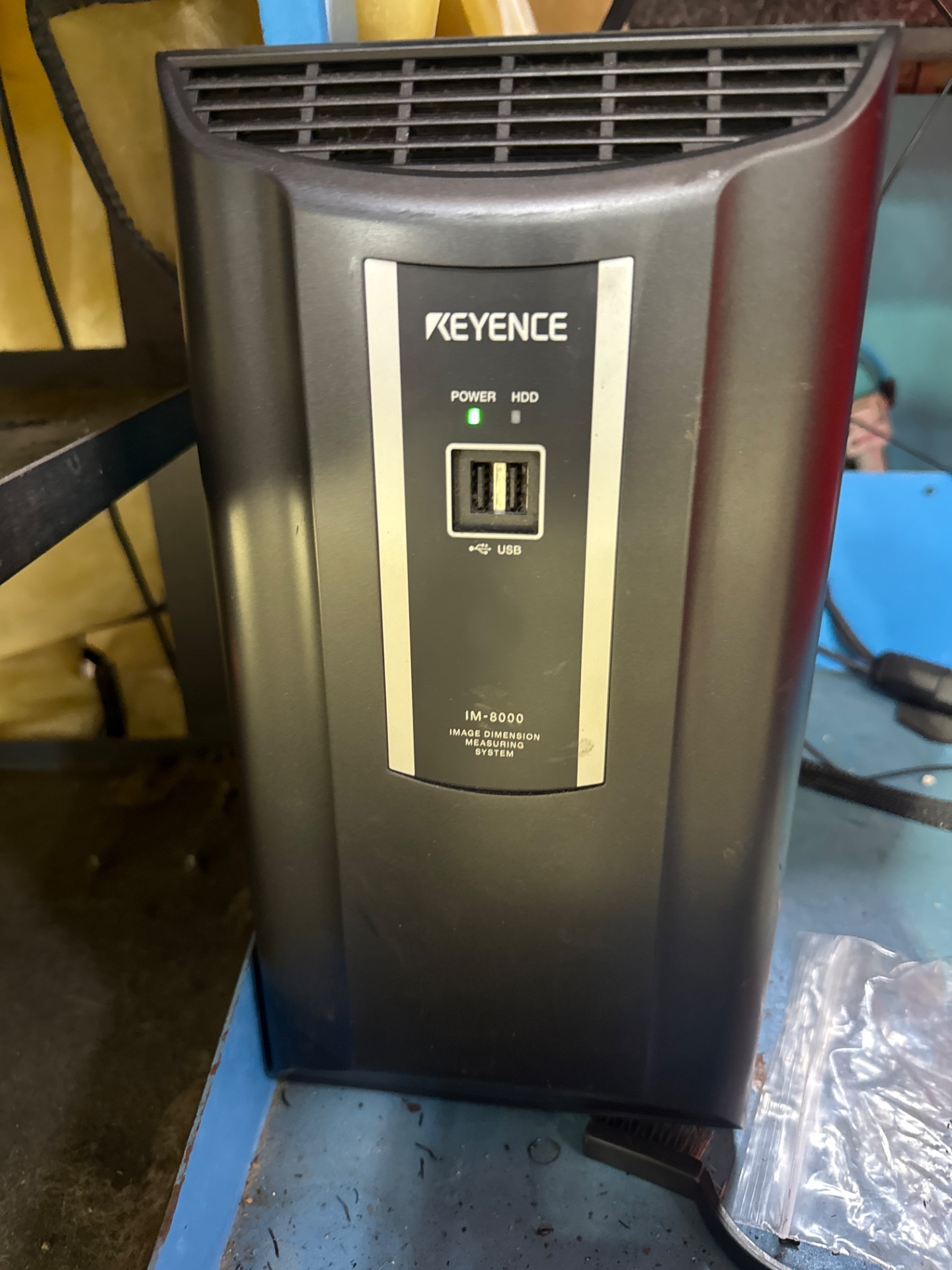

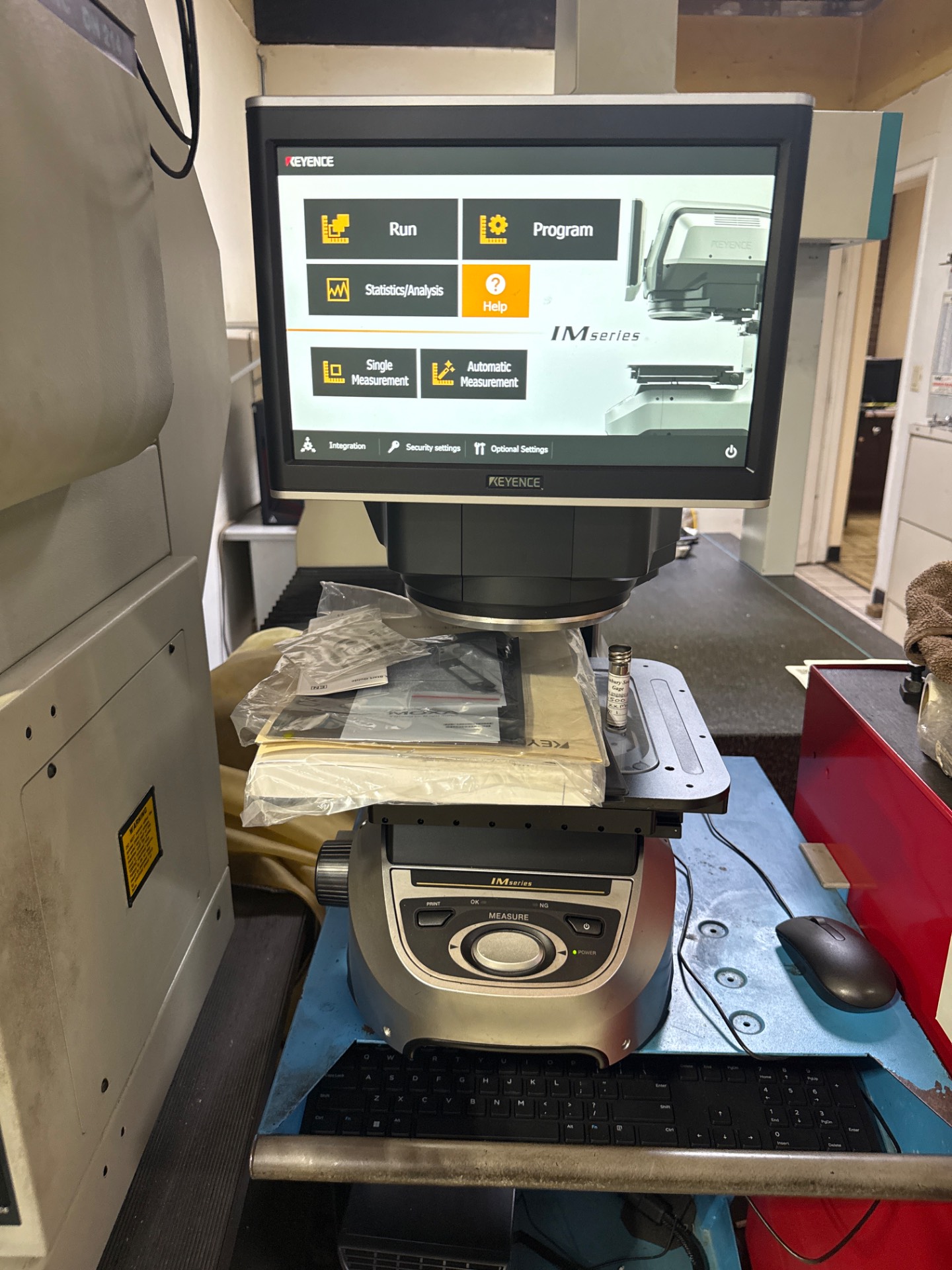

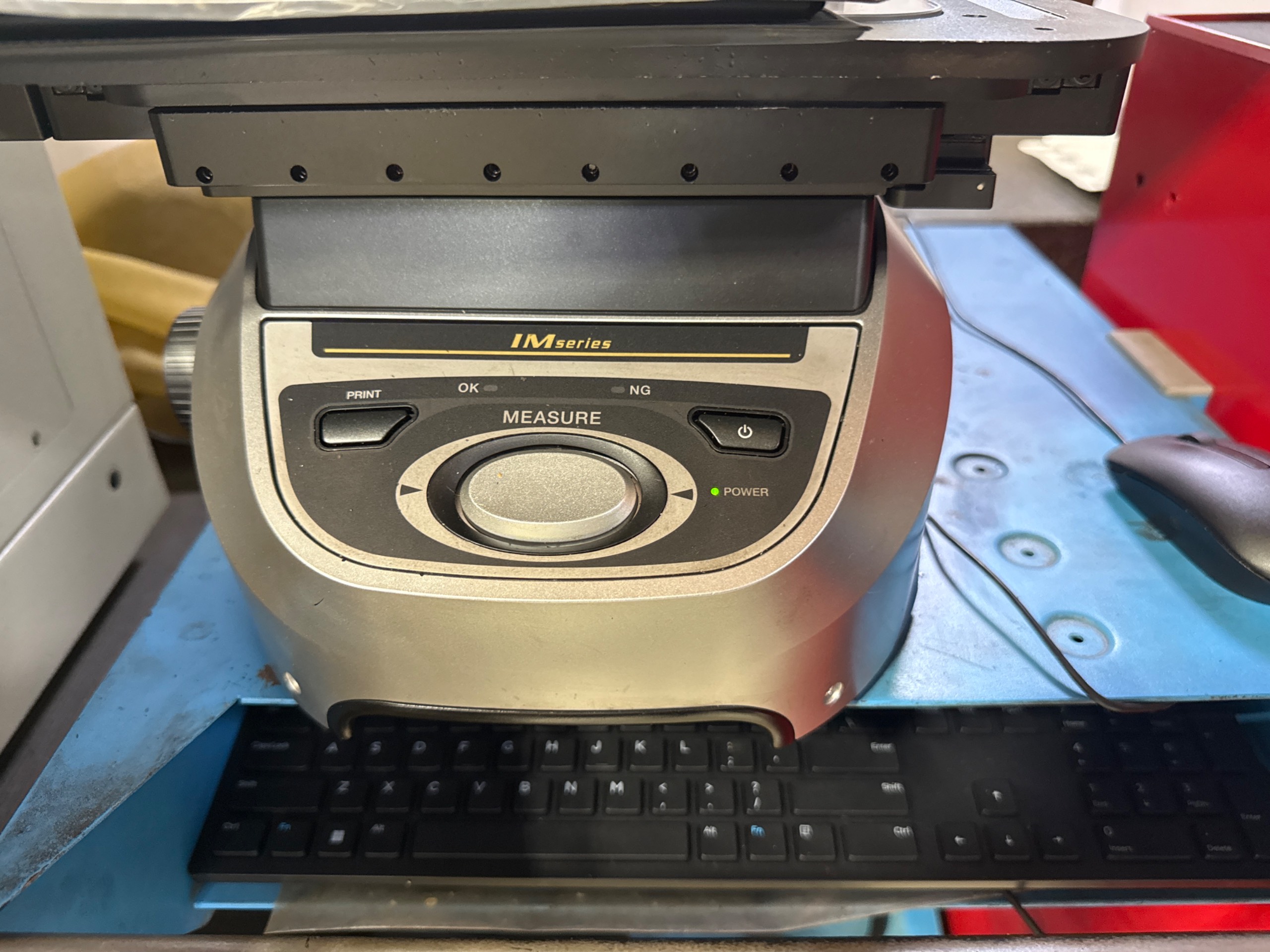

THE KEYENCE IM-8010 IS A FULLY AUTOMATED, NON-CONTACT OPTICAL MEASUREMENT SYSTEM UTILIZING A 20-MEGAPIXEL MONOCHROME CMOS IMAGE SENSOR AND A DOUBLE TELECENTRIC LENS SYSTEM. IT FEATURES A 200 MM X 200 MM MEASUREMENT STAGE AND AN INTEGRATED IM-8010 MEASURING HEAD EQUIPPED WITH AN ELECTRIC XY STAGE PROVIDING 100 MM X 100 MM OF TRAVEL AND AN ELECTRIC Z-AXIS WITH 75 MM OF TRAVEL. THE SYSTEM SUPPORTS A MAXIMUM TABLE LOAD OF 5 KG. LIGHTING IS PROVIDED BY A PROGRAMMABLE MULTI-ANGLE RING ILLUMINATION SYSTEM OFFERING BOTH INCIDENT AND TRANSMITTED LIGHT. THE UNIT IS CAPABLE OF MEASURING UP TO 300 FEATURES AUTOMATICALLY. MEASUREMENT ACCURACY IS SPECIFIED AT ±(7 + 0.02L) ΜM WITH STAGE MOVEMENT, WITH A REPEATABILITY OF ±2 ΜM. THE SYSTEM CONTROLLER INCLUDES A 12.1 INCH LCD DISPLAY, 500 GB HARD DRIVE, AND INTEGRATED MEASUREMENT SOFTWARE WITH LAN AND USB CONNECTIVITY OPTIONS. IT SUPPORTS OFFLINE PROGRAM CREATION VIA OPTIONAL EDITOR SOFTWARE FOR HIGH-MIX PRODUCTION ENVIRONMENTS.
