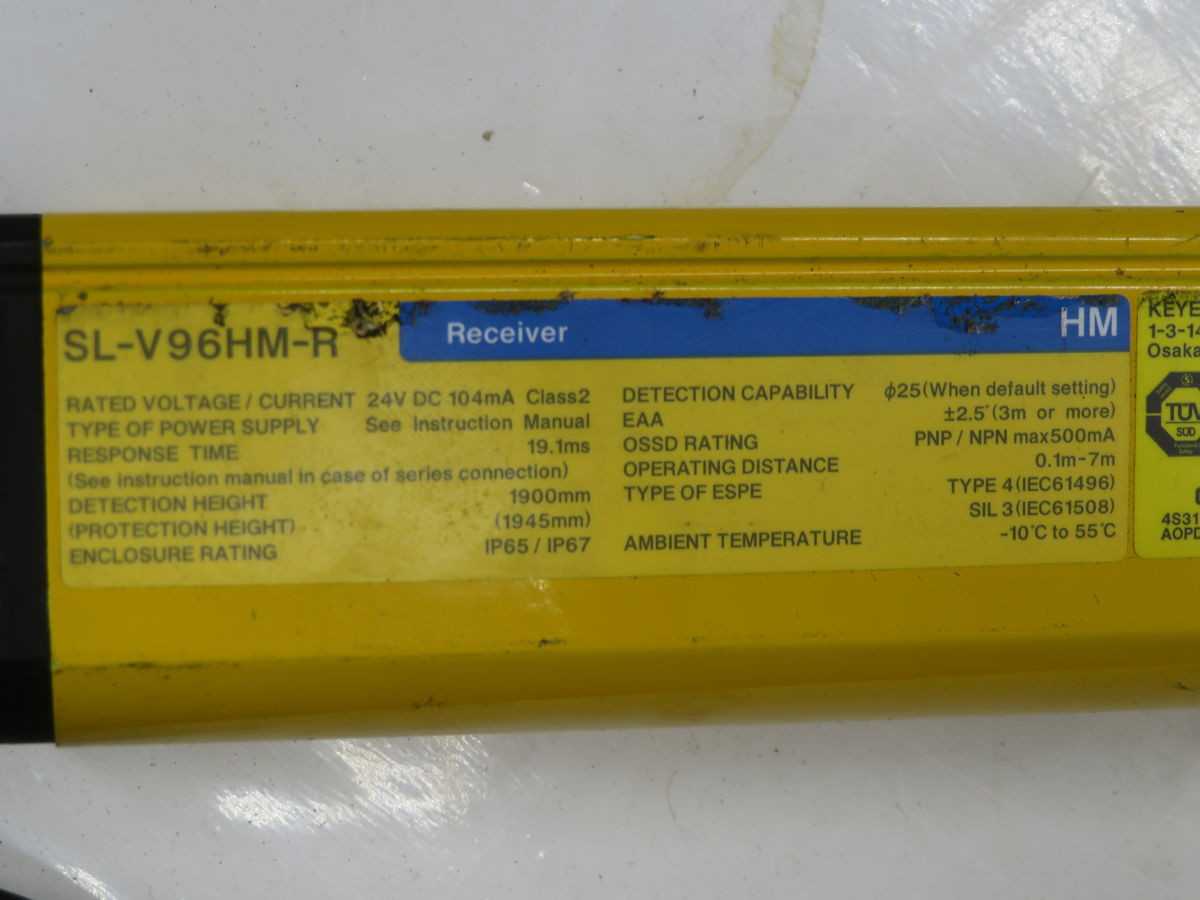

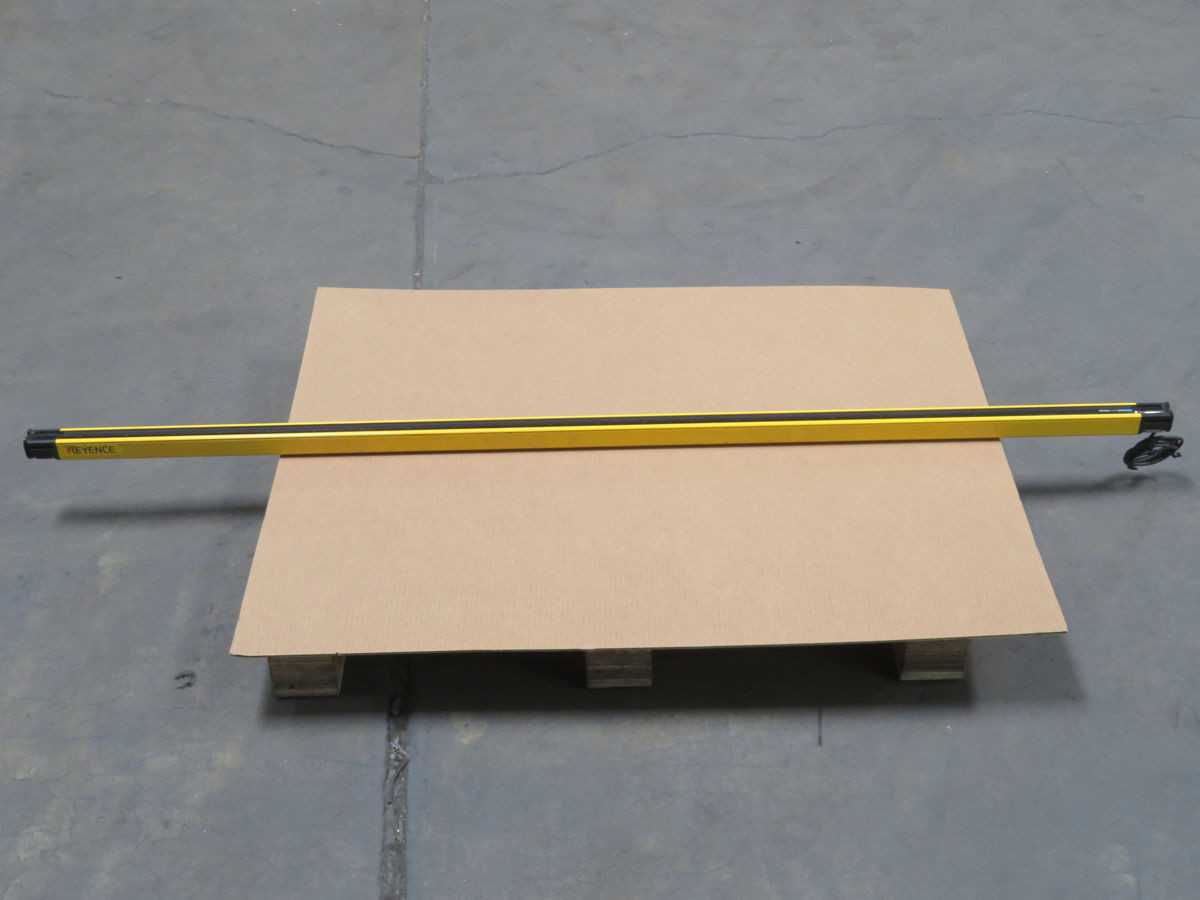

KEYENCE SL-V96HM-R, CURTAIN SENSOR, 96 AXIS, 1399 MM HEIGHT, 14 MM MDO, PLE/SIL3, IP65/IP67

THE KEYENCE SL-V96HM-R IS A TYPE 4 SAFETY LIGHT CURTAIN RECEIVER DESIGNED FOR FINGER PROTECTION APPLICATIONS. IT FEATURES 96 OPTICAL AXES, PROVIDING A DETECTION HEIGHT OF 1399 MM WITH A MINIMUM DETECTABLE OBJECT SIZE OF 14 MM. THE OPERATING RANGE IS 0.3 TO 10 METERS WHEN PAIRED WITH A COMPATIBLE SENDER. THIS UNIT OPERATES ON A 24 VDC ± 10% POWER SUPPLY AND CONSUMES 150 MA OR LESS. IT INCORPORATES TWO NPN/PNP SELECTABLE OSSD OUTPUTS, EACH CAPABLE OF HANDLING UP TO 500 MA AT 30 VDC, AND ONE NPN/PNP SELECTABLE AUXILIARY OUTPUT RATED FOR 50 MA. THE RESPONSE TIME IS 15 MS MAXIMUM. CONFORMING TO SAFETY STANDARDS PLE AND SIL3, THE RECEIVER FEATURES AN IP65/IP67 ENCLOSURE RATING. ITS OPERATIONAL TEMPERATURE RANGE IS -10 TO +55 °C, WITH A STORAGE TEMPERATURE RANGE OF -25 TO +70 °C. THE UNIT'S HOUSING IS CONSTRUCTED FROM ALUMINUM ALLOY WITH A POLYCARBONATE FRONT COVER.
