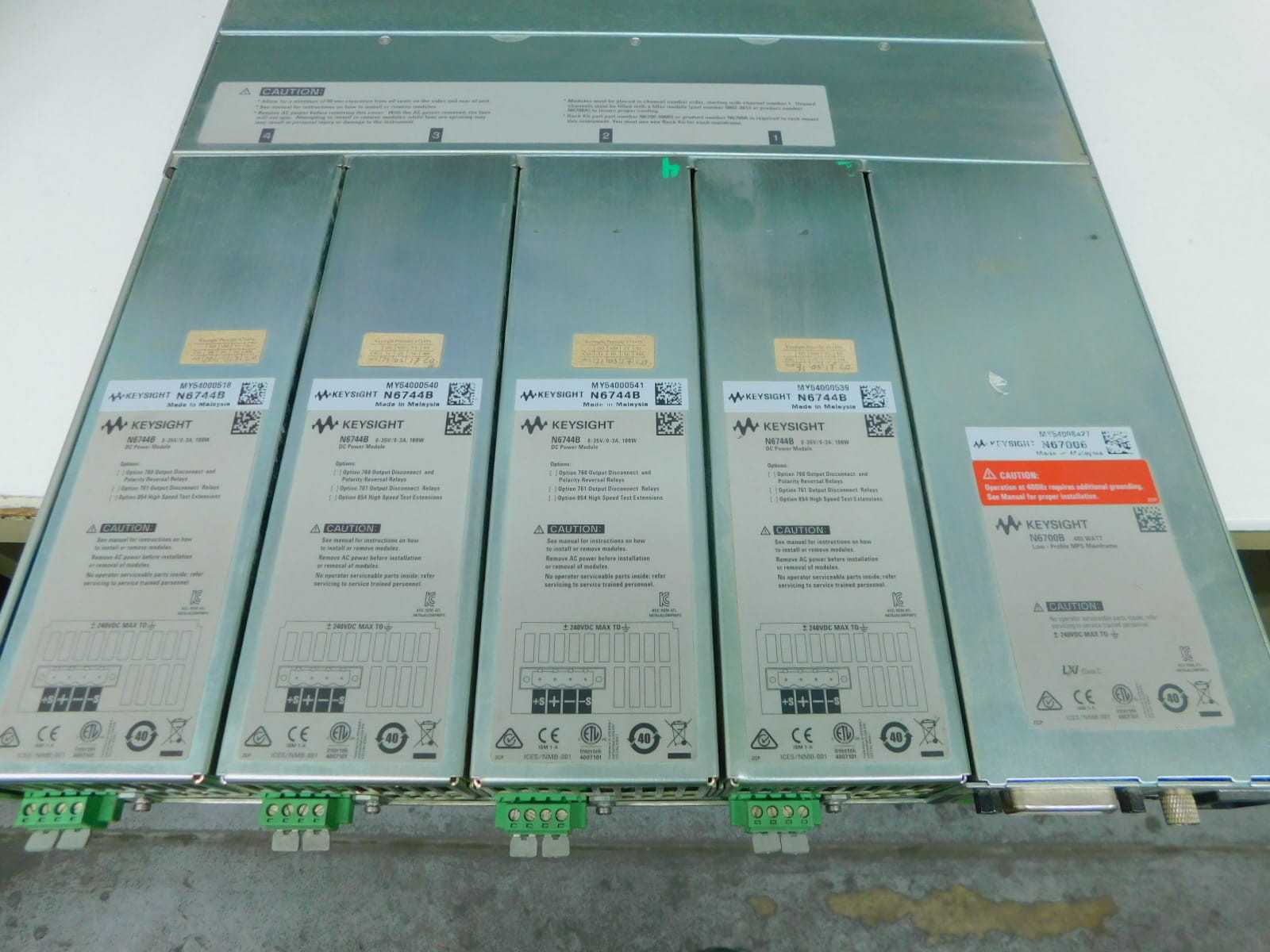

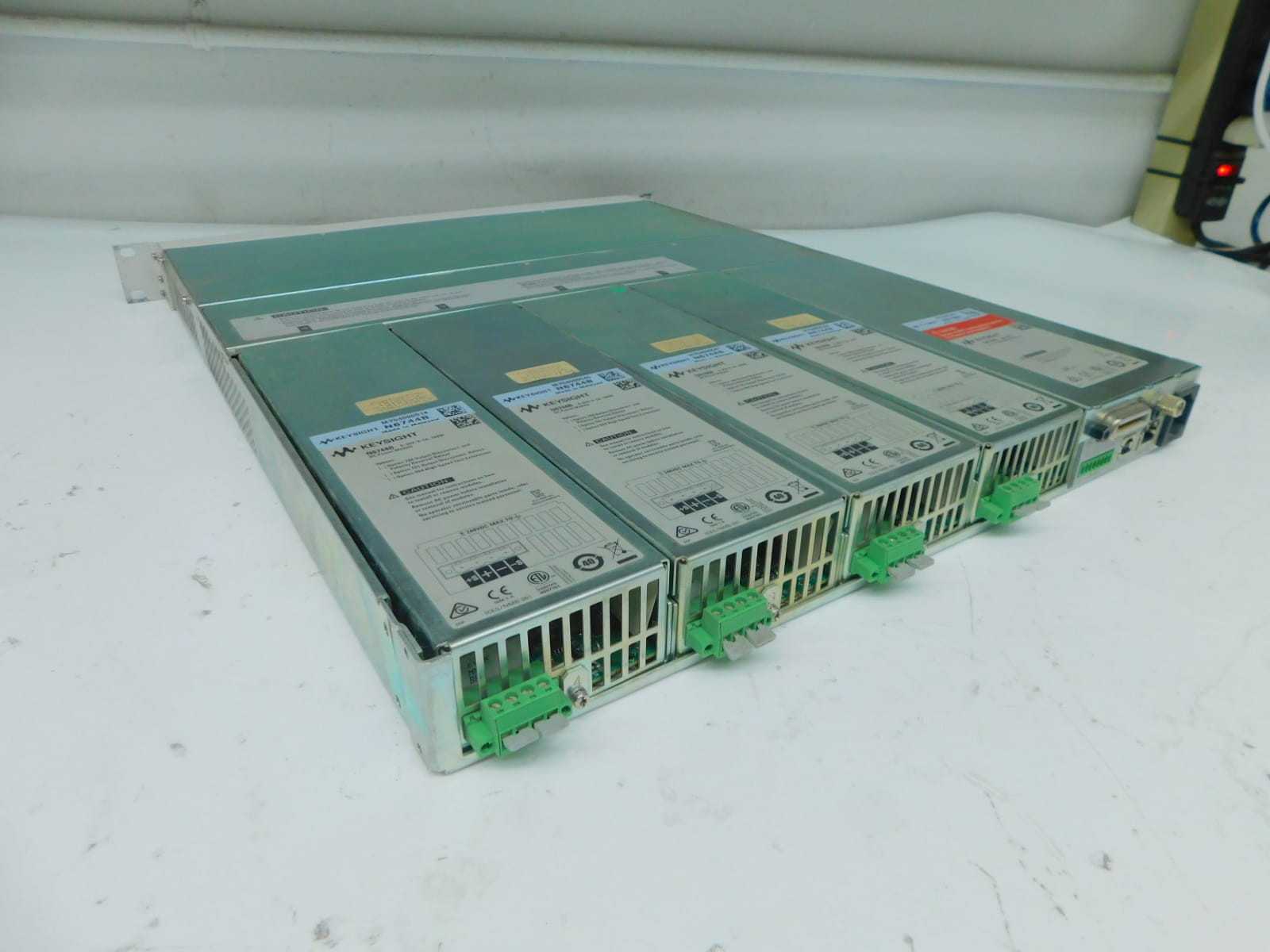

Keysight N6700B N6744B Modular Power System, 400W, 35V, 3A, 1U Mainframe, GPIB/USB/LAN

THE KEYSIGHT N6700B IS A 1U LOW-PROFILE MODULAR POWER SYSTEM MAINFRAME DESIGNED FOR AUTOMATED TEST ENVIRONMENTS, PROVIDING UP TO 400W OF TOTAL OUTPUT POWER ACROSS FOUR AVAILABLE SLOTS. THIS SYSTEM ALLOWS FOR A FLEXIBLE MIX OF OVER 30 DIFFERENT DC POWER MODULES TO OPTIMIZE PERFORMANCE AND PRICE. STANDARD CONNECTIVITY INCLUDES GPIB, USB 2.0, AND 10/100 BASE-T ETHERNET LAN INTERFACES, WITH FULL COMPLIANCE TO LXI CLASS C SPECIFICATIONS. THE N6744B IS A BASIC DC POWER MODULE THAT OCCUPIES ONE SLOT WITHIN THE MAINFRAME. IT DELIVERS A MAXIMUM OUTPUT OF 105W WITH A VOLTAGE RATING OF UP TO 35V AND A CURRENT RATING OF UP TO 3A. TECHNICAL SPECIFICATIONS FOR THE N6744B INCLUDE A PROGRAMMING ACCURACY OF 0.1% + 35MV FOR VOLTAGE AND 0.15% + 20MA FOR CURRENT. IT FEATURES A VOLTAGE RIPPLE AND NOISE OF 5MV RMS (15MV PEAK-TO-PEAK) AND A CURRENT RIPPLE OF 2MA RMS. THE MODULE SUPPORTS 4-WIRE REMOTE SENSING TO COMPENSATE FOR LEAD VOLTAGE DROPS AND INCLUDES INTEGRATED PROTECTION AGAINST OVER-VOLTAGE, OVER-CURRENT, AND OVER-TEMPERATURE. ADDITIONAL CAPABILITIES INCLUDE PROGRAMMABLE VOLTAGE SLEW RATES, OUTPUT SEQUENCING WITH ADJUSTABLE DELAY TIMES, AND AN INTERNAL LIST MODE FOR COMPLEX WAVEFORM GENERATION. THE SYSTEM OPERATES ON A UNIVERSAL AC INPUT OF 120/240 VAC, 1 PHASE.
