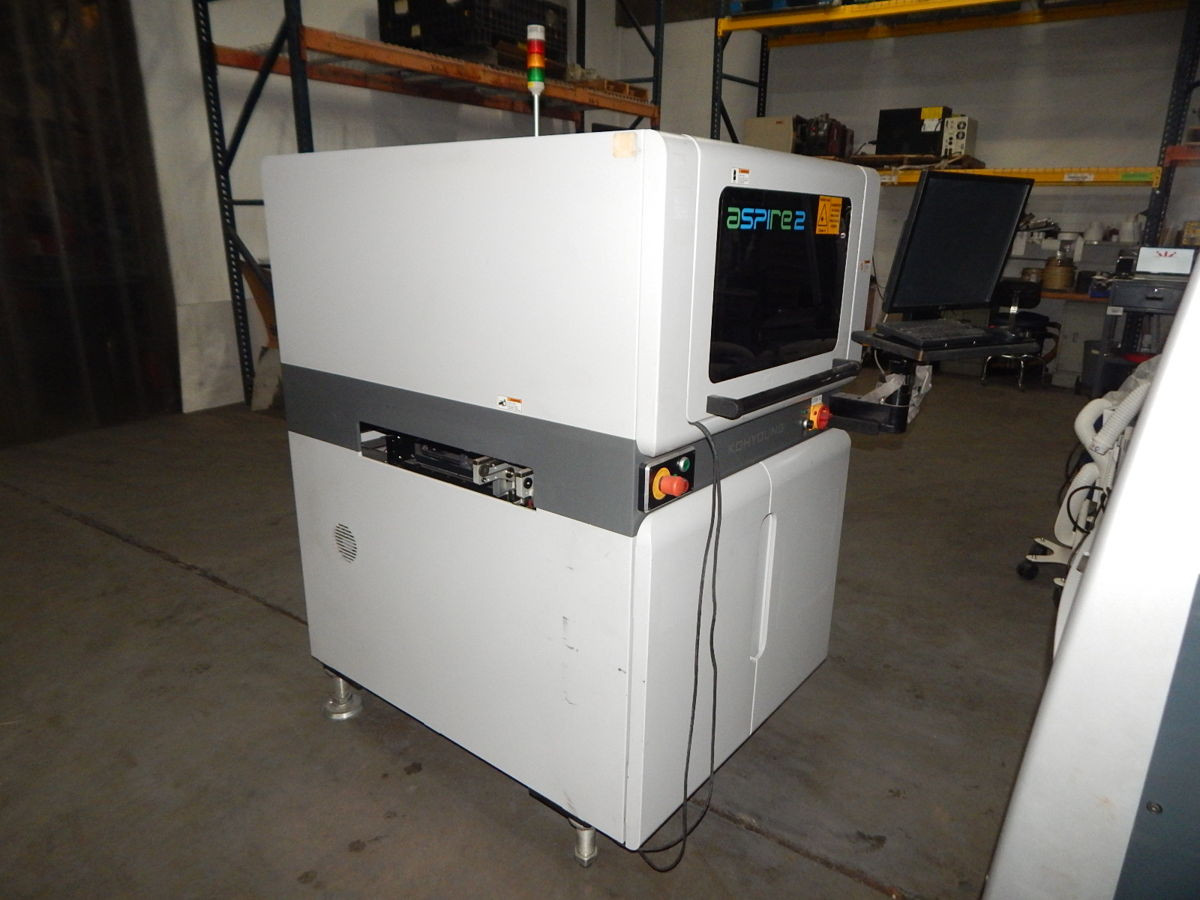

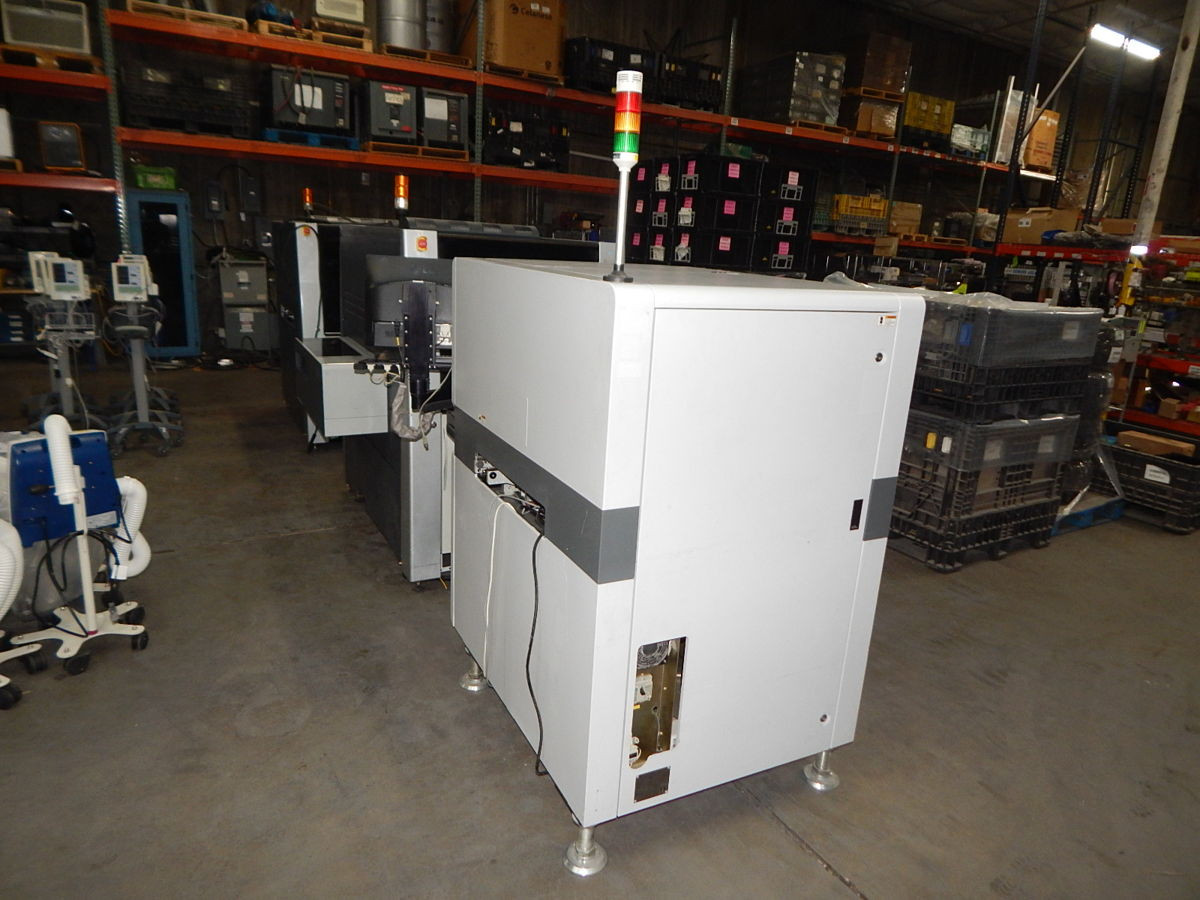

KOH YOUNG ASPIRE 2 3D SOLDER PASTE INSPECTION MACHINE

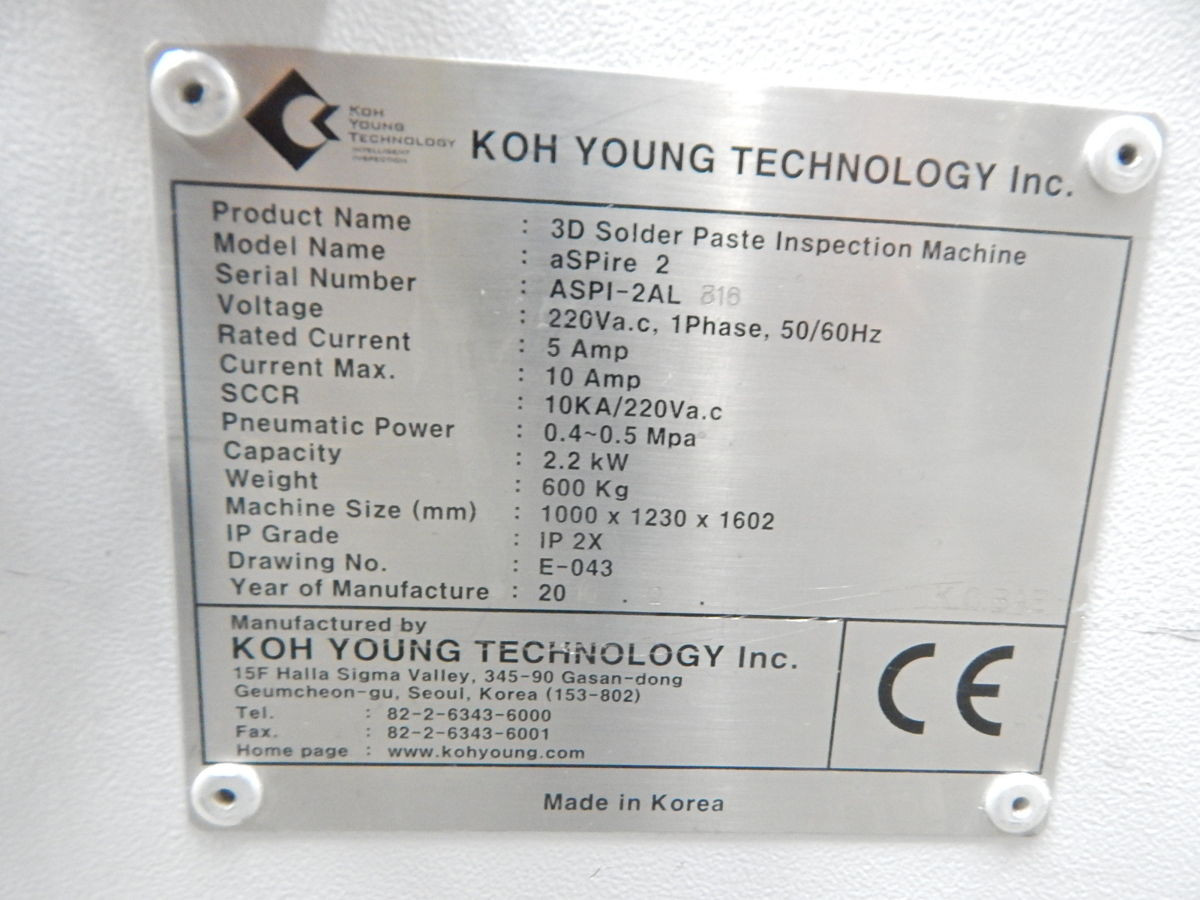

THE KOH YOUNG ASPIRE 2 3D IS A PRECISION SOLDER PASTE INSPECTION SYSTEM DESIGNED FOR PCB ASSEMBLY PROCESSES. IT OPERATES ON A 220 VAC SINGLE-PHASE POWER SUPPLY. THIS SYSTEM UTILIZES KOH YOUNG'S PATENTED 8-WAY DIRECTIONAL PROJECTION AND TRUE 3D MEASUREMENT TECHNOLOGY TO PROVIDE SHADOW-FREE INSPECTION OF SOLDER PASTE DEPOSITS. IT ACCURATELY MEASURES KEY PARAMETERS INCLUDING VOLUME, AREA, HEIGHT, X/Y OFFSET, AND BRIDGING. THE ASPIRE 2 3D IS CAPABLE OF INSPECTING PRINTED CIRCUIT BOARDS RANGING FROM A MINIMUM SIZE OF 50 X 50 MM UP TO A MAXIMUM OF 510 X 510 MM. IT DELIVERS A HEIGHT MEASUREMENT ACCURACY OF ±1 ΜM AND ACHIEVES VOLUME REPEATABILITY OF LESS THAN 1% AT A 100 ΜM PASTE HEIGHT.
