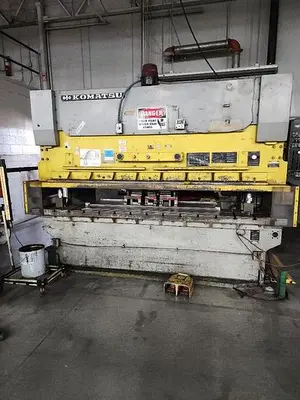

KOMATSU PHS 110X310 120 TON 10' WIDE-BED HYDRAULIC PRESS BRAKE

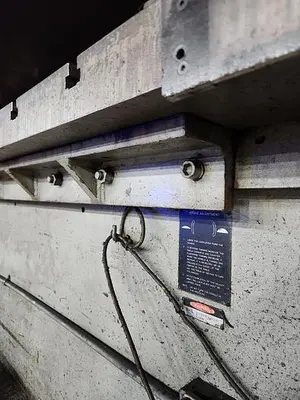

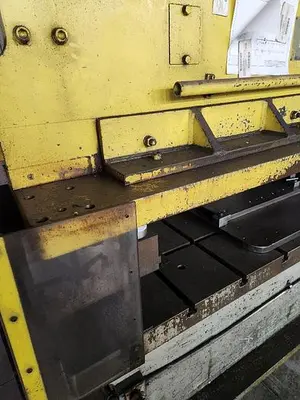

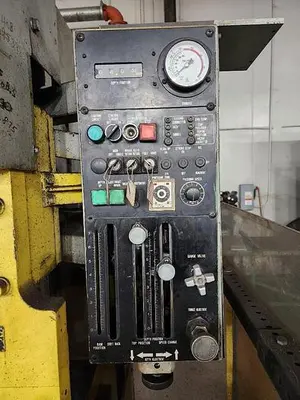

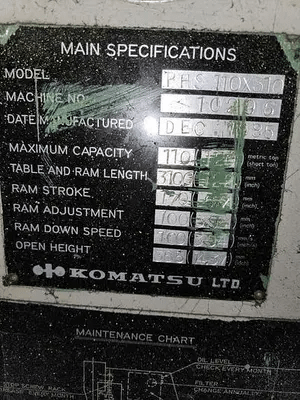

THE KOMATSU MODEL PHS 110X310 IS A 10-FOOT, 120-TON WIDE-BED HYDRAULIC PRESS BRAKE (SERIAL NO 10296) DESIGNED FOR PRECISION BENDING OPERATIONS. KEY SPECIFICATIONS INCLUDE A 122-INCH OVERALL LENGTH OF BED AND RAM, WITH A 105-INCH DISTANCE BETWEEN HOUSINGS. THE MACHINE FEATURES A 6.7-INCH STROKE LENGTH AND A 14.4-INCH OPEN HEIGHT. ITS THROAT DEPTH IS 15.7 INCHES, AND IT OFFERS 3.9 INCHES OF RAM ADJUSTMENT. THE PRESS BRAKE IS EQUIPPED WITH AN 18" X 122" T-SLOTTED WIDE BED ATTACHMENT AND AN 18" X 122" EXTRA WIDE RAM ATTACHMENT WITH BOLT-ON ANGLE PLATES. OPERATIONAL FEATURES INCLUDE ELECTRIC DEPTH-STOP ADJUSTMENT, DUAL PEDAL FOOT CONTROL, VARIABLE SPEED PRESSING, AND A TONNAGE INDICATOR. RAM SPEEDS ARE 3.93 IPS (APPROACH), A WORKING RANGE OF 0.20 TO 0.39 IPS, AND 65 IPS (RETURN). THE MACHINE HAS OVERALL DIMENSIONS OF 12'2" L X 4'10" D AND AN OVERALL HEIGHT OF 7'9", WITH AN APPROXIMATE WEIGHT OF 14,500 LBS.
