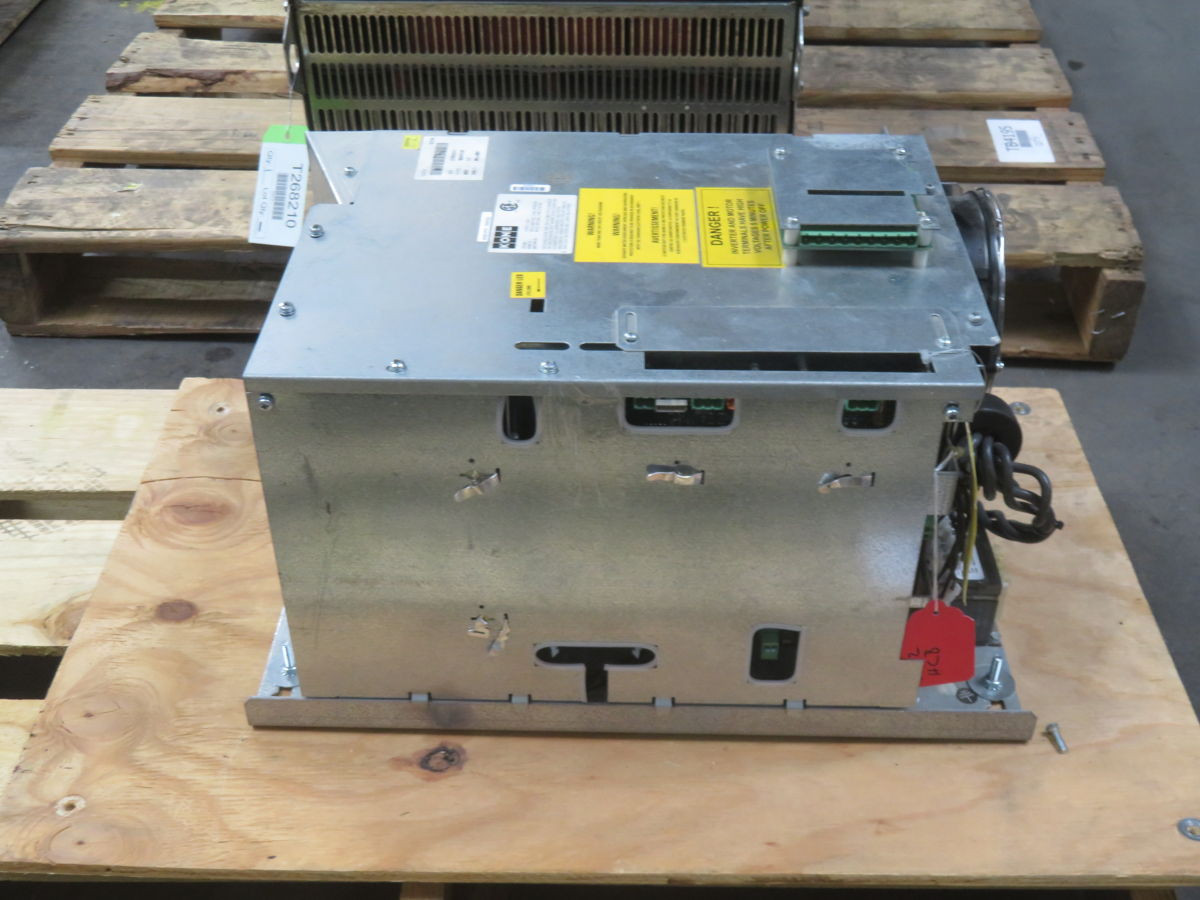

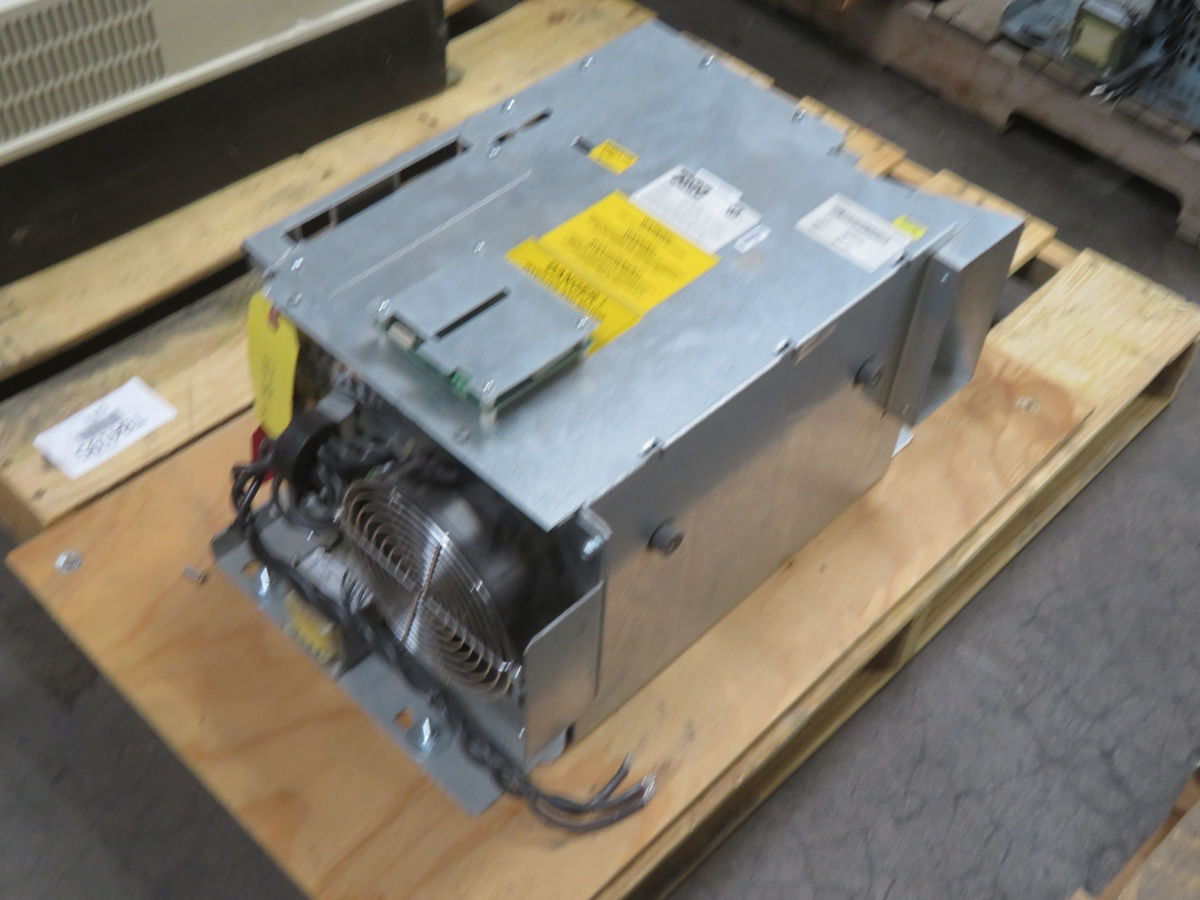

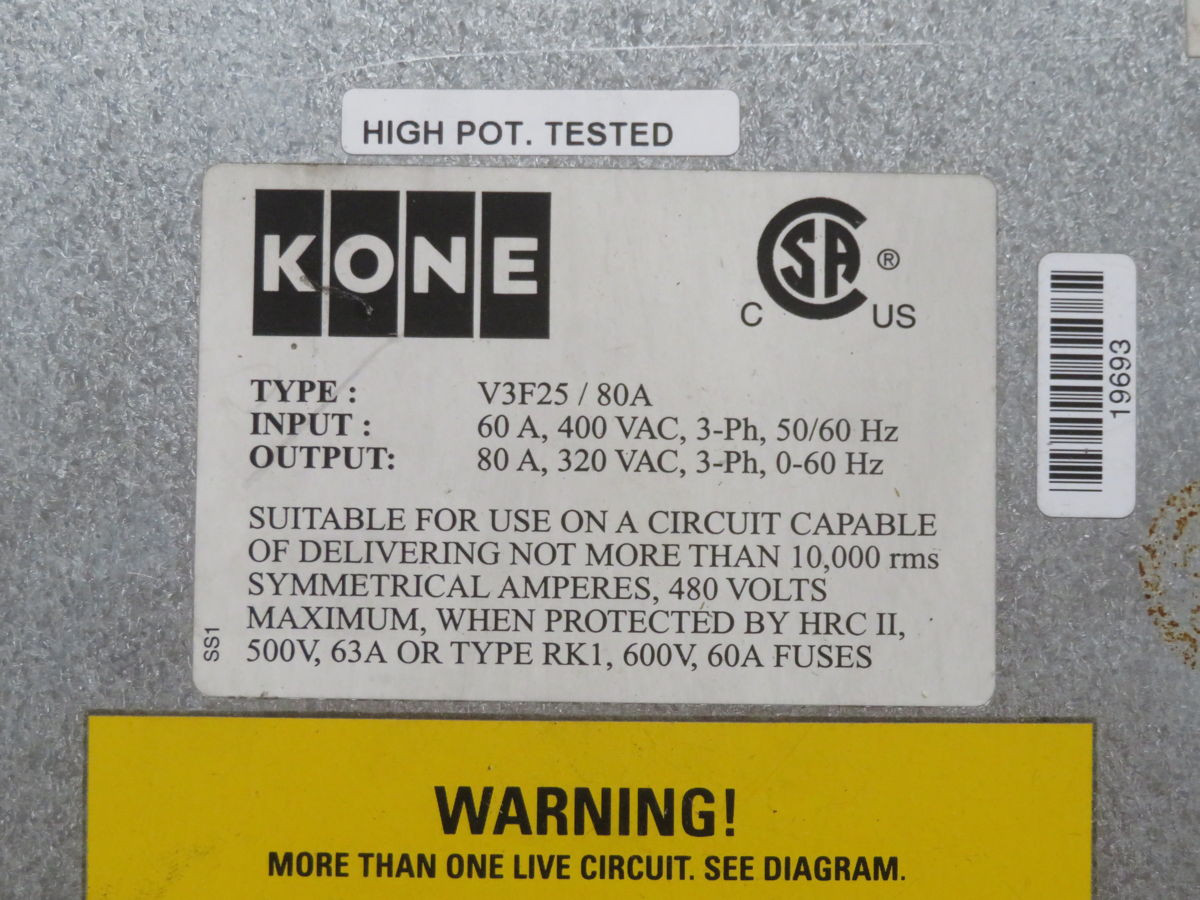

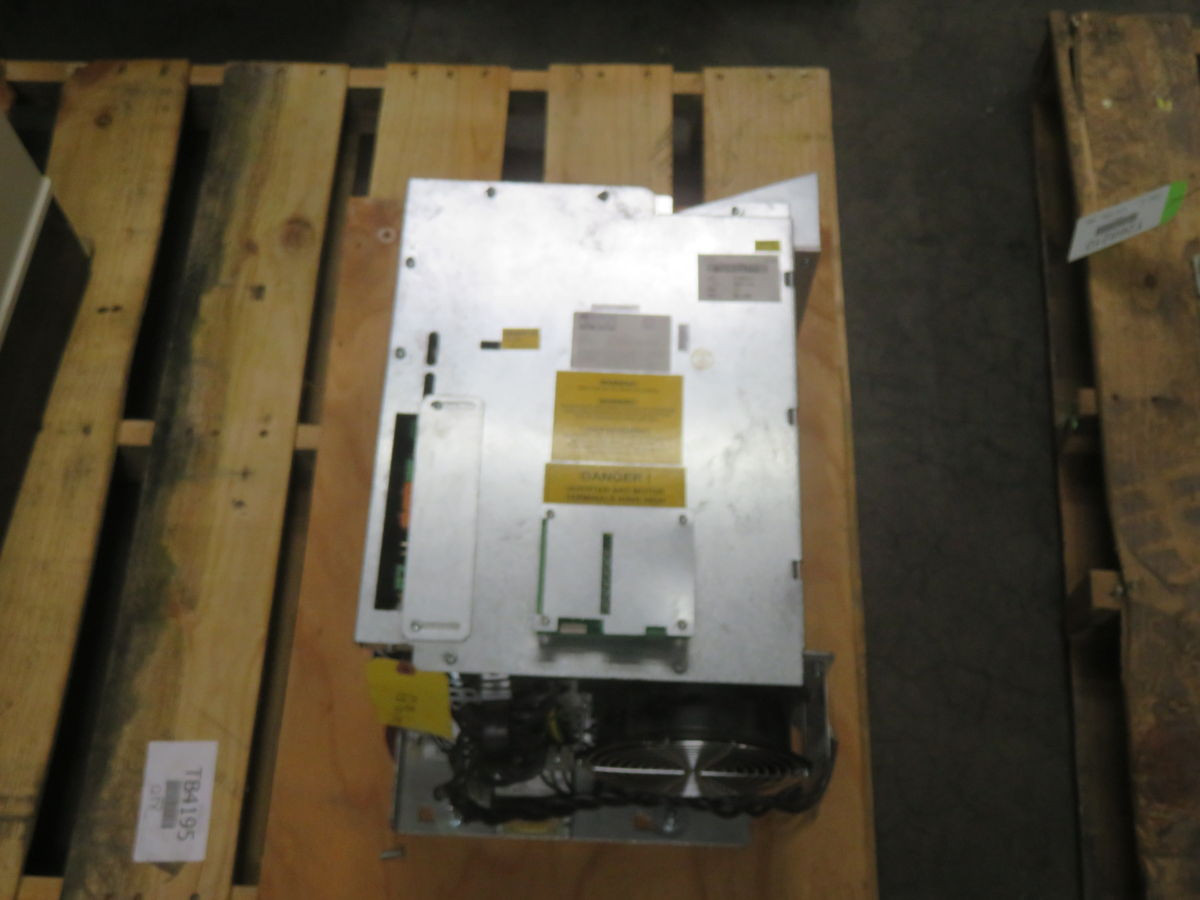

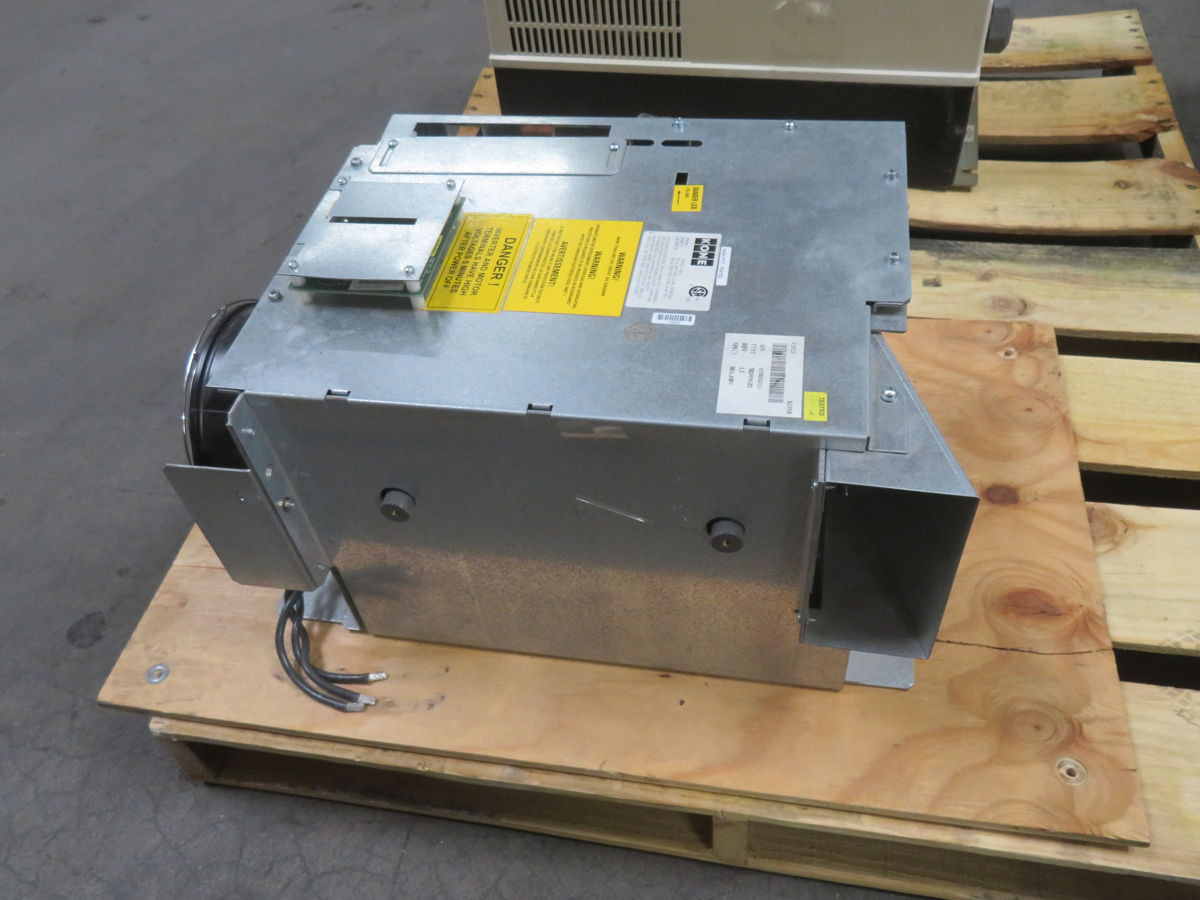

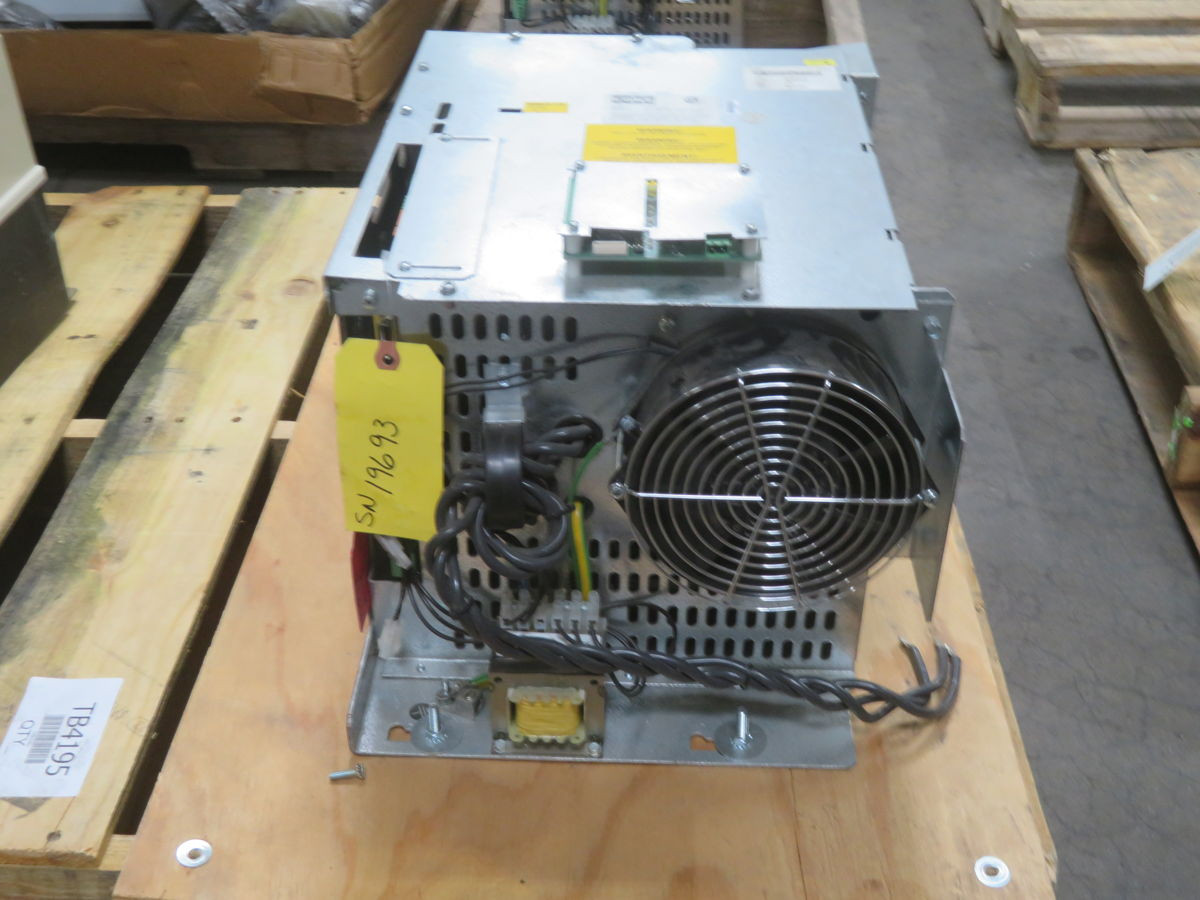

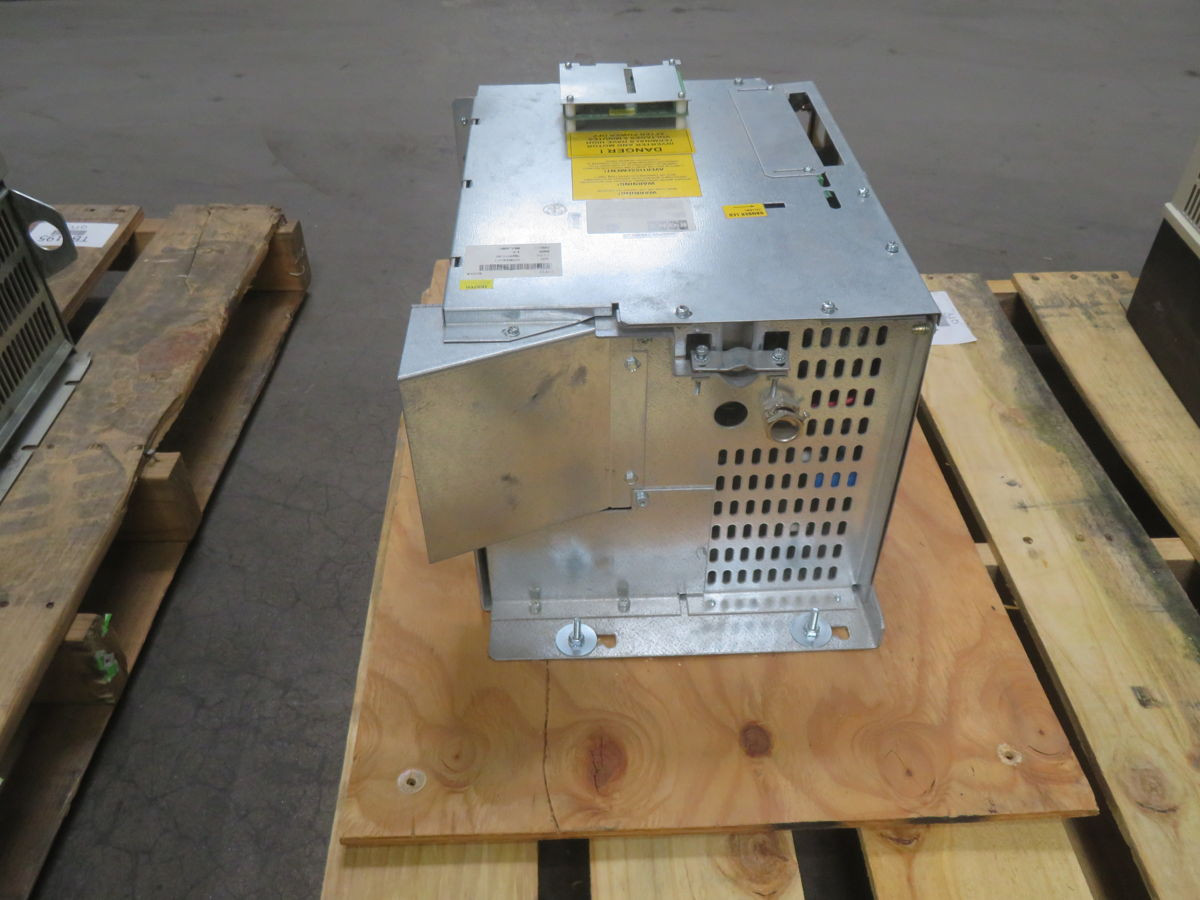

KONE V3F25/80A FREQUENCY DRIVE, 80A OUTPUT CURRENT, 400 VAC INPUT, 0-400 VAC OUTPUT

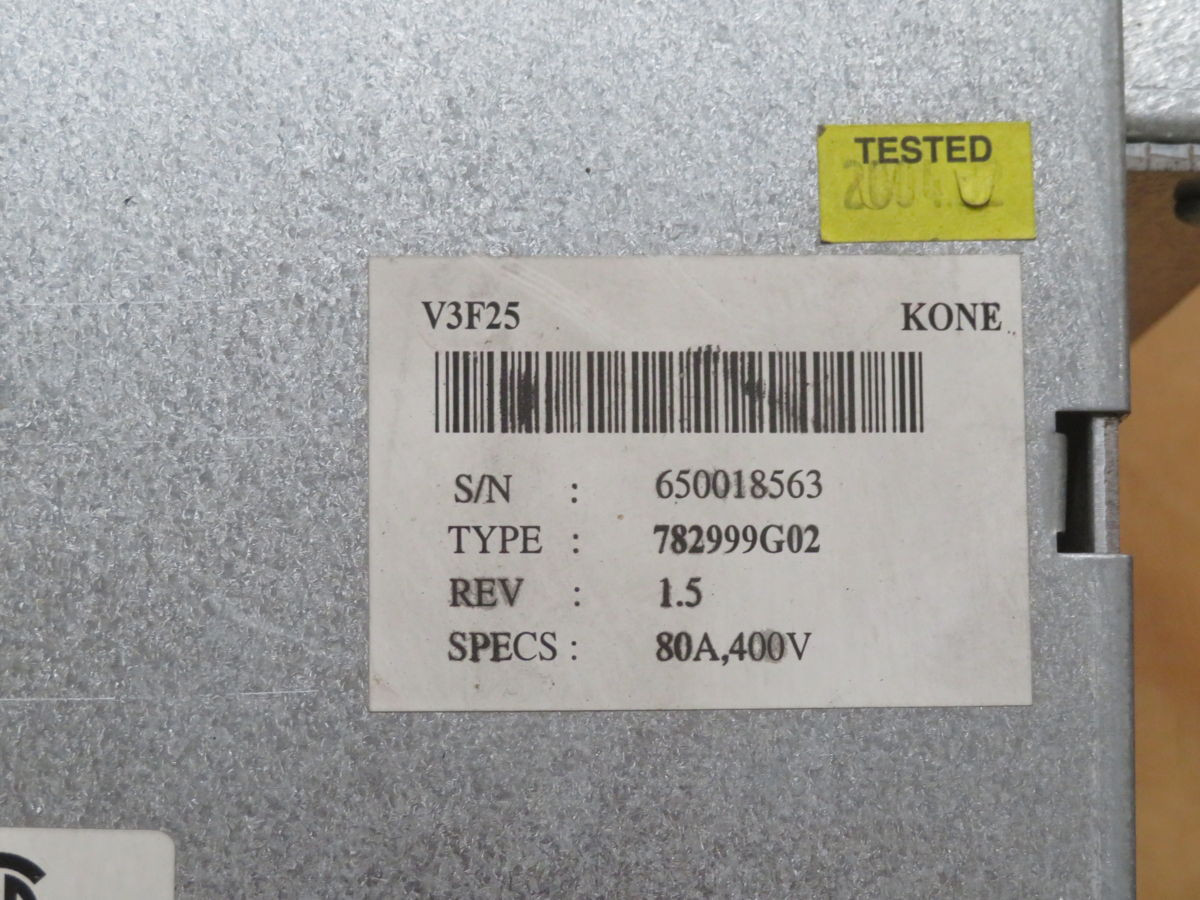

THE KONE V3F25/80A IS A HIGH-CAPACITY VARIABLE FREQUENCY DRIVE (VFD) DESIGNED FOR KONE MONOSPACE AND MINISPACE TRACTION ELEVATORS. THIS MODEL IS ENGINEERED FOR HIGH-RISE OR HIGH-CAPACITY CAR APPLICATIONS, TYPICALLY SUPPORTING SYSTEMS EXCEEDING 1000KG OR OPERATING AT SPEEDS ABOVE 1.6 M/S. THE DRIVE FEATURES A RATED OUTPUT CURRENT OF 80A. IT ACCEPTS A 3-PHASE, 400 VAC INPUT AND PROVIDES A VARIABLE 3-PHASE, 0-400 VAC OUTPUT. THE UNIT INTEGRATES WITH PROPRIETARY KONE SOFTWARE AND SPECIFIC G-GROUPING CONFIGURATIONS, INCLUDING KM870050G02 OR KM782999G02, FOR OPTIMIZED SYSTEM PERFORMANCE WITHIN KONE ELEVATOR CONTROL ARCHITECTURES.
