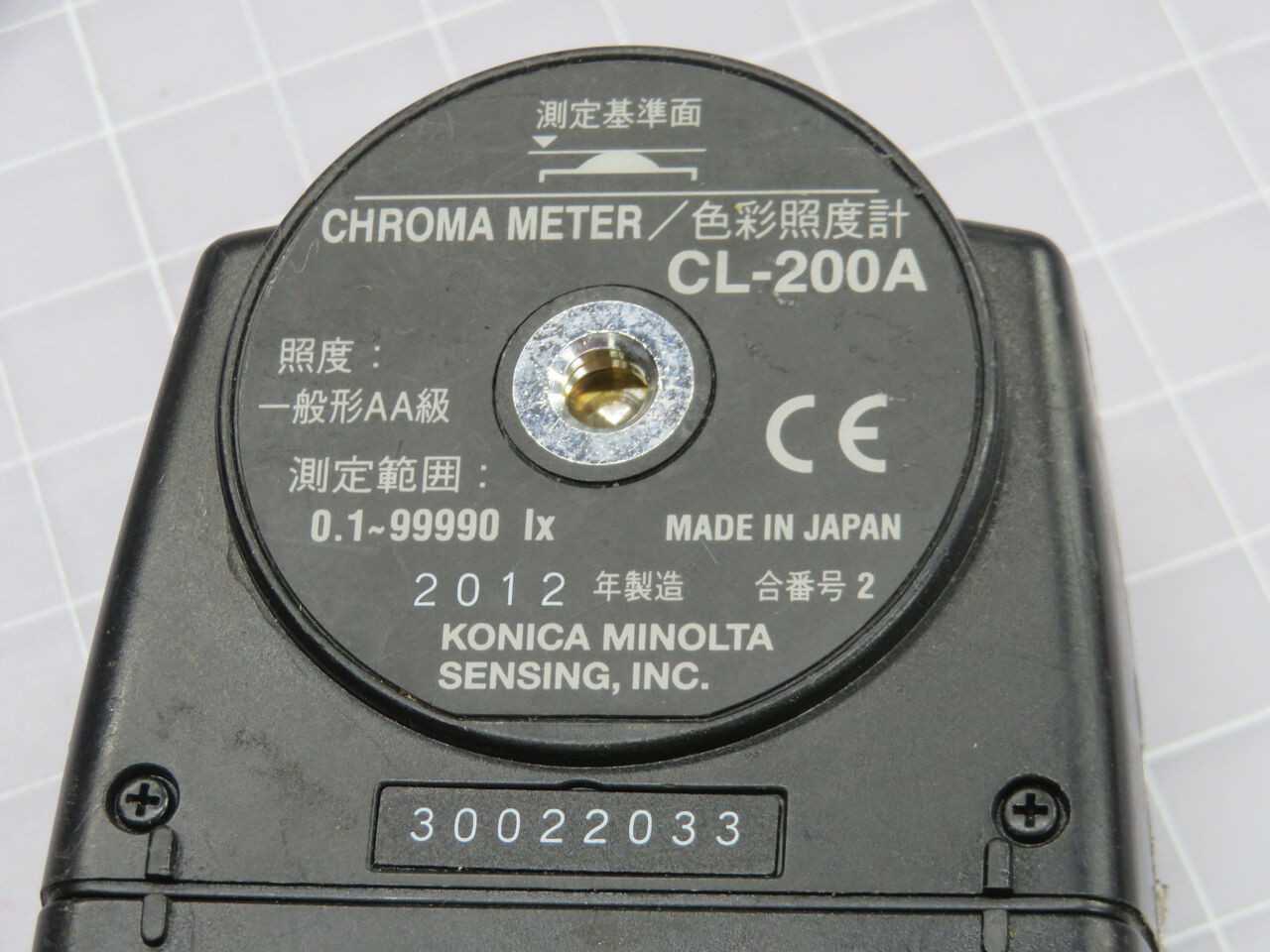

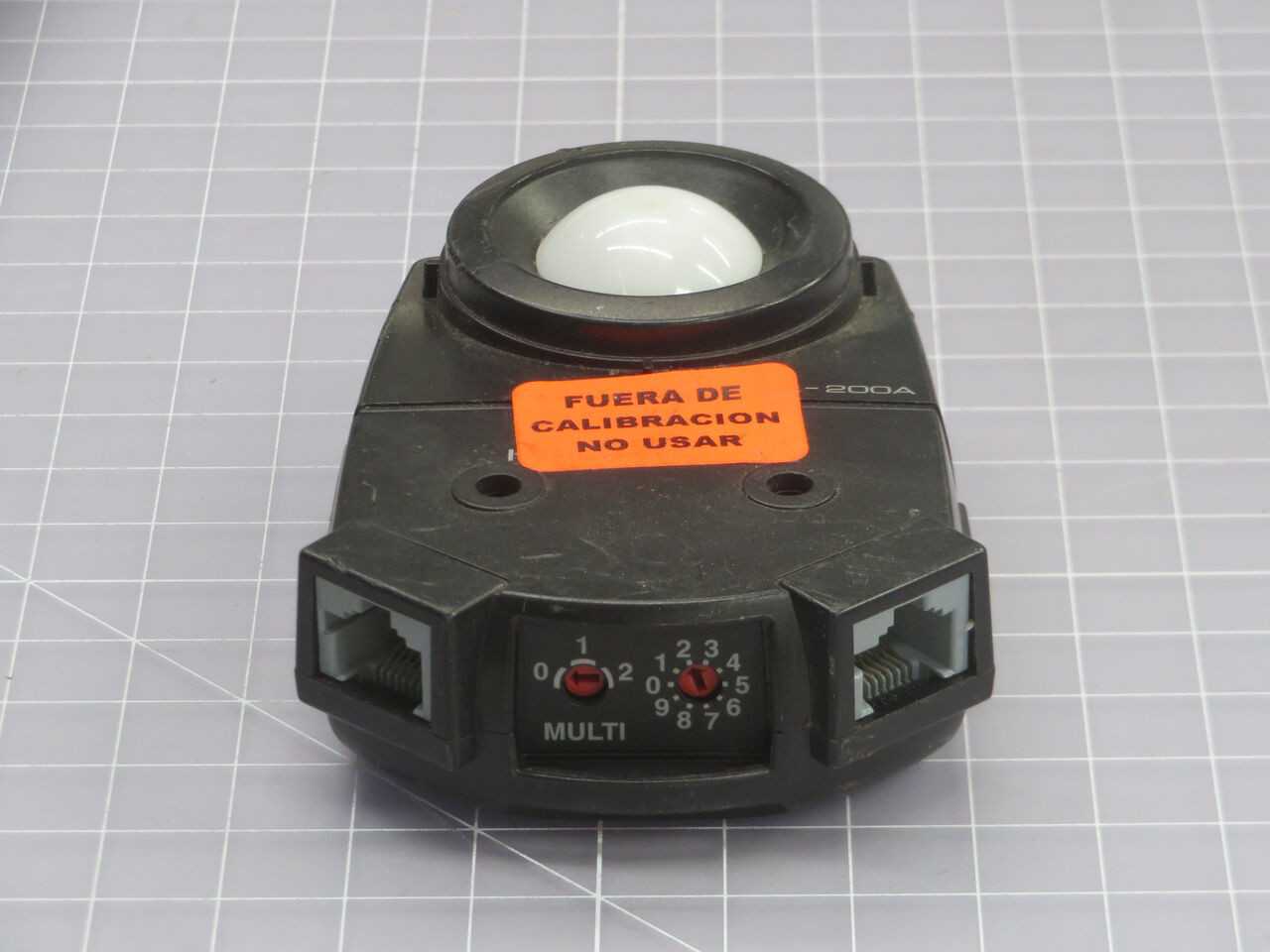

KONICA MINOLTA CL-200A CHROMA METER, 0.1-99,990 LX EV RANGE, ACC ±2% EV, ±0.002 CHROMA, 72 HR BATT

THE KONICA MINOLTA CL-200A CHROMA METER IS A HANDHELD, BATTERY-OPERATED DEVICE FEATURING A 4-DIGIT LCD FOR DISPLAYING MEASURED VALUES. THIS INSTRUMENT IS DESIGNED FOR PRECISE LIGHT SOURCE MEASUREMENT, UTILIZING A SILICON PHOTODIODE ARRAY WITH XYZ FILTERS. ITS SPECTRAL RESPONSE IS CONFIGURED TO MATCH THE CIE STANDARD OBSERVER V(Λ) FOR ILLUMINANCE AND THE CIE 1931 STANDARD COLORIMETRIC OBSERVER FOR CHROMATICITY. THE DEVICE MEASURES CORRELATED COLOR TEMPERATURE (T∆UV), CHROMATICITY COORDINATES (X, Y, U', V'), ILLUMINANCE (EV), DOMINANT WAVELENGTH (ΛD), AND PURITY (PE). THE ILLUMINANCE MEASUREMENT RANGE SPANS 0.1 TO 99,990 LX (0.01 TO 9,290 FCD), WITH AN ACCURACY OF ±2% OF THE INDICATED VALUE ±1 DIGIT. CHROMATICITY ACCURACY IS ±0.002 (AT 3,000K, 800 LX). POWER IS SUPPLIED BY TWO AA BATTERIES, OFFERING APPROXIMATELY 72 HOURS OF OPERATION. THE CL-200A INCLUDES A USB 1.1 INTERFACE FOR DATA TRANSFER AND INTERNAL MEMORY CAPABLE OF STORING UP TO 99 MEASUREMENT POINTS.
