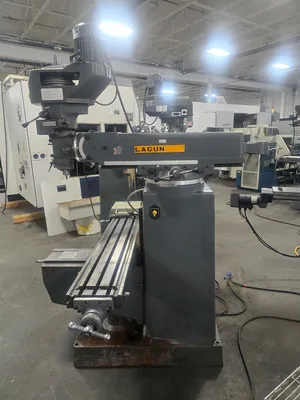

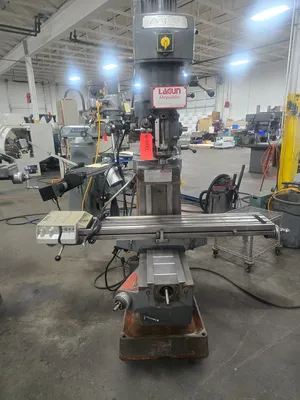

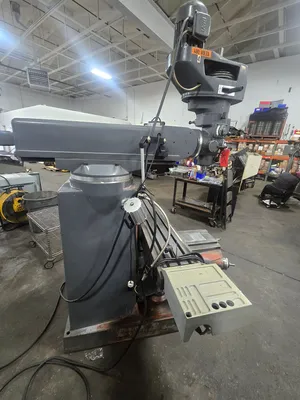

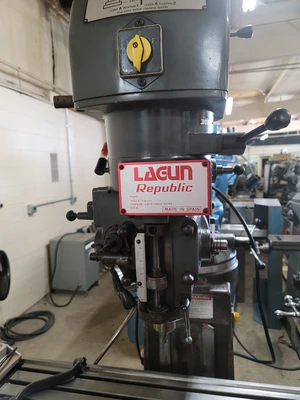

LAGUN FTV-2 FT-2 VERTICAL MILL 2 HP STEP PULLEY HEAD

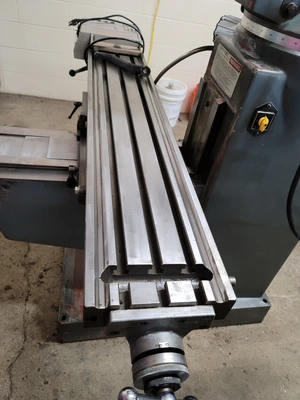

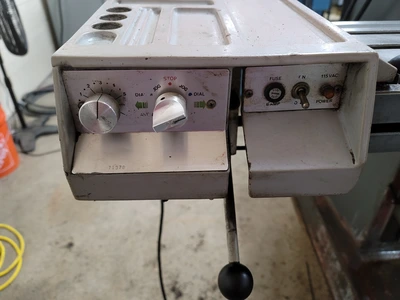

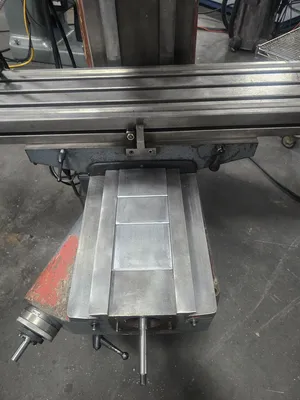

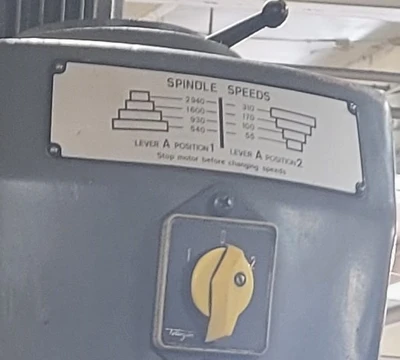

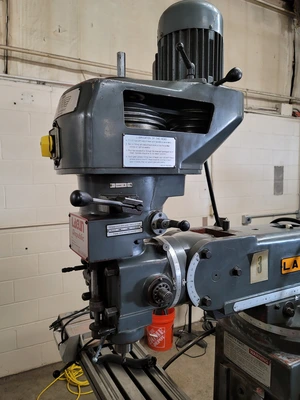

THE LAGUN FTV-2 VERTICAL MILL FEATURES A 2 HP STEP PULLEY HEAD PROVIDING 8 HIGH AND LOW RANGE SPEEDS FROM 55 TO 2940 RPM. THE MACHINE IS EQUIPPED WITH AN R-8 SPINDLE TAPER AND A QUILL WITH A 3.38” (86 MM) DIAMETER AND 5” (127 MM) TRAVEL. POWER QUILL FEEDS ARE AVAILABLE AT .0015, .00314, AND .00511 IN./REV (0.04; 0.08; 0.13 MM/REV). THE WORKING SURFACE IS A 10" X 48" TABLE WITH X-AXIS POWER FEED. TRAVEL CAPABILITIES INCLUDE A TABLE TRAVEL OF 37.99” (MANUAL) / 34.64” (WITH POWER FEED) (965 / 880 MM) ON THE X-AXIS, 15.98” (406 MM) ON THE Y-AXIS (CROSS TRAVEL), AND 15.98” (406 MM) ON THE Z-AXIS (KNEE TRAVEL). RAM TRAVEL IS 22.44” (570 MM). THE HEAD CAN SWIVEL LEFT TO RIGHT BY +/- 90° AND TILT FRONT TO BACK BY +/- 45°. DISTANCE FROM THE SPINDLE TO THE COLUMN RANGES FROM 5 TO 26.96” (127 TO 685 MM), AND FROM THE SPINDLE TO THE TABLE, 0 TO 17.99” (0 TO 457 MM). FEATURES INCLUDE AN INTERNAL COOLANT SYSTEM, ONE-SHOT LUBE, AND AN LED LIGHT.
