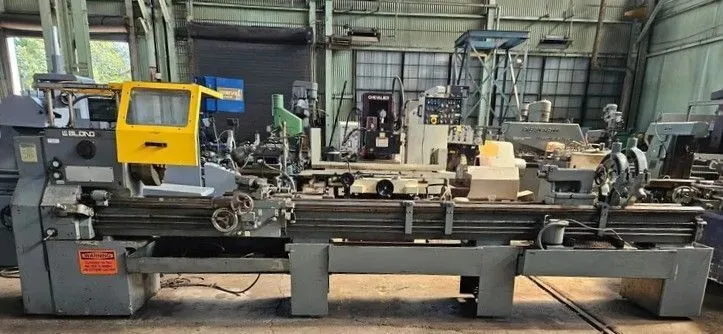

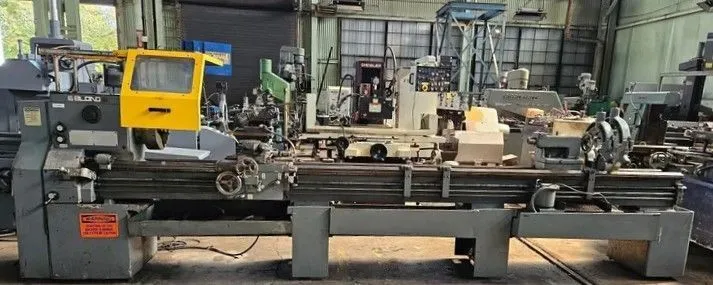

LEBLOND 19" REGAL SERVO-SHIFT ENGINE LATHE, 19-1/4" SWING, 150" CENTERS, 10 HP, 3 1/16" HOLE

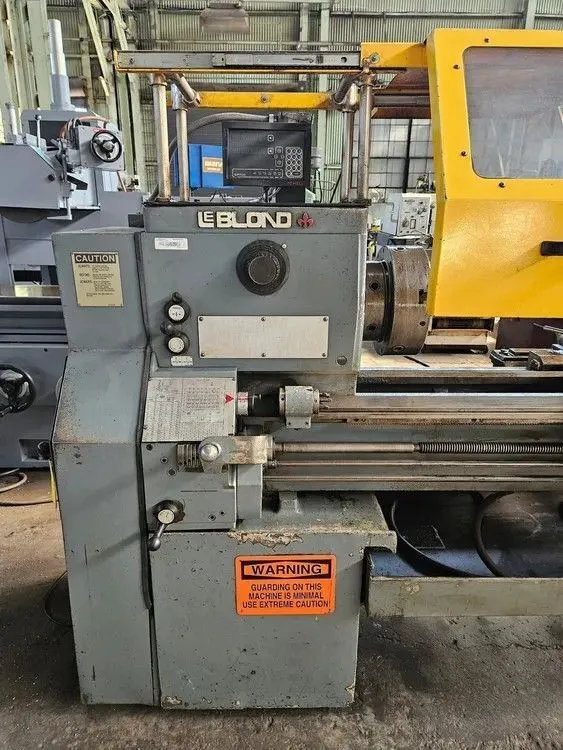

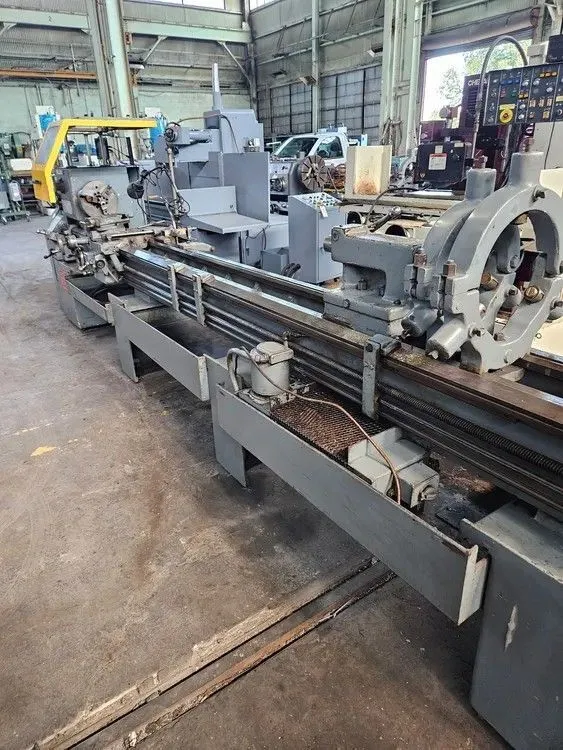

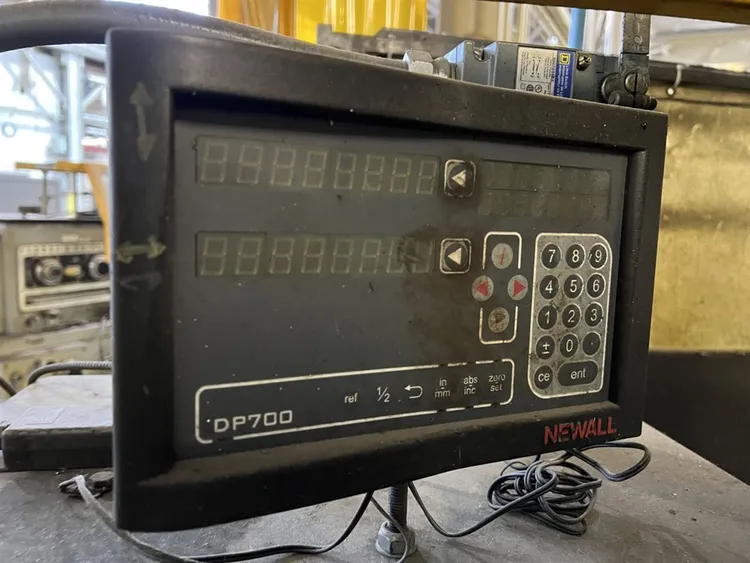

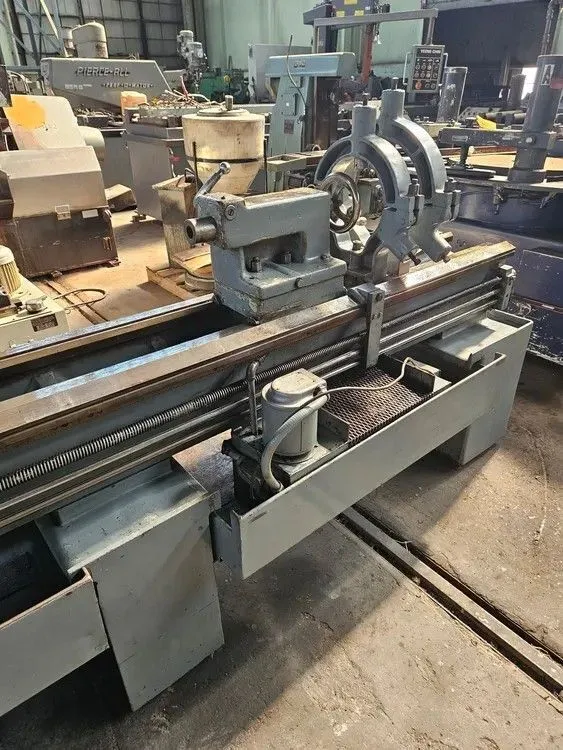

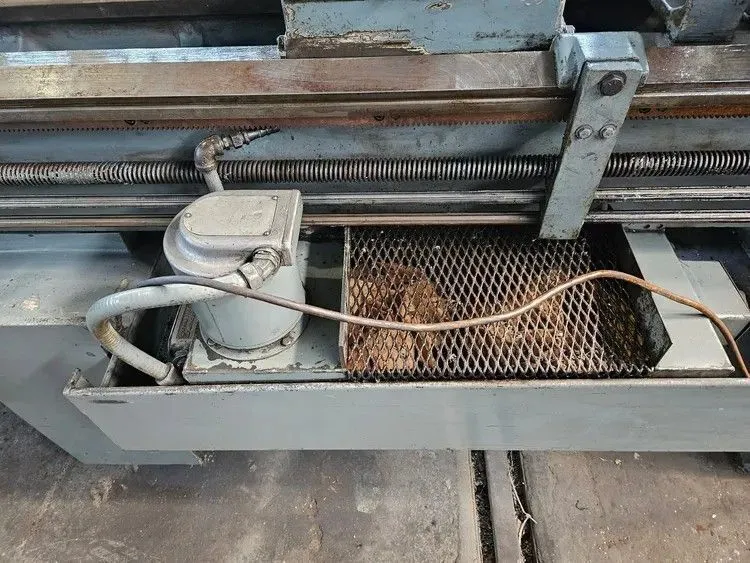

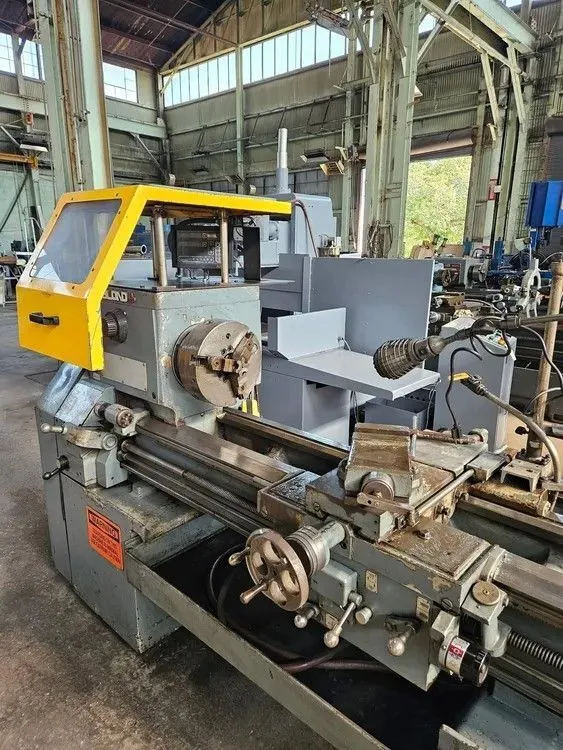

THIS LEBLOND 19" REGAL SERVO-SHIFT ENGINE LATHE FEATURES AN ACTUAL SWING OVER BED WAYS OF 19-1/4" AND A DISTANCE BETWEEN CENTERS OF 150". THE MACHINE IS POWERED BY A 10 HP MOTOR, AND ITS L-2 SPINDLE NOSE HAS A 3 1/16" HOLE THROUGH, OFFERING 12 SPEEDS RANGING FROM 40 TO 1600 RPM. THE SWING OVER THE CROSS-SLIDE IS 12-1/4", WITH A CROSS-SLIDE CROSS FEED OF 11-1/4". THE LATHE PROVIDES 48 LONGITUDINAL CARRIAGE FEEDS FROM .0018 TO .104 IPR, 48 INCH THREAD CHANGES FROM 2 TO 112 TPI, AND 40 METRIC THREAD CHANGES FROM .25 TO 14 MMPR. THE TAILSTOCK FEATURES A #4 MT SPINDLE TAPER, A 2-7/16" DIAMETER, AND 7" OF TRAVEL. STANDARD EQUIPMENT INCLUDES SERVO SHIFT HYDRAULIC SHIFTING, HARD WAYS, INCH-METRIC THREADING DIALS, A TAPER ATTACHMENT, NEWALL DP700 DIGITAL READOUTS, A 12" 3-JAW CHUCK, TWO STEADY RESTS, AND A CHIP PAN. THE OVERALL DIMENSIONS ARE 217" LONG BY 50" DEEP.
