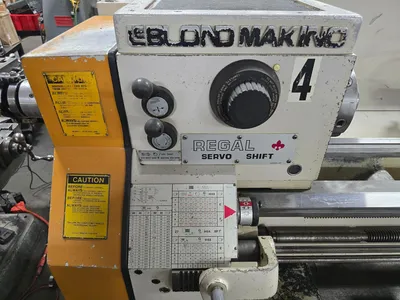

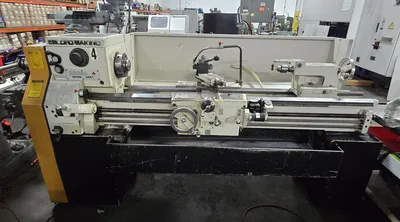

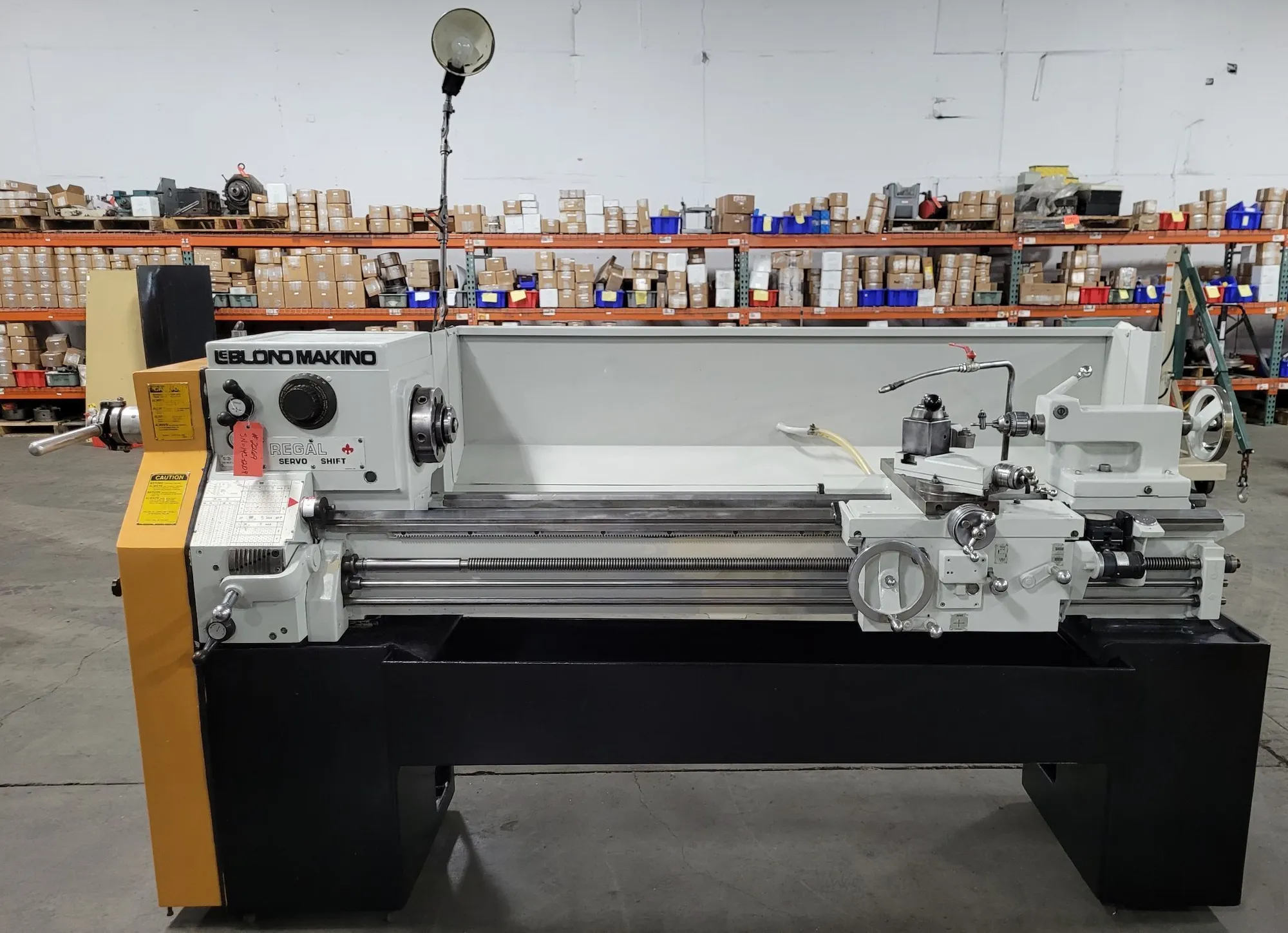

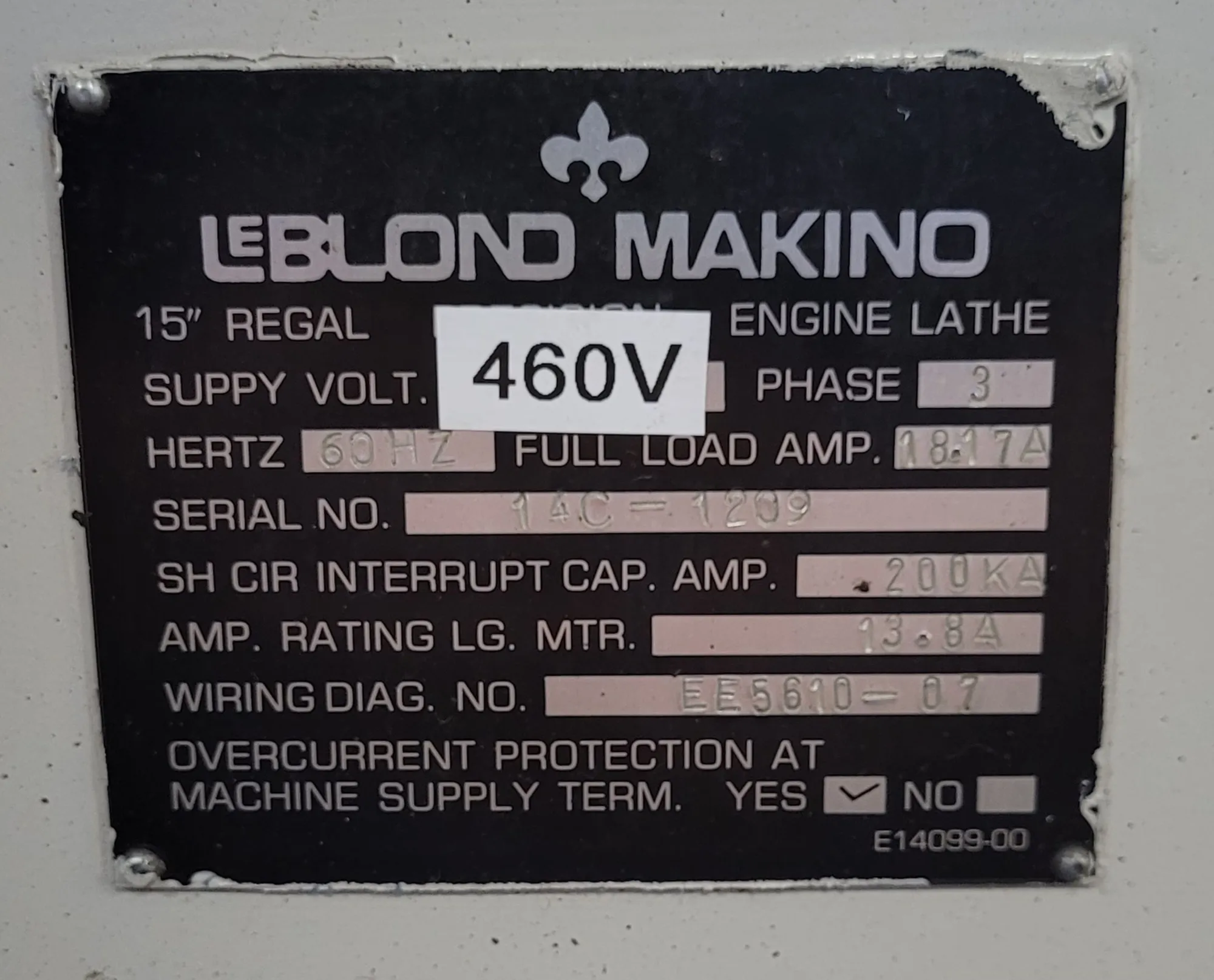

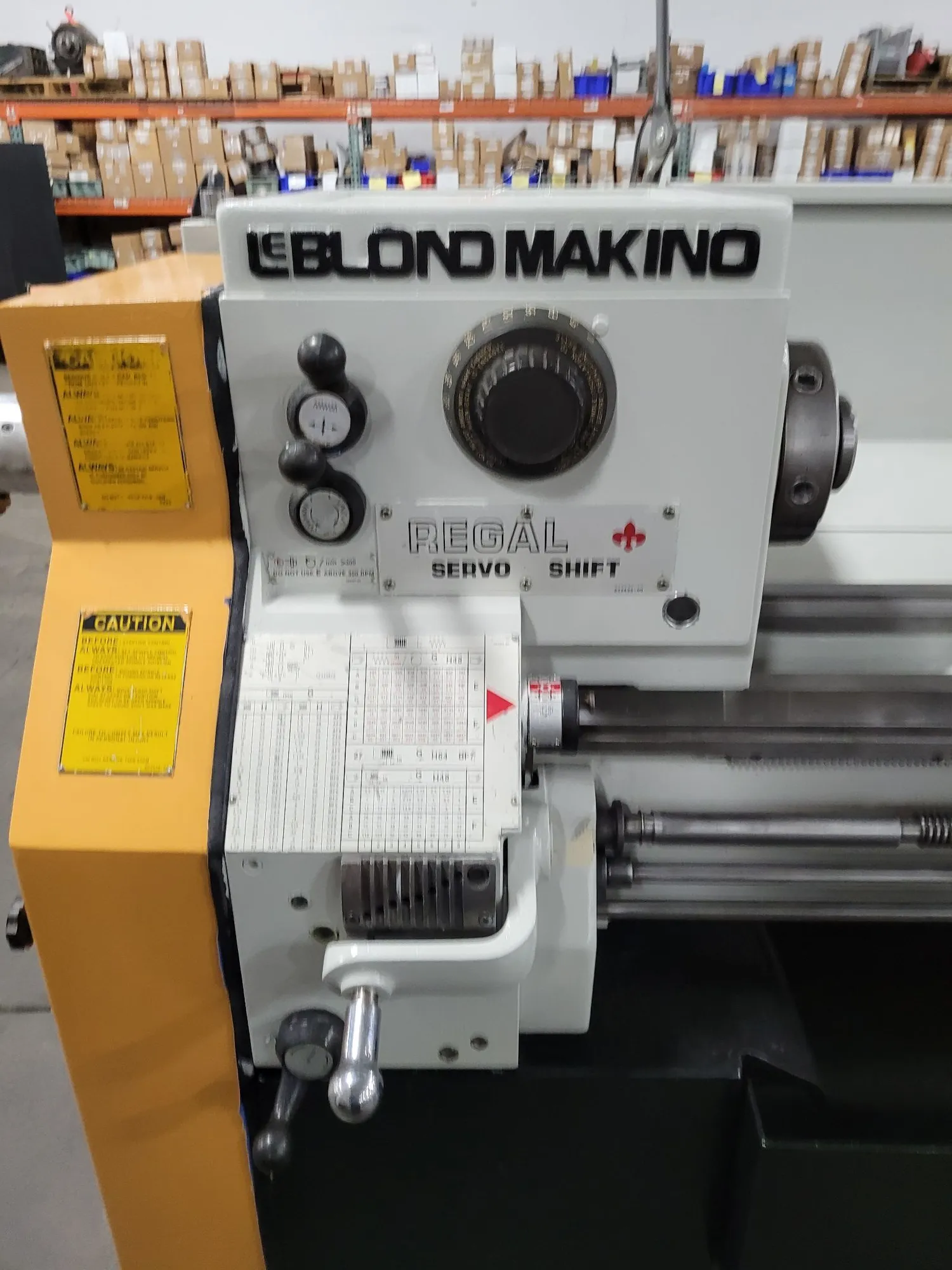

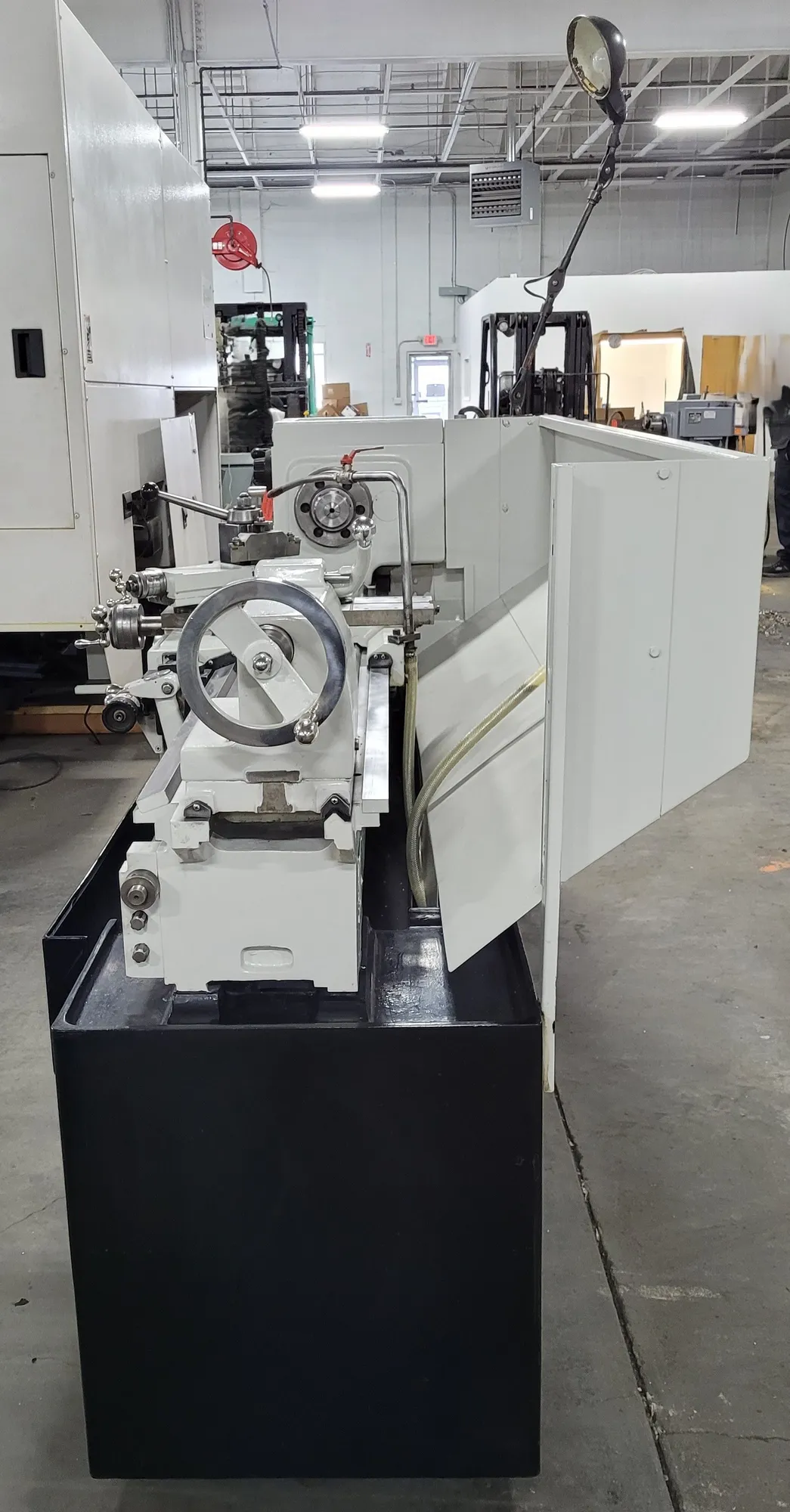

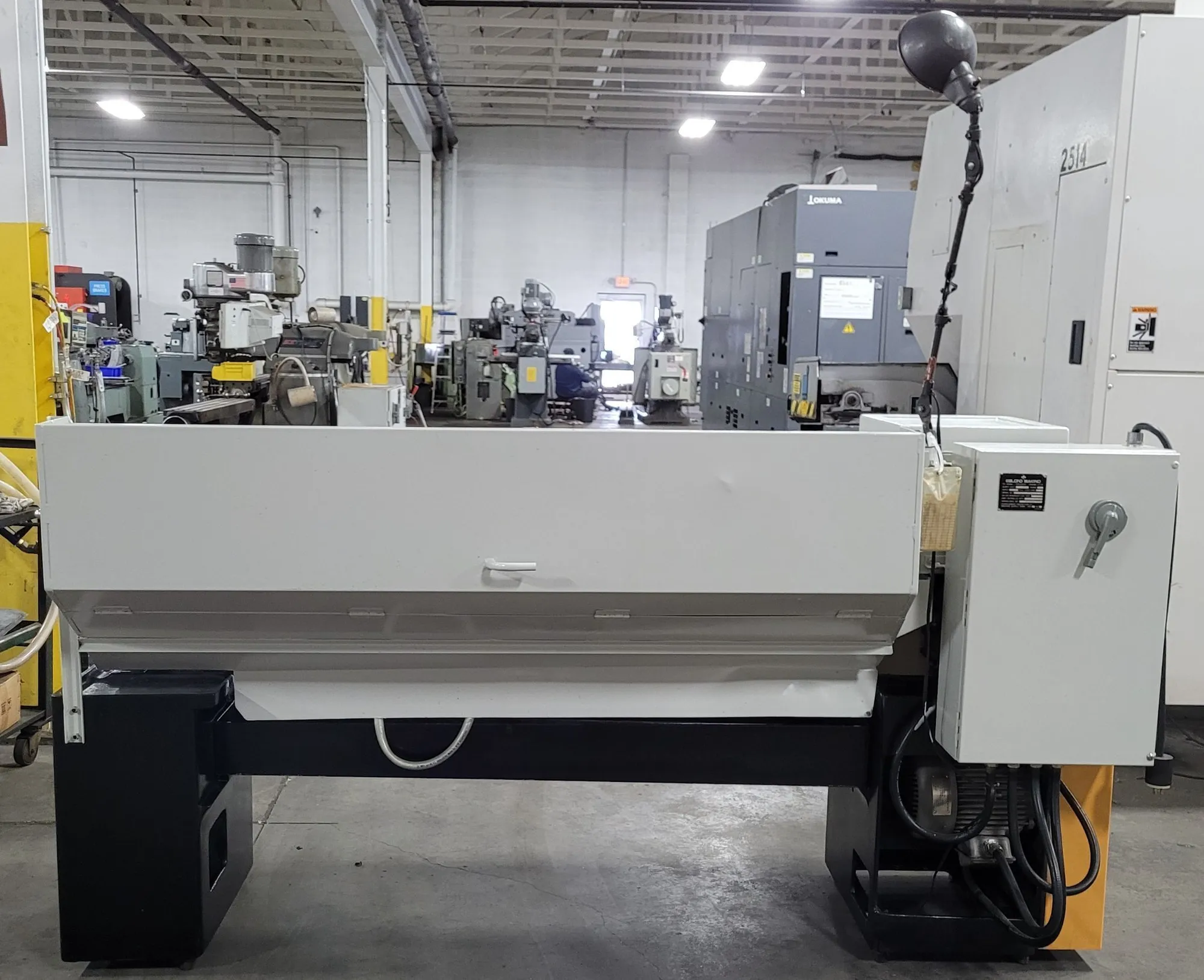

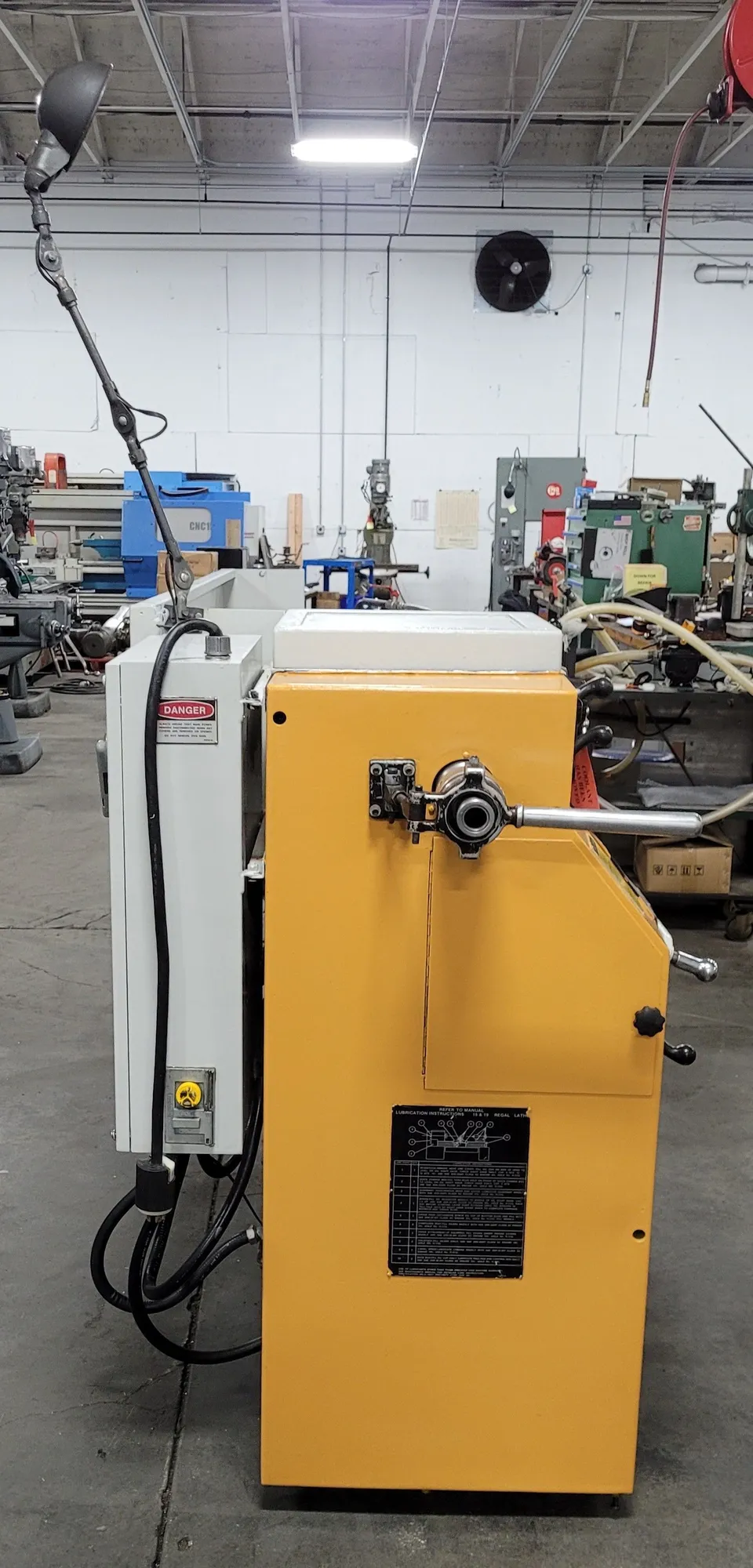

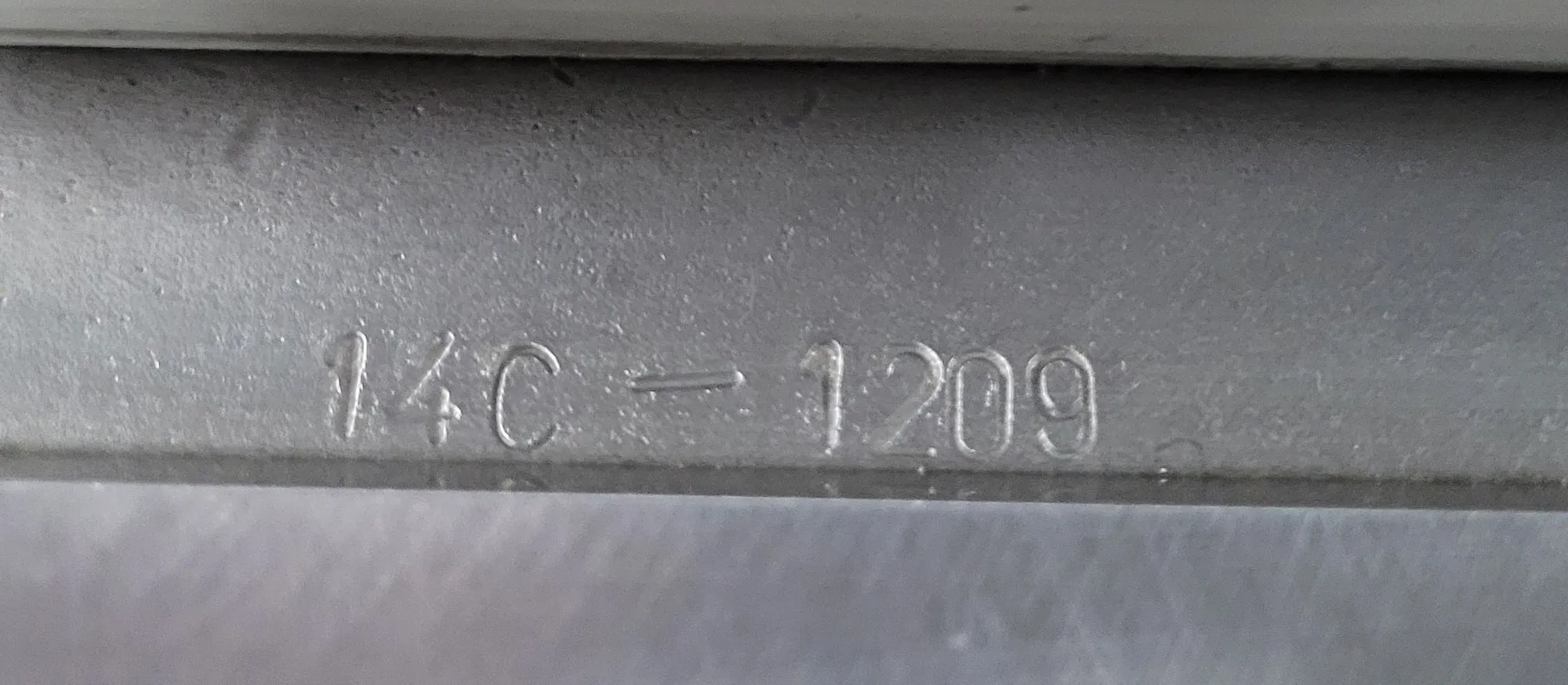

LEBLOND MAKINO REGAL 14C SERVO SHIFT ENGINE LATHE, 15 IN. X 54 IN.

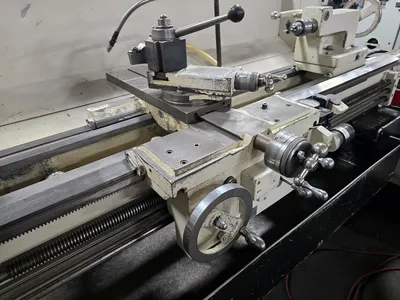

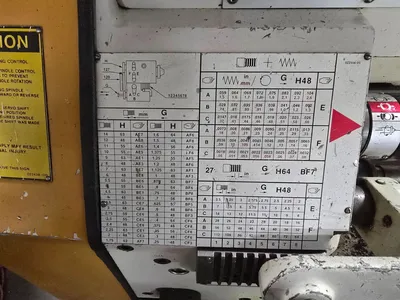

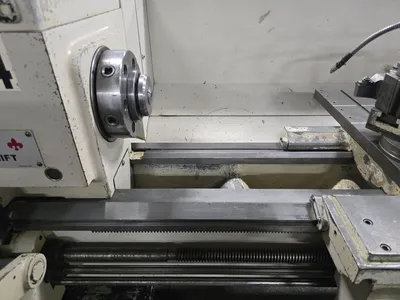

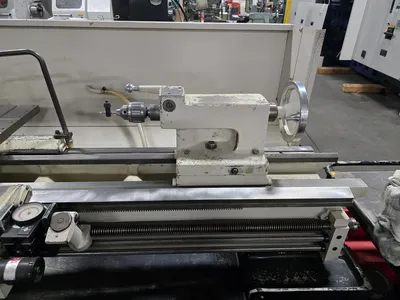

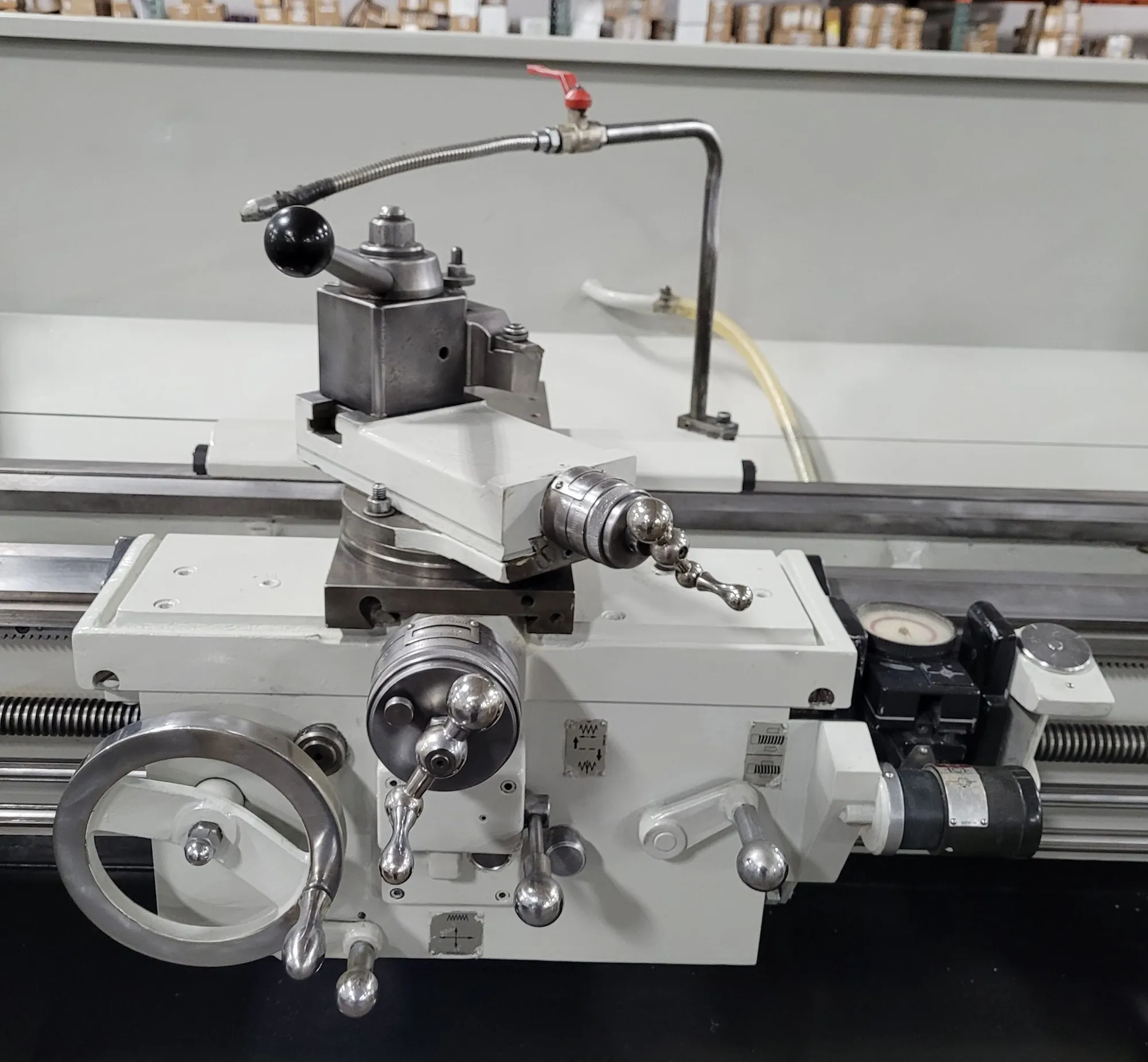

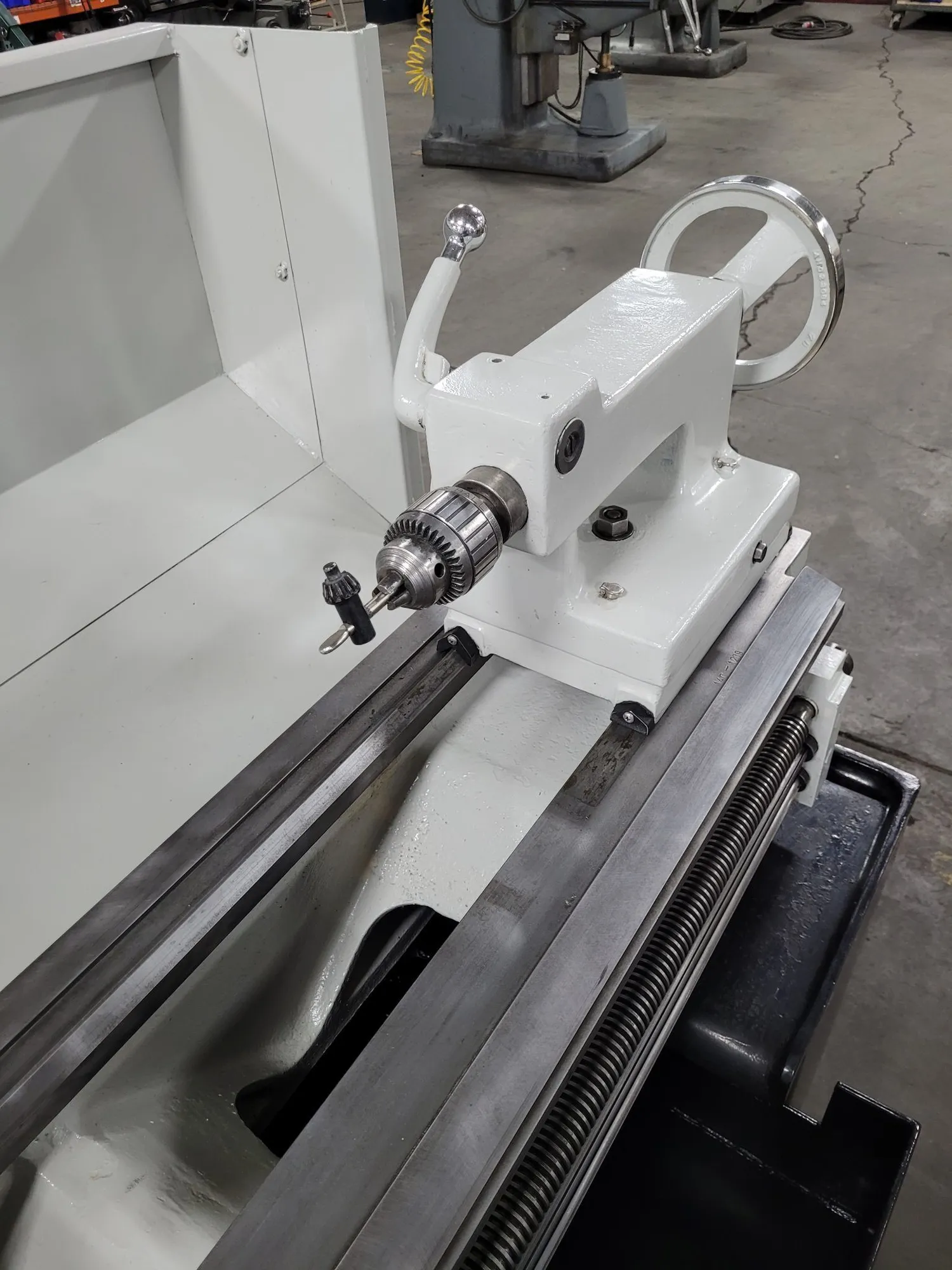

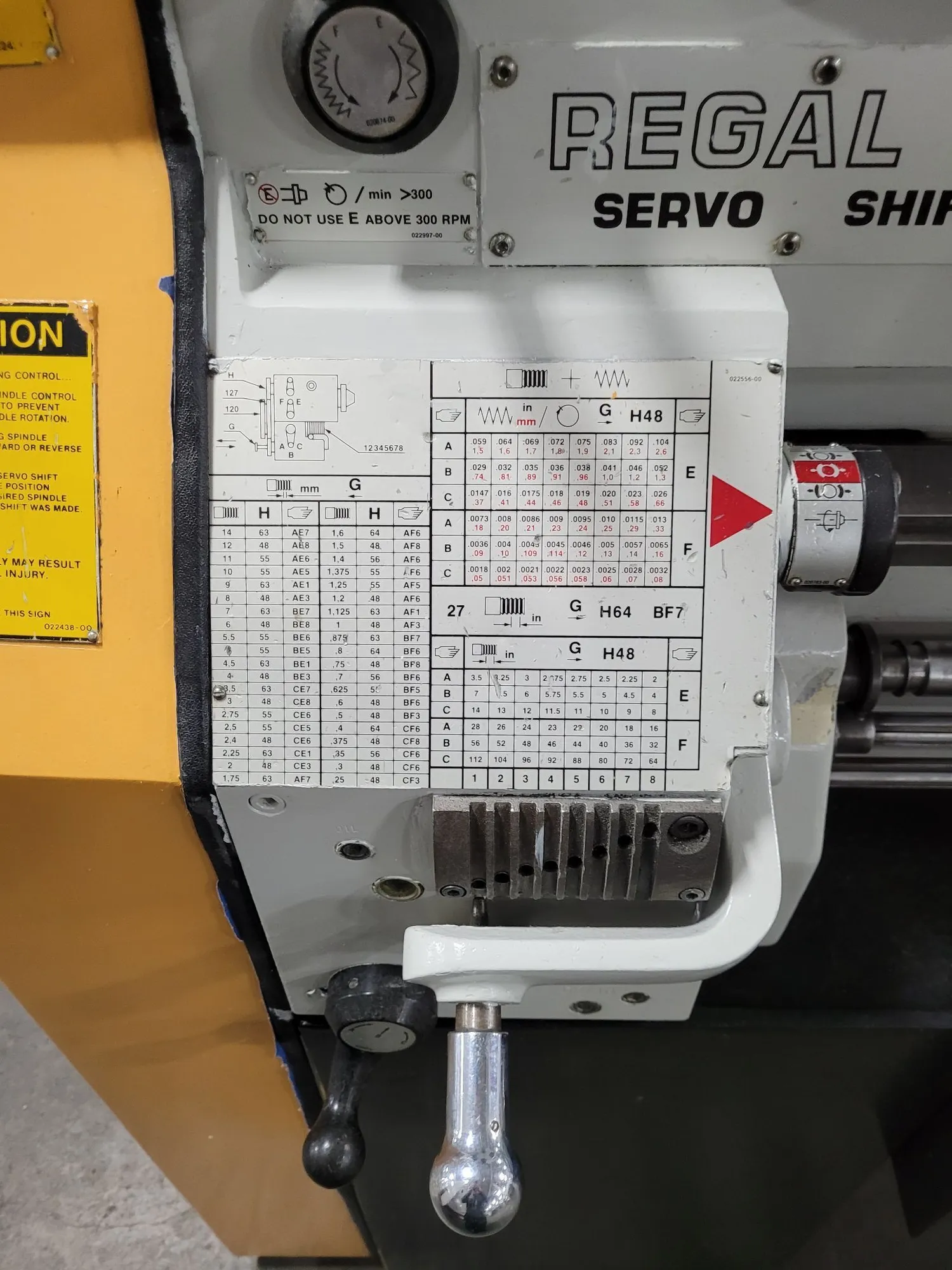

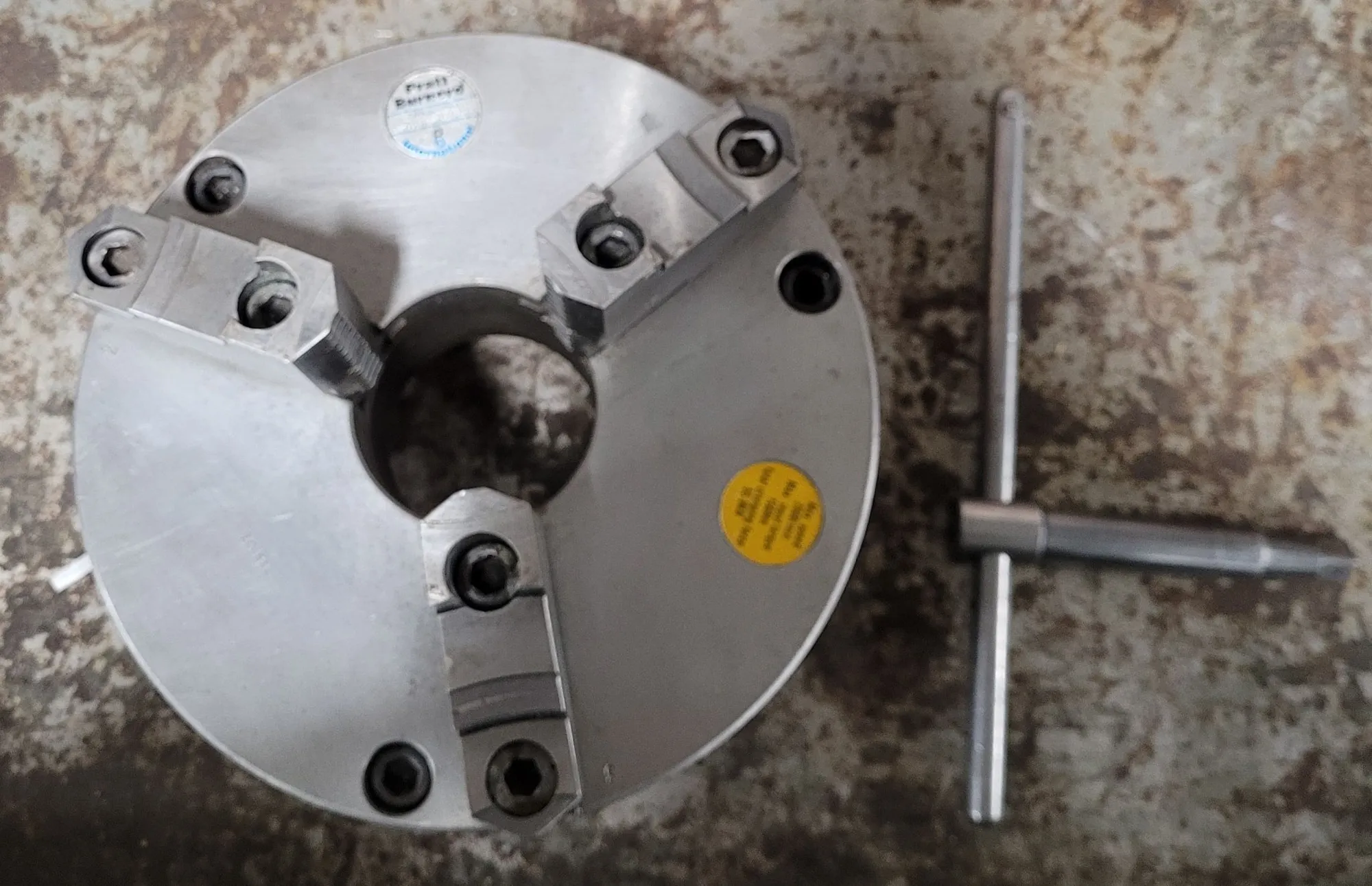

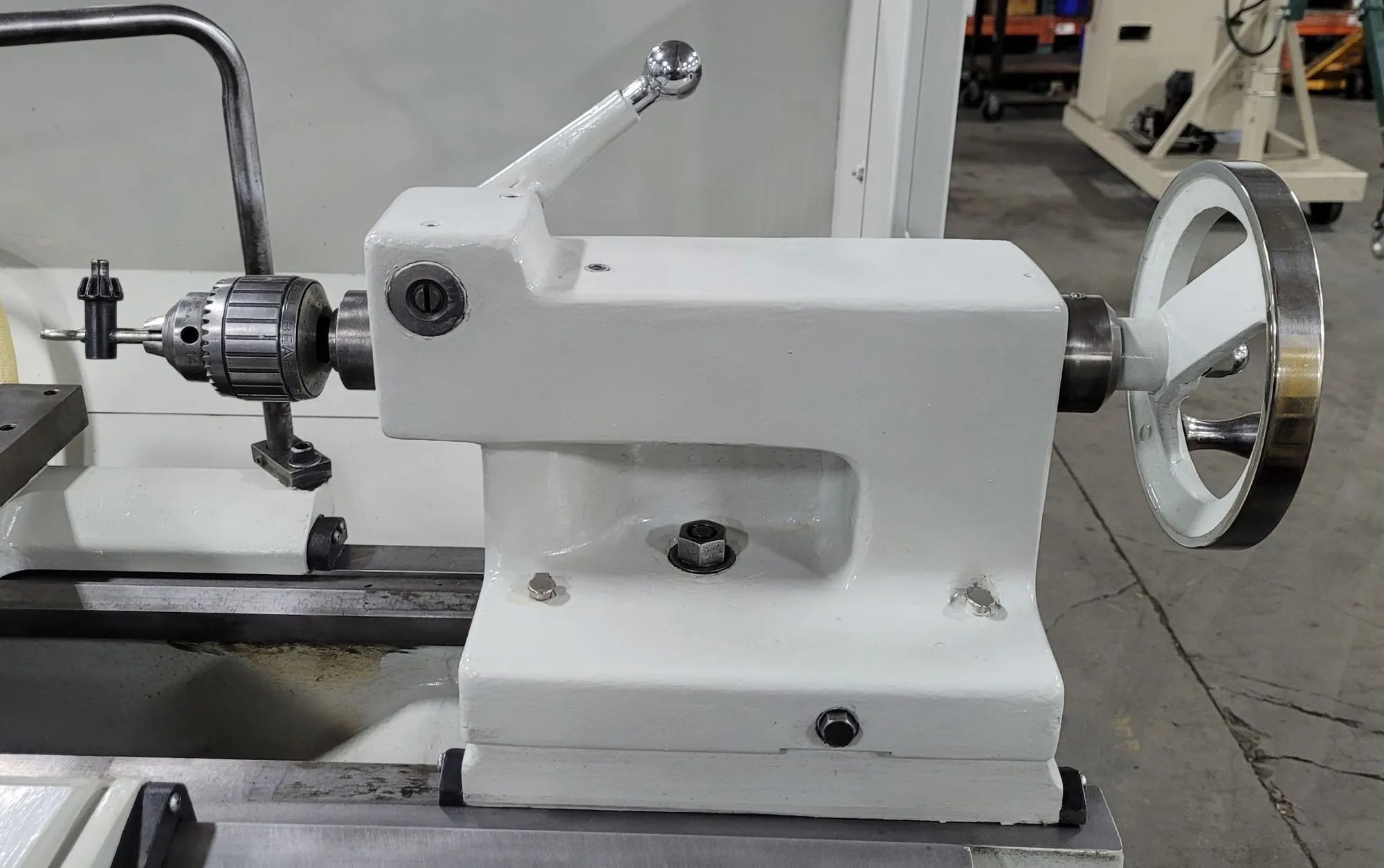

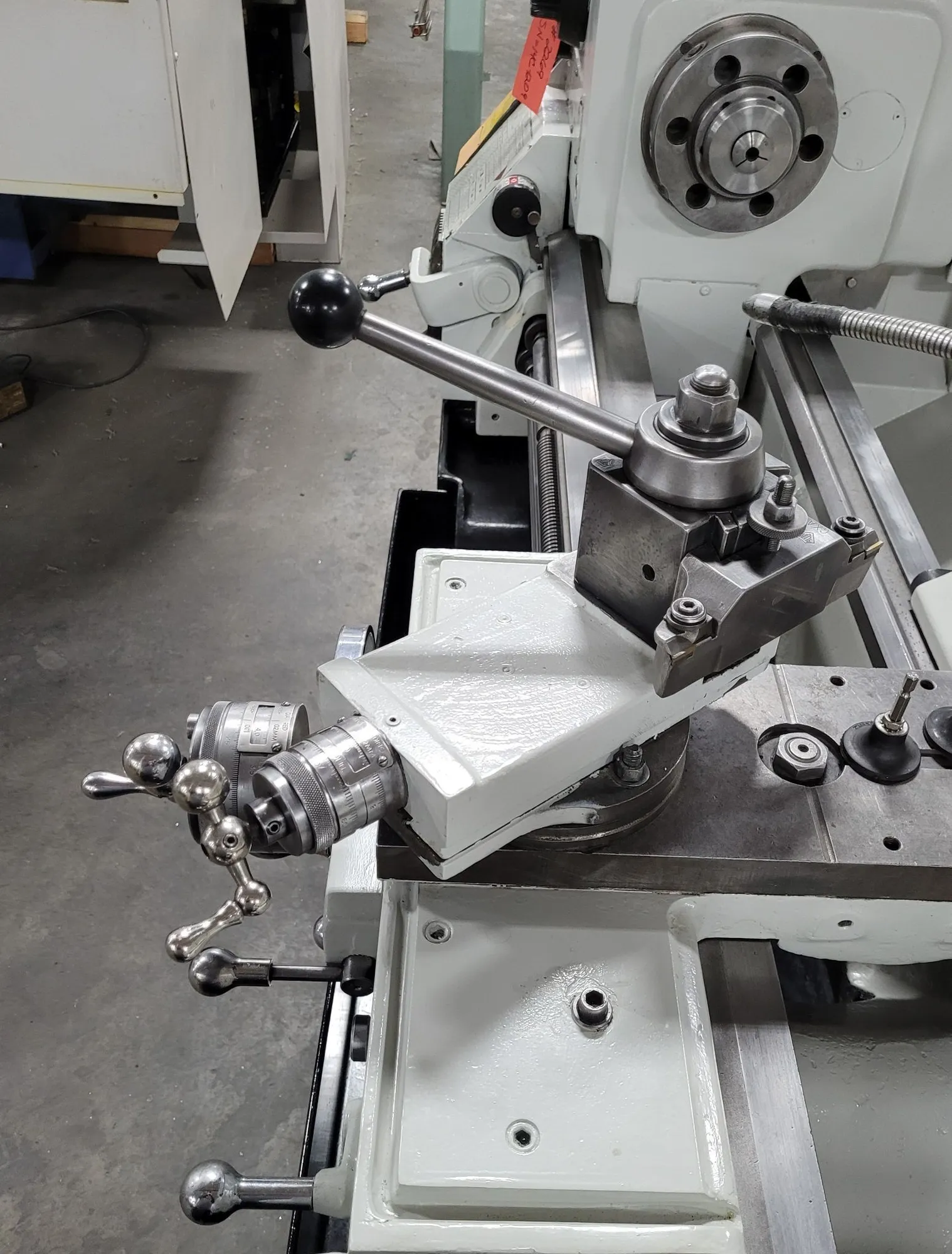

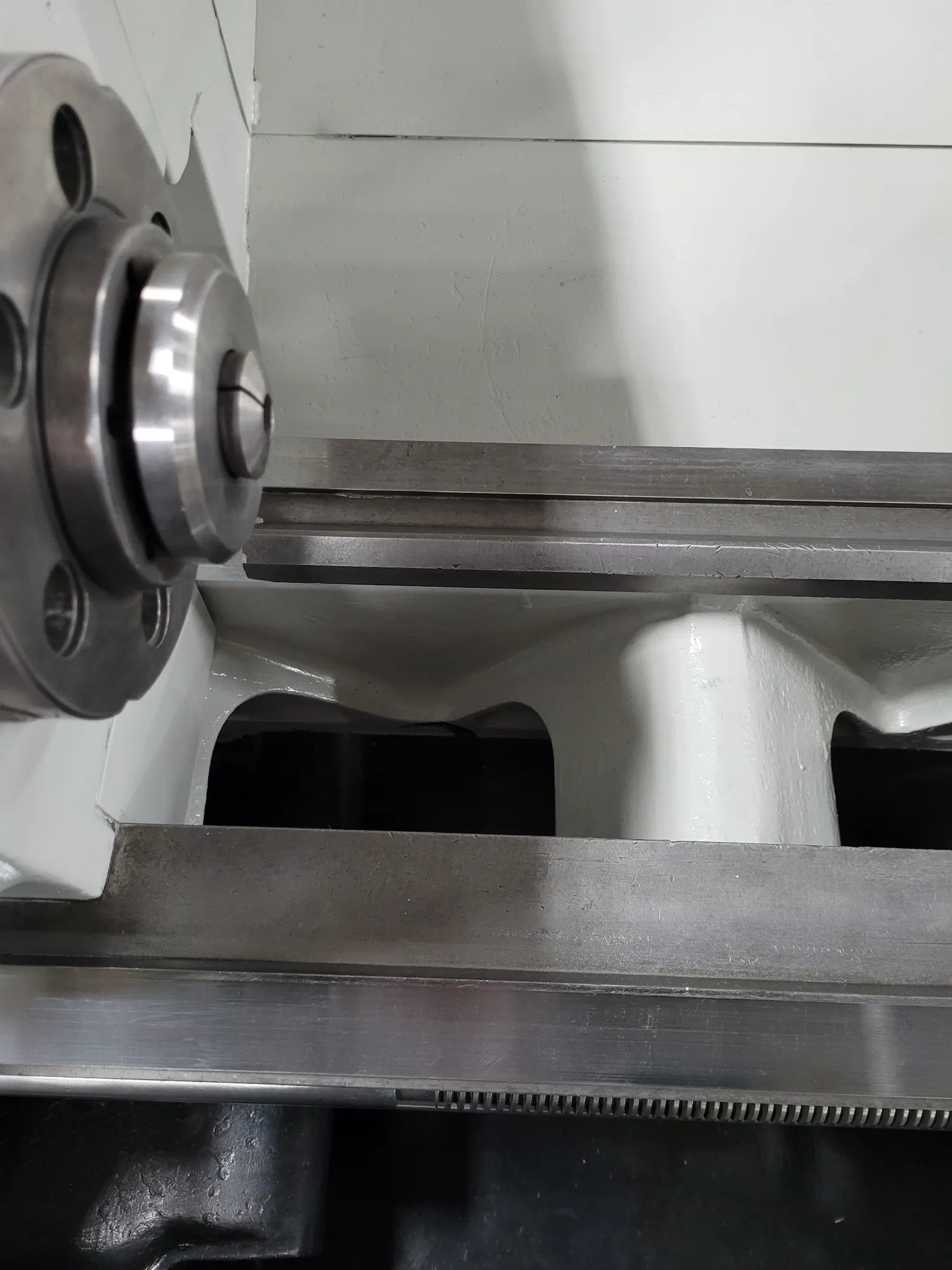

THE LEBLOND MAKINO MODEL 14C REGAL SERVO SHIFT ENGINE LATHE FEATURES A 15.5-INCH SWING OVER BED AND A 10-INCH SWING OVER CROSS SLIDE, WITH A DISTANCE BETWEEN CENTERS OF 54 INCHES (1370 MM). IT IS EQUIPPED WITH A 7.5 HP SPINDLE MOTOR AND A D6 CAMLOCK SPINDLE NOSE. THE LATHE OFFERS 14 SPINDLE SPEEDS RANGING FROM 45 TO 1800 RPM. KEY CAPABILITIES INCLUDE INCH AND METRIC THREADING, WITH A SPINDLE BORE OF 2.375 INCHES. THE MACHINE INCLUDES A COLLET CLOSER, COLLET CHUCK, TAILSTOCK WITH A 4MT TAPER, REMOVABLE CHIP PAN, AND AN ALORIS TOOL POST. ITS SERVO-SHIFT FEATURE ENABLES DIAL-CONTROLLED SPEED CHANGES. THE LATHE WEIGHS APPROXIMATELY 3,500 LBS (1588 KG).
