LENZE 16-10-7010, MOTOR ARMATURE ASSEMBLY, 120V AC, 60 HZ SUPPLY, 1440 W POWER, 57 MM DIAMETER

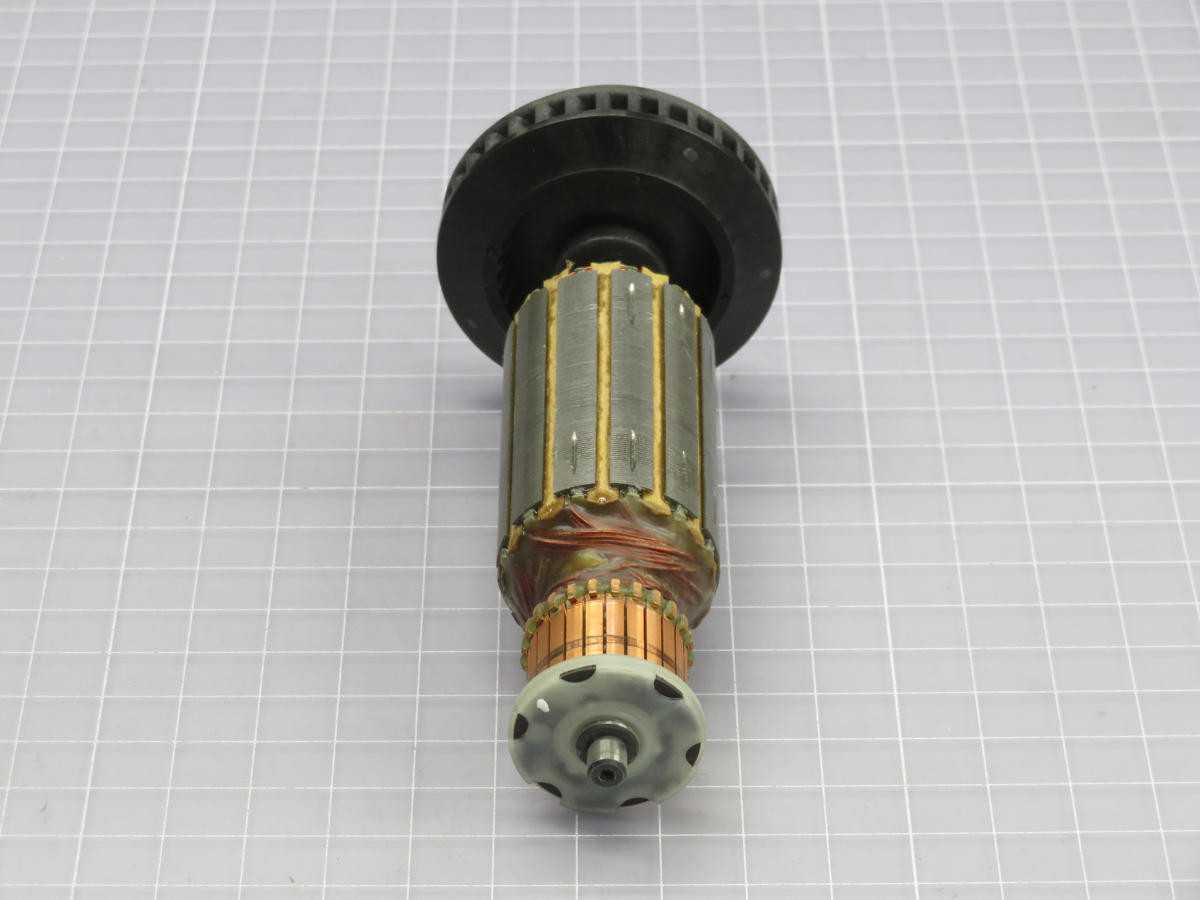

THE LENZE 16-10-7010 IS A MOTOR ARMATURE ASSEMBLY. THIS UNIT IS RATED FOR OPERATION WITH A 120V AC, 60 HZ POWER SUPPLY, PROVIDING A NOMINAL OUTPUT OF 1440 W. AS AN INTEGRAL COMPONENT OF AN ELECTRIC MOTOR, THE ASSEMBLY INCORPORATES A PRECISION-MANUFACTURED, LAMINATED FERROMAGNETIC CORE. THIS CORE IS WOUND WITH INSULATED COPPER CONDUCTORS, FORMING THE ARMATURE WINDINGS. ELECTRICAL CURRENT IS SUPPLIED TO THESE WINDINGS VIA A MULTI-SEGMENT COMMUTATOR, TYPICALLY CONSTRUCTED FROM COPPER SEGMENTS INSULATED BY MICA, ENSURING SEQUENTIAL COMMUTATION. ALL THESE COMPONENTS, INCLUDING THE ARMATURE CORE AND COMMUTATOR, ARE RIGIDLY MOUNTED ON A CENTRAL STEEL SHAFT, WHICH FACILITATES ROTATIONAL MOTION AND POWER TRANSMISSION. A KEY PHYSICAL DIMENSION FOR THIS ASSEMBLY IS ITS ARMATURE DIAMETER OF 57 MM. THE ENTIRE ASSEMBLY IS DYNAMICALLY BALANCED TO ENSURE SMOOTH AND EFFICIENT ELECTROMECHANICAL ENERGY CONVERSION WITHIN ITS SPECIFIED OPERATING PARAMETERS, CONTRIBUTING TO THE MOTOR'S TORQUE GENERATION AND ROTATIONAL SPEED.
