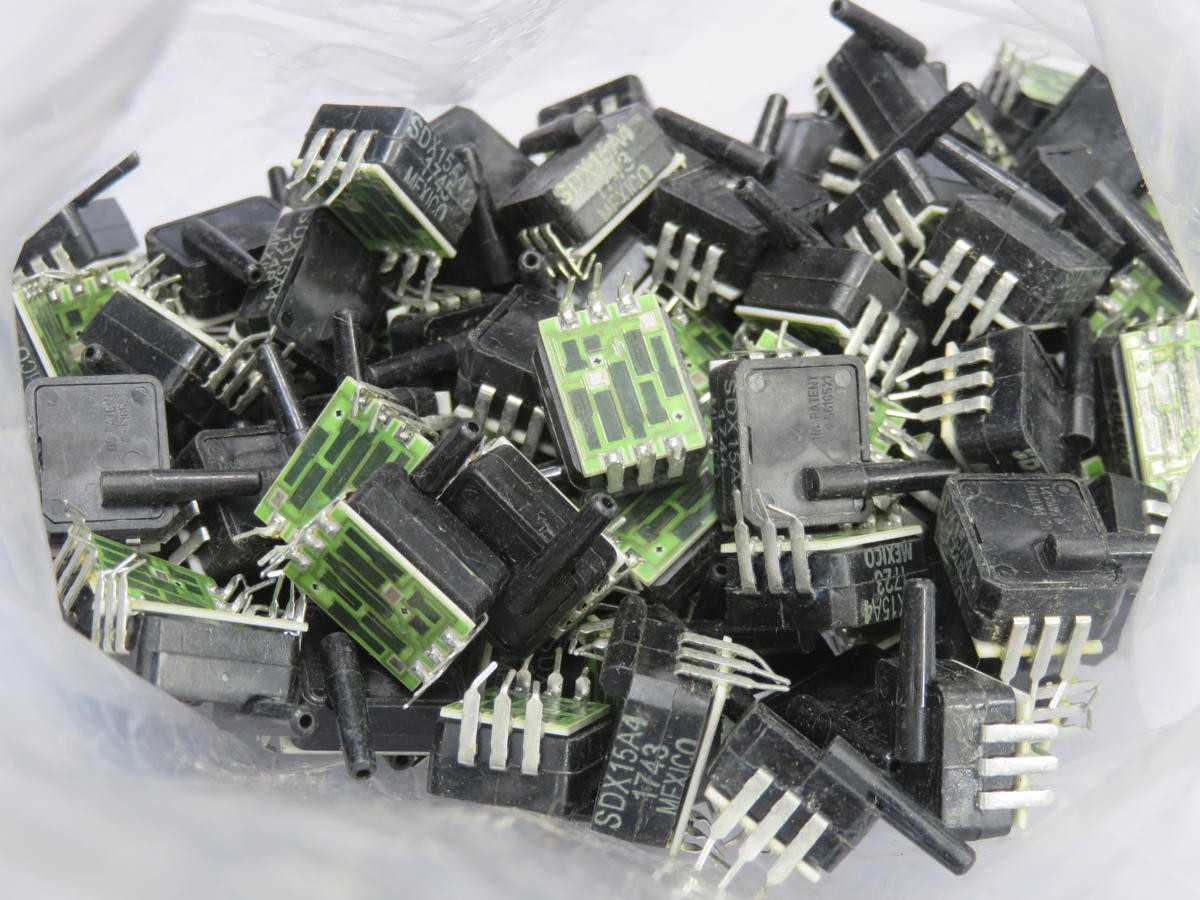

LOT OF 100 HONEYWELL SDX15A4 PRESSURE SENSOR

THE HONEYWELL SDX15A4 IS AN ABSOLUTE SILICON DIAPHRAGM PRESSURE SENSOR CONFIGURED FOR OPERATION WITH A 20 V SUPPLY VOLTAGE. THIS SENSOR MEASURES PRESSURE OVER A RANGE OF 0 TO 15 PSI. IT DELIVERS AN UNAMPLIFIED AND UNCOMPENSATED MILLIVOLT OUTPUT, WITH A TYPICAL FULL-SCALE SPAN OF APPROXIMATELY 132 MV AT ITS SPECIFIED PRESSURE RANGE WHEN UTILIZING A 20 V SUPPLY. THE DEVICE IS DESIGNED FOR COMPATIBILITY WITH DRY AIR AND NON-CORROSIVE GASES, OPERATING WITHIN A TEMPERATURE RANGE OF -40°C TO 85°C. ITS PHYSICAL CONSTRUCTION IS BASED ON A CERAMIC SUBSTRATE PACKAGE, TYPICALLY FEATURING A MULTI-PIN CONFIGURATION.
