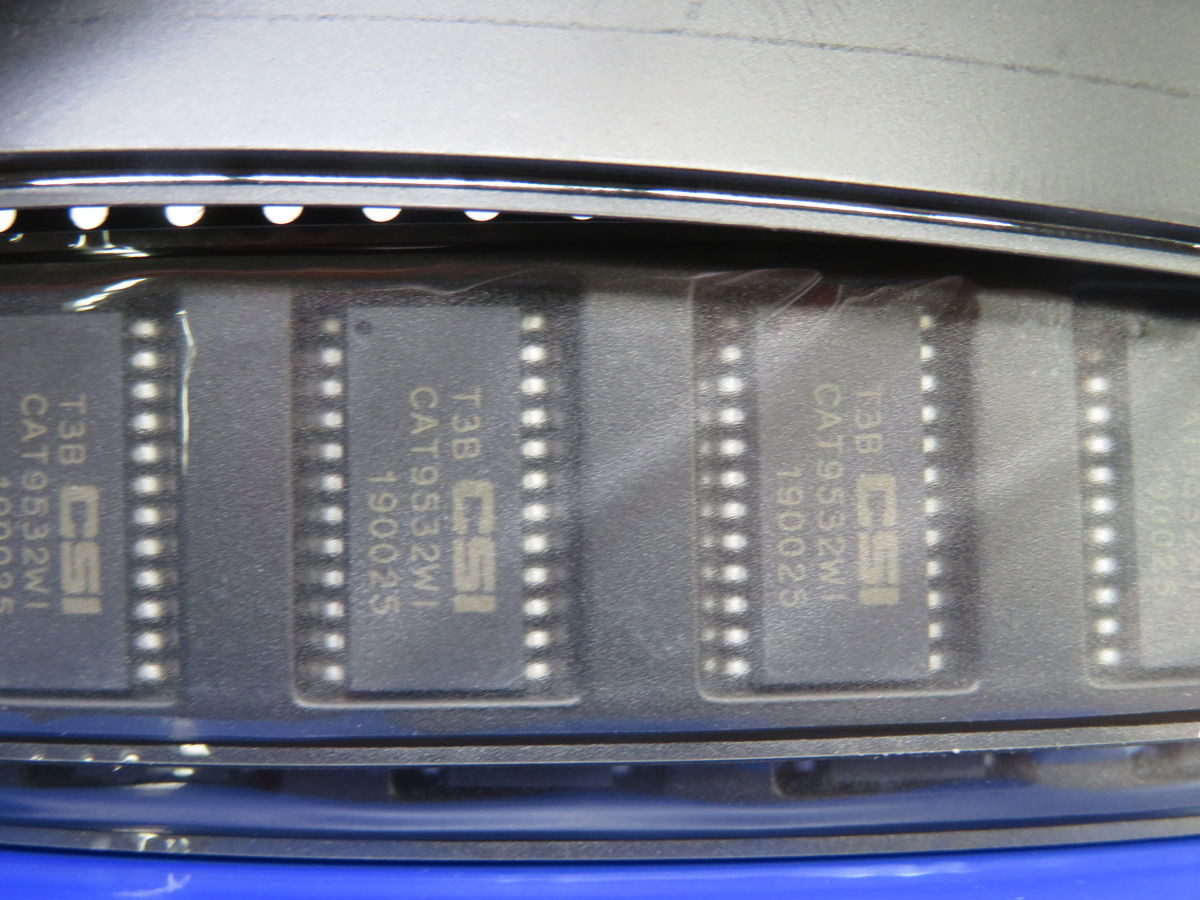

LOT OF 1000 CSI CAT9532WI-T1 IC PROGRAMMABLE LED DIMMER SOIC-24

THE CAT9532WI-T1 IS A 16-CHANNEL PROGRAMMABLE LED DIMMER INTEGRATED CIRCUIT, PRESENTED IN A SOIC-24 PACKAGE. IT OPERATES AS AN LED DRIVER FOR APPLICATIONS SUCH AS BACKLIGHTING, RGB COLOR MIXING, AND SENSOR CONTROL. COMMUNICATION AND CONTROL ARE MANAGED VIA AN I2C-COMPATIBLE SERIAL BUS INTERFACE. EACH OF THE 16 INDEPENDENT OUTPUT CHANNELS PROVIDES AN ADJUSTABLE CURRENT SINK, CONFIGURABLE UP TO A TYPICAL MAXIMUM OF 25.5 MA THROUGH AN 8-BIT CURRENT REGISTER. DIMMING FUNCTIONALITY INCLUDES INDIVIDUAL 8-BIT PULSE WIDTH MODULATION (PWM) CONTROL FOR EACH CHANNEL AND A GLOBAL 8-BIT PWM, FACILITATING 256 DIMMING STEPS. THE DEVICE OPERATES FROM A SUPPLY VOLTAGE RANGE OF 2.3 V TO 5.5 V, SUPPORTING OUTPUT VOLTAGES FROM 0.4 V UP TO THE SUPPLY VOLTAGE. LOT Q: 1000 PHOTOS MAY BE INACCURATE. INSPECTIONS ARE ENCOURAGED. PLEASE SEE INSPECTION TERMS FOR MORE DETAILS.
