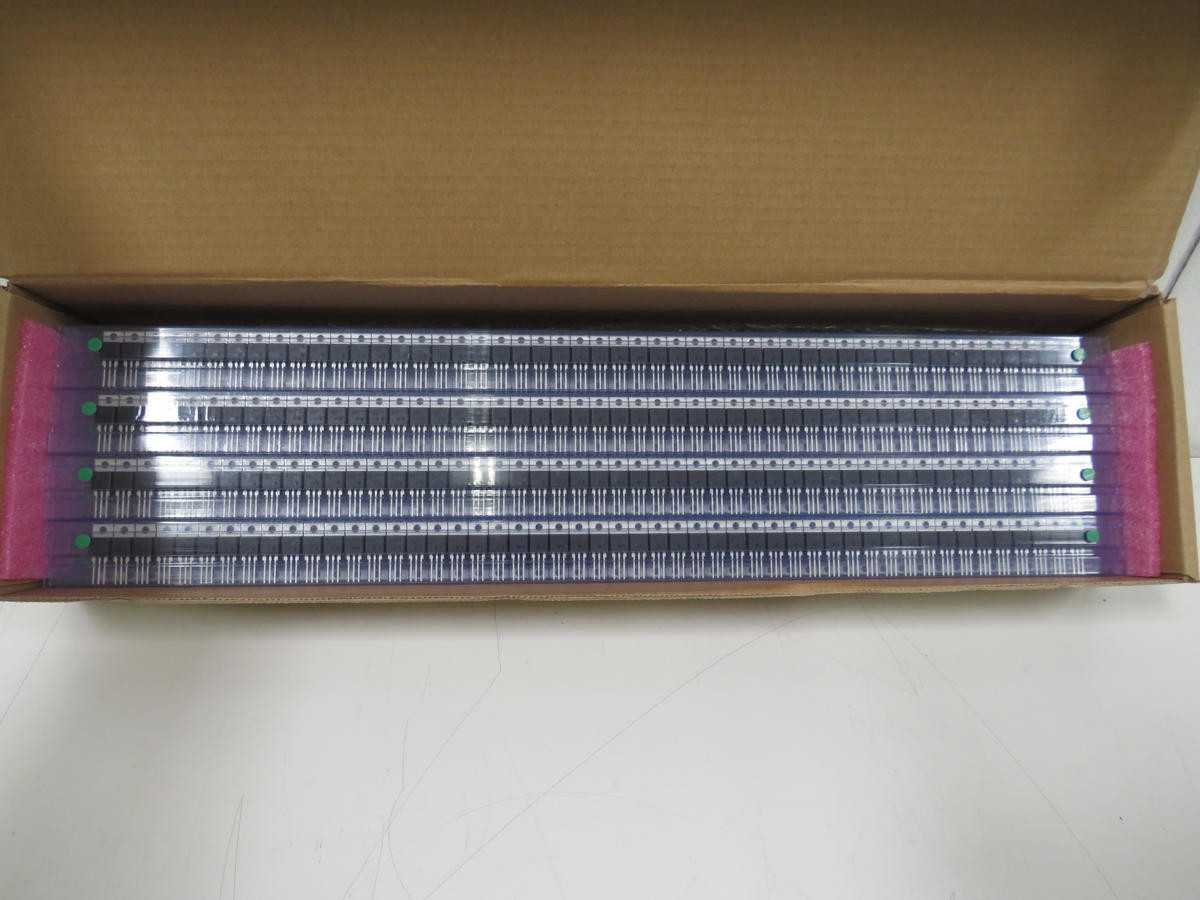

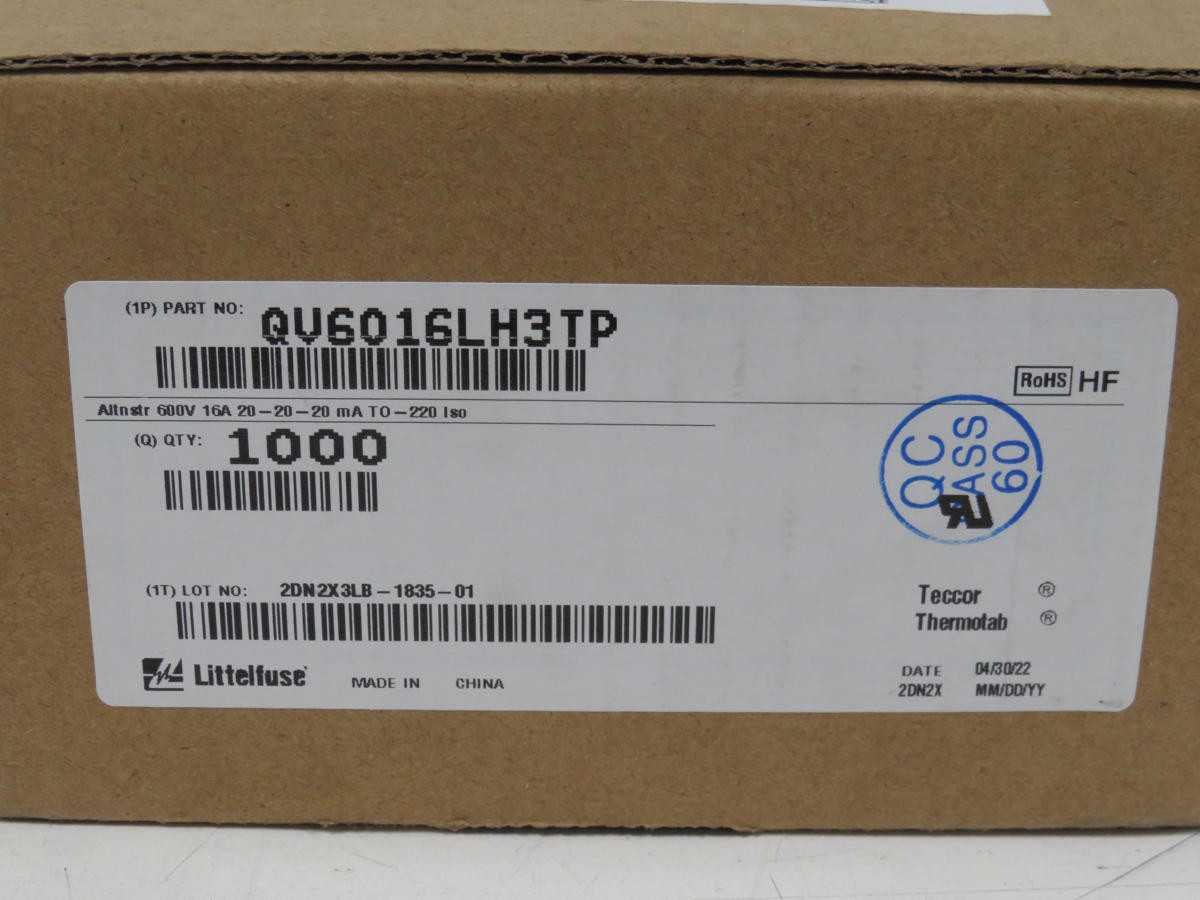

Lot Of 1000 Littelfuse QV6016LH3TP Thyristor Surge Protection Devices - Tspd Altnstr 600V 16A

THE LITTELFUSE QV6016LH3TP IS A THYRISTOR SURGE PROTECTION DEVICE (TSPD). IT FUNCTIONS AS AN ALTERNISTOR-BASED BIDIRECTIONAL SIDACTOR PROTECTION THYRISTOR WITH A REPETITIVE PEAK OFF-STATE VOLTAGE (VDRM/VRRM) OF 600 V AND A CONTINUOUS ON-STATE CURRENT (IT(RMS)) OF 16 A. DESIGNED FOR ROBUST OVERVOLTAGE PROTECTION, IT PROVIDES A PEAK IMPULSE CURRENT (IPP) OF 250 A FOR A 10/1000 ΜS WAVEFORM AND A NON-REPETITIVE PEAK ON-STATE SURGE CURRENT (ITSM) OF 160 A FOR A 60 HZ FULL SINE WAVE. THE DEVICE FEATURES A MAXIMUM REPETITIVE PEAK OFF-STATE CURRENT OF 10 ΜA AT VDRM/VRRM AND A TYPICAL HOLDING CURRENT OF 150 MA. ENCAPSULATED IN A TO-220AB PACKAGE, IT OPERATES ACROSS A TEMPERATURE RANGE OF -40 TO 125 °C, OFFERING A CRITICAL RATE OF RISE OF OFF-STATE VOLTAGE (DV/DT) OF 500 V/ΜS.
