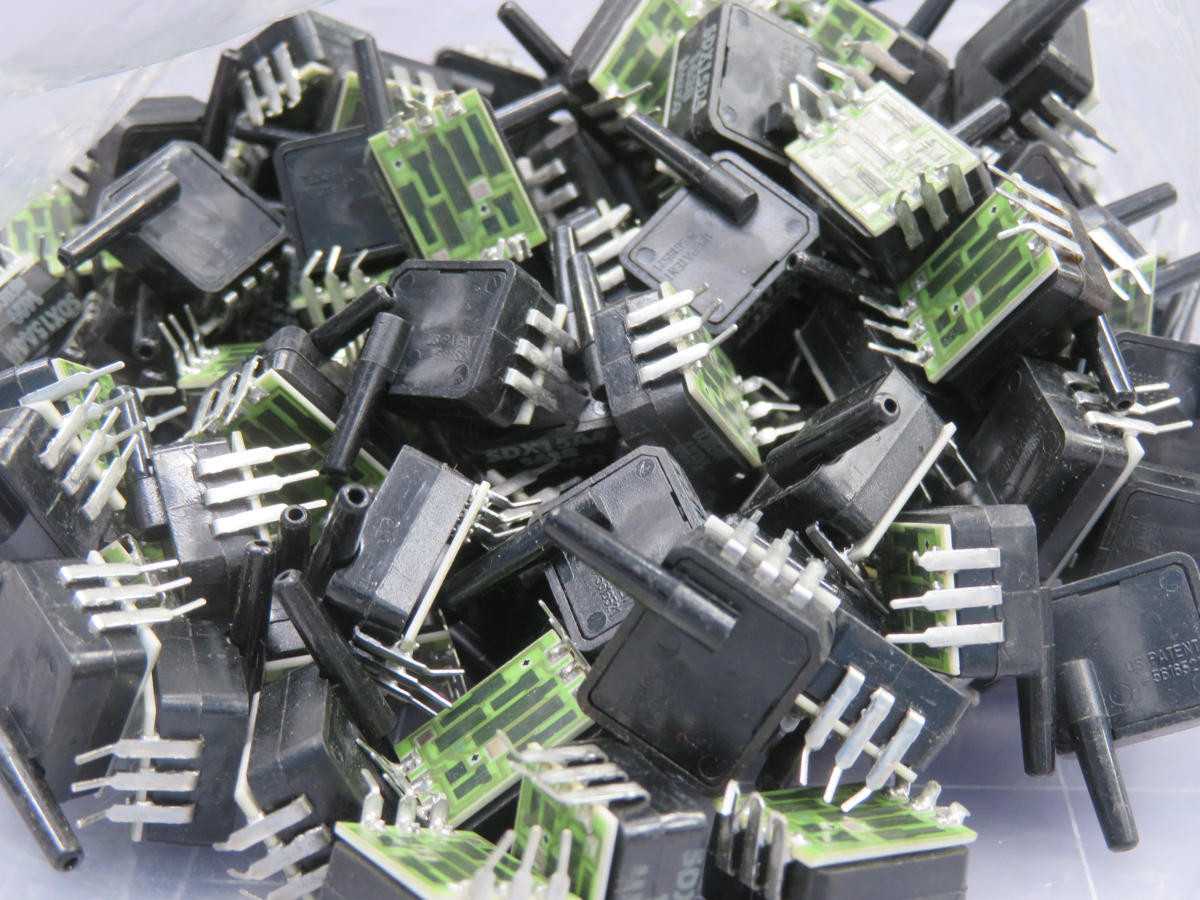

LOT OF 130 HONEYWELL SDX15A4 PRESSURE SENSOR/TRANSDUCER

THE HONEYWELL SDX15A4 IS A PCB-MOUNTABLE PRESSURE SENSOR/TRANSDUCER WITH AN EXTERNAL DEPTH OF 9.4MM. IT FEATURES A SINGLE, STRAIGHT PORT AND PROVIDES A VOLTAGE OUTPUT FOR AN OPERATING PRESSURE RANGE OF 0-15 PSI, FROM A MINIMUM OF 0 PSI TO A MAXIMUM OF 15 PSI. THIS SENSOR TYPICALLY OPERATES WITH A SUPPLY VOLTAGE RANGING FROM 8VDC TO 16VDC, WITH A NOMINAL SUPPLY OF 10VDC. IT DELIVERS A RATIOMETRIC OUTPUT VOLTAGE FROM 0.5V TO 4.5V. THE DEVICE EXHIBITS A TYPICAL ACCURACY OF ±0.25% FULL SCALE OUTPUT (FSO), DETERMINED BY THE BEST FIT STRAIGHT LINE METHOD. ITS COMPENSATED TEMPERATURE RANGE IS 0°C TO 50°C, WHILE THE BROADER OPERATING TEMPERATURE RANGE EXTENDS FROM -40°C TO 85°C. THE RESPONSE TIME IS TYPICALLY 1MS. IT IS DESIGNED FOR USE WITH DRY AIR AND NON-CORROSIVE GASES.
