LOT OF 14 HONEYWELL 19C005PG1K SENSOR 5PSIG 0.1V

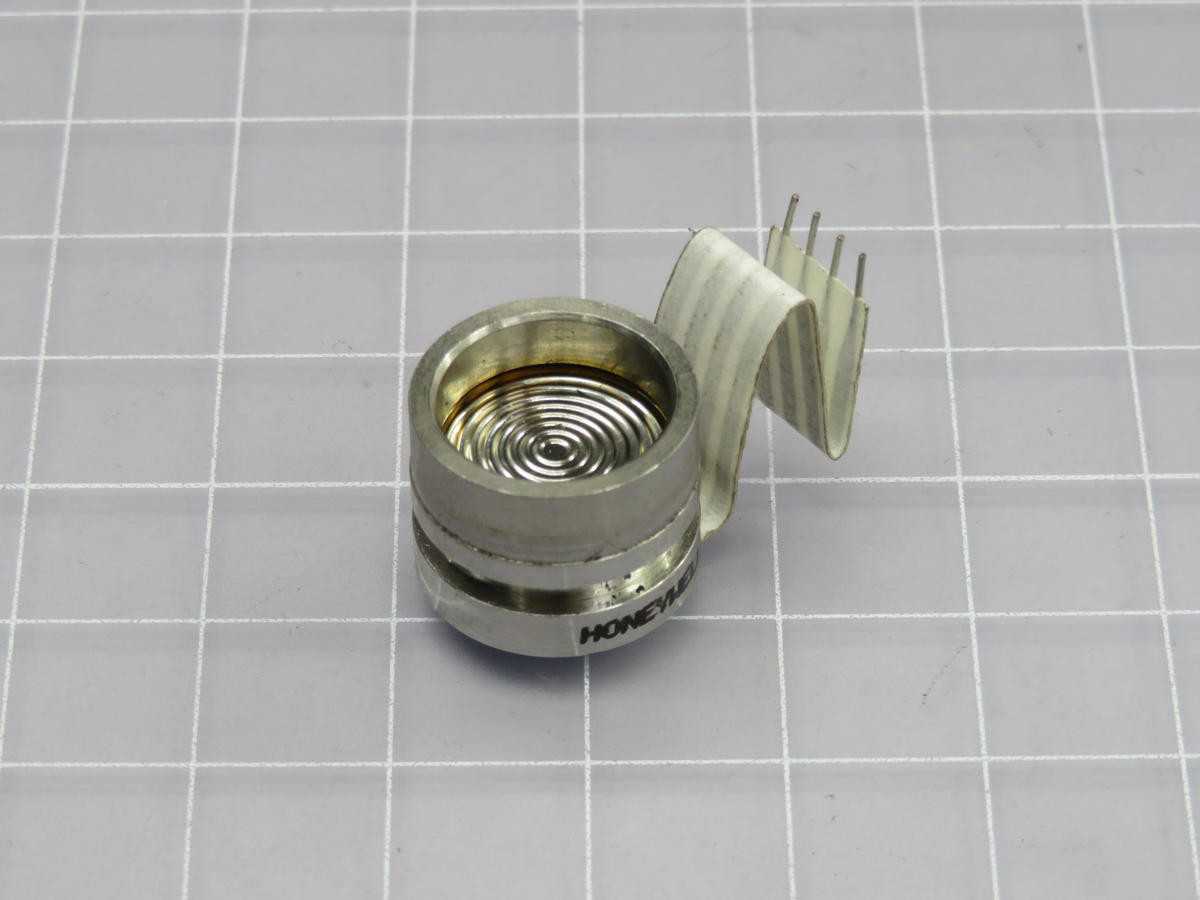

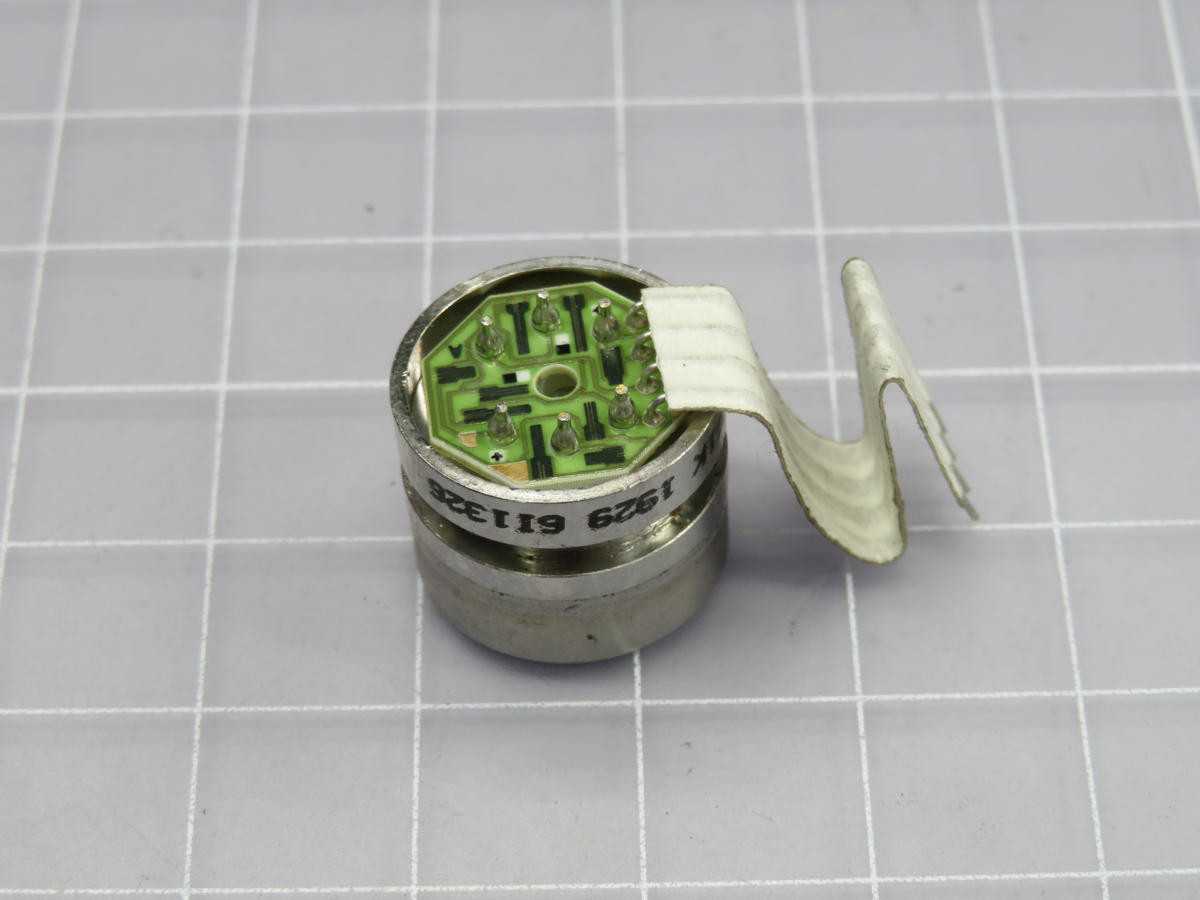

THE HONEYWELL 19C005PG1K IS A PRESSURE SENSOR DESIGNED FOR GAUGE PRESSURE MEASUREMENTS. IT OPERATES OVER A PRESSURE RANGE OF 0 TO 5 PSI (0 TO 34.47 KPA) AND PROVIDES AN AMPLIFIED, TEMPERATURE-COMPENSATED RATIOMETRIC MILLIVOLT OUTPUT. THE FULL SCALE OUTPUT IS 100 MV DC WHEN POWERED BY A NOMINAL 10 VDC EXCITATION. THIS SENSOR MAINTAINS OPERATION ACROSS AN OPERATING TEMPERATURE RANGE OF -40 °C TO 85 °C, WITH ITS COMPENSATED TEMPERATURE RANGE SPECIFIED FROM -10 °C TO 60 °C. IT DELIVERS A TYPICAL ACCURACY OF ±0.75% OF THE FULL SCALE SPAN. THE DEVICE INCORPORATES A CYLINDRICAL HOUSING AND INCLUDES AN O-RING FOR SECURE SEALING. ITS RESPONSE TIME IS TYPICALLY 1 MILLISECOND.
