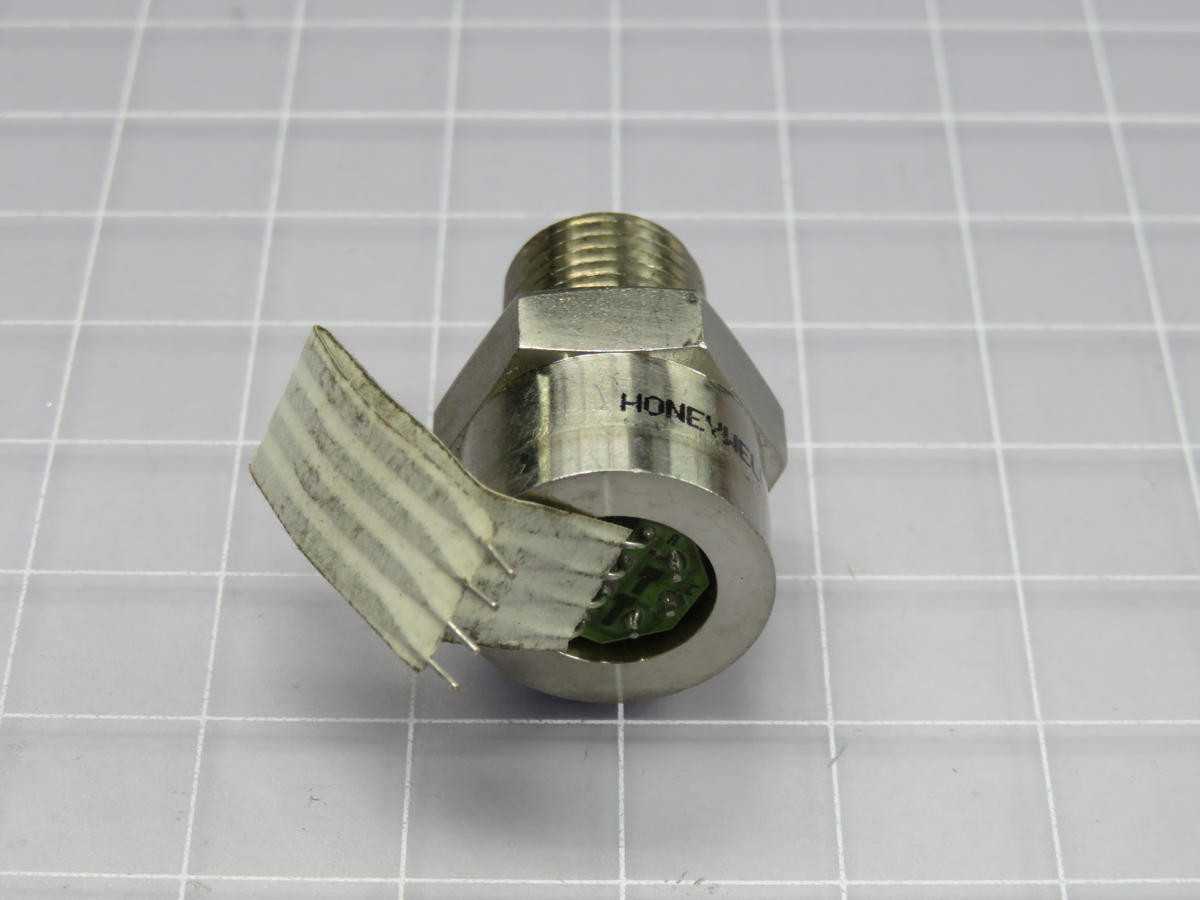

LOT OF 16 HONEYWELL 13C5000PS5L SENSOR 5000PSIS 1/4"NPT .152V

THE HONEYWELL 13C5000PS5L IS A PIEZORESISTIVE SILICON PRESSURE SENSOR DESIGNED FOR OEM APPLICATIONS. IT MEASURES SEALED GAUGE PRESSURE IN A RANGE OF 0 TO 5000 PSI (0 TO 34473.79 KPA). THE SENSOR PROVIDES AN UNAMPLIFIED, RATIOMETRIC OUTPUT BETWEEN 148 MV AND 152 MV AT FULL SCALE, TYPICALLY UTILIZING A 10 VDC EXCITATION VOLTAGE. THE PROCESS CONNECTION FEATURES A MALE 1/4" NPT (6.35 MM) THREADED PORT, INCORPORATED INTO A CYLINDRICAL HOUSING. THIS MODEL OPERATES WITHIN A COMPENSATED TEMPERATURE RANGE OF 0°C TO 50°C (32°F TO 122°F) AND AN OVERALL OPERATING TEMPERATURE RANGE OF -40°C TO 125°C (-40°F TO 257°F). IT DEMONSTRATES A TYPICAL ACCURACY, INCLUSIVE OF NON-LINEARITY, HYSTERESIS, AND REPEATABILITY, OF ±0.25% FULL SCALE OUTPUT.
