LOT OF 180 HONEYWELL 11SM23-H58 BASIC SNAP ACTION SWITCH

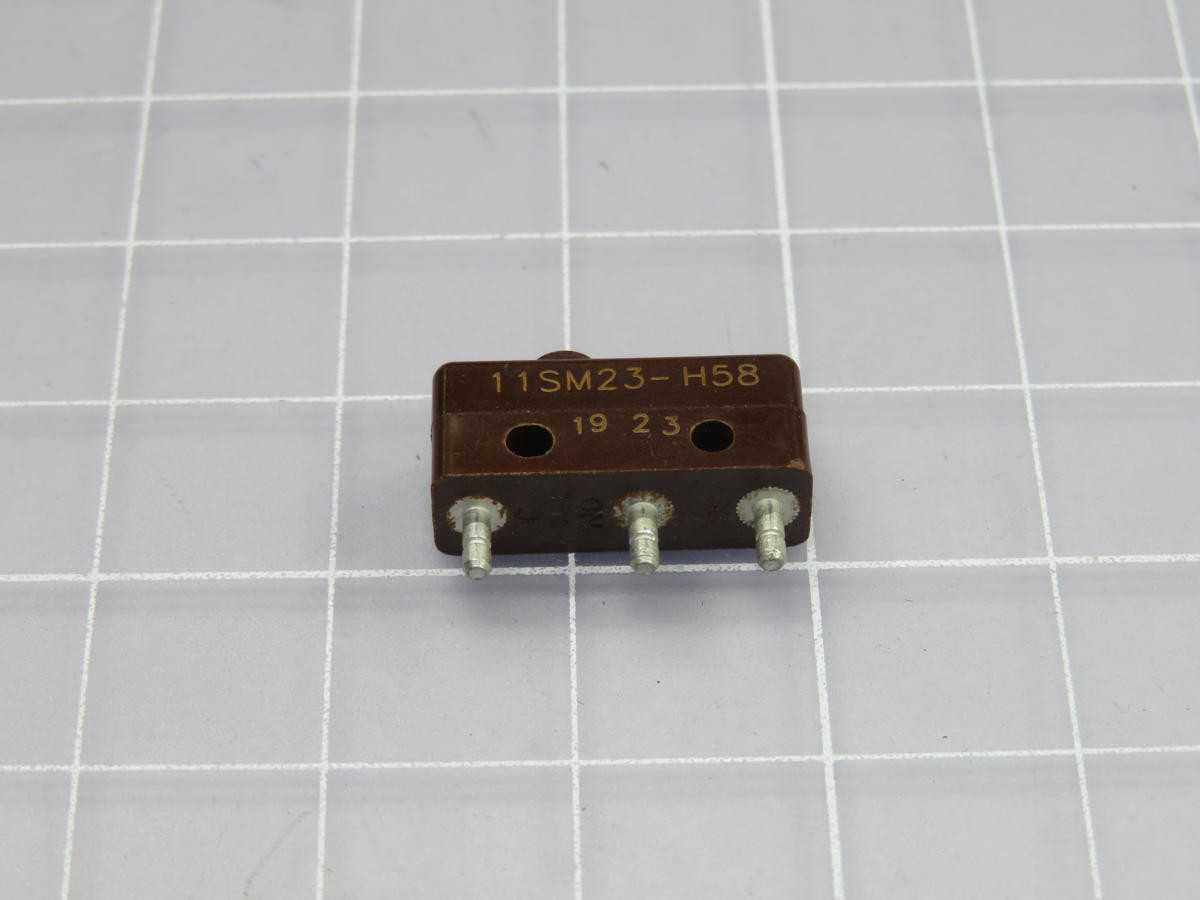

THE HONEYWELL 11SM23-H58 IS A BASIC SUBMINIATURE SNAP-ACTION SWITCH WITH A SINGLE POLE DOUBLE THROW (SPDT) CONTACT CONFIGURATION. IT FEATURES A STANDARD PIN PLUNGER ACTUATOR AND SOLDER TERMINALS FOR ELECTRICAL CONNECTION. THE SWITCH IS RATED FOR A MAXIMUM CURRENT OF 5 AMPERES AT 250 VOLTS AC AND 30 VOLTS DC. ITS MAXIMUM OPERATING FORCE IS 2.55 NEWTONS, WITH A MINIMUM RELEASE FORCE OF 0.56 NEWTONS. KEY OPERATIONAL PARAMETERS INCLUDE A MAXIMUM PRETRAVEL OF 1.14 MILLIMETERS, A MINIMUM OVERTRAVEL OF 0.13 MILLIMETERS, AND A MAXIMUM DIFFERENTIAL TRAVEL OF 0.05 MILLIMETERS. THE NOMINAL OPERATING POSITION IS 9.98 MILLIMETERS. DESIGNED FOR PANEL OR CHASSIS MOUNTING, THIS SWITCH OPERATES RELIABLY ACROSS A TEMPERATURE RANGE OF -55°C TO 125°C, OFFERING AN ELECTRICAL LIFE OF 100,000 CYCLES AND A MECHANICAL LIFE OF 10,000,000 CYCLES.
