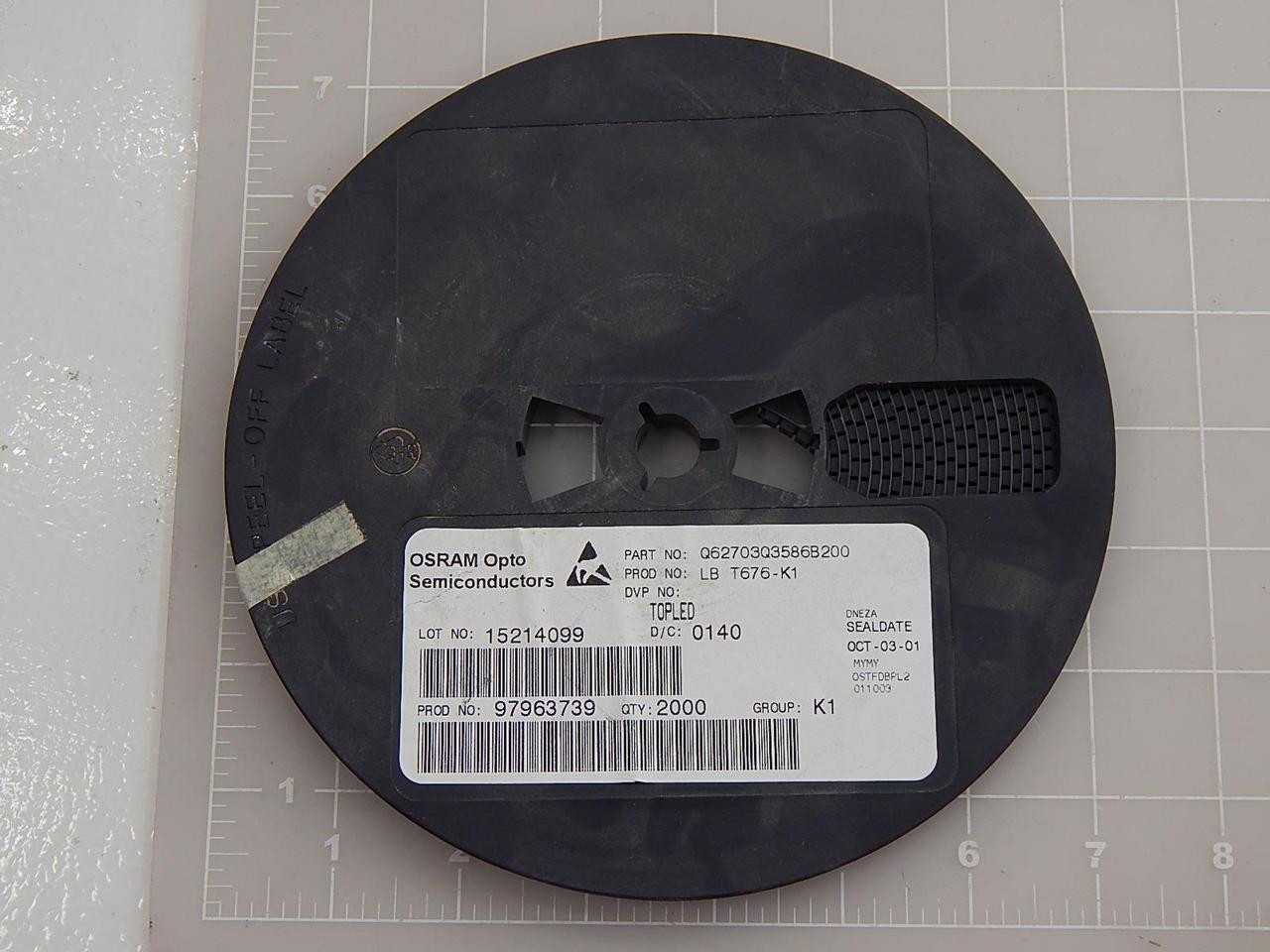

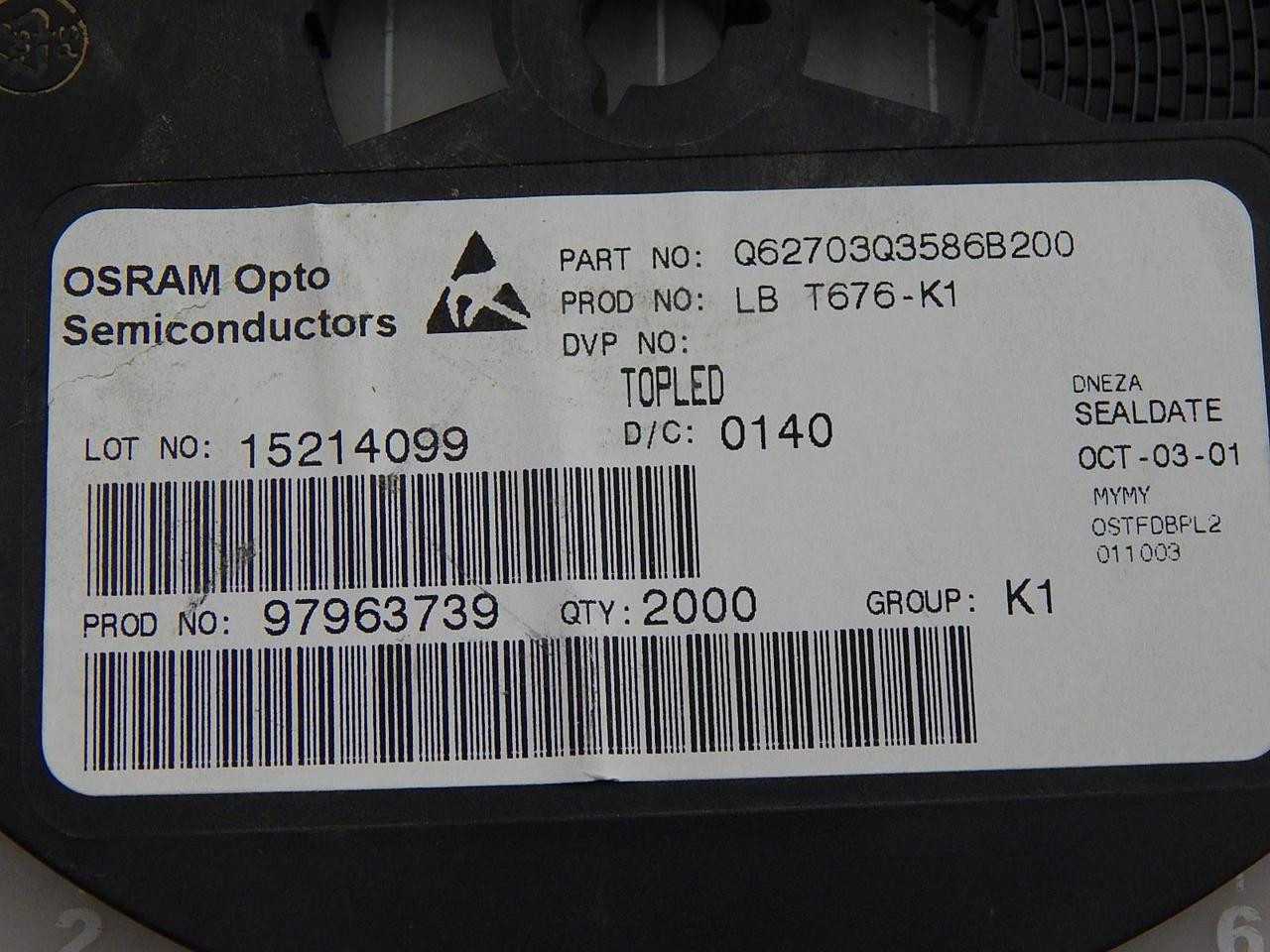

LOT OF 1999 OSRAM OPTO SEMICONDUCTORS Q62703Q3586B200 LB T676-K1 97963739 BLUE 465NM LED INDICATION - DISCRETE 3.5V 2-PLCC

THE OSRAM OPTO SEMICONDUCTORS Q62703Q3586B200, ALSO DESIGNATED AS LB T676-K1, IS A DISCRETE BLUE LED INTENDED FOR INDICATION PURPOSES. THIS COMPONENT IS PROVIDED IN A 2-PLCC PACKAGE. IT EMITS LIGHT WITH A DOMINANT WAVELENGTH OF 465 NM. A TYPICAL FORWARD VOLTAGE OF 3.5 V IS SPECIFIED AT A FORWARD CURRENT OF 20 MA. THE LUMINOUS INTENSITY FOR THE K1 BIN OF THIS MODEL RANGES FROM 280 MCD TO 450 MCD AT 20 MA. IT FEATURES A VIEWING ANGLE OF 120 DEGREES. THE MAXIMUM FORWARD CURRENT RATING IS 20 MA, LEADING TO A TYPICAL POWER DISSIPATION OF 85 MW. THIS LED IS RATED FOR AN OPERATING TEMPERATURE RANGE OF -40 °C TO 100 °C AND A STORAGE TEMPERATURE RANGE OF -40 °C TO 100 °C.
