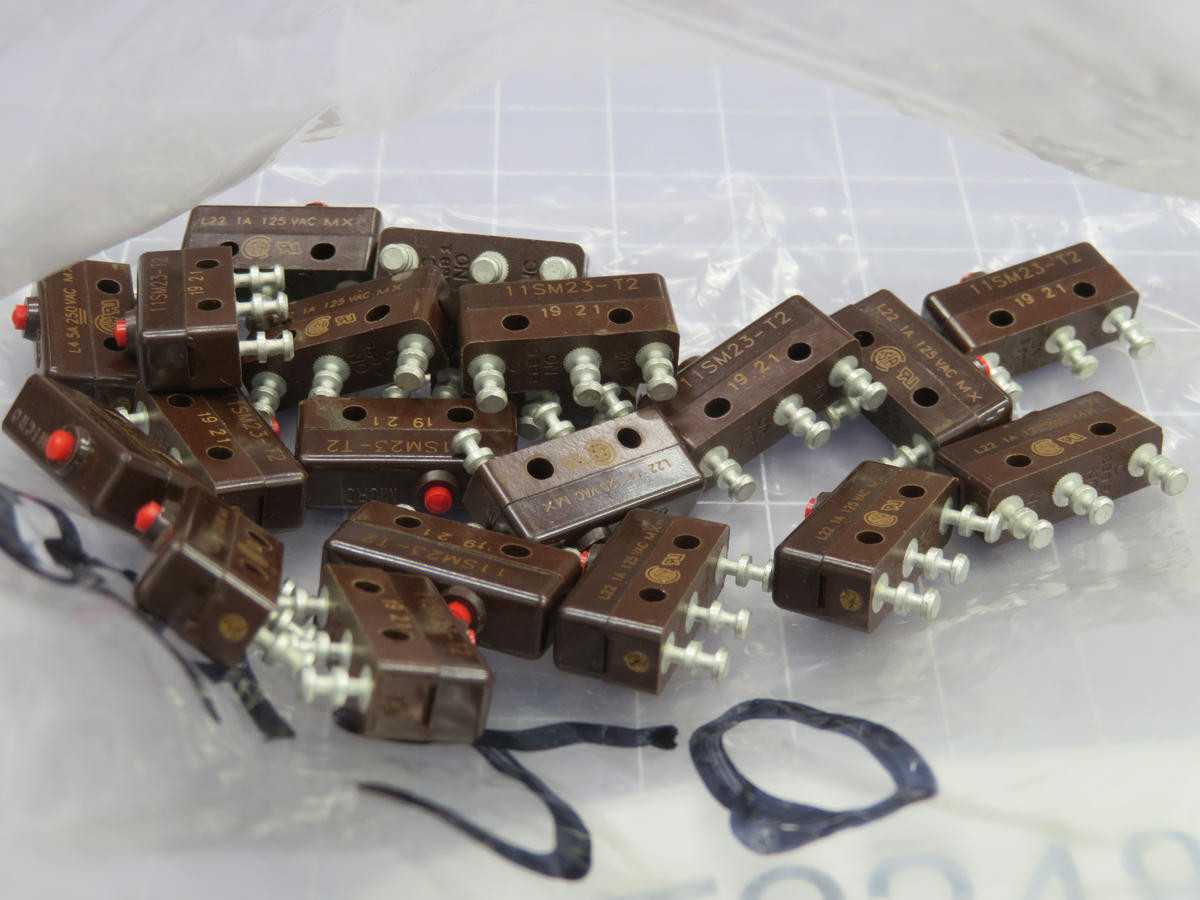

LOT OF 20 HONEYWELL 11SM23-T2 BASIC/SNAP ACTION SWITCH

THE HONEYWELL 11SM23-T2 IS A SUBMINIATURE BASIC SNAP ACTION SWITCH EQUIPPED WITH AN SPDT CONTACT CONFIGURATION AND A PIN PLUNGER ACTUATOR. IT FEATURES AN ELECTRICAL RATING OF 1A AT 125 VAC AND 30 VDC. OPERATING PARAMETERS INCLUDE A MAXIMUM OPERATING FORCE OF 55.0 G AND A MINIMUM RELEASE FORCE OF 8.0 G. KEY TRAVEL SPECIFICATIONS ARE A MAXIMUM PRETRAVEL OF 0.76 MM, A MINIMUM OVERTRAVEL OF 0.51 MM, AND A MAXIMUM DIFFERENTIAL TRAVEL OF 0.051 MM, WITH AN OPERATING POSITION OF 11.23 ± 0.38 MM. TERMINATION IS PROVIDED BY SOLDER LUGS. THIS SWITCH IS DESIGNED FOR A BROAD OPERATING TEMPERATURE RANGE OF -55°C TO 125°C, OFFERING A MECHANICAL LIFE OF 10 MILLION CYCLES AND AN ELECTRICAL LIFE OF 500,000 CYCLES AT RATED LOAD.
