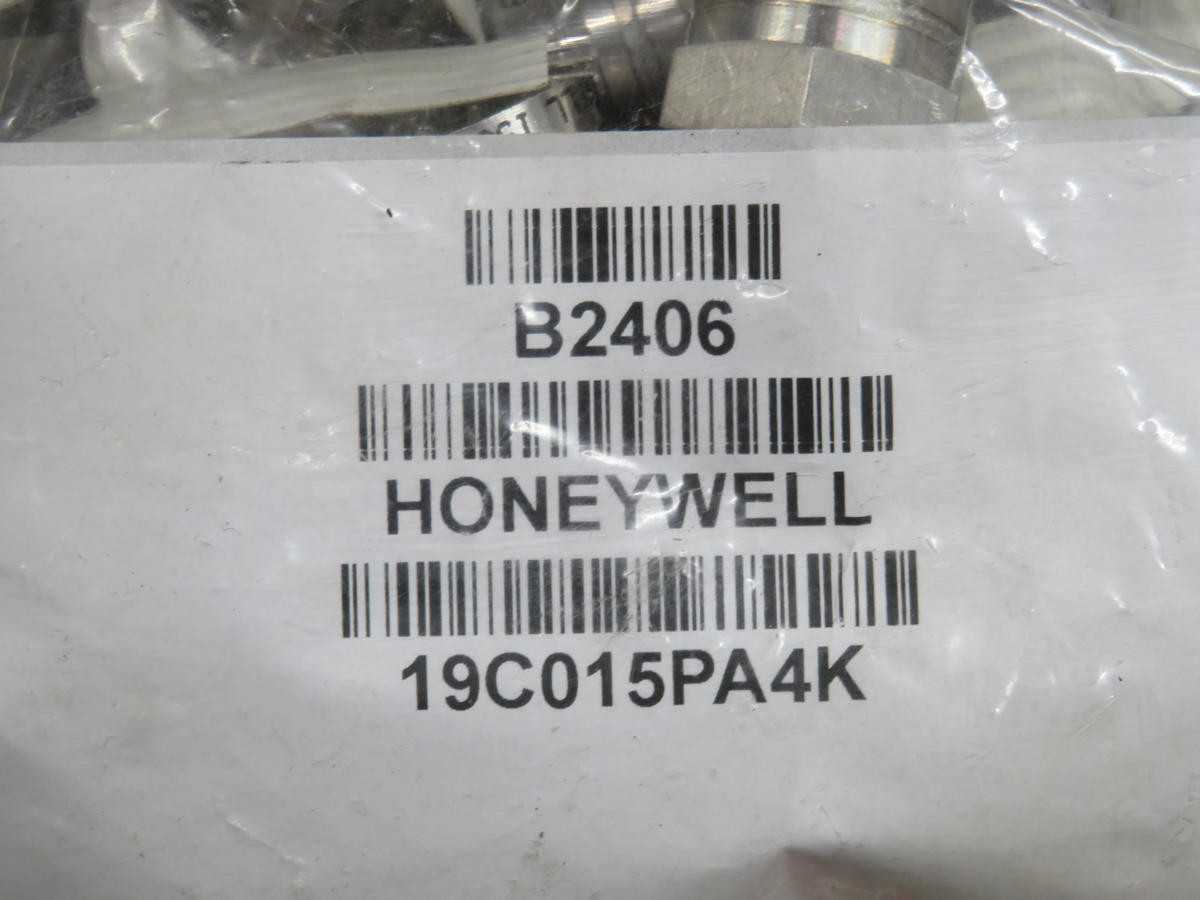

LOT OF 20 HONEYWELL 19C015PA4K SENSOR 15PSIA 1/8"NPT 0.1V

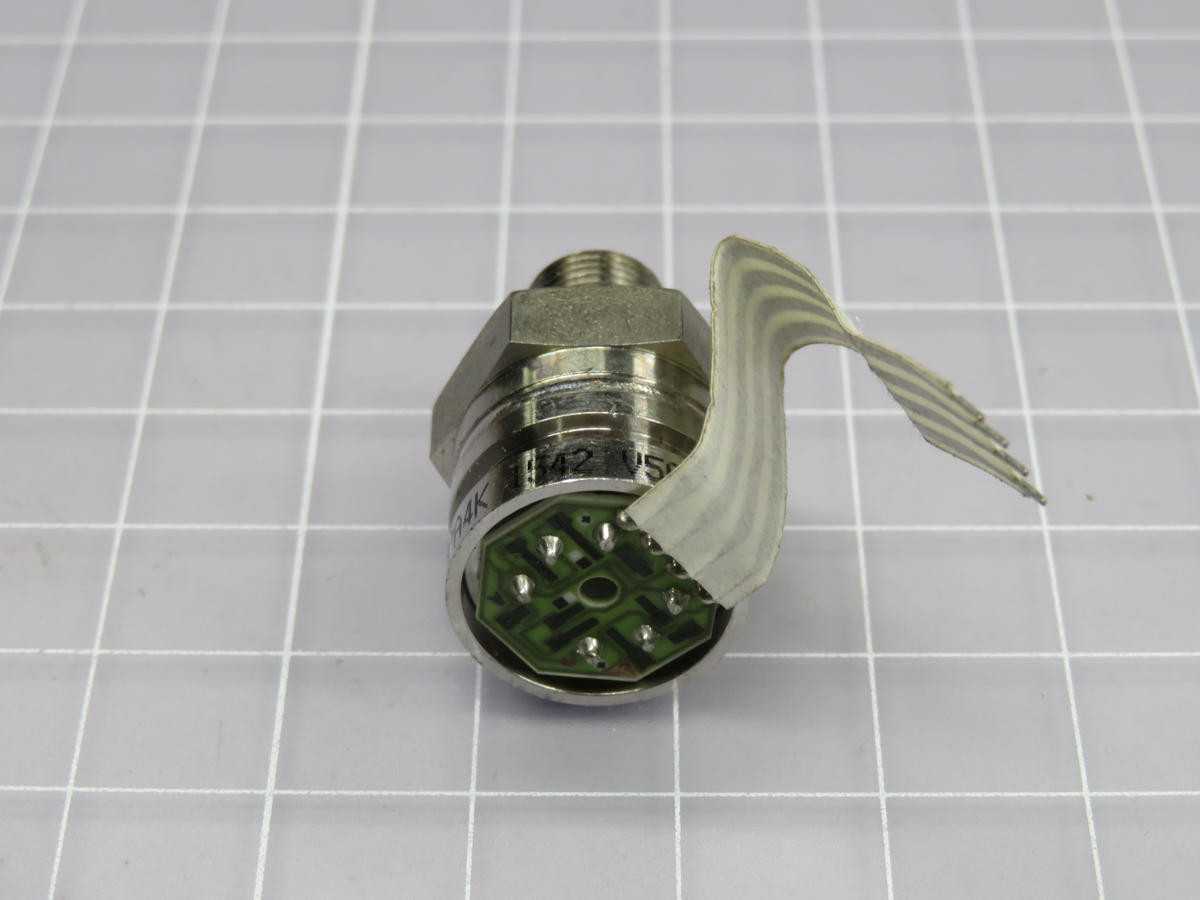

THE HONEYWELL 19C015PA4K IS A COMPENSATED ABSOLUTE PRESSURE SENSOR ENGINEERED FOR A 0-15 PSIA (103.42 KPA) MEASUREMENT RANGE. IT INCORPORATES A MALE 1/8" NPT (3.18MM) THREADED CYLINDER FOR DIRECT PROCESS CONNECTION. THIS SENSOR PROVIDES A RATIOMETRIC ANALOG OUTPUT FROM 0 MV TO 100 MV, TYPICALLY REQUIRING A 10 VDC EXCITATION VOLTAGE. IT FEATURES AN OPERATING TEMPERATURE RANGE OF -40 TO 85 °C AND MAINTAINS AN ACCURACY OF ±0.25% FULL SCALE (BFSL). THE SENSOR'S HOUSING IS FABRICATED FROM 304 STAINLESS STEEL, WITH WETTED PARTS CONSTRUCTED FROM 316L STAINLESS STEEL, ENSURING MATERIAL COMPATIBILITY. IT EXHIBITS A RAPID RESPONSE TIME OF LESS THAN 1 MS.
