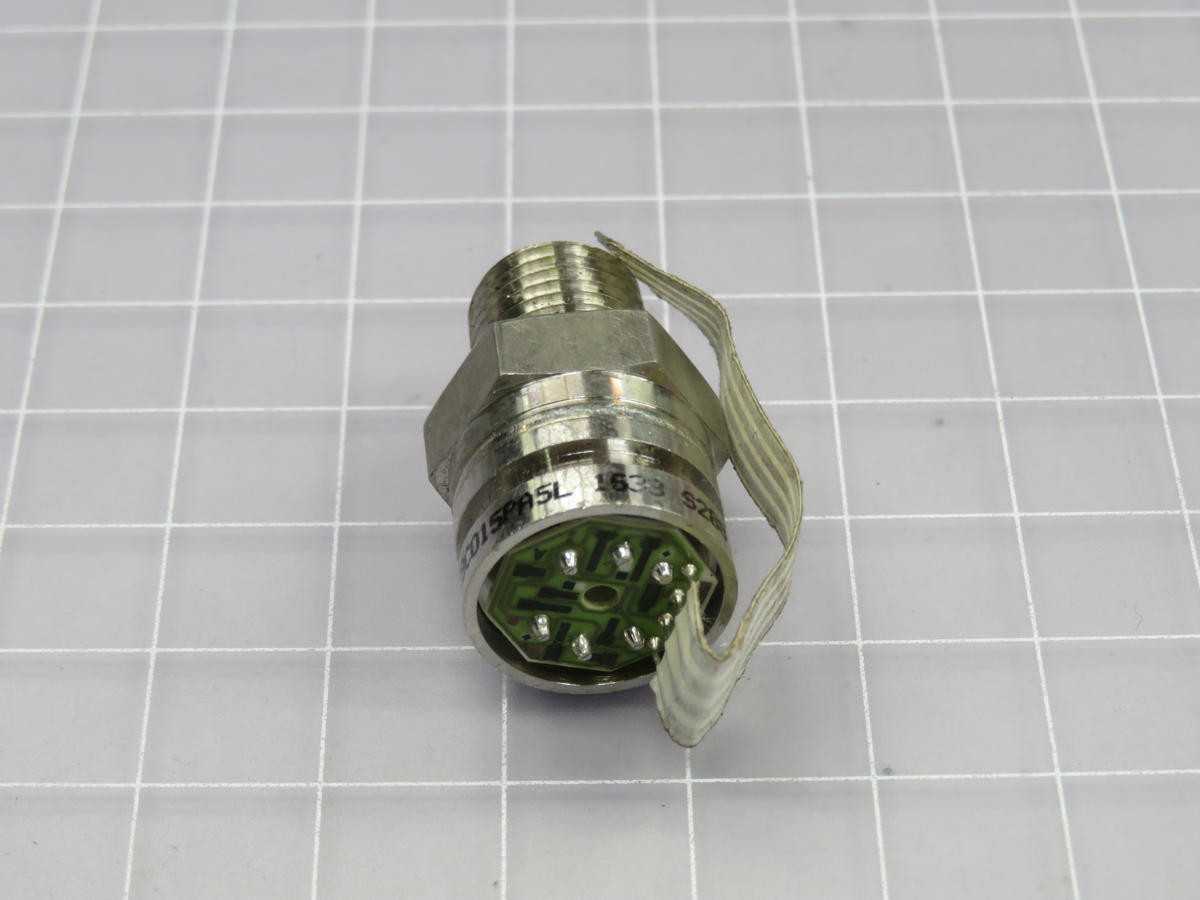

LOT OF 20 HONEYWELL 19C015PA5L SENSOR 15PSIA 1/4"NPT 0.1V

THE HONEYWELL 19C015PA5L IS AN ABSOLUTE PRESSURE SENSOR ENGINEERED TO MEASURE PRESSURES FROM 0 TO 15 PSI (0 TO 103.42 KPA). IT DELIVERS A RATIOMETRIC MILLIVOLT OUTPUT, RANGING FROM 0 MV TO 100 MV ACROSS ITS FULL SCALE. THE DEVICE REQUIRES A TYPICAL SUPPLY VOLTAGE OF 10 VDC. ITS PROCESS CONNECTION FEATURES A 1/4" NPT MALE THREAD, AND ITS PHYSICAL FORM FACTOR IS CYLINDRICAL AND THREADED. DESIGNED FOR DRY, NON-CORROSIVE GAS MEDIA, THE SENSOR MAINTAINS AN ACCURACY OF ±0.25% FULL SCALE FOR COMBINED NON-LINEARITY AND HYSTERESIS. IT OFFERS AN OPERATING TEMPERATURE RANGE OF -40°C TO 125°C AND EXHIBITS A FAST RESPONSE TIME OF LESS THAN 1 MS. ELECTRICAL CONNECTIONS ARE TYPICALLY FACILITATED VIA SOLDER TERMINALS.
