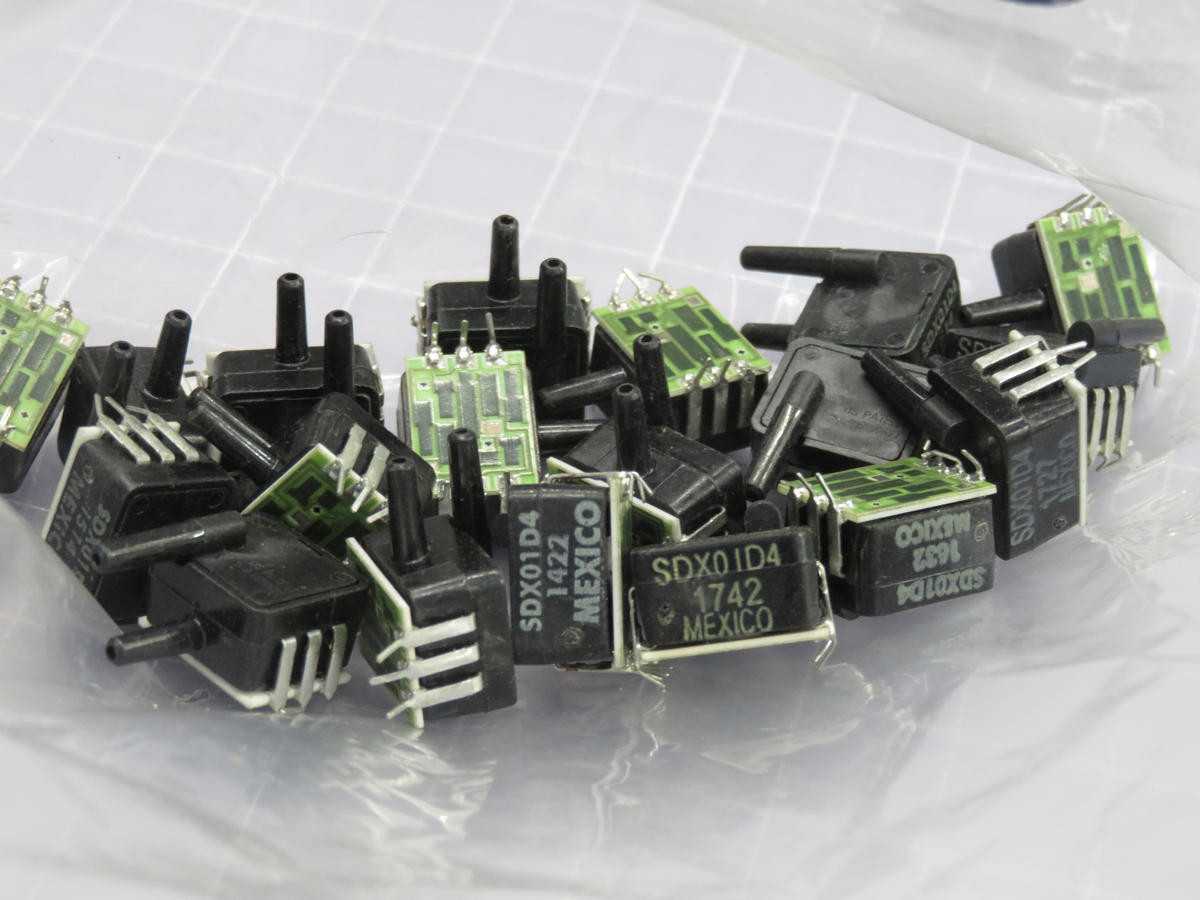

LOT OF 20 HONEYWELL SDX01D4 PRESSURE SENSOR

THE HONEYWELL SDX01D4 IS AN UNAMPLIFIED, TEMPERATURE-COMPENSATED SILICON DIFFERENTIAL PRESSURE SENSOR, DESIGNED TO MEASURE PRESSURES FROM 0 TO 1 PSI. IT PROVIDES A MILLIVOLT OUTPUT DIRECTLY PROPORTIONAL TO THE APPLIED PRESSURE. THE DEVICE SUPPORTS A MAXIMUM EXCITATION VOLTAGE OF 20 VDC, WITH A RECOMMENDED EXCITATION OF 10 VDC, TYPICALLY RESULTING IN A 100 MV FULL SCALE OUTPUT. TEMPERATURE COMPENSATION IS EFFECTIVE ACROSS A RANGE OF 0 TO 50 °C (32 TO 122 °F), WHILE ITS FULL OPERATING TEMPERATURE RANGE EXTENDS FROM -40 TO 85 °C (-40 TO 185 °F). KEY PERFORMANCE METRICS INCLUDE MAXIMUM LINEARITY, HYSTERESIS, AND REPEATABILITY ERRORS, EACH SPECIFIED AT ±0.25% OF THE FULL SCALE SPAN (FSS). THE SENSOR IS HOUSED IN A COMPACT, RUGGED PACKAGE.
