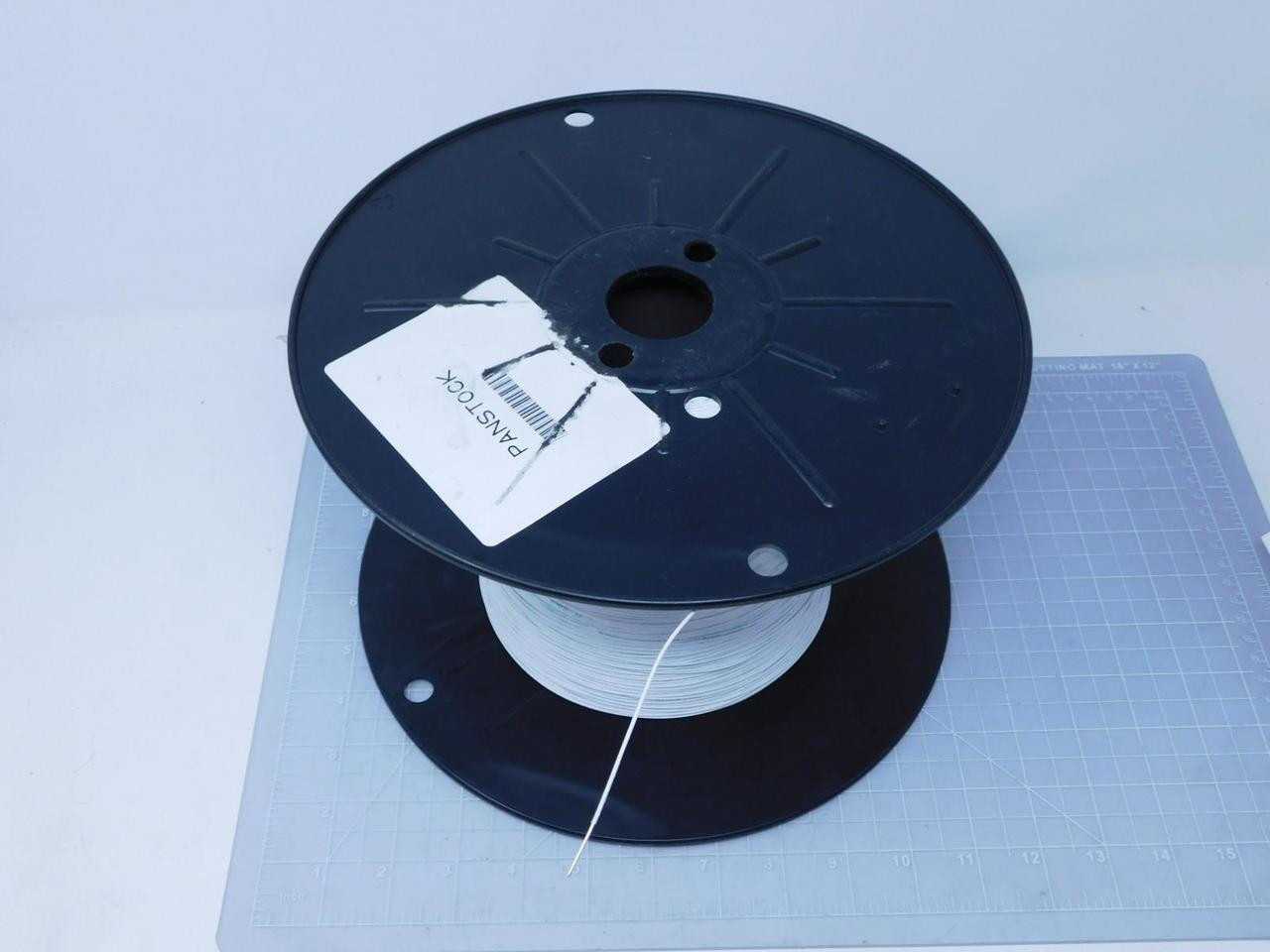

LOT OF 2000 FT THERMAX M22759/89-22-9 WHITE HOOK-UP WIRE 22 AWG 600 V

THE THERMAX M22759/89-22-9 IS A 22 AWG AEROSPACE HOOK-UP WIRE DESIGNED TO MIL-W-22759/89 (SAE AS22759/89) SPECIFICATIONS. IT FEATURES A SILVER-PLATED HIGH-STRENGTH COPPER ALLOY CONDUCTOR, TYPICALLY CONSTRUCTED WITH 19 STRANDS OF 34 AWG WIRE. THE INSULATION IS MADE FROM CROSS-LINKED ETHYLENE TETRAFLUOROETHYLENE (XL-ETFE), PROVIDING ROBUST PERFORMANCE. THIS WIRE IS RATED FOR A NOMINAL VOLTAGE OF 600V AND OPERATES ACROSS A TEMPERATURE RANGE OF -65°C TO +150°C. ITS NOMINAL OUTER DIAMETER IS 0.045 INCHES (1.14 MM). THE MODEL DESIGNATION SPECIFIES A WHITE INSULATION COLOR.
