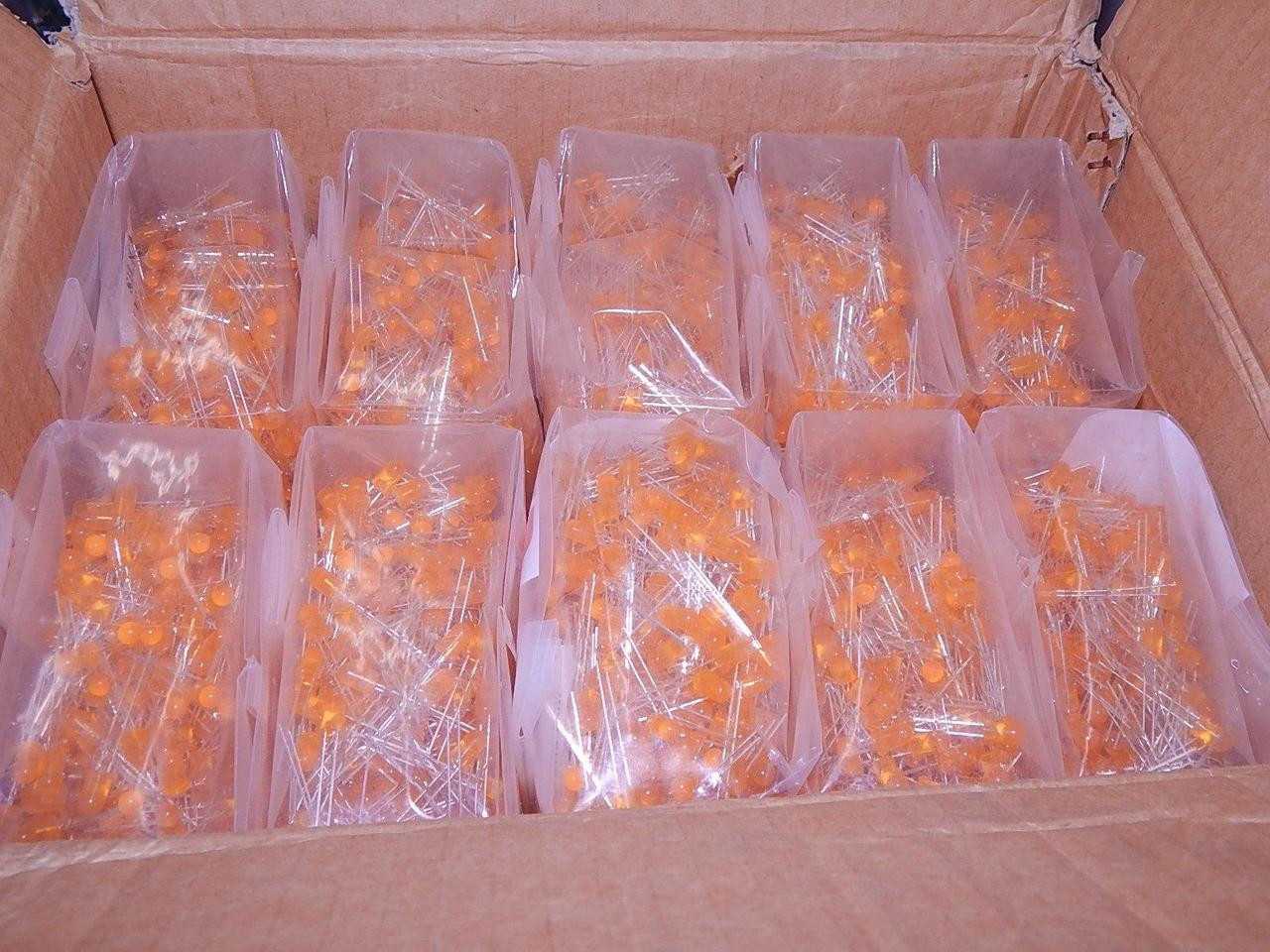

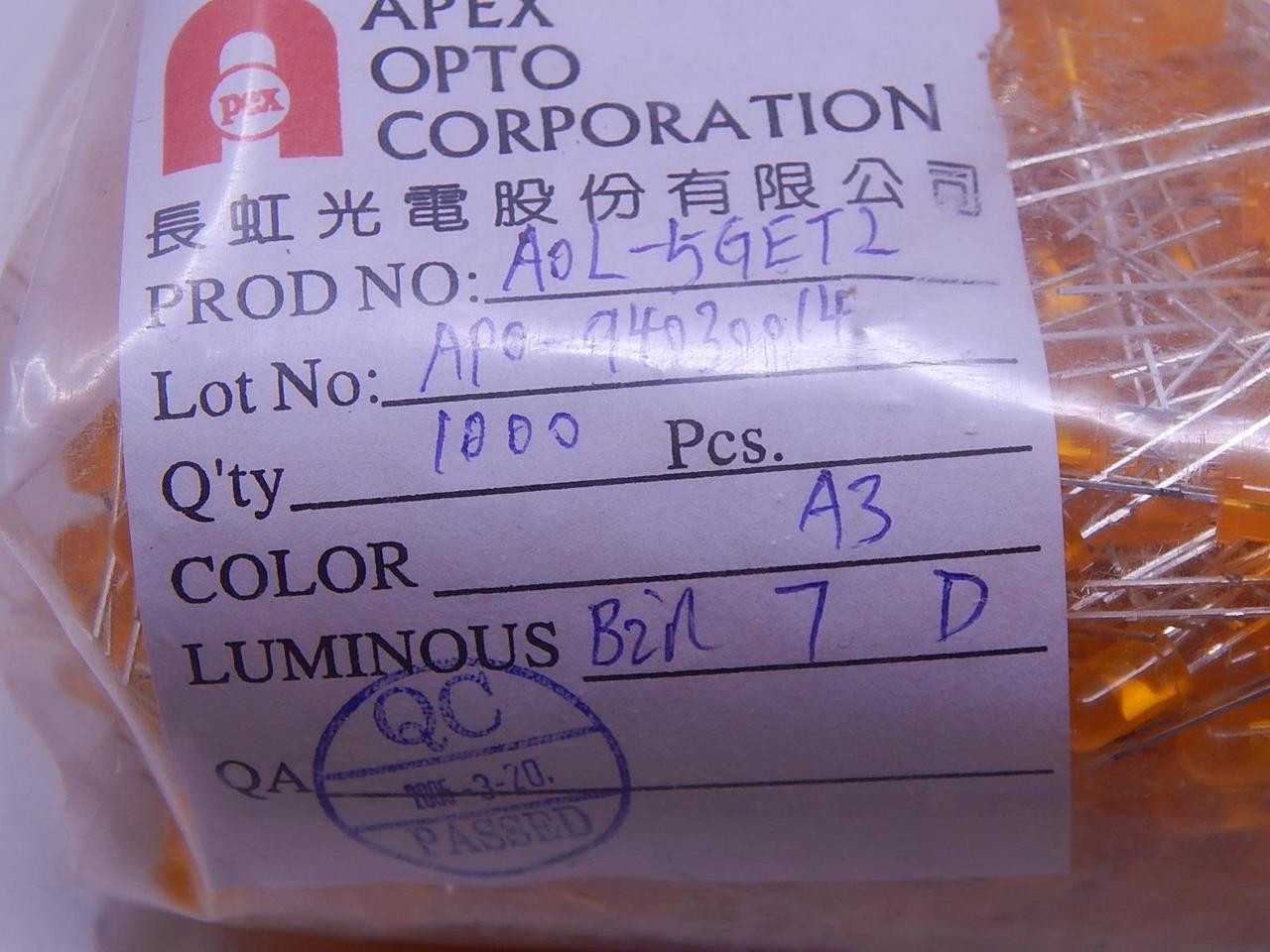

LOT OF 20000 APEX OPTO A0L-5GET2 LEDS

THE APEX OPTO A0L-5GET2 IS A T-1 (3MM) ORANGE LIGHT-EMITTING DIODE. IT FEATURES A TYPICAL FORWARD VOLTAGE OF 2.0V AND A MAXIMUM OF 2.4V AT A FORWARD CURRENT OF 20MA. THE DEVICE HAS A REVERSE VOLTAGE RATING OF 5V AND A PEAK FORWARD CURRENT OF 70MA. IT EMITS LIGHT WITH A DOMINANT WAVELENGTH OF 605 NM AND A PEAK WAVELENGTH OF 610 NM. LUMINOUS INTENSITY TYPICALLY RANGES FROM 60 MCD (MINIMUM) TO 100 MCD AT 20MA. THE LED PROVIDES A 60-DEGREE VIEWING ANGLE AND HAS A POWER DISSIPATION OF 100 MW. ITS OPERATIONAL TEMPERATURE RANGE IS SPECIFIED FROM -40°C TO +85°C, WITH A STORAGE TEMPERATURE RANGE OF -40°C TO +100°C.
