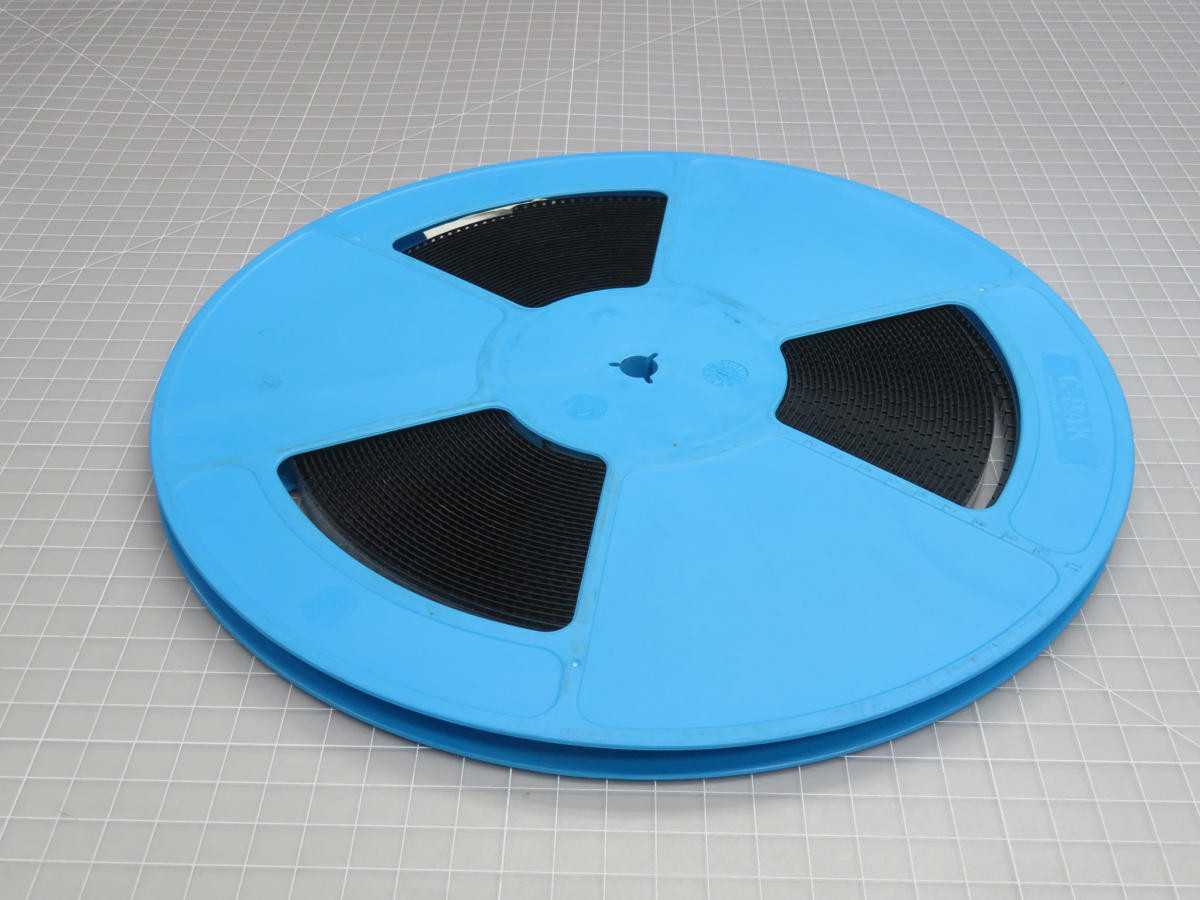

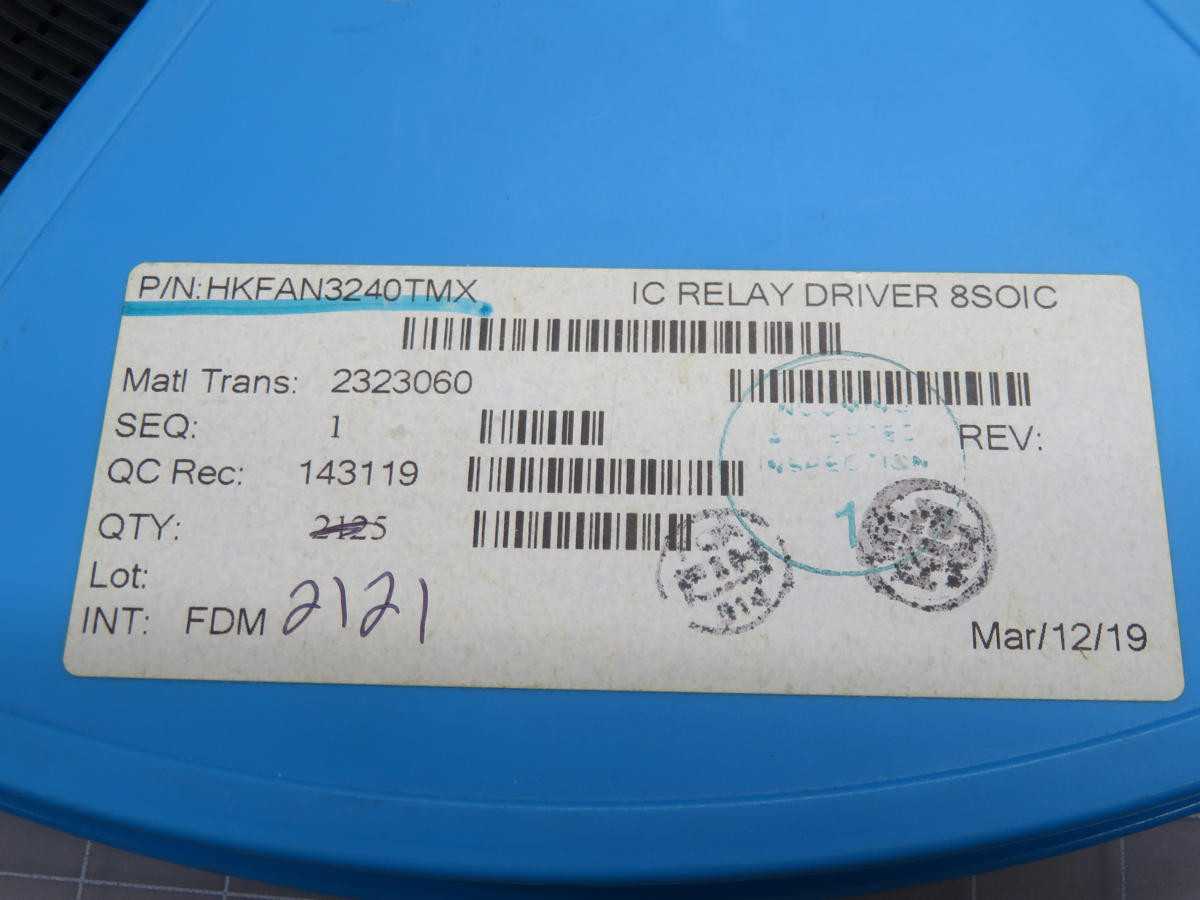

LOT OF 2100 FAIRCHILD FAN3240TMX IC RELAY DRIVER

THE FAIRCHILD FAN3240TMX IS A SINGLE-CHANNEL, HIGH-SPEED LOW-SIDE GATE DRIVER DESIGNED FOR SWITCHING POWER MOSFETS, SUITABLE FOR APPLICATIONS SUCH AS RELAY DRIVING. IT OPERATES FROM A SUPPLY VOLTAGE RANGE OF 4.5V TO 18V AND DELIVERS A ROBUST 2A PEAK OUTPUT CURRENT FOR BOTH SOURCING AND SINKING. THE DEVICE FEATURES CMOS/TTL COMPATIBLE INPUTS WITH A TYPICAL HIGH THRESHOLD OF 2.0V AND A LOW THRESHOLD OF 0.8V. IT OFFERS FAST SWITCHING PERFORMANCE, CHARACTERIZED BY A TYPICAL PROPAGATION DELAY OF 20NS, WITH RISE AND FALL TIMES OF APPROXIMATELY 8NS AND 7NS, RESPECTIVELY, UNDER SPECIFIED LOAD CONDITIONS. INTEGRATED PROTECTION INCLUDES UNDER-VOLTAGE LOCKOUT (UVLO). THE FAN3240TMX IS PROVIDED IN A COMPACT SOT-23-5 SURFACE-MOUNT PACKAGE AND IS SPECIFIED FOR OPERATION ACROSS AN INDUSTRIAL TEMPERATURE RANGE OF -40°C TO +125°C.
