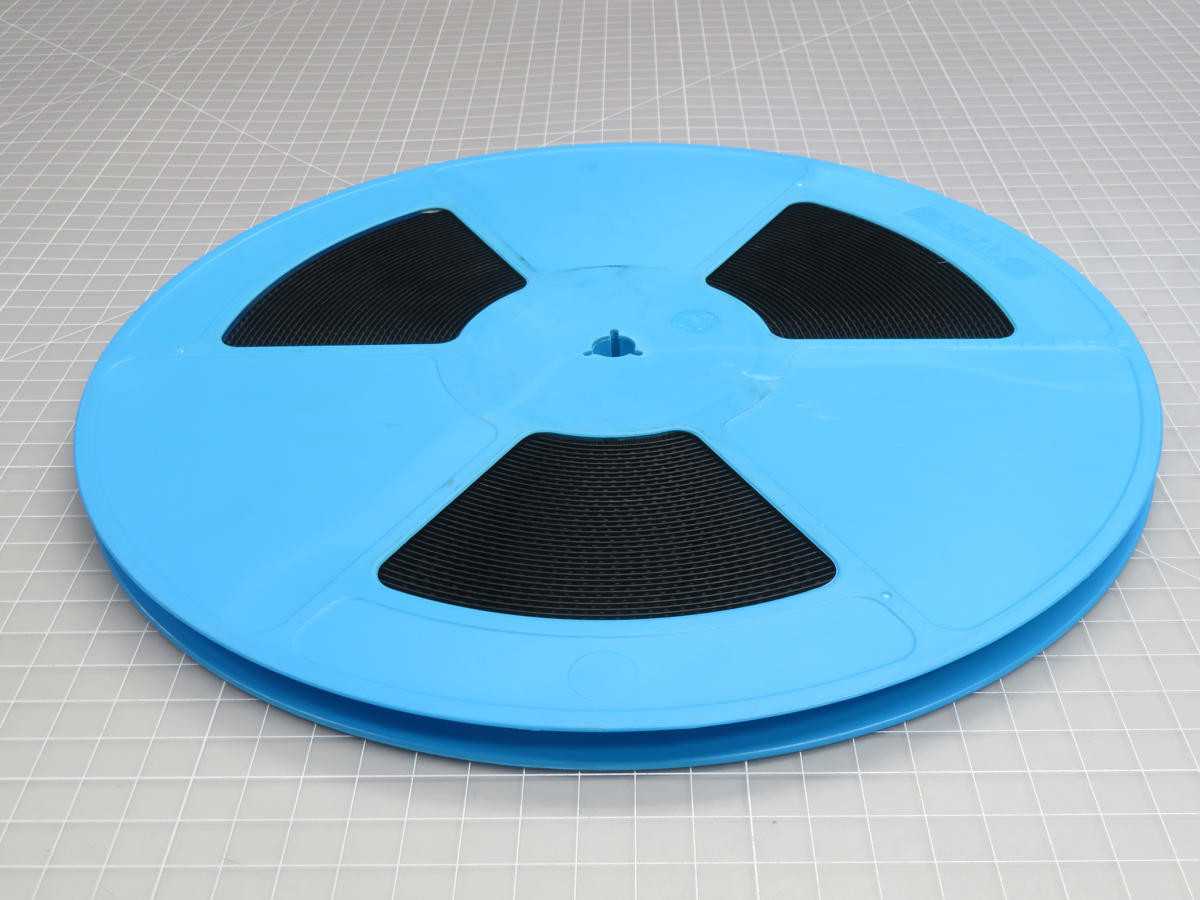

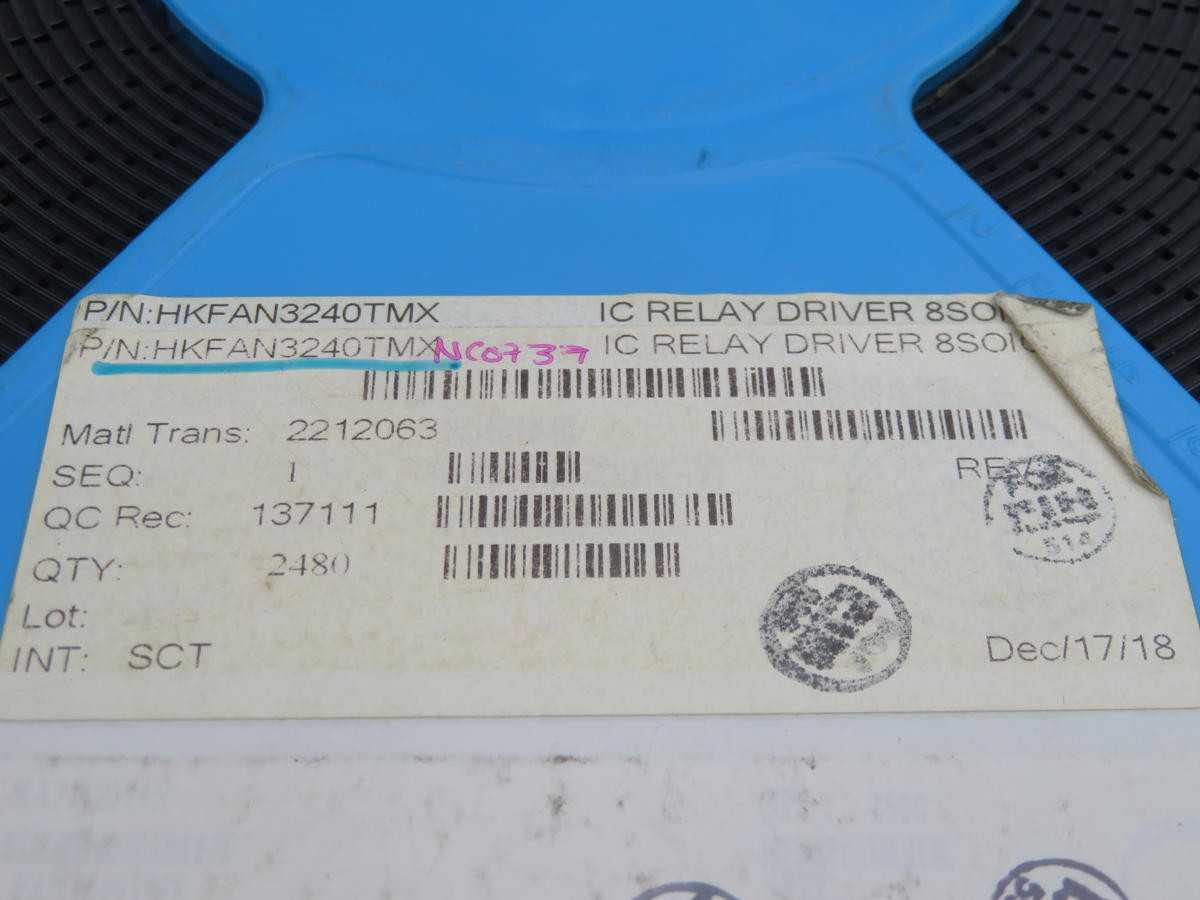

LOT OF 2450 FAIRCHILD FAN3240TMX IC RELAY DRIVER

THE FAIRCHILD FAN3240TMX IS A DUAL-CHANNEL, 2A HIGH-SPEED LOW-SIDE GATE DRIVER INTEGRATED CIRCUIT. DESIGNED TO DRIVE N-CHANNEL POWER MOSFETS AND IGBTS, IT FEATURES A PEAK OUTPUT CURRENT OF 2A FOR BOTH SOURCING AND SINKING. THE DEVICE OPERATES FROM A SUPPLY VOLTAGE RANGE OF 4.5V TO 18V. ITS ACTIVE-HIGH INPUTS INCORPORATE SCHMITT TRIGGER LOGIC, PROVIDING COMPATIBILITY WITH 3.3V, 5V, AND 15V TTL AND CMOS LOGIC LEVELS. PERFORMANCE SPECIFICATIONS INCLUDE A TYPICAL PROPAGATION DELAY OF 18NS, A TYPICAL RISE TIME OF 10NS, AND A TYPICAL FALL TIME OF 8NS. THE FAN3240TMX IS SPECIFIED FOR OPERATION ACROSS AN INDUSTRIAL TEMPERATURE RANGE OF -40°C TO +125°C AND IS HOUSED IN AN SOIC-8 PACKAGE.
