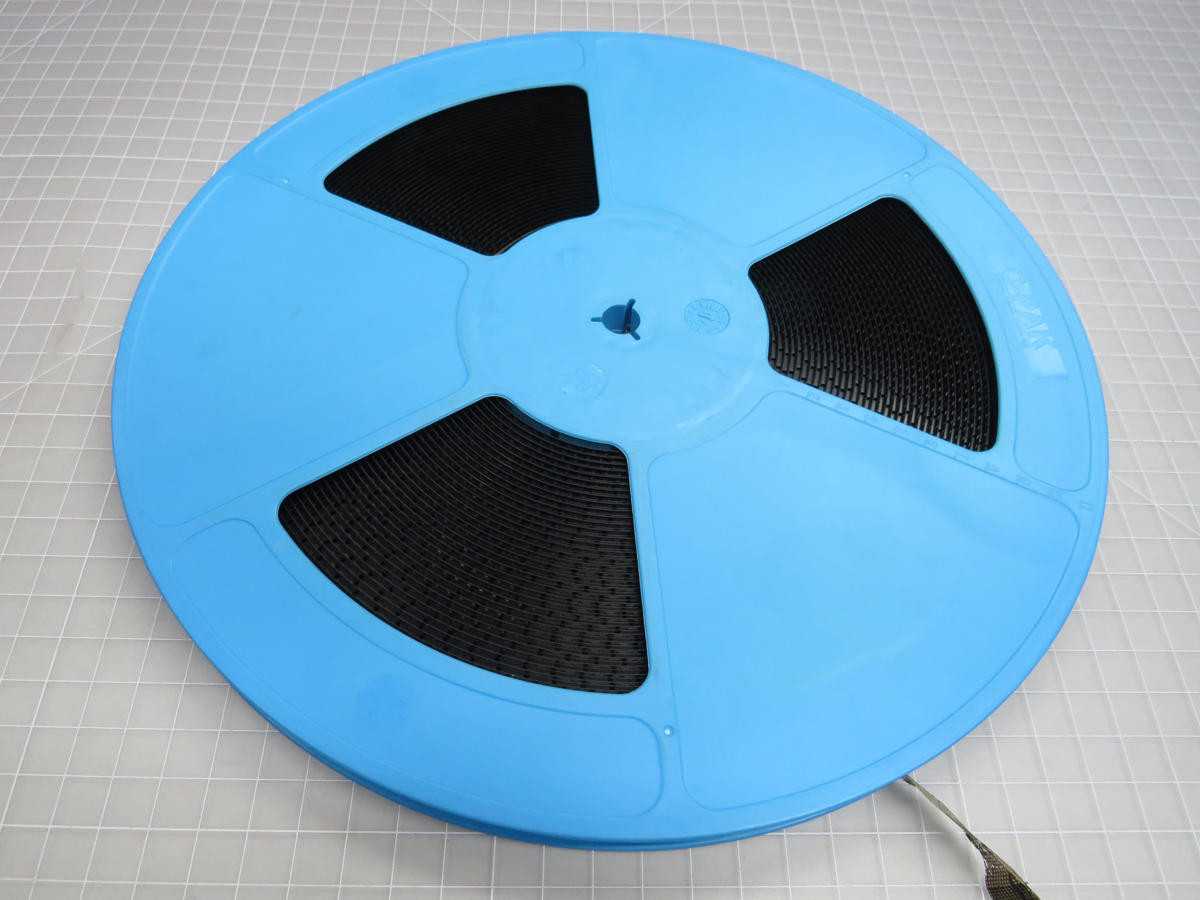

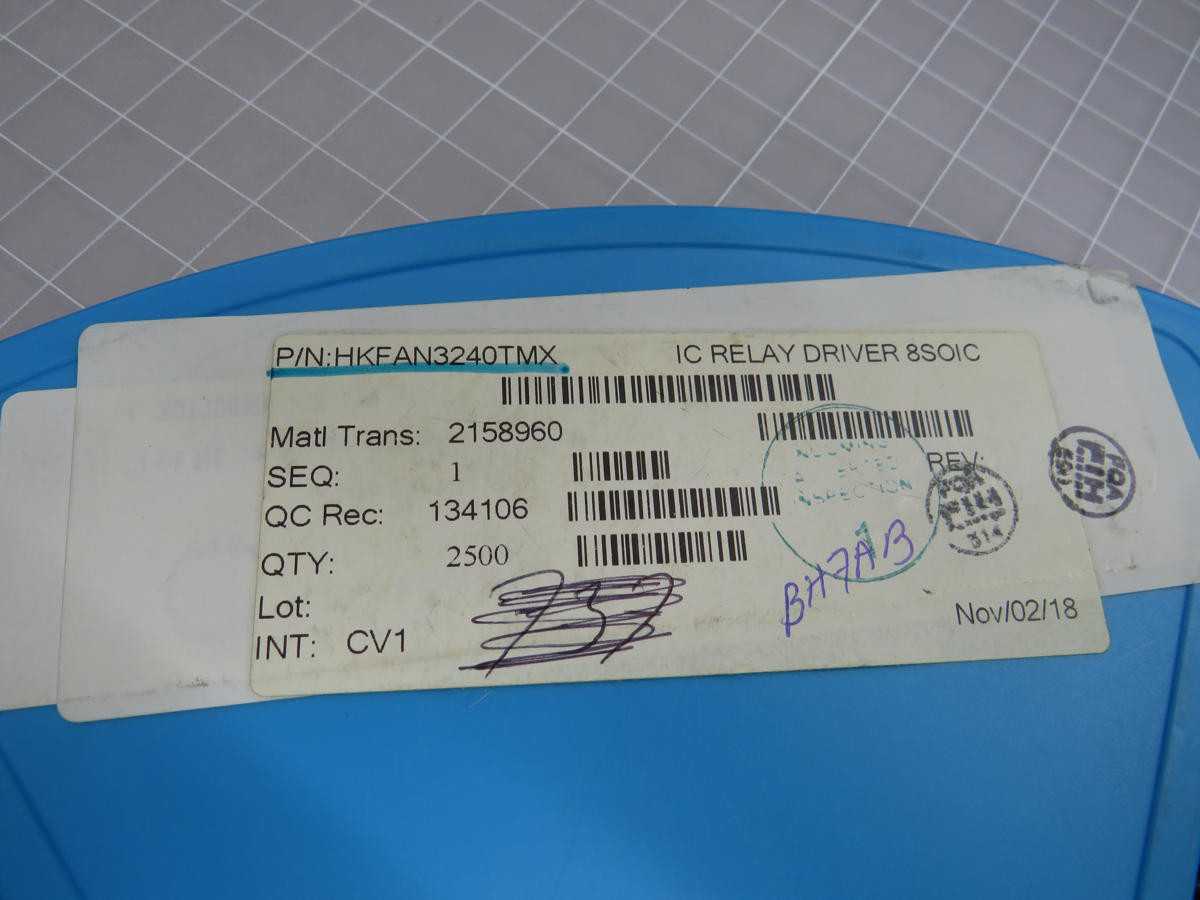

LOT OF 2500 FAIRCHILD FAN3240TMX IC RELAY DRIVER

THE FAIRCHILD FAN3240TMX IS A HIGH-SPEED, DUAL-CHANNEL, LOW-SIDE GATE DRIVER ENGINEERED FOR EFFICIENTLY DRIVING POWER MOSFETS AND IGBTS. THIS INTEGRATED CIRCUIT DELIVERS A 4A PEAK SOURCE AND SINK CURRENT PER CHANNEL, FACILITATING RAPID SWITCHING OF LARGE CAPACITIVE LOADS. IT OPERATES ACROSS A SUPPLY VOLTAGE RANGE OF 4.5V TO 18V AND FEATURES TTL AND CMOS COMPATIBLE LOGIC INPUTS, WITH TYPICAL INPUT THRESHOLDS RANGING FROM 0.8V TO 2.4V. KEY PERFORMANCE METRICS INCLUDE A TYPICAL PROPAGATION DELAY OF 20NS AND RISE/FALL TIMES OF 10NS. THE FAN3240TMX INCORPORATES INDEPENDENT INPUTS FOR EACH NON-INVERTING CHANNEL AND INTEGRATES UNDER-VOLTAGE LOCKOUT (UVLO) PROTECTION FOR ROBUST OPERATION. THE DEVICE IS PROVIDED IN AN 8-PIN SOIC PACKAGE.
