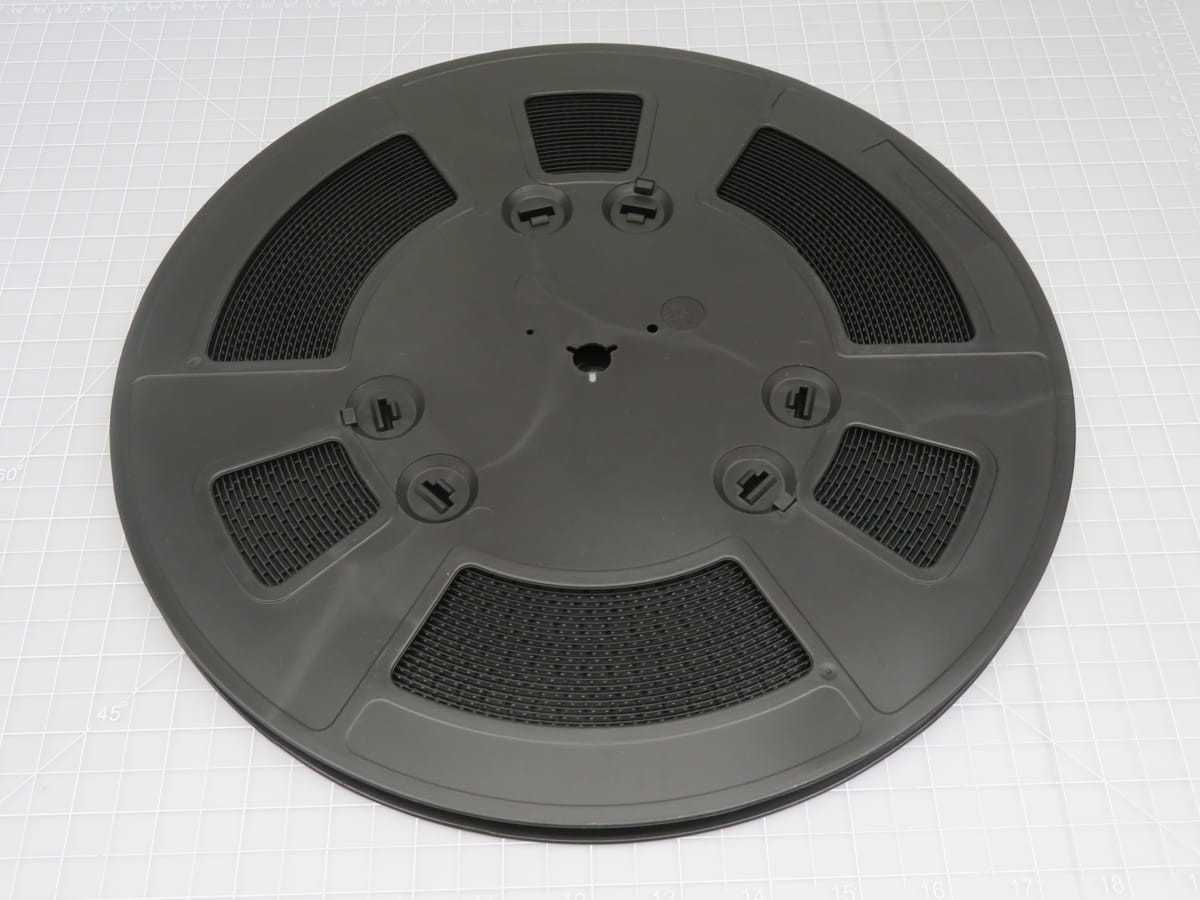

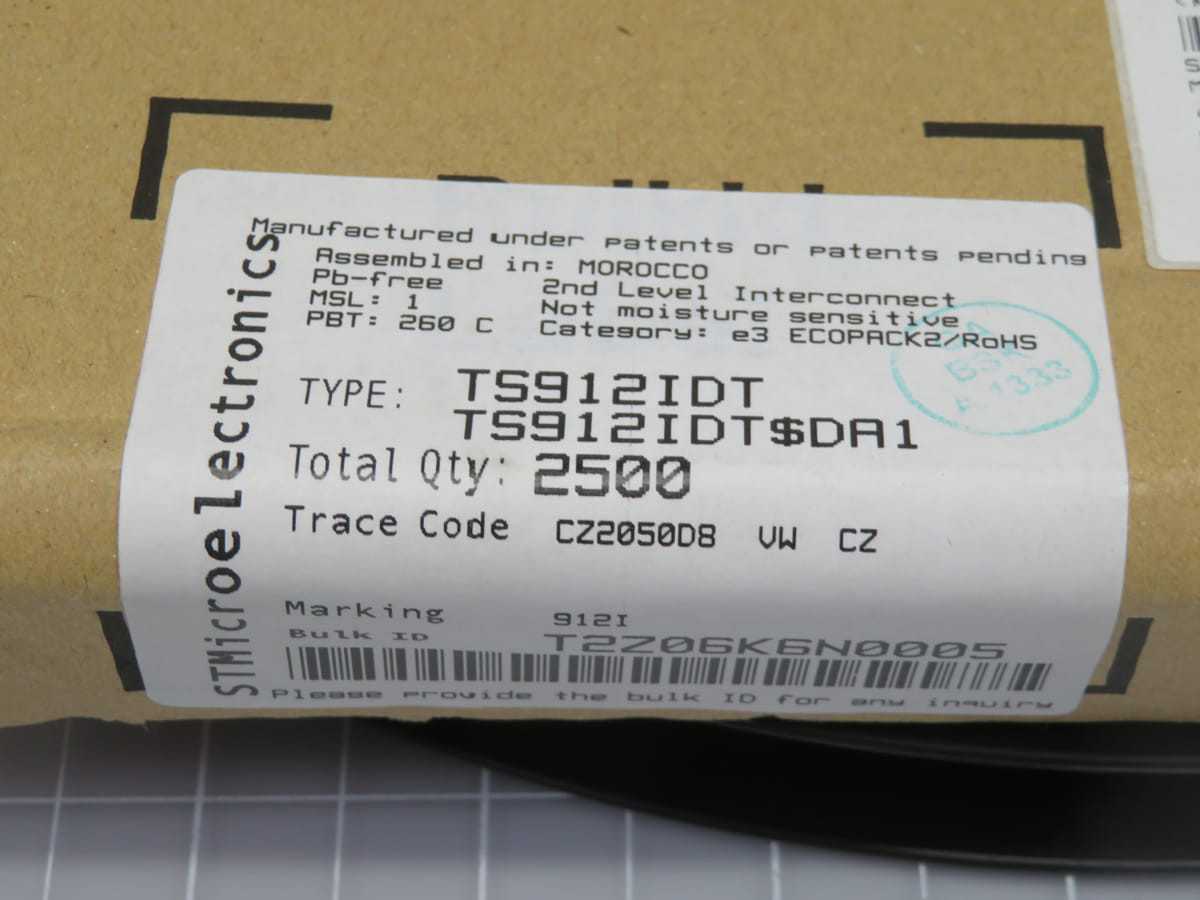

LOT OF 2500 STMICROELECTRONICS TS912IDT CMOS AMPLIFIER 2 CIRCUIT RAIL-TO-RAIL 8-SOIC

THE STMICROELECTRONICS TS912IDT IS A DUAL CMOS OPERATIONAL AMPLIFIER FEATURING RAIL-TO-RAIL INPUT AND OUTPUT VOLTAGE CAPABILITIES. DESIGNED FOR LOW POWER APPLICATIONS, IT OPERATES FROM A SINGLE SUPPLY VOLTAGE RANGE OF 2.7 V TO 10 V OR A DUAL SUPPLY OF ±1.35 V TO ±5 V, CONSUMING A TYPICAL SUPPLY CURRENT OF 200 ΜA PER AMPLIFIER. THIS DEVICE OFFERS A TYPICAL GAIN BANDWIDTH PRODUCT OF 400 KHZ AND A SLEW RATE OF 0.1 V/ΜS. KEY SPECIFICATIONS INCLUDE A MAXIMUM INPUT OFFSET VOLTAGE OF 1.5 MV AND A HIGH INPUT IMPEDANCE CHARACTERISTIC OF CMOS TECHNOLOGY, TYPICALLY 10^12 Ω. THE AMPLIFIER CAN SOURCE OR SINK A TYPICAL OUTPUT CURRENT OF 40 MA. IT FUNCTIONS ACROSS AN INDUSTRIAL OPERATING TEMPERATURE RANGE OF -40 °C TO +125 °C AND IS PROVIDED IN AN 8-SOIC PACKAGE.
