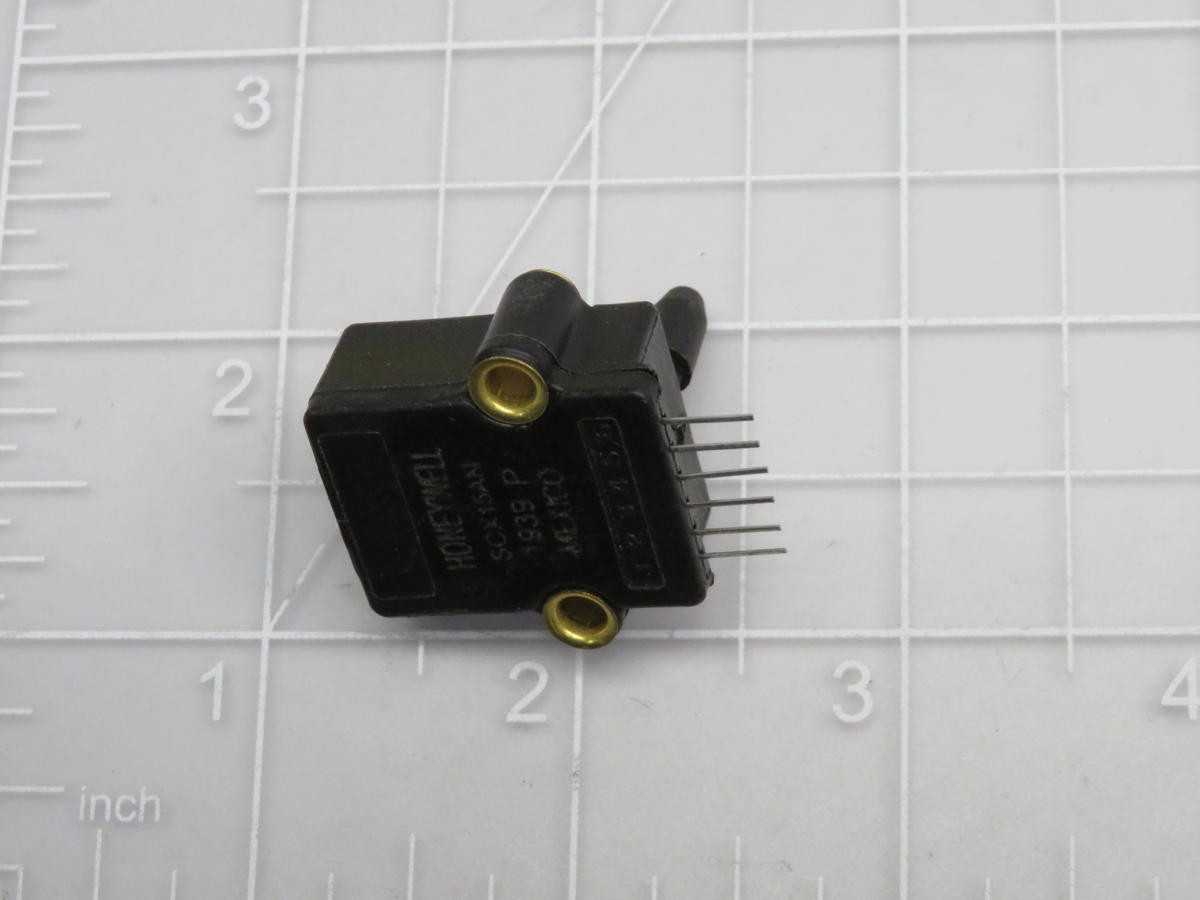

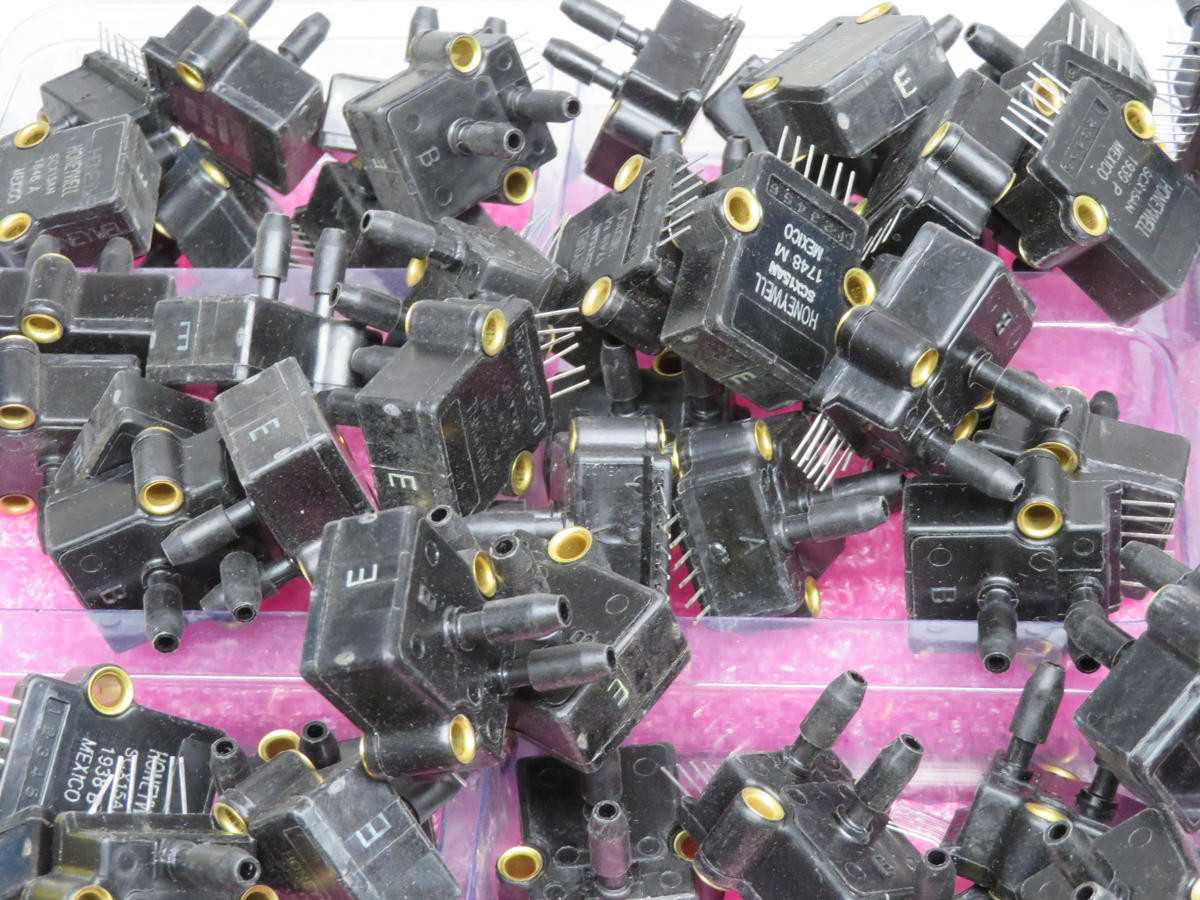

LOT OF 260 HONEYWELL SCX15AN 1939 P BOARDMOUNT SENSOR

THE HONEYWELL SCX15AN IS AN ABSOLUTE PRESSURE SENSOR DESIGNED FOR BOARD-MOUNT APPLICATIONS. THIS DEVICE OPERATES WITHIN A PRESSURE RANGE OF 0 TO 15 PSI ABSOLUTE, PROVIDING A MILLIVOLT OUTPUT PROPORTIONAL TO THE APPLIED PRESSURE. IT TYPICALLY REQUIRES A SUPPLY VOLTAGE OF 5.0 VDC, YIELDING A NOMINAL FULL-SCALE OUTPUT OF 100 MV. THE SENSOR MAINTAINS OPERATIONAL INTEGRITY ACROSS AN AMBIENT TEMPERATURE RANGE OF -40°C TO 85°C, WITH ITS COMPENSATED PERFORMANCE SPECIFIED FROM 0°C TO 50°C. KEY SPECIFICATIONS INCLUDE AN ACCURACY OF ±0.1% FULL SCALE OUTPUT (FSO), A HYSTERESIS OF ±0.05% FSO, AND A REPEATABILITY OF ±0.05% FSO. IT IS ENGINEERED FOR INTEGRATION ONTO PRINTED CIRCUIT BOARDS, FACILITATING PRECISE PRESSURE MONITORING IN VARIOUS SYSTEMS.
