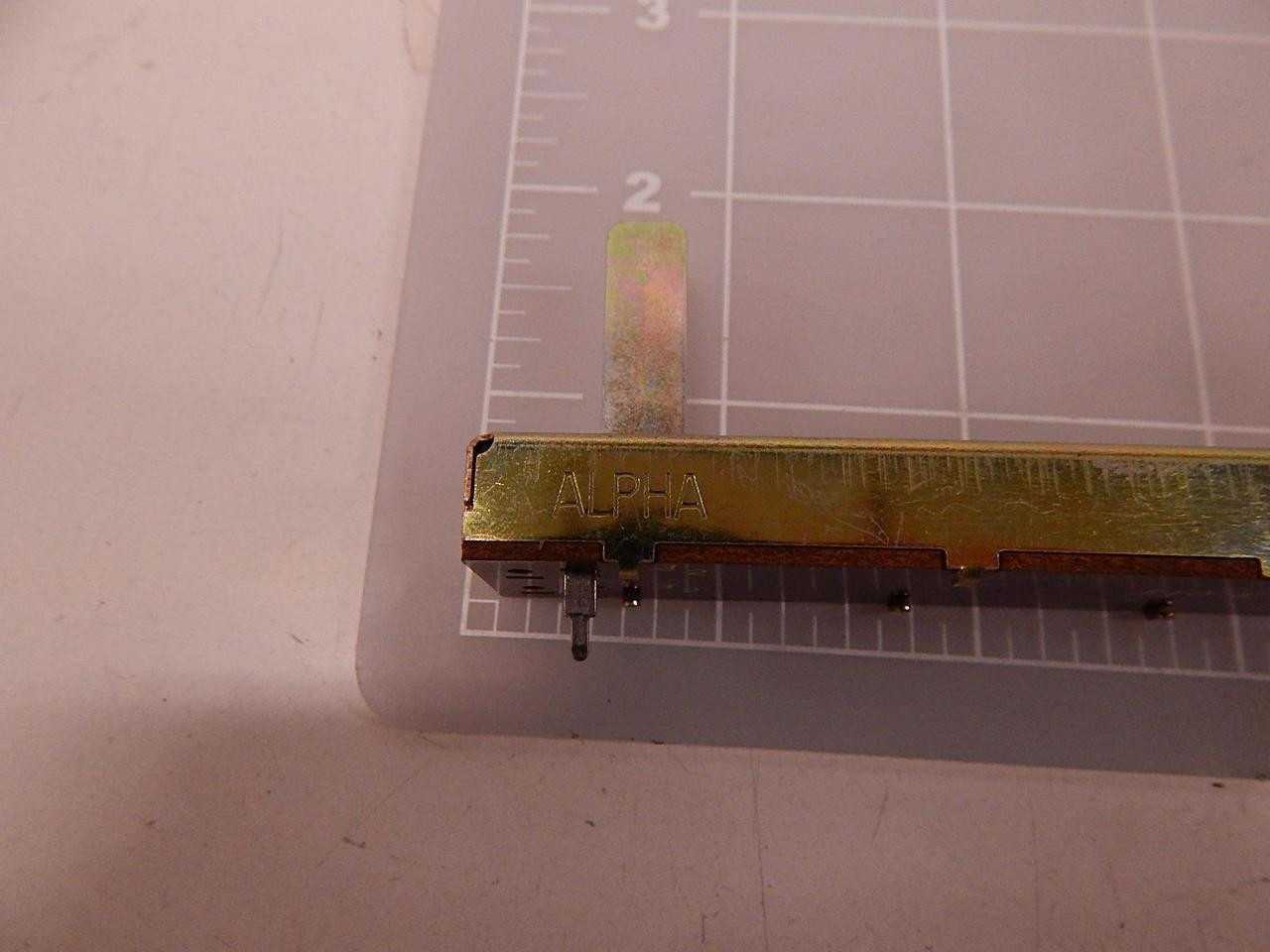

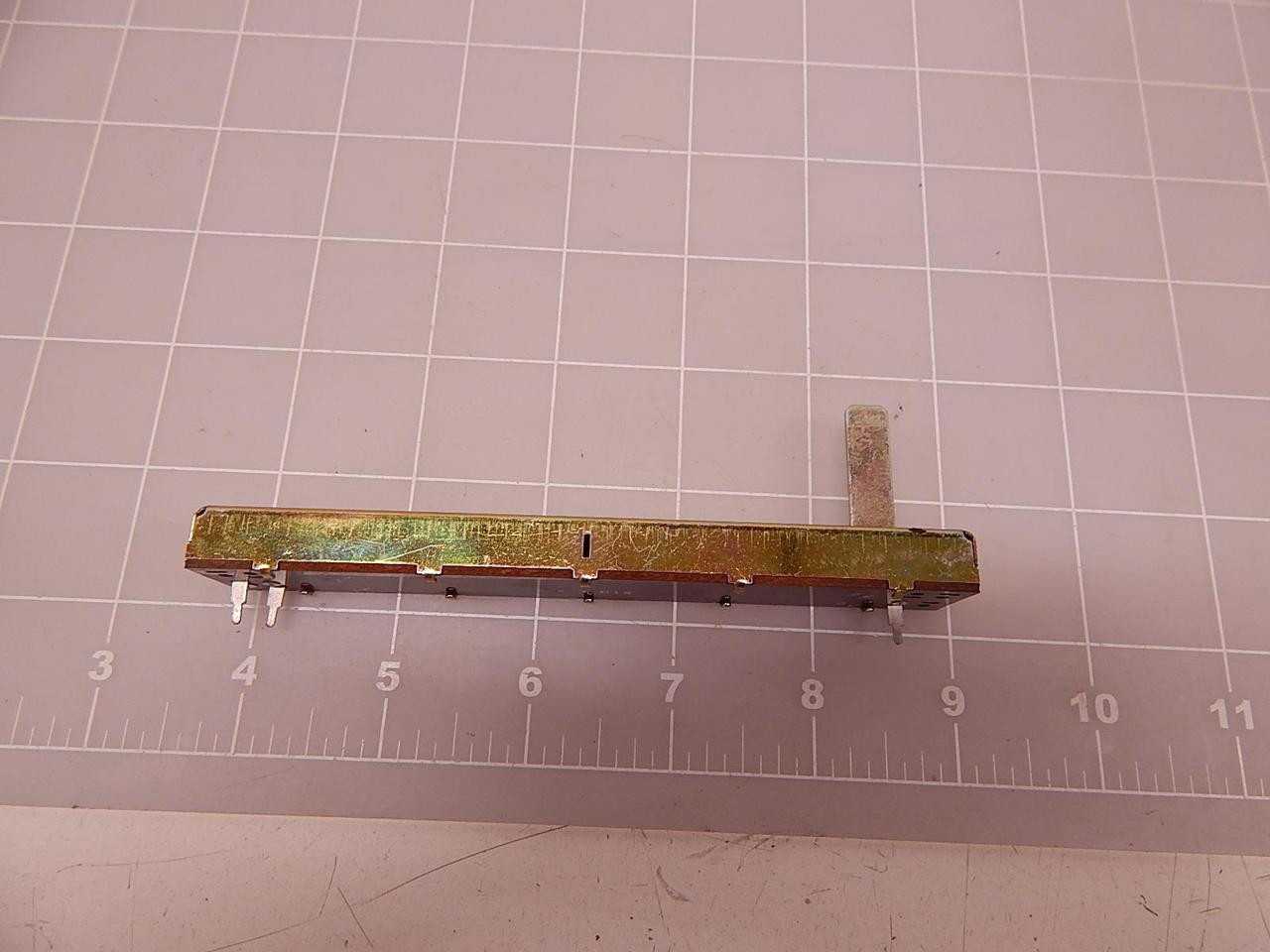

LOT OF 267 ALPHA B10 K X 2 POTENTIOMETER

THE ALPHA B10 K X 2 POTENTIOMETER IS A DUAL-GANG COMPONENT FEATURING A LINEAR TAPER AND A NOMINAL RESISTANCE OF 10 KILOHMS PER GANG. IT PROVIDES A POWER RATING OF 0.05 WATTS (50 MW) PER GANG AND IS SPECIFIED FOR A MAXIMUM OPERATING VOLTAGE OF 150V DC OR AC RMS. THE POTENTIOMETER OFFERS A ROTATIONAL ANGLE OF 300 DEGREES ±5 DEGREES AND IS DESIGNED FOR A ROTATIONAL LIFE OF 10,000 CYCLES. IT INCORPORATES A 6MM DIAMETER SHAFT AND IS SUITABLE FOR PANEL MOUNTING VIA A THREADED BUSHING. ELECTRICAL TERMINATIONS ARE FACILITATED THROUGH PCB PINS.
