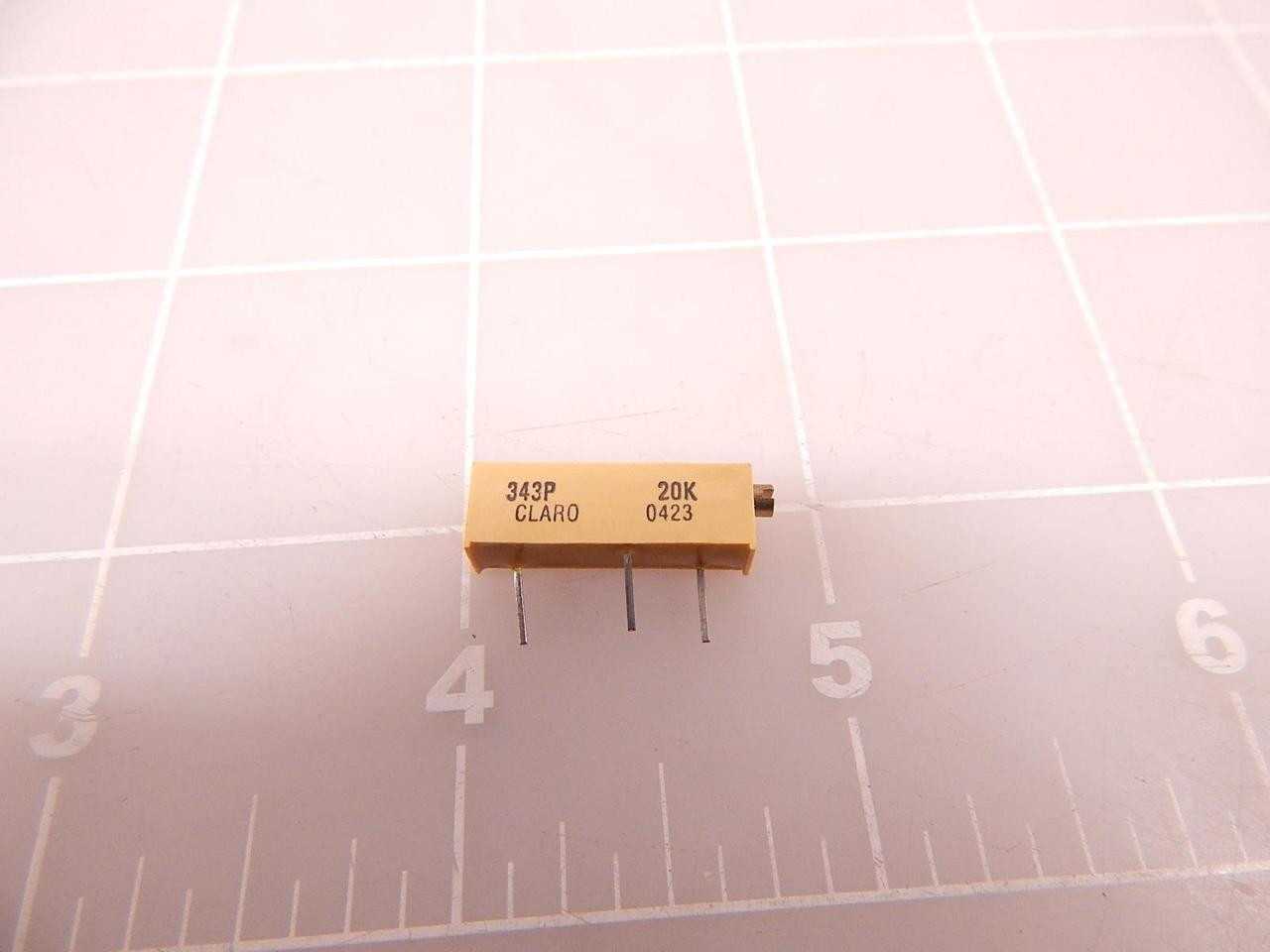

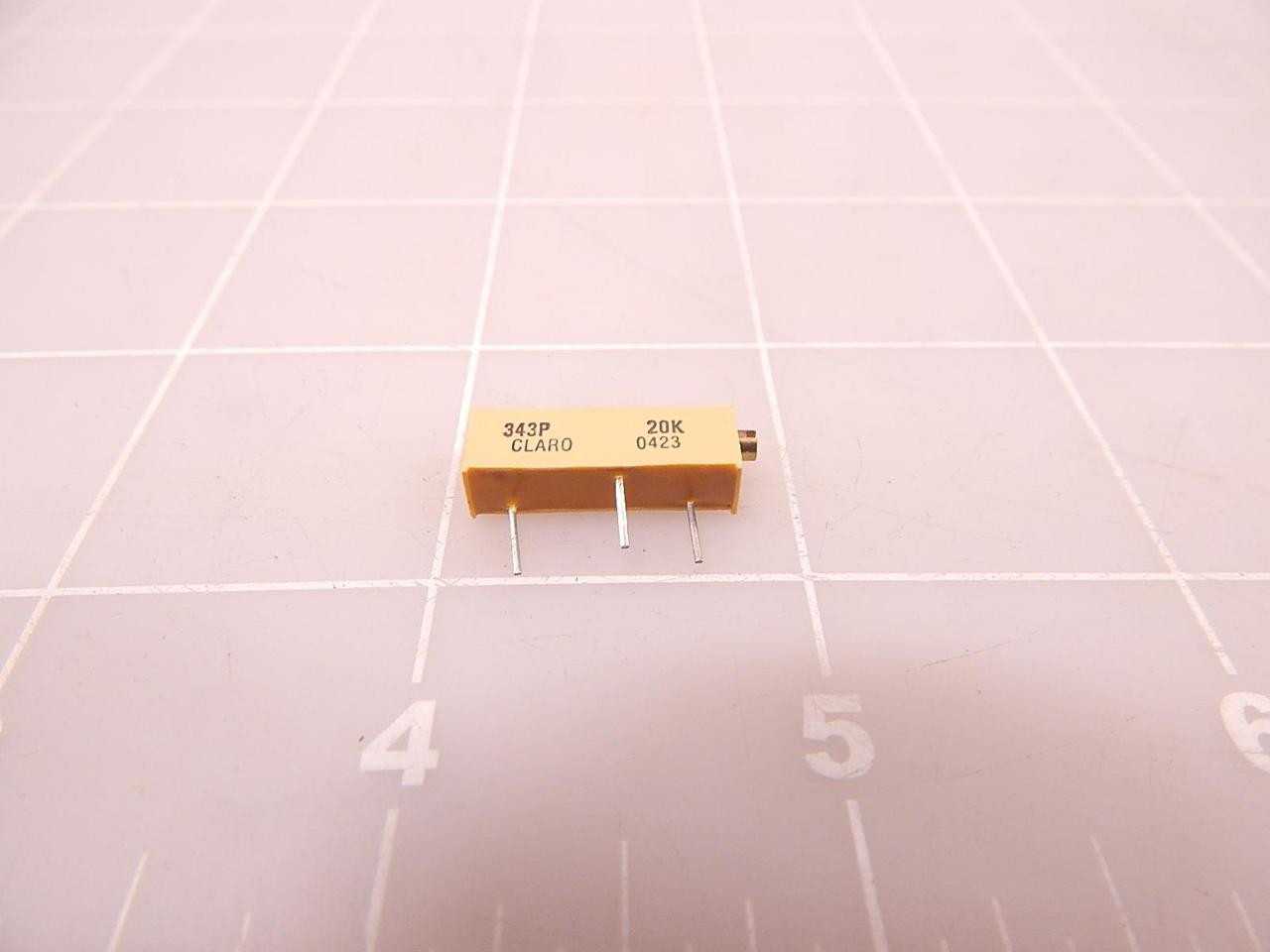

LOT OF 300 CLAROSTAT 343P20K 0423 RES CERMET TRIMMER 20K OHM 10% 0.75W(3/4W) 20(ELEC)TURN 2.54MM (20.57 X 4.83 X 6.35MM) PIN THRU-HOLE

THE CLAROSTAT 343P20K 0423 IS A CERMET MULTITURN TRIMMER POTENTIOMETER WITH A NOMINAL RESISTANCE OF 20K OHM AND A TOLERANCE OF 10%. IT HAS A POWER RATING OF 0.75W (3/4W) AT 70°C AND FEATURES 20 ELECTRICAL TURNS. THE COMPONENT OPERATES WITHIN A TEMPERATURE RANGE OF -55°C TO +125°C AND HAS A TEMPERATURE COEFFICIENT OF ±100 PPM/°C. ITS MAXIMUM OPERATING VOLTAGE IS 300 VDC. DESIGNED FOR THRU-HOLE MOUNTING, IT FEATURES THREE PINS SPACED 2.54MM APART. THE PHYSICAL DIMENSIONS OF THE COMPONENT ARE 20.57MM IN LENGTH, 4.83MM IN WIDTH, AND 6.35MM IN HEIGHT. ADJUSTMENT IS PROVIDED VIA A SLOTTED SCREWDRIVER.
