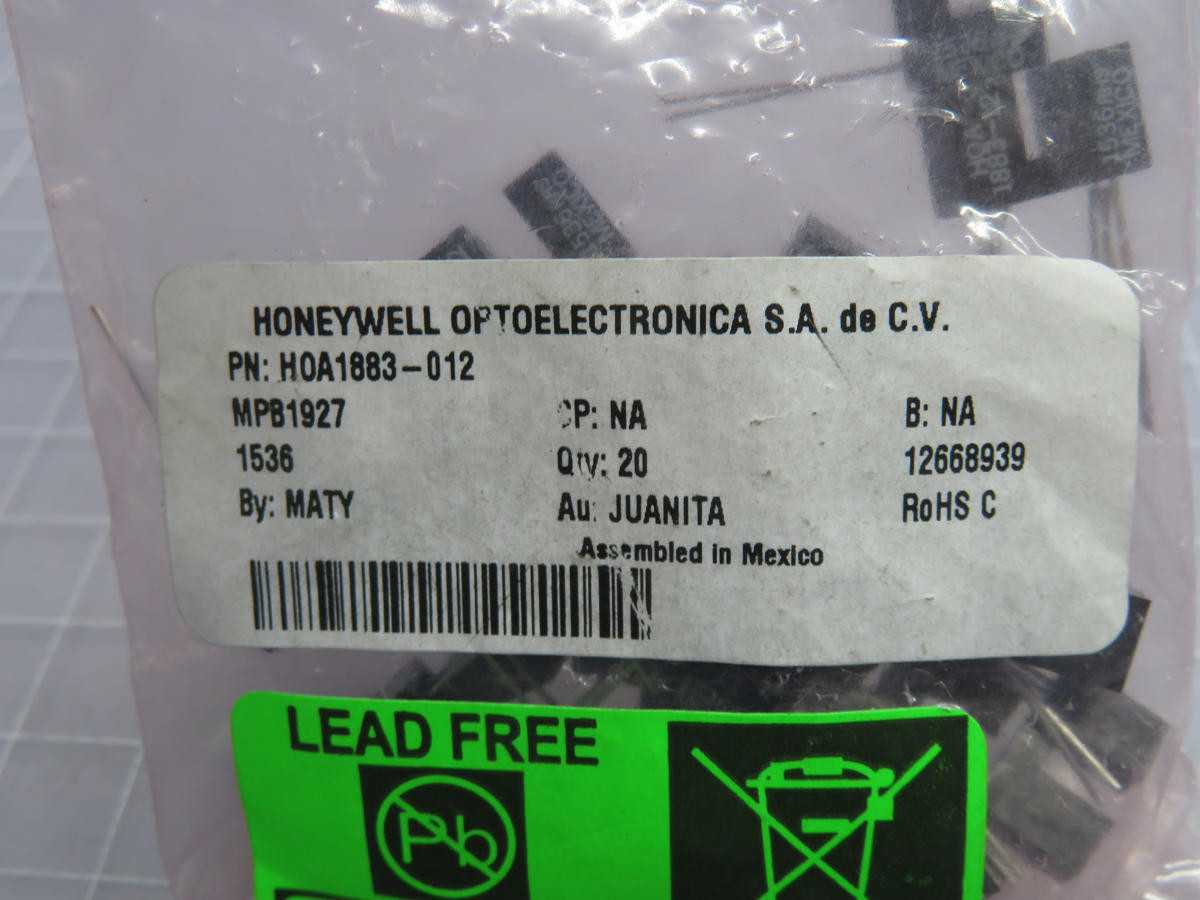

LOT OF 300 HONEYWELL HOA1883-012 OPTICAL SWITCHES, TRANSMISSIVE, PHOTOTRANSISTOR OUTPUT 1.80MA, TRANSISTOR

THE HONEYWELL HOA1883-012 IS A TRANSMISSIVE OPTICAL SWITCH FEATURING A GALLIUM ARSENIDE (GAAS) INFRARED EMITTING DIODE AND AN NPN SILICON PHOTOTRANSISTOR OUTPUT. THE EMITTER OPERATES AT A TYPICAL WAVELENGTH OF 935 NM. THIS DEVICE PROVIDES A MINIMUM ON-STATE COLLECTOR CURRENT (IC(ON)) OF 1.8 MA. IT FEATURES A SLOT WIDTH OF 0.125 INCHES (3.18 MM) AND AN APERTURE OF 0.050 INCHES (1.27 MM) FOR BOTH THE EMITTER AND DETECTOR. THE PHOTOTRANSISTOR OUTPUT HAS A MAXIMUM COLLECTOR-EMITTER VOLTAGE (VCE) OF 30 V AND A MAXIMUM COLLECTOR CURRENT (IC) OF 50 MA. THE INFRARED EMITTER SUPPORTS A MAXIMUM FORWARD CURRENT (IF) OF 50 MA. ENCAPSULATED IN AN OPAQUE PLASTIC HOUSING, THE SWITCH IS DESIGNED FOR PC BOARD MOUNTING. IT OPERATES ACROSS A TEMPERATURE RANGE OF -40°C TO 85°C.
