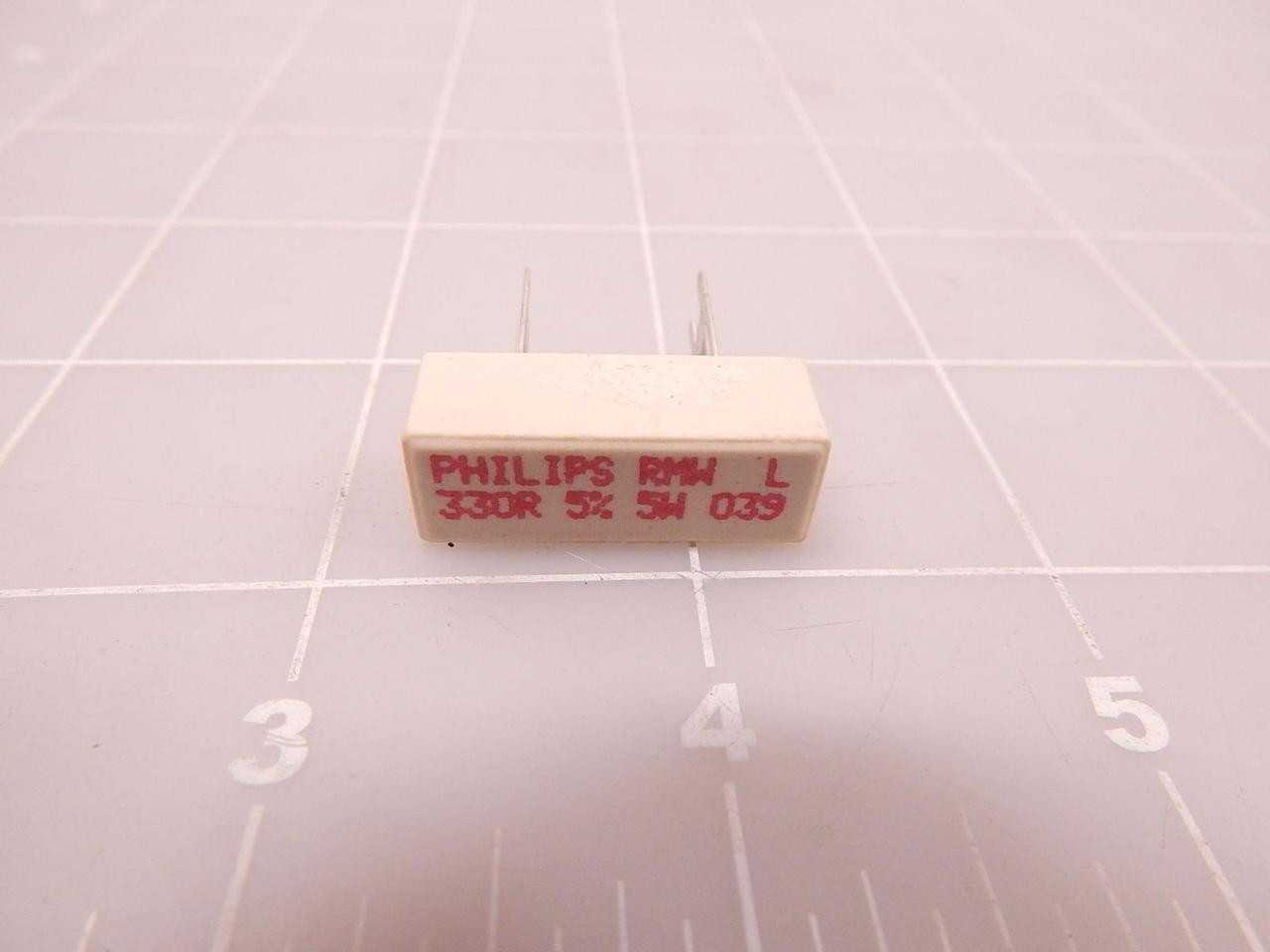

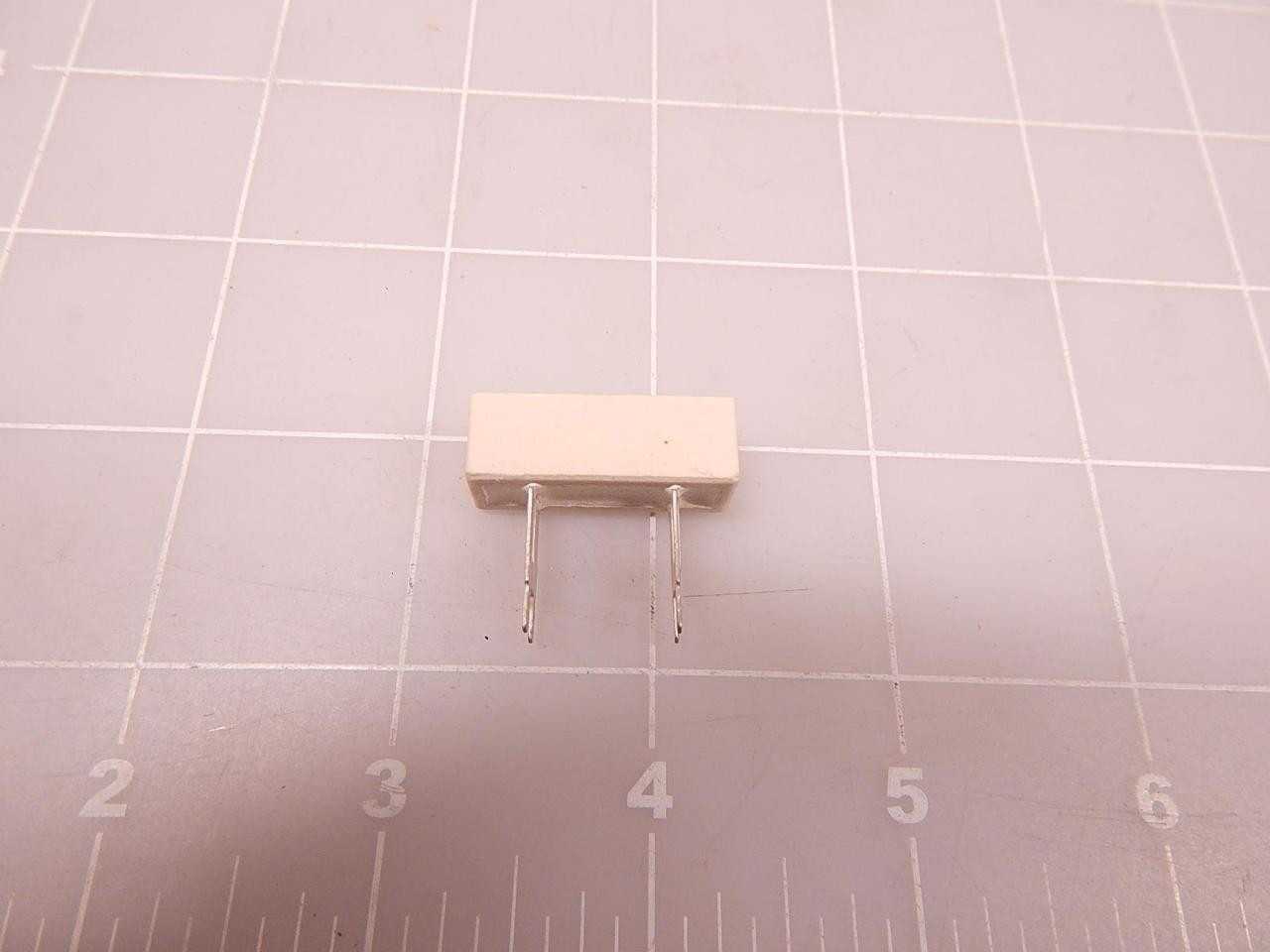

LOT OF 3000 PHILIPS 330R WIDERSTAND RESISTOR 5% 5 W

THE PHILIPS 330R RESISTOR IS A 5-WATT (5 W) AXIAL LEADED WIREWOUND COMPONENT, OFFERING A NOMINAL RESISTANCE OF 330 OHMS WITH A 5% TOLERANCE. THIS POWER RESISTOR IS CONSTRUCTED WITH A NON-FLAMMABLE COATING OVER A CERAMIC CORE, DESIGNED FOR RELIABLE PERFORMANCE ACROSS AN OPERATING TEMPERATURE RANGE OF -55 °C TO +155 °C. KEY ELECTRICAL SPECIFICATIONS INCLUDE A TEMPERATURE COEFFICIENT OF RESISTANCE TYPICALLY AT ±200 PPM/°C, AND A MAXIMUM WORKING VOLTAGE OF APPROXIMATELY 40.6 V AT ITS RATED POWER, THOUGH THE SERIES OFTEN PERMITS HIGHER MOMENTARY OR MAXIMUM RATED VOLTAGES UP TO 500V. THE PHYSICAL FORM FACTOR IS CHARACTERIZED BY AN APPROXIMATE BODY LENGTH OF 24.5 MM AND A DIAMETER OF 8.5 MM.
