LOT OF 35 HONEYWELL 19C100PG4K SENSOR 100PSIG 1/8"NPT 0.1V

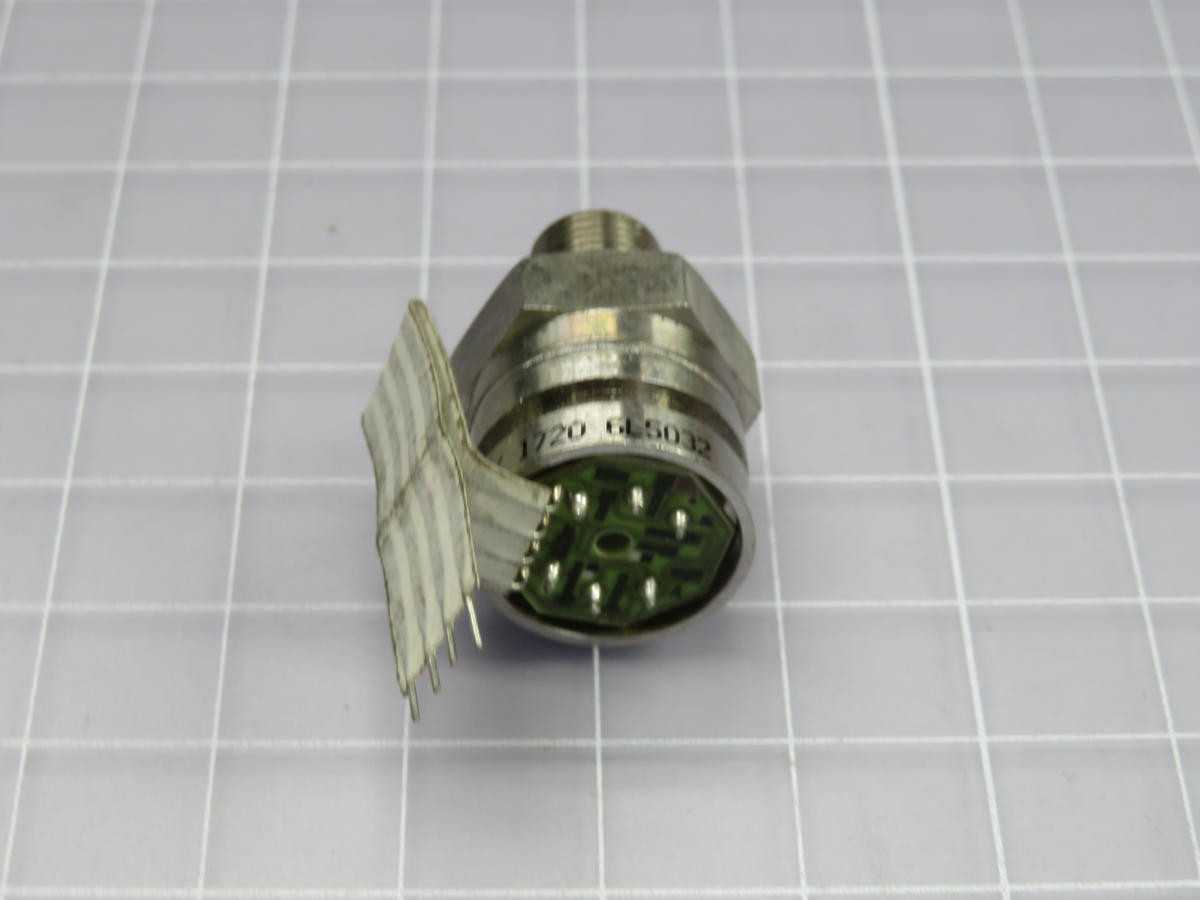

THE HONEYWELL 19C100PG4K IS A PRESSURE SENSOR DESIGNED FOR VENTED GAUGE MEASUREMENTS. IT FEATURES A 0 TO 100 PSI (0 TO 689.48 KPA) PRESSURE RANGE. THE SENSOR PROVIDES AN UNAMPLIFIED, RATIOMETRIC OUTPUT OF 0 TO 100 MV, TYPICALLY ACHIEVED WITH A 10 VDC EXCITATION VOLTAGE. ITS PROCESS CONNECTION IS A 1/8-27 NPT MALE THREAD. THE CYLINDRICAL, THREADED HOUSING CONTAINS A SILICON DIAPHRAGM. OPERATING WITHIN A TEMPERATURE RANGE OF -40°C TO 85°C, WITH COMPENSATION FROM 0°C TO 50°C, IT EXHIBITS A COMBINED NON-LINEARITY AND HYSTERESIS ACCURACY OF ±0.25% FULL SCALE SPAN (FSS). THE SENSOR IS DESIGNED FOR COMPATIBILITY WITH DRY AIR AND NON-CORROSIVE GASES AND HAS A RESPONSE TIME OF LESS THAN 1 MILLISECOND.
