LOT OF 4000 LITTELFUSE 51NM MINIATURE FUSE

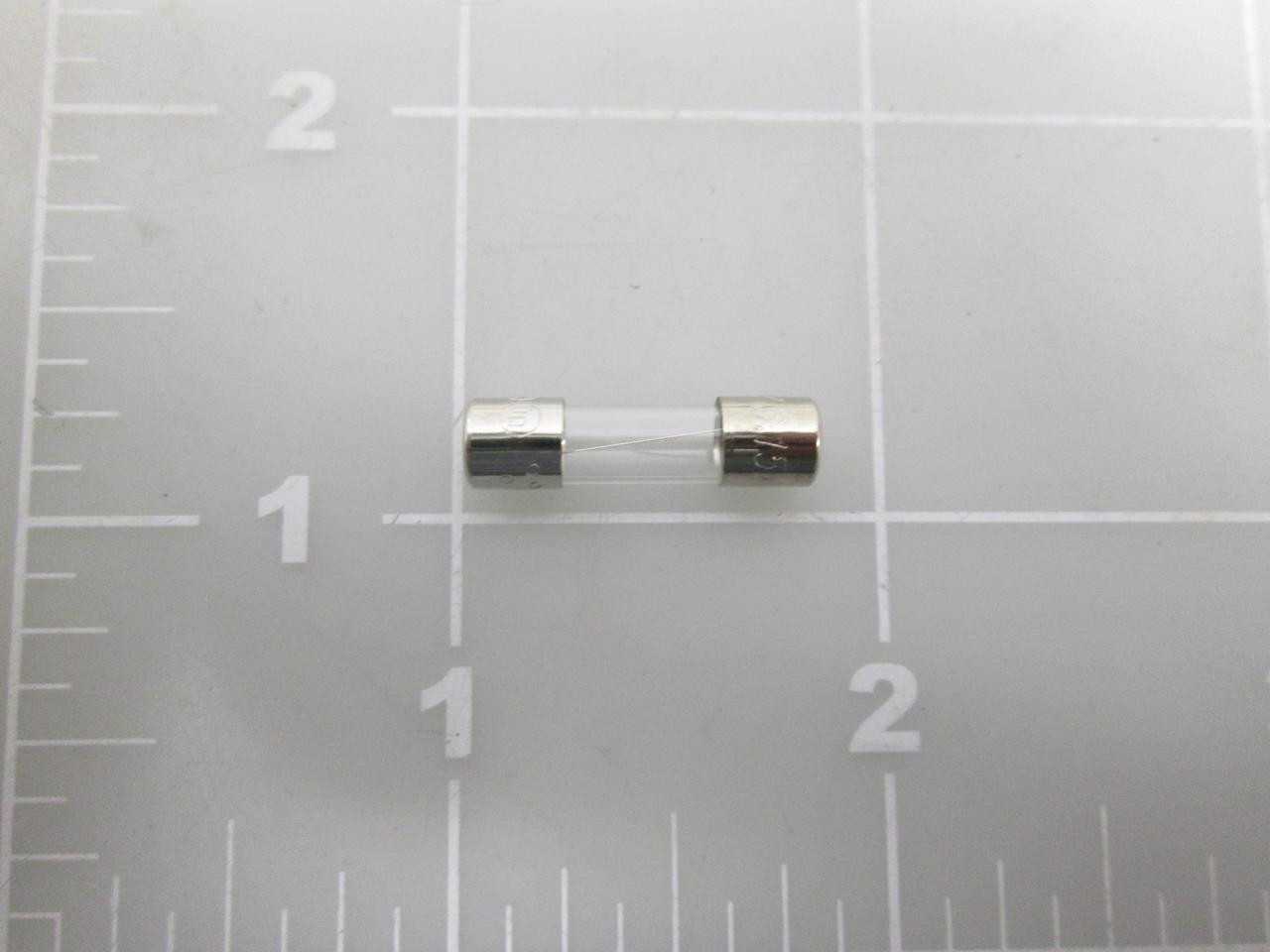

THE LITTELFUSE 51NM IS A 2AG TIME-LAG MINIATURE FUSE DESIGNED FOR CIRCUIT PROTECTION. IT IS RATED FOR OPERATION AT 125 V AC WITH A NOMINAL CURRENT OF 3.15 A. THE FUSE FEATURES A GLASS BODY CONSTRUCTION WITH NICKEL-PLATED BRASS ENDCAPS. IT OFFERS AN INTERRUPTING RATING OF 10,000 A AT 125 V AC. FOR THE 3.15 A RATING, THE COLD RESISTANCE IS 0.0540 OHMS, THE VOLTAGE DROP IS 170 MV, AND THE TYPICAL MELTING I²T IS 10.95 A²S. THIS COMPONENT IS UL LISTED TO STANDARD 248-14 AND CSA CERTIFIED TO C22.2 NO. 248.14. DIMENSIONS ARE 5.18 MM IN DIAMETER AND 15.00 MM IN LENGTH.
