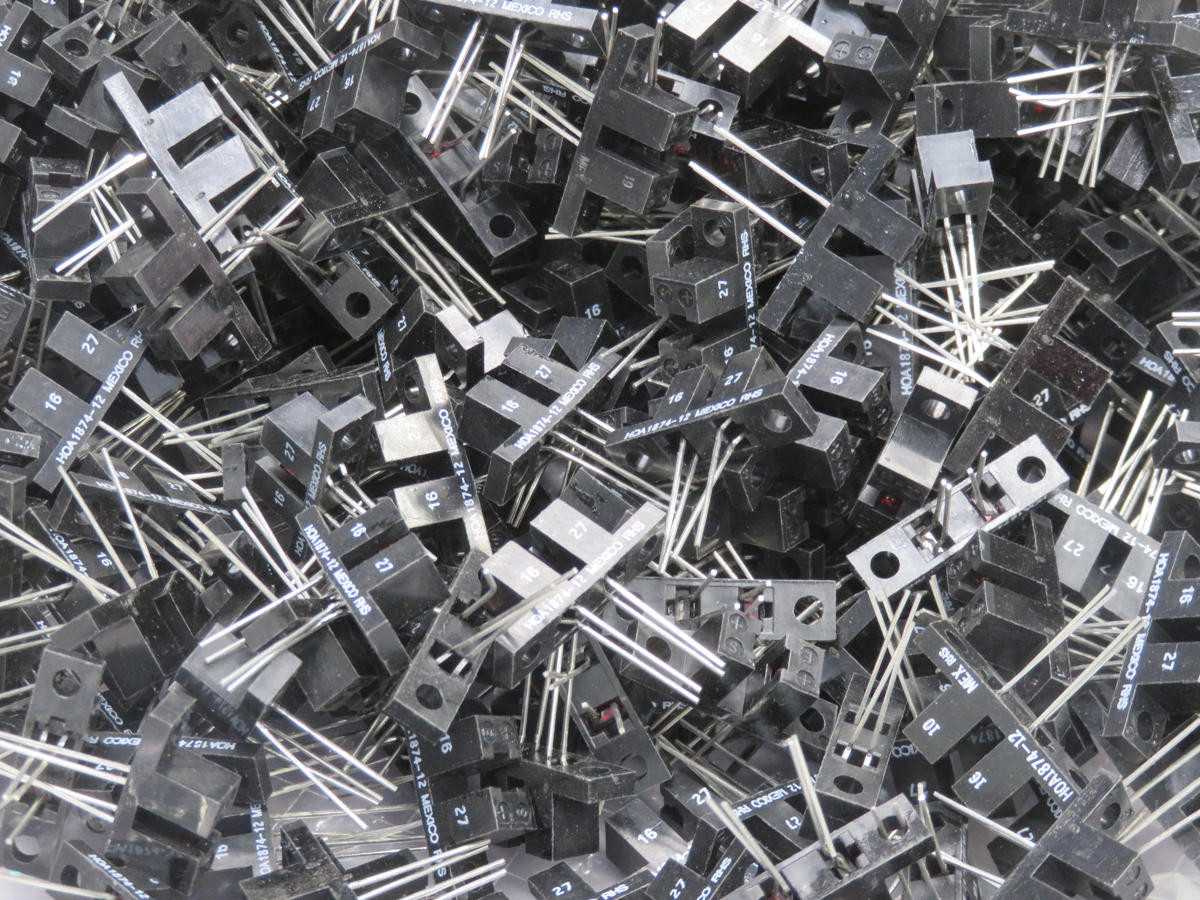

LOT OF 625 HONEYWELL HOA1874-12 OPTICAL SWITCH

THE HONEYWELL HOA1874-12 IS A TRANSMISSIVE OPTICAL SENSOR, COMMONLY REFERRED TO AS A SLOTTED OPTICAL SWITCH, FEATURING A GALLIUM ARSENIDE (GAAS) INFRARED EMITTING DIODE AND AN NPN SILICON PHOTOTRANSISTOR OUTPUT. IT IS DESIGNED FOR PC BOARD MOUNTING WITH LEADS TYPICALLY ON A 2.54 MM (0.100 INCH) GRID. THE DEVICE PROVIDES A SLOT WIDTH OF 3.18 MM (0.125 INCHES) AND A SLOT DEPTH OF 6.10 MM (0.240 INCHES). KEY ELECTRICAL SPECIFICATIONS INCLUDE A MAXIMUM COLLECTOR-EMITTER VOLTAGE OF 30 V, A MAXIMUM EMITTER-COLLECTOR VOLTAGE OF 5 V, AND A MAXIMUM COLLECTOR CURRENT OF 50 MA. THE INFRARED EMITTING DIODE HAS A MAXIMUM FORWARD CURRENT OF 50 MA. THE SWITCH OPERATES WITHIN A TEMPERATURE RANGE OF -40°C TO +85°C. TYPICAL RISE AND FALL TIMES FOR THE PHOTOTRANSISTOR OUTPUT ARE 15 ΜS WHEN OPERATING WITH A 10MA COLLECTOR CURRENT AND A 100-OHM LOAD RESISTOR.
