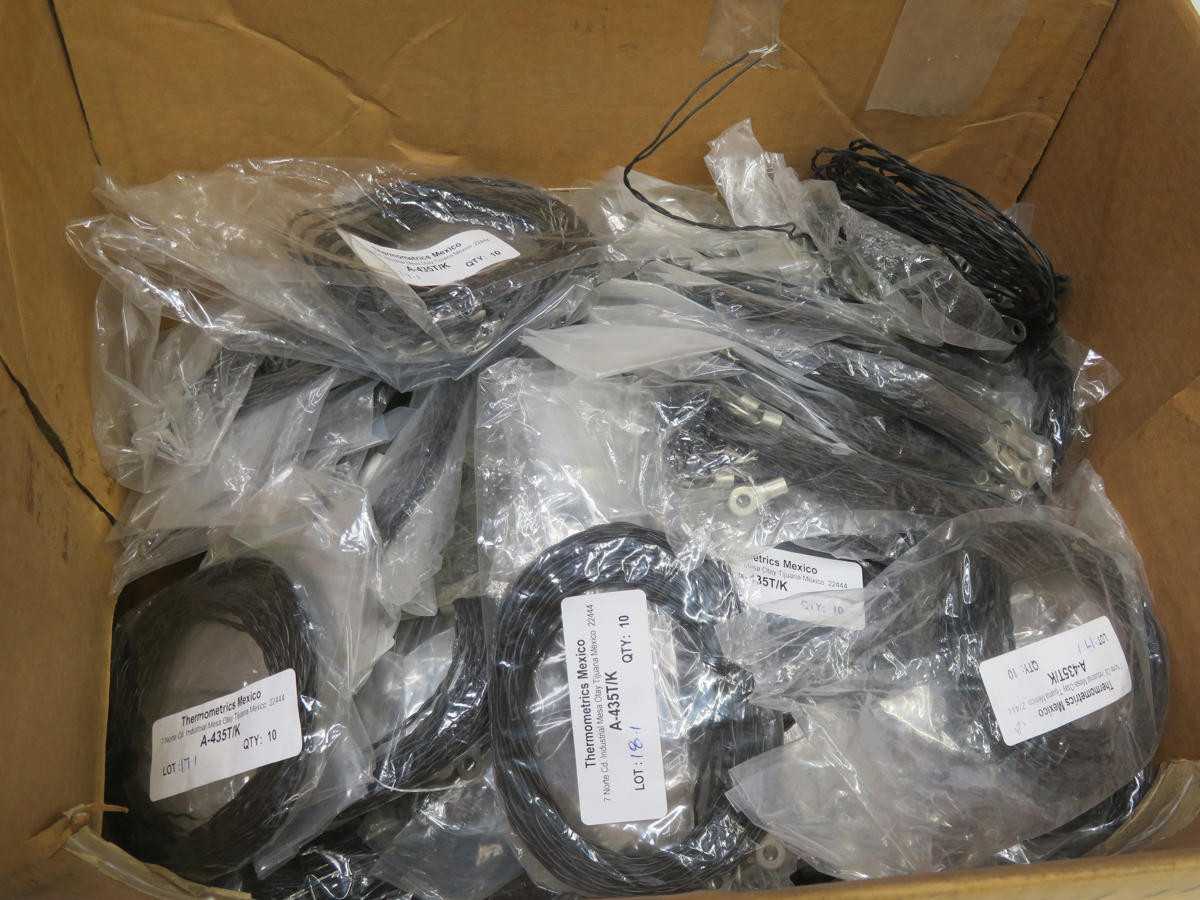

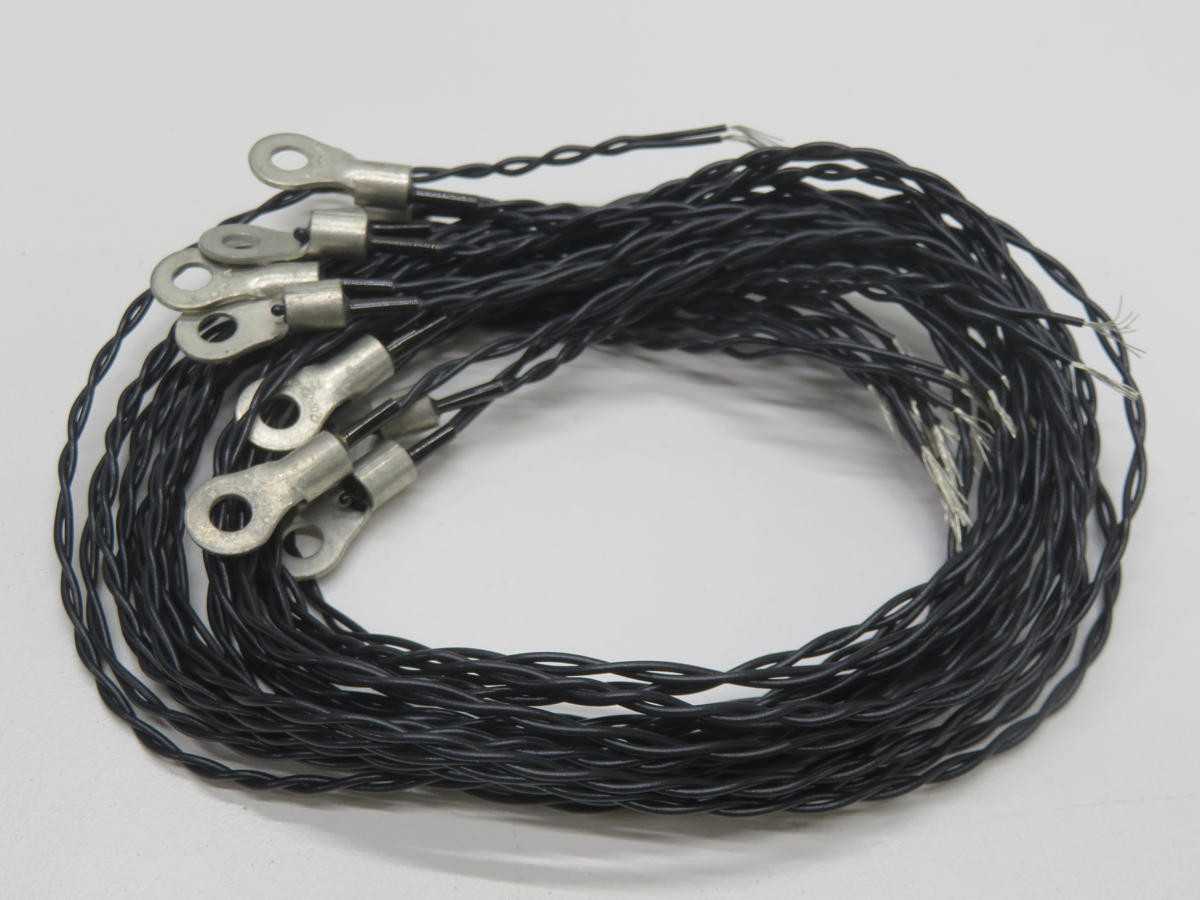

LOT OF 690 THERMOMETRICS A-435T/K WIRE

THE THERMOMETRICS A-435T/K IS AN NTC THERMISTOR PROBE ASSEMBLY ENGINEERED FOR PRECISE TEMPERATURE MEASUREMENT. IT EXHIBITS A NOMINAL RESISTANCE OF 2252 OHMS (2.252 KOHMS) AT 25°C, COUPLED WITH A BETA VALUE (B25/85) OF 3976K. THIS PROBE IS DESIGNED FOR AN OPERATING TEMPERATURE RANGE SPANNING FROM -40°C TO +150°C. THE SENSING ELEMENT IS HOUSED WITHIN A DURABLE STAINLESS STEEL CASING, TYPICALLY CONSTRUCTED FROM 304 OR 316 GRADE MATERIAL, PROVIDING ROBUST ENVIRONMENTAL PROTECTION. ELECTRICAL CONNECTION IS FACILITATED BY PFA INSULATED, 24 AWG STRANDED COPPER LEAD WIRES, COMMONLY SUPPLIED WITH A LENGTH OF 12 INCHES (304.8 MM). PERFORMANCE CHARACTERISTICS INCLUDE A TYPICAL TIME CONSTANT OF 25 SECONDS IN STILL AIR AND A DISSIPATION CONSTANT OF 2.0 MW/°C IN STILL AIR.
