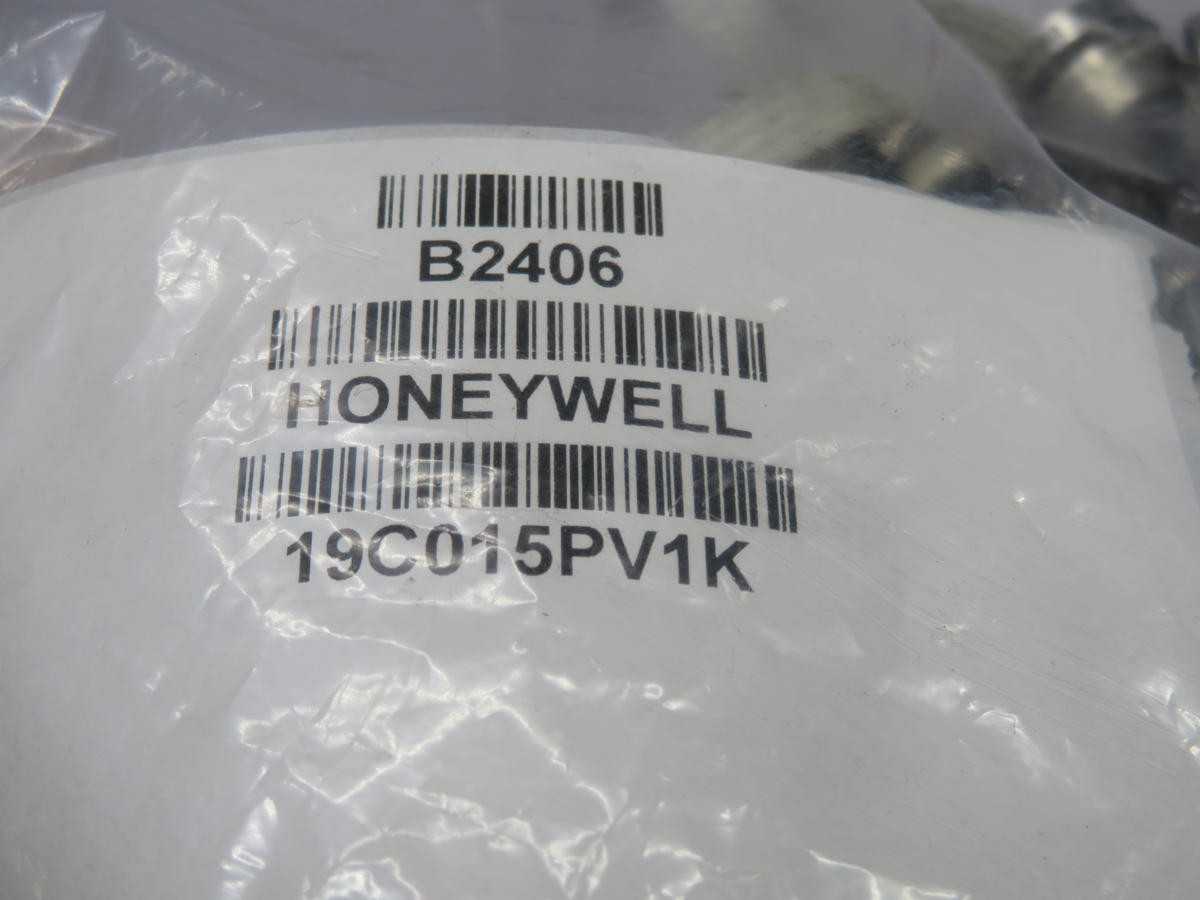

LOT OF 9 HONEYWELL 19C015PV1K SENSOR 15PSI 0.1V

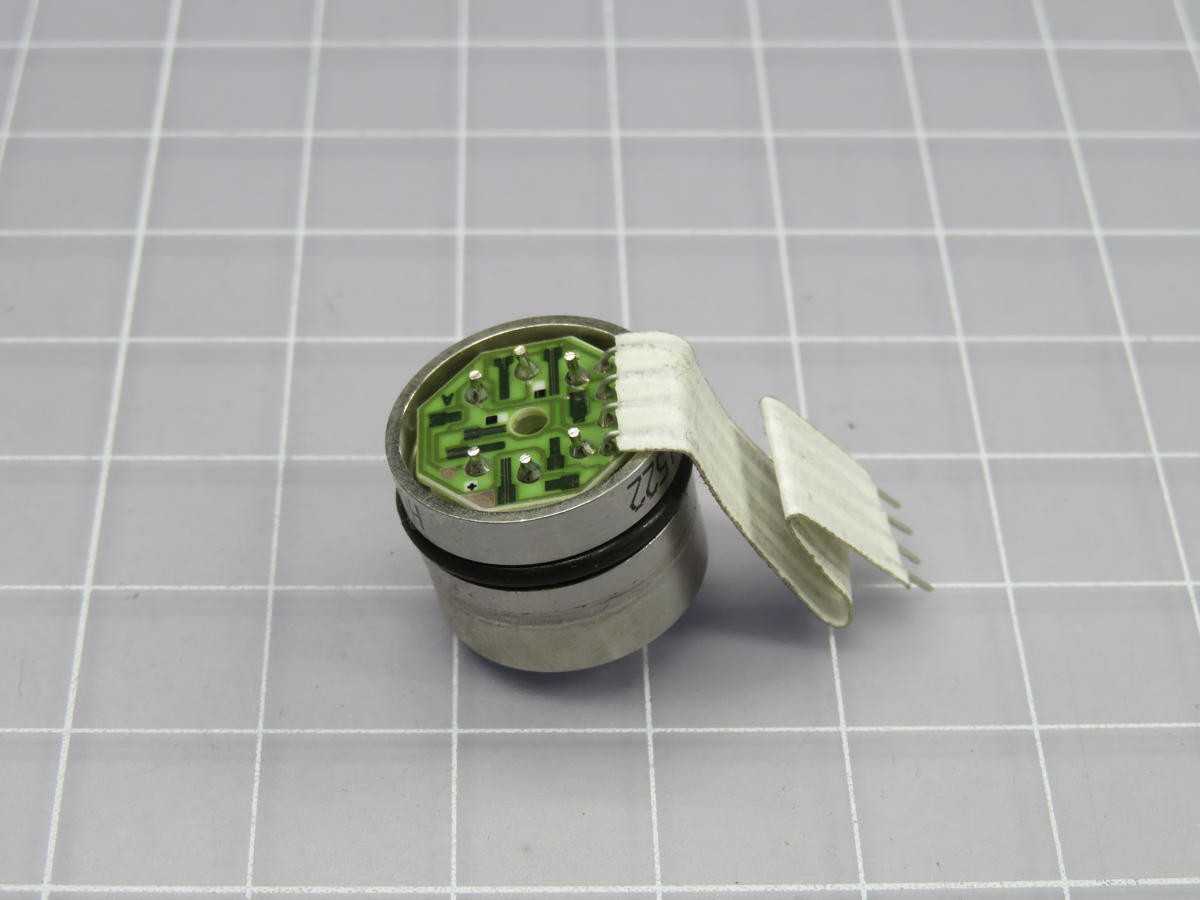

THE HONEYWELL 19C015PV1K IS A COMPENSATED PRESSURE SENSOR DESIGNED FOR VACUUM MEASUREMENT. IT FEATURES A -15 PSI (-103.42 KPA) VACUUM PRESSURE RANGE AND PROVIDES AN UNAMPLIFIED ANALOG OUTPUT OF 0 MV TO 100 MV WITH A 10 VDC EXCITATION VOLTAGE. THE SENSOR IS HOUSED IN A CYLINDRICAL STAINLESS STEEL BODY, INCORPORATING AN O-RING FOR SEALING. IT OFFERS A TYPICAL ACCURACY OF ±0.25% FULL SCALE SPAN (FSS) AND OPERATES WITHIN A TEMPERATURE RANGE OF -40°C TO 125°C, WITH A COMPENSATED TEMPERATURE RANGE OF 0°C TO 50°C. ELECTRICAL CONNECTION IS TYPICALLY VIA RADIAL LEADS.
