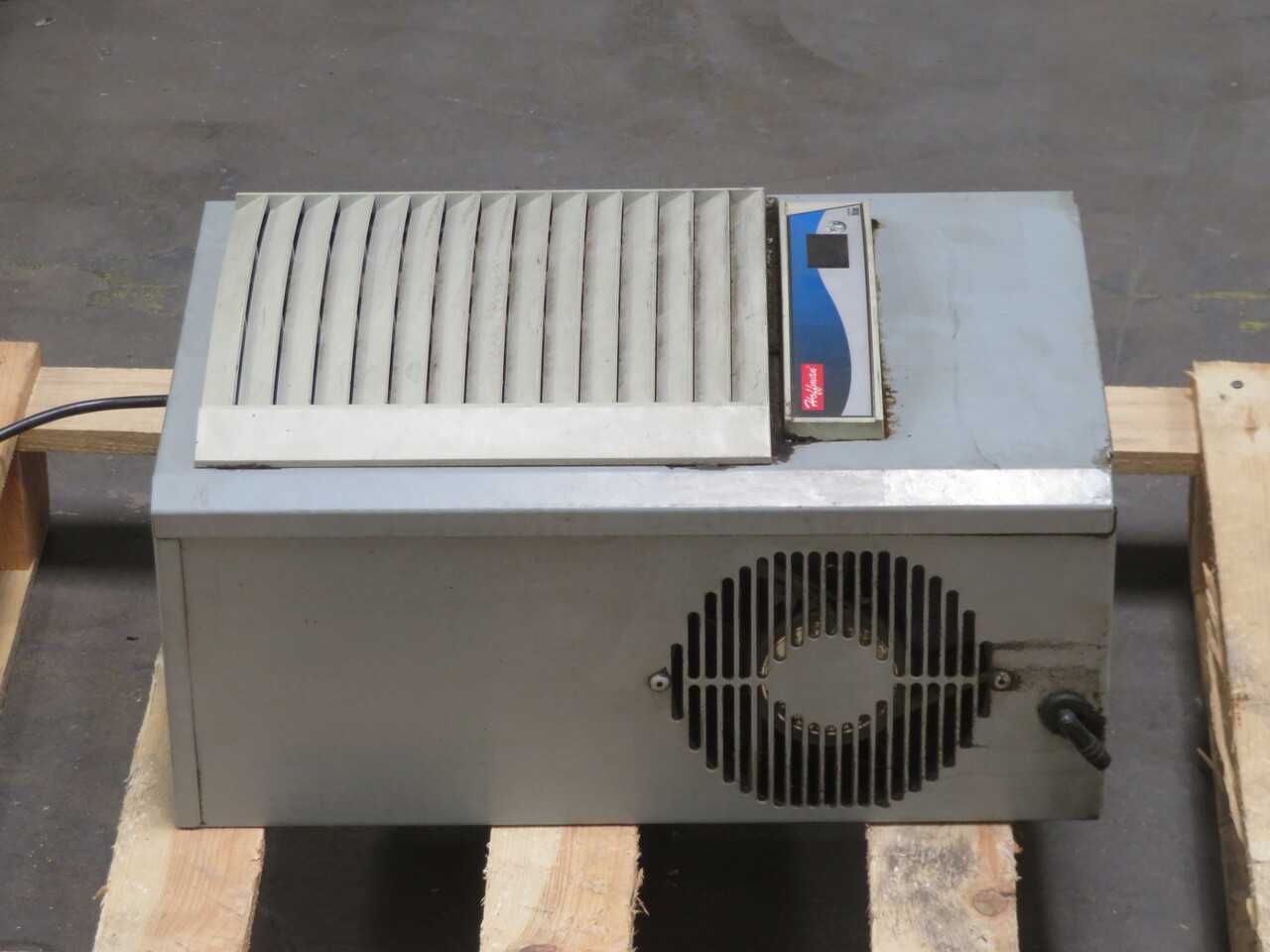

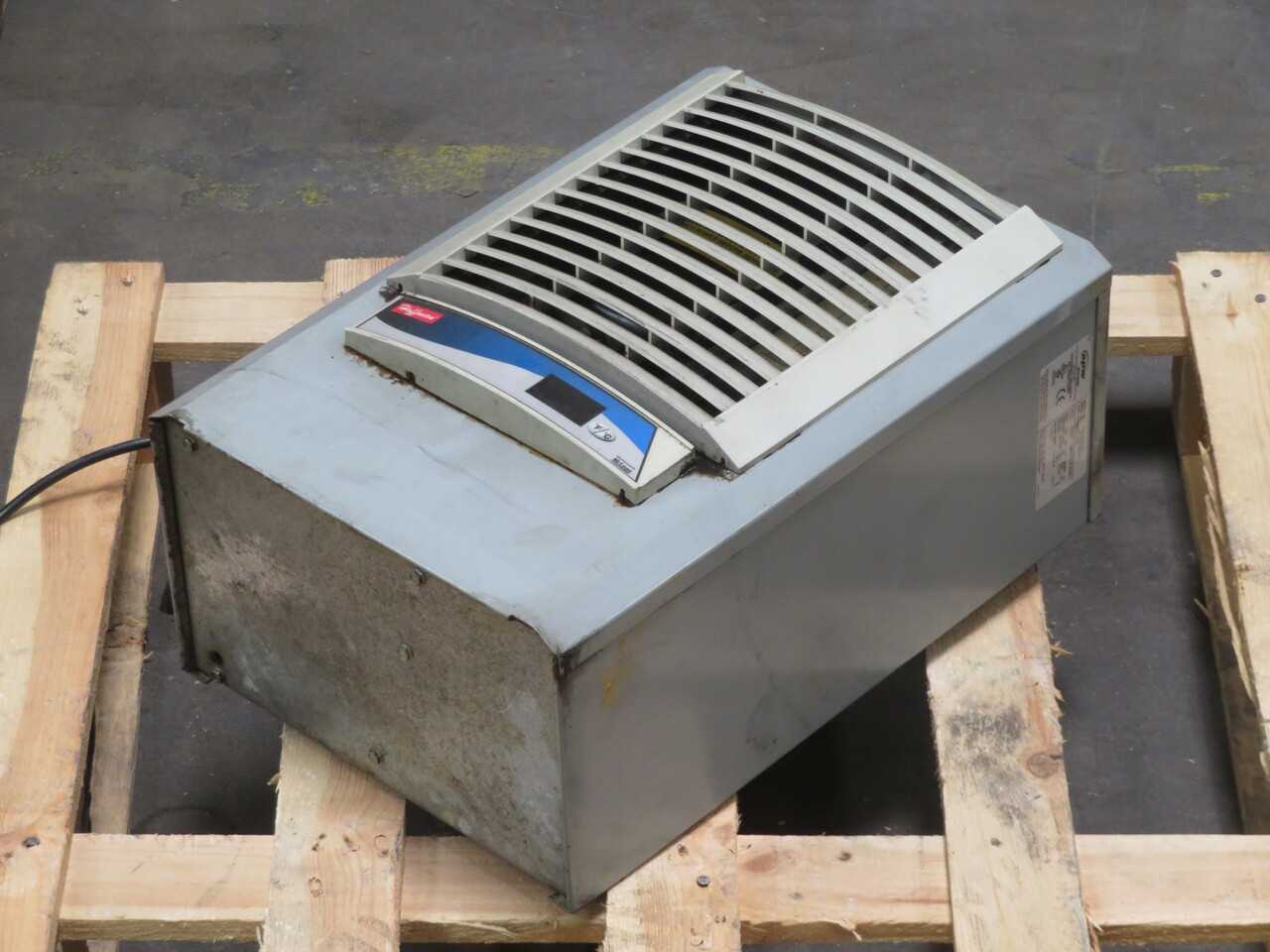

MCLEAN M17-0226-G004H AIR CONDITIONER, 220/230V POWER, 2200 BTU COOLING, 20.9 KG WEIGHT

THE MCLEAN M17-0226-G004H IS A SINGLE-PHASE AIR CONDITIONER DESIGNED FOR CABINET COOLING APPLICATIONS. IT OPERATES ON A 220/230 VAC POWER SUPPLY AT BOTH 50 HZ AND 60 HZ FREQUENCIES. THE UNIT PROVIDES A COOLING CAPACITY OF 2,200 BTU/HR, EQUIVALENT TO 645 WATTS. CURRENT DRAW IS 1.8 AMPS AT 50 HZ AND 1.9 AMPS AT 60 HZ. ITS OPERATIONAL AMBIENT TEMPERATURE RANGE SPANS FROM 50°F TO 125°F (10°C TO 51.7°C). THE AIR CONDITIONER UTILIZES R134A REFRIGERANT, WITH A CHARGE OF 10 OUNCES (0.28 KG). PHYSICAL DIMENSIONS ARE 25.98 INCHES HIGH, 10.91 INCHES WIDE, AND 7.01 INCHES DEEP (660 MM H X 277 MM W X 178 MM D). THE UNIT WEIGHS 46 POUNDS (20.9 KG) AND HOLDS A NEMA TYPE 12 RATING, INDICATING SUITABILITY FOR INDOOR DUSTTIGHT ENVIRONMENTS.
