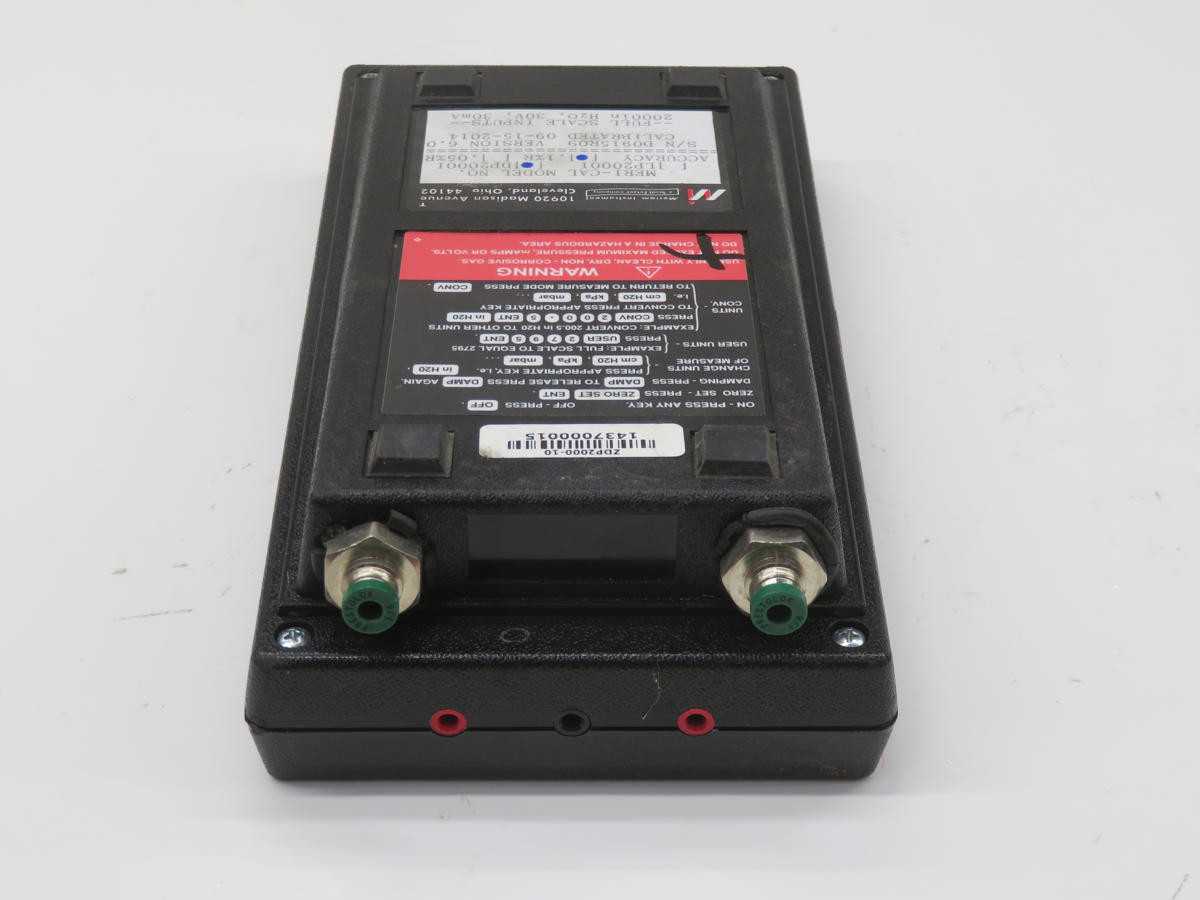

MERIAM INSTRUMENT DP2000I FLOW TRANSMITTERS, 2000 INH2O RANGE, 0.05% ACCURACY, 4-20MA OUTPUT

THE MERIAM INSTRUMENT DP2000I IS A PORTABLE DIGITAL DIFFERENTIAL PRESSURE TRANSMITTER ENGINEERED FOR PRECISE MEASUREMENT UP TO 2000 INCHES OF WATER (INH2O). IT DELIVERS A MEASUREMENT ACCURACY OF 0.05% OF FULL SCALE. THE DEVICE FEATURES A STANDARD 4-20MA CURRENT OUTPUT AND OPERATES WITH AN EXTERNAL POWER SUPPLY RANGING FROM 12-30VDC, SUPPORTING A MAXIMUM CURRENT DRAW OF 30MA. AN INTEGRATED LCD FACILITATES DIRECT READINGS. PROCESS CONNECTIONS TYPICALLY UTILIZE 1/8" NPT FEMALE FITTINGS, COMPATIBLE WITH NON-CORROSIVE GAS MEDIA.
