MICHAEL RIEDEL DRUF 63 000 POWER/ISOLATION TRANSFORMER PRI.480 SEC 400V+N 3PH 60KVA

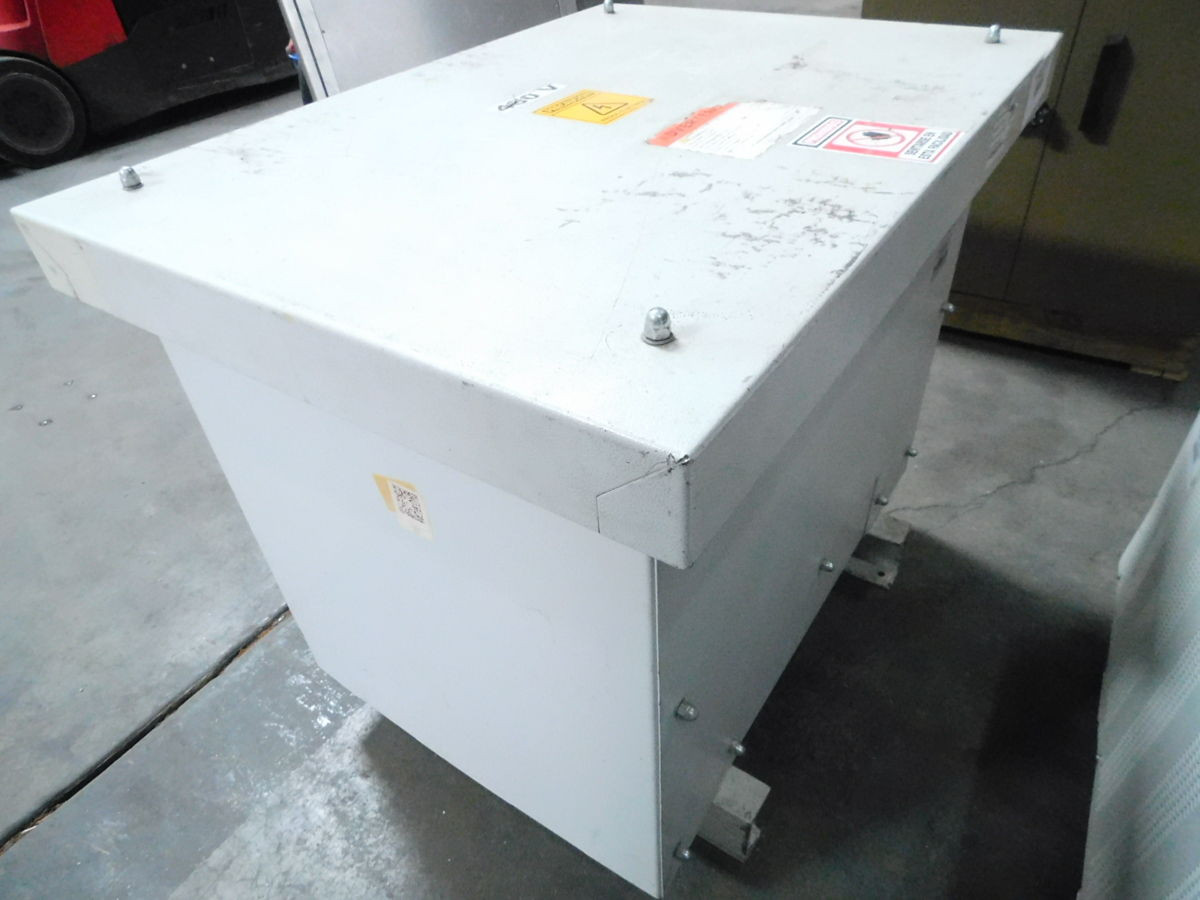

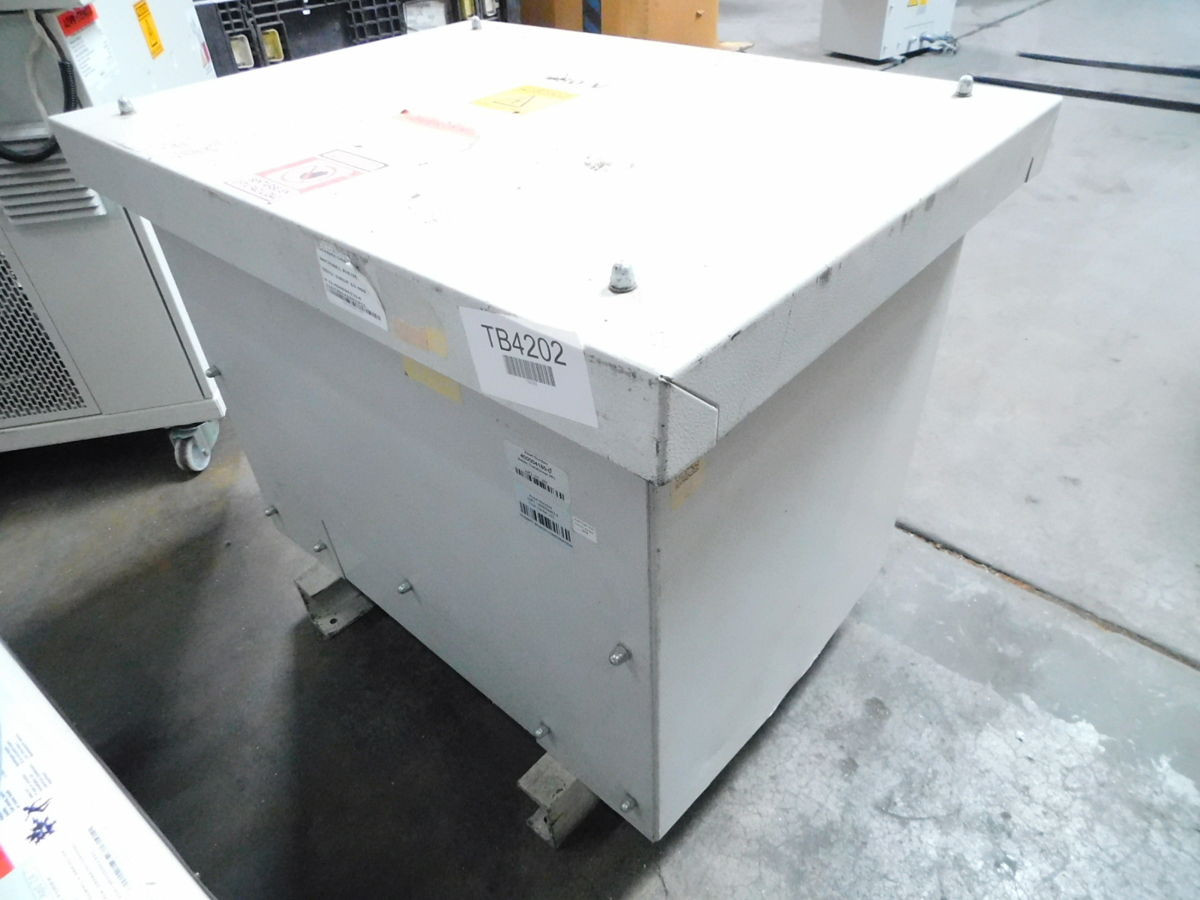

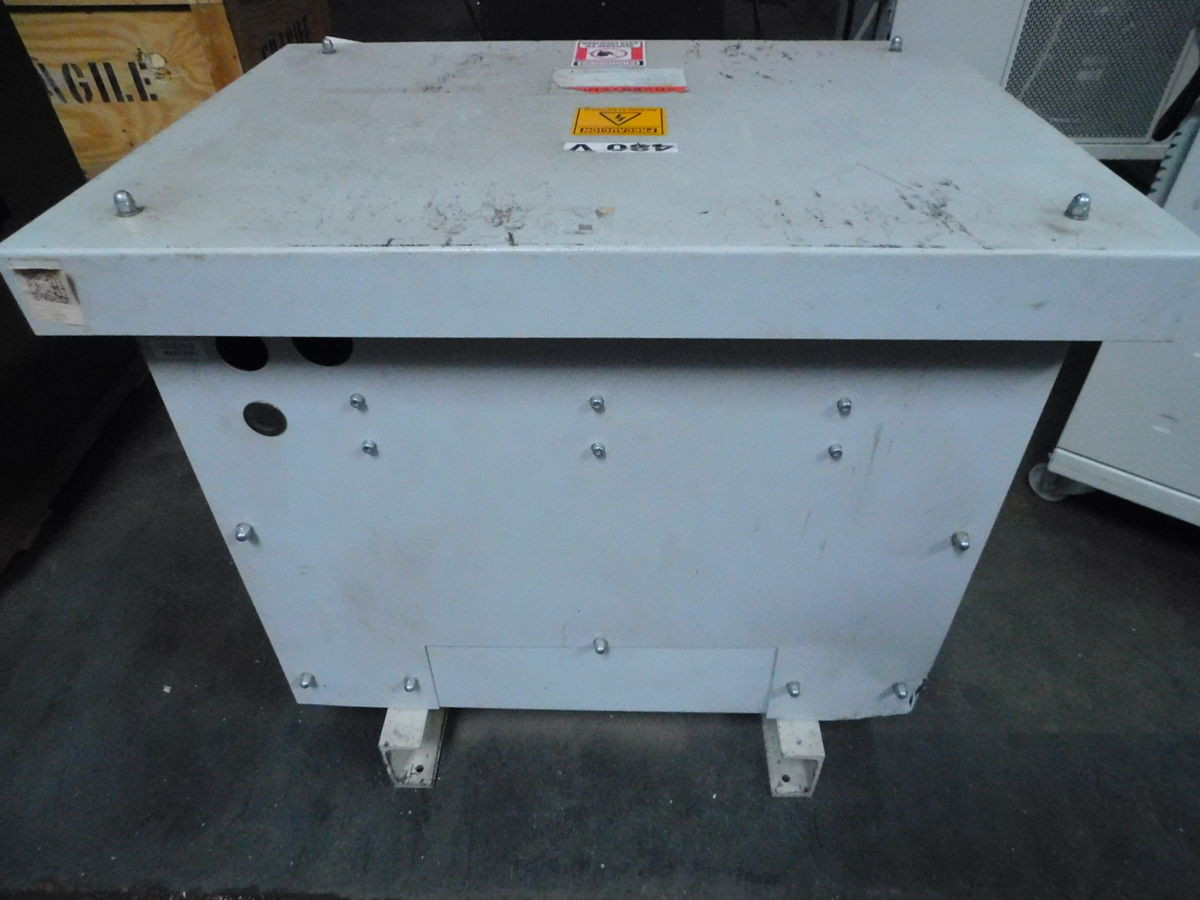

THIS MICHAEL RIEDEL DRUF 63 000 IS A THREE-PHASE POWER AND ISOLATION TRANSFORMER WITH AN APPARENT POWER RATING OF 60 KVA. ITS PRIMARY WINDING OPERATES AT 480 VAC, WHILE THE SECONDARY WINDING PROVIDES 400 VAC WITH A NEUTRAL CONNECTION, SUITABLE FOR A 400/230V Y-CONFIGURATION. THE TRANSFORMER IS DESIGNED FOR A NOMINAL OPERATING FREQUENCY OF 50/60 HZ. IT FEATURES INSULATION CLASS F, ACCOMMODATING A MAXIMUM AMBIENT TEMPERATURE OF 40°C, AND IS TYPICALLY SUPPLIED AS AN OPEN-TYPE UNIT WITH AN IP00 PROTECTION DEGREE, INTENDED FOR INTEGRATION INTO A SEPARATE ENCLOSURE.
